Description

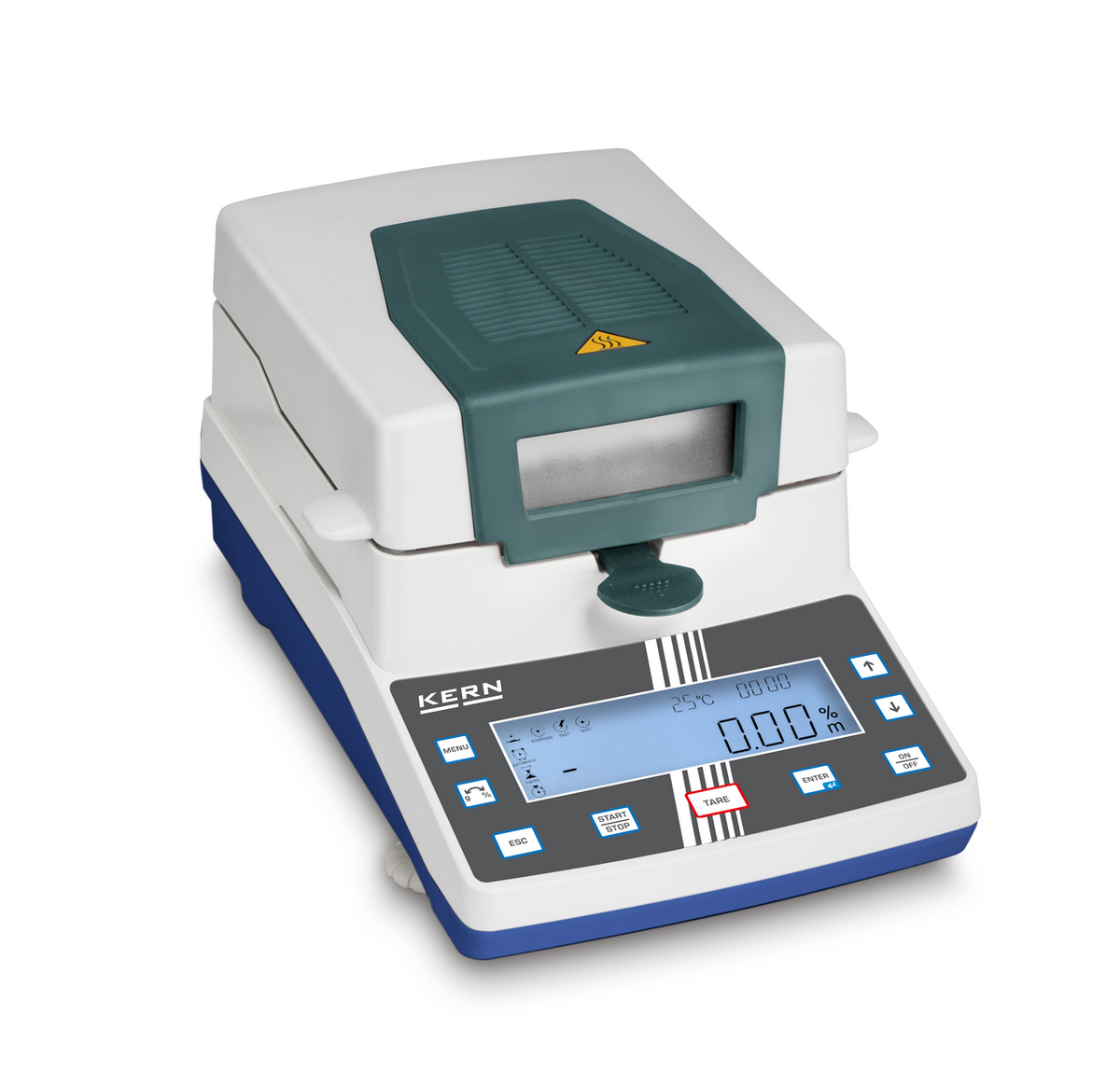

- Backlit LCD graphic display, digit height 14 mm
[[1]] Active drying process
[[2]] Active heating profile
[[3]] Active switch-off criteria
[[4]] Previous drying time
[[5]] Current temperature
[[6]] Current moisture content in % - 400 W halogen-quartz glass heater
- Suitable for temperature-insensitive samples
- Observation window above the sample, useful during initial setting
- Internal memory for automatic sequence of 15 complete drying processes and 5 drying processes carried out
- The last value measured remains on the display until it is replaced by a new measurement
- 50 sample plates included
- Application handbook: In the download centre you will find a practical application handbook containing many examples, field reports, settings and tips for each KERN moisture analyser
Technical Data
| Weighing capacity [Max] | 110 g |
| Readability [d] | 0,001 g |
| Weighing system | Strain gauge |
| Sample – Moisture content | 20% - 100% |
| Sample – Dry content | 100% - 20% |
| Temperature [Min] (°C) | 40 °C |
| Temperature [Max] (°C) | 199 °C |
| Stabilization time | 3 s |
| Units | g, % Humidity, % Dry mass |
| Reproducibility | 0,001 g |
| Linearity | ± 0,003 g |
| Readability moisture [d] (%) | 0,01% |
| Drying modes | Standard drying, Rapid drying, Gentle drying |
| Switch-off criteria | time controlled, automatic, manual |
| Input voltage device / power [Max] | 230 V AC, 50 Hz |
| GTIN/EAN number | 4045761179622 |
