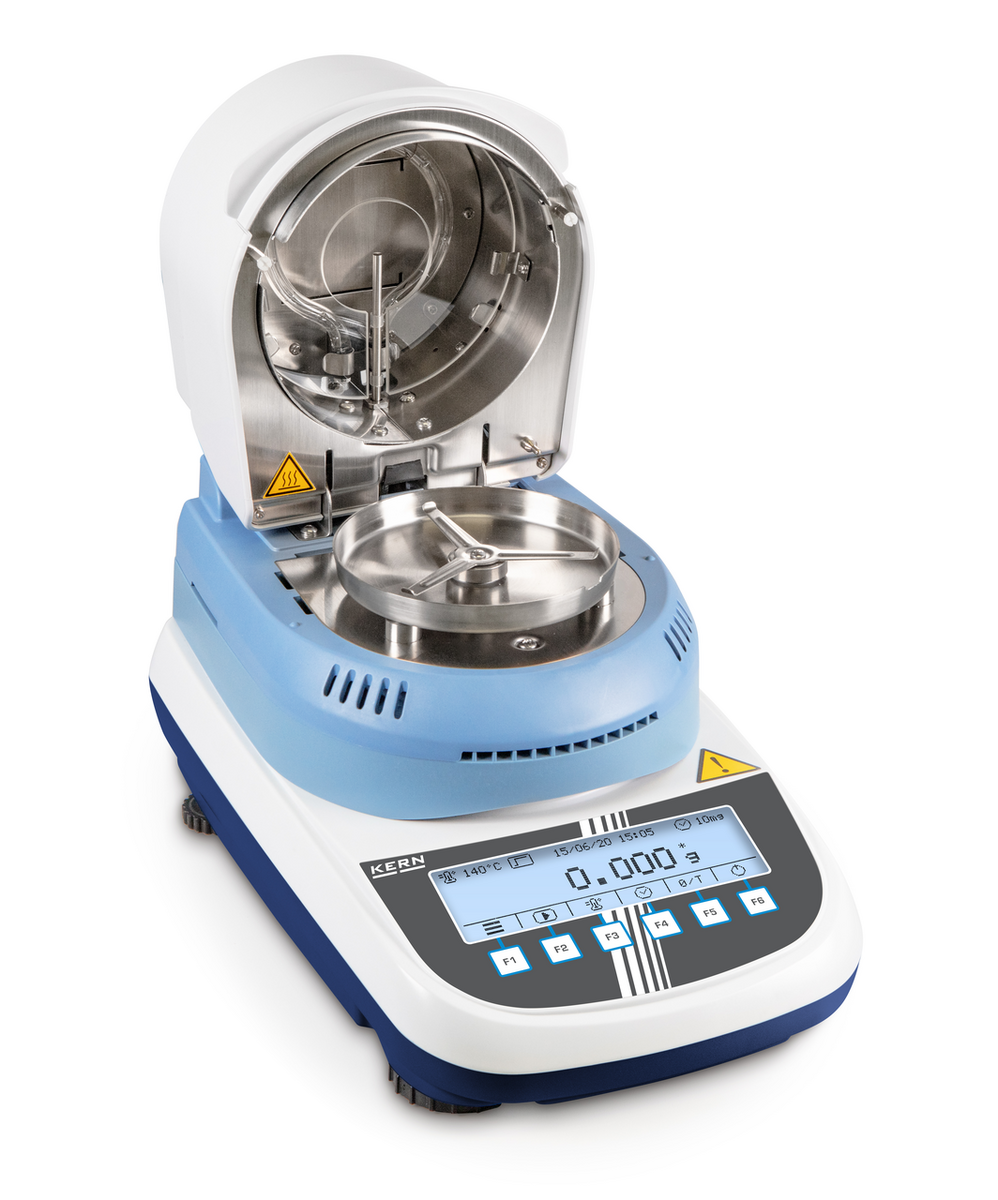

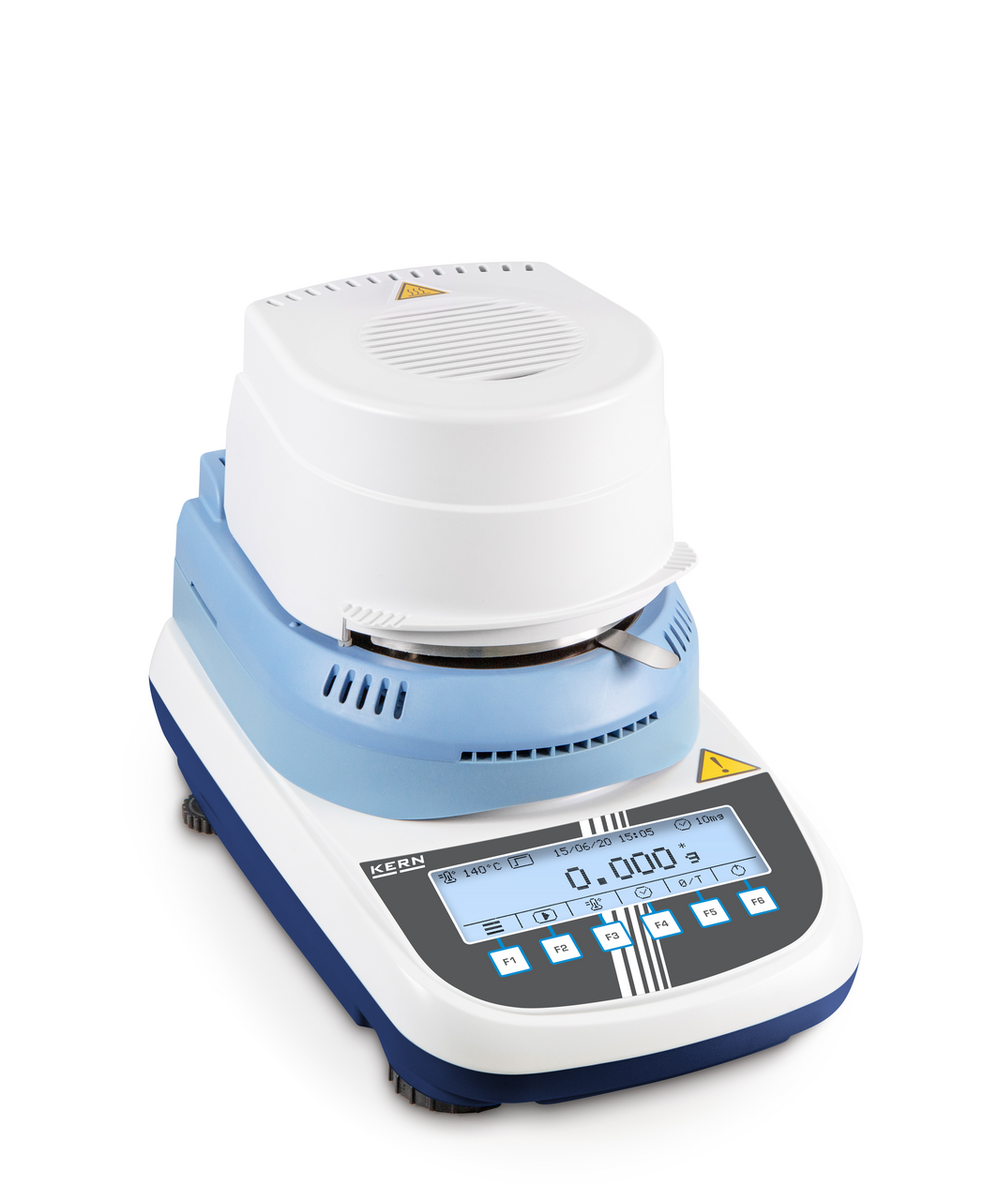

Description
- Backlit LCD graphic display, digit height 11 mm
- 6 direct keys for rapid access to the main functions
Home screen:
[[1]] Main menu
[[2]] Start drying process
[[3]] Select drying temperature
[[4]] Select shut-off criteria
[[5]] Setting to zero/taring
[[6]] Stand-by
During measurement:
[[7]] Current temperature
[[8]] Current heating profile
[[9]] Active switch-off criteria
[[10]] Abort drying process
[[11]] Stop drying process
[[12]] Display current drying parameters
[[13]] Toggle the unit for displaying the results
At the end of the measurement:
[[14]] Exit drying program
[[15]] Print measurement report
[[16]] (De)activate, edit GLP parameters
[[17]] Display detailed result
[[18]] Toggle the unit for displaying the results - 400 W halogen-quartz glass heater
- User guidance in 6 languages (DE, EN, FR, IT, ES, PT)
- Automatic taring when starting a measurement by closing the lid
- The last value measured remains on the display until it is replaced by a new measurement
- [[19]] Internal GLP; printout of balance ID, project ID, user ID, values determined by the drying process etc.
- 10 sample plates included
- Protective working cover included with delivery
- Application handbook: In the download centre you will find a practical application handbook containing many examples, field reports, settings and tips for each KERN moisture analyser
Technical Data
| Weighing capacity [Max] | 160 g |
| Readability [d] | 0,001 g |
| Weighing system | Strain gauge |
| Sample – Moisture content | 10% - 100% |
| Sample – Dry content | 100% - 10% |
| Temperature [Min] (°C) | 35 °C |
| Temperature [Max] (°C) | 160 °C |
| Stabilization time | 4 s |
| Units | g, mg, % rH, % Dry mass |
| Reproducibility | 0,001 g |
| Linearity | ± 0,003 g |
| Readability moisture [d] (%) | 0,01% |
| Drying modes | Standard drying, Rapid drying |
| Switch-off criteria | time controlled, automatic, manual |
| GTIN/EAN number | 4045761243361 |
