MP 120 Manometer

Features

• Pressure measurement
• Air velocity measurement
• Coefficient of the adjustable differential pressure element
• Temperature and atmospheric pressure compensation
• Selection of units
• Manual autozero
• Hold function
• Display of minimum and maximum values
• Configurable

A Micromanometer allows you to easily make HVAC pressure measurements.

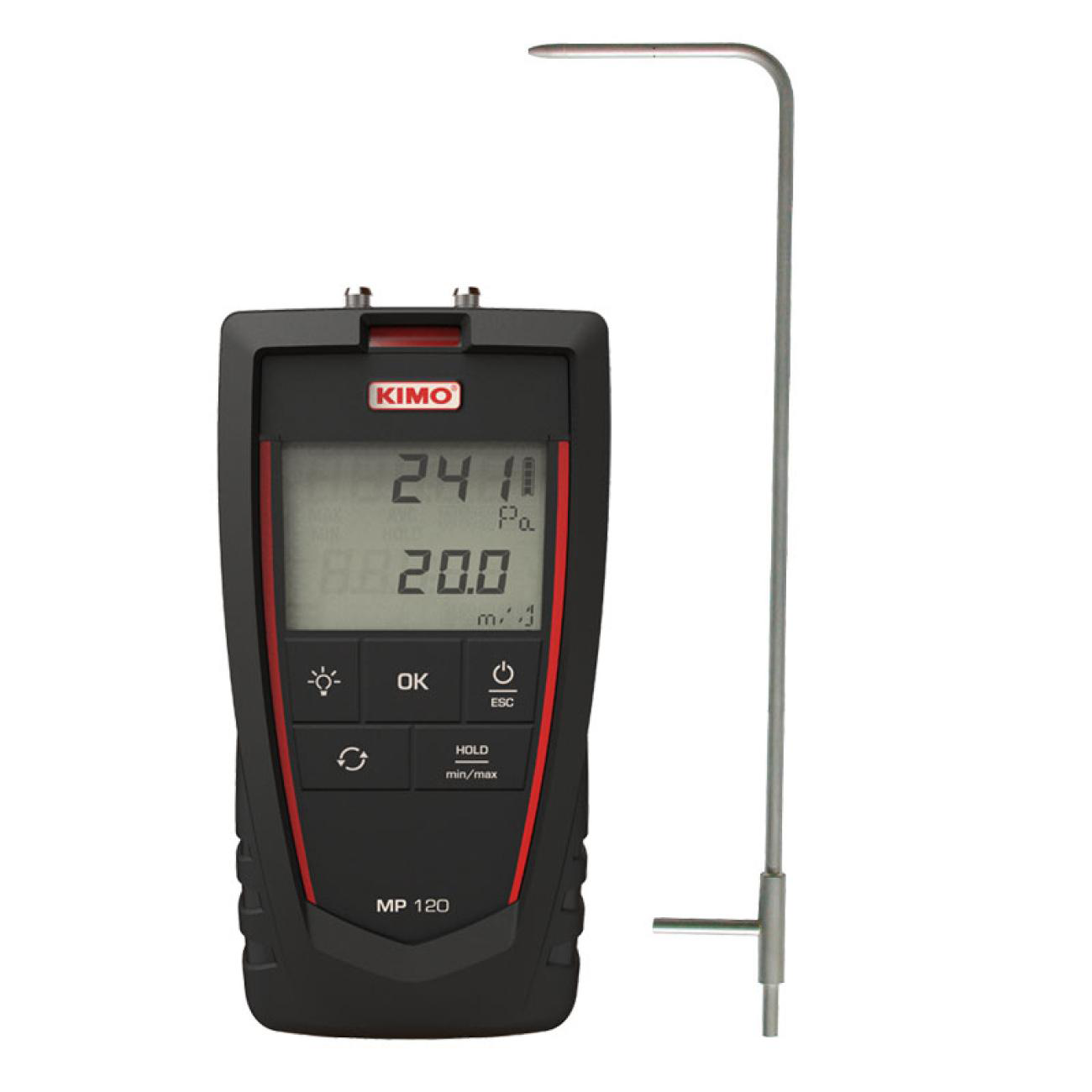

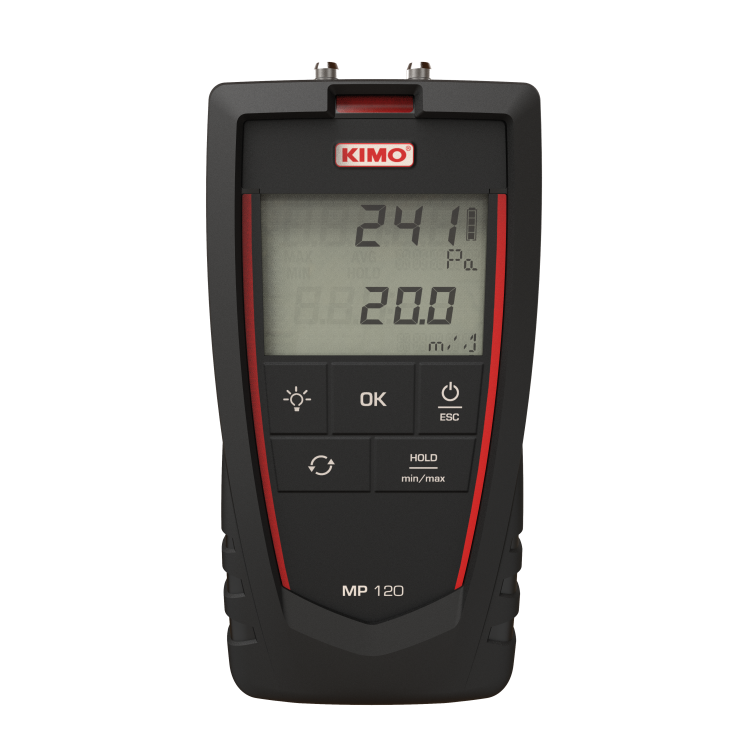

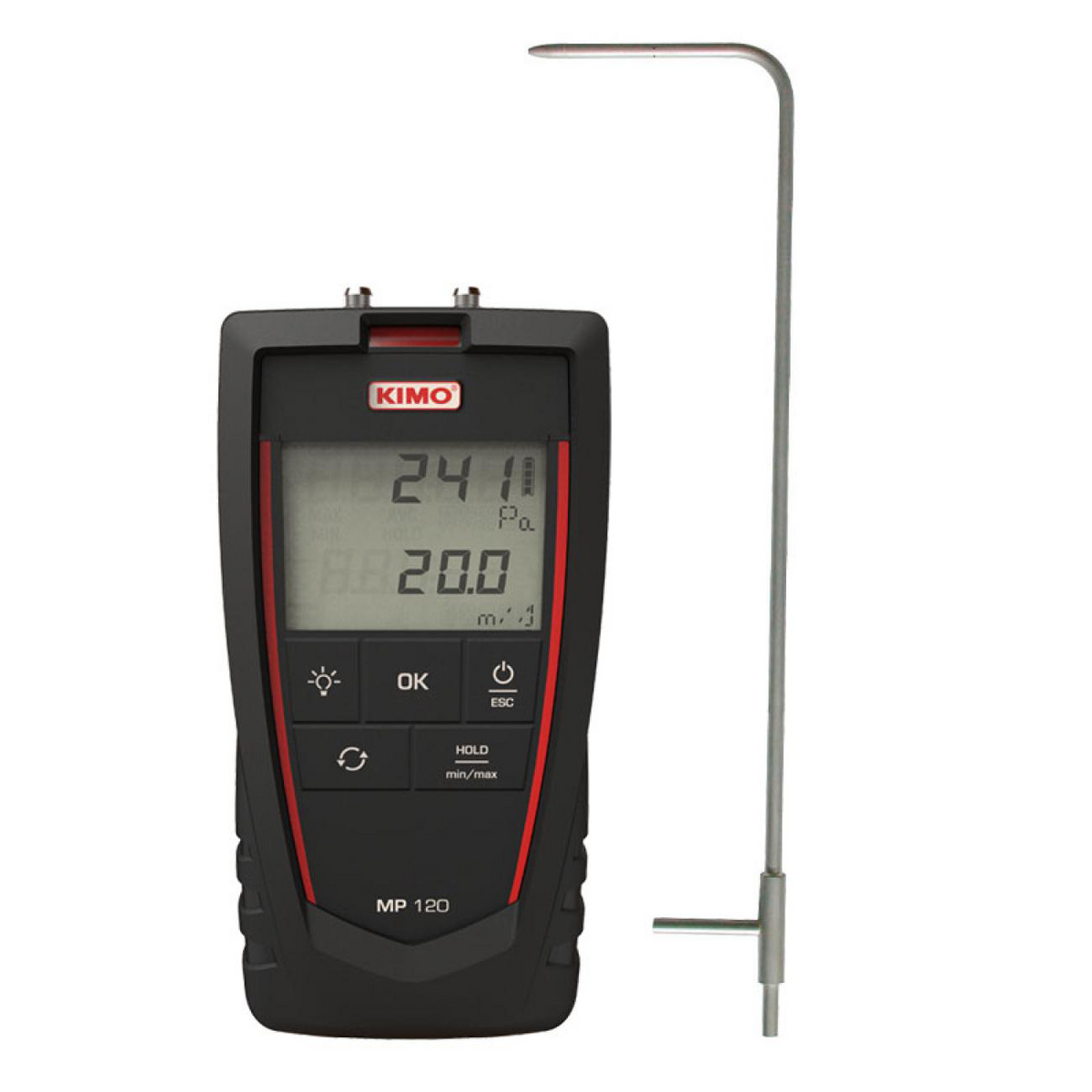

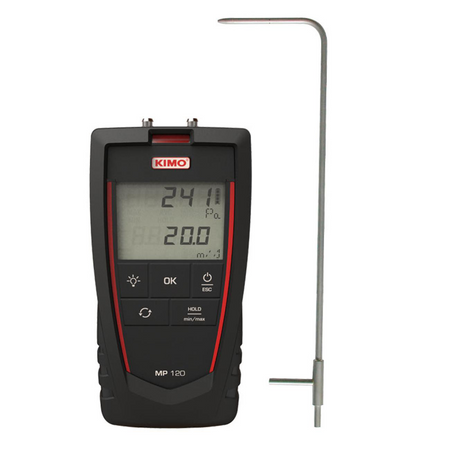

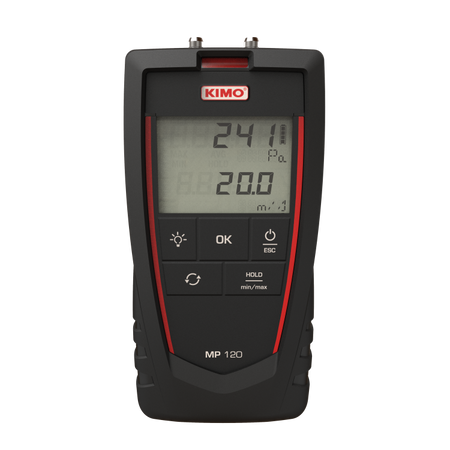

The Kimo MP 120 is a portable, handheld meter suitable for measuring pressure and air velocity.

Pitot tube not included, sold separately.

Measure details

• Units
  Pa, m/s, km/h, fpm, inWg, mmH₂O, daPa



Measuring ranges

• Differential pressure
  -4.01 inWg ... 4.01 inWg
• Differential pressure
  -1000.00 Pa ... 1000.00 Pa
• Velocity
  0.00 fpm ... 7874.00 fpm
• Velocity
  0.00 m/s ... 40.00 m/s

Technical details

• Parameters
  Air velocity

  Differential pressure
• Displays
  4-line display
• IP Protection
  IP 54
• Battery life
  180 hours
• Standards
  FCC part 15

  UKCA

  2011/65/EU RoHS II

  2012/19/EU WEEE

  2014/30/EU EMC

  2014/35/EU Low Voltage
• Power supply
  4 batteries AAA LR03 1.5 V
• Protective cover
  No
• Interchangeable module
  No

Instrument Dimensions

• Length
  2 25/32 inches

  71.5 mm
• Width
  1 11/32 inches

  34.2 mm
• Height
  5 25/32 inches

  147.9 mm
• Weight
  1/2 pounds

  220 g

Operating temperature

• Min
  0.00 °C

  32.00 °F
• Max
  50.00 °C

  122.00 °F
