OVERVIEW
- C-type or helical Bourdon tube manometer
- for the food, pharmaceutical, chemical and petrochemical industries
- measuring system made entirely of stainless steel
- housing diameter: 100 or 150 mm
- measuring range: -1...0 to 0...1600 bar
DESCRIPTION

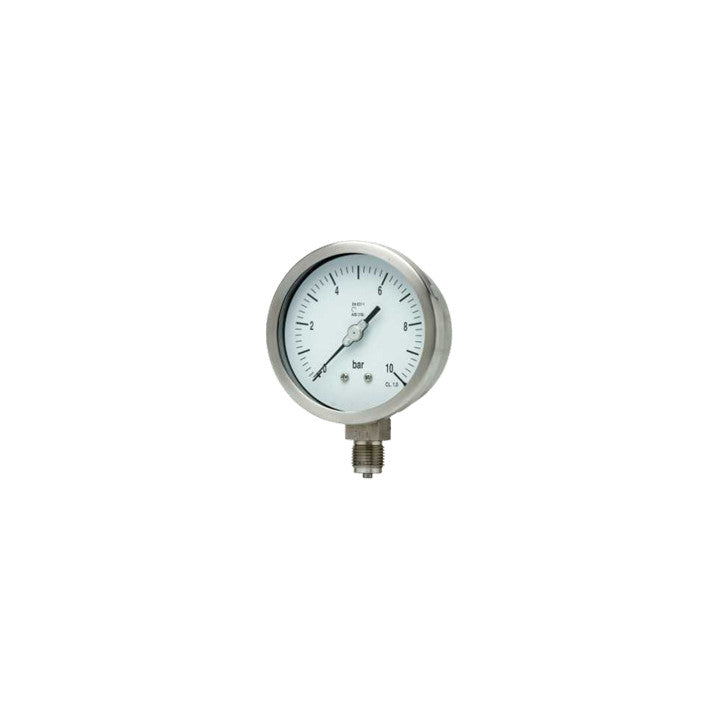

The P101 manometer is designed to measure the pressure of liquids and corrosive gases in the food, pharmaceutical, chemical and petrochemical industries.
General Specifications
| Design |
EN837-1
|
| Measurement range |
-1...0 bar to 0...1600 bar
|
| Process connection |
1/2 NPT
1/4 NPT
3/8 BSP
M20x1.5
1/2 BSP
1/4 BSP
|
| Housing dimensions |
Ø100mm
Ø150mm
|
| Measuring element |
Bourdon tube type "C", stainless steel
helical type bourdon tube, stainless steel
|
| Accuracy |
±1.0%
|
| Filling |
glycerine
lack
silicone oil
|
| Operating temperature |
0...+40°C
max 100°C
|
| Housing material |
stainless steel
|
| Degree of protection |
IP54
IP65
IP66
IP67
|
| Installation |
bottom connection
bottom connection with rear flange
rear central connection
rear acentric connection
rear connection eccentric with front flange
|
