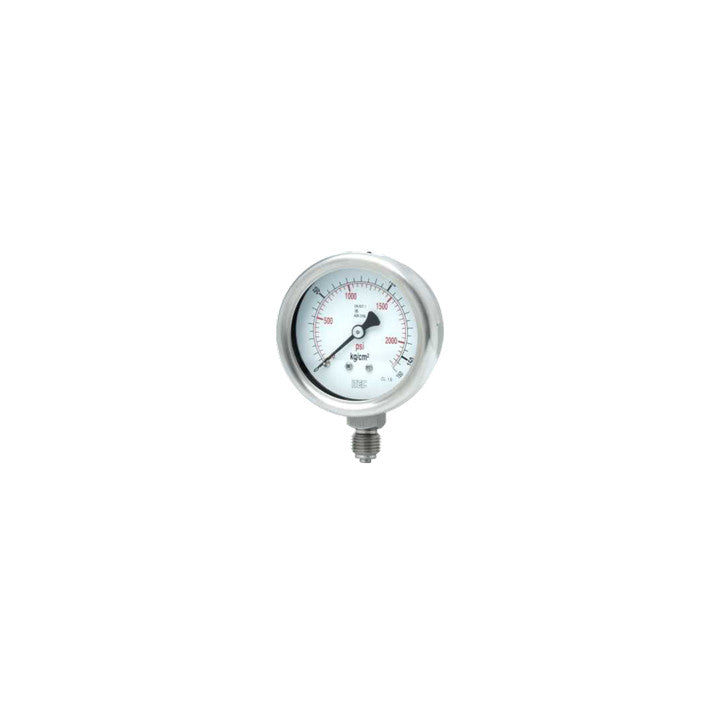

OVERVIEW
- C-type or helical Bourdon tube manometer
- for the food, pharmaceutical, chemical and petrochemical industries
- measuring system made entirely of stainless steel
- case diameter: 63 mm
-
measuring range: -1...0 to 0...1000 bar
DESCRIPTION
P103 pressure gauges are manufactured in accordance with EN 837-1. Due to the stainless steel construction, this model is suitable for many industrial applications. For applications where vibrations occur, the pressure gauge housings are filled with a liquid (glycerine or silicone). This cushions the movement of the pointer, making it easier to read the pressure. In addition, the filling protects the device and extends its service life.
Note: In the event of sudden pressure changes such as impacts or pulsations, it is recommended to use pressure dampers.
General Specifications
| Design |
EN837-1
|
| Measurement range |
-1...0 bar to 0...1000 bar
|
| Process connection |
1/4 BSP
|
| Housing dimensions |
Ø63mm
|
| Measuring element |
Bourdon tube type "C", stainless steel
helical type bourdon tube, stainless steel
|
| Accuracy |
±1.6%
|
| Filling |
glycerine
lack
silicone oil
|
| Operating temperature |
max 300°C
|
| Housing material |
stainless steel
|
| Degree of protection |
IP54
IP65
|
| Installation |
bottom connection
bottom connection with rear flange
rear acentric connection
rear connection eccentric with front flange
|
