Overview

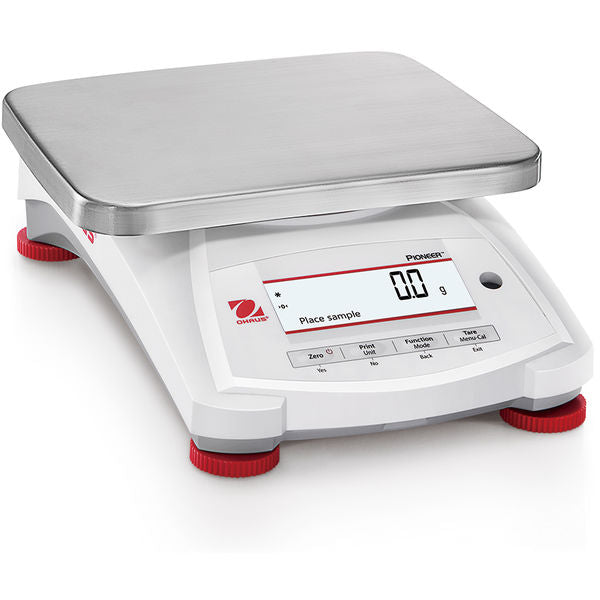

The Pioneer PX Series combines essential weighing functionality with competitive performance, offering high accuracy and repeatability for applications in laboratory, industrial and educational settings. The PX is affordably priced, and intuitively designed for intelligent operation with a second line display for additional information, and USB and RS232 connectivity for easy communication.
Applications
Basic Weighing, Parts Counting, Percent Weighing, Animal Weighing, Density Determination, Formulation
Display
2-Line LCD with Backlight
Operation
Power Adaptor
Communication
RS232, USB
Construction
Metal base, plastic top housing, removable stainless steel pan, weigh-below-hook
Design Features
User-selectable environmental filters and brightness settings, auto-tare, auto-dim, user-selectable span calibration points, software lockout and reset menu, userselectable communication settings and data print options, user-definable project and user IDs, software overload/underload indicator, stability indicator, four operating languages
Specifications
| Maximum Capacity | 12,000 g/12,000 g |
| Readability | 0.1 g; 0.1 g |
| Pan Size | 248 mm; 248 mm x 193 mm; 193 mm |
| Internal Calibration | Not Applicable |
| Draftshield | — |
| Dimensions | 321 mm; 321 mm x 101 mm; 101 mm x 209 mm; 209 mm (LxHxW) |
| Battery Life | Not Applicable |
| Legal for Trade | Not Applicable |
| Auxiliary Display Model | Available as an Accessory |
| Auto Door | Not Applicable |
| Tare Range | To capacity by subtraction |
| Working Environment | operability guaranteed between 5°C and 40°C; 10°C – 30°C, 80%RH, non-condensing |
| Net Weight | 7.7 lb; 7.7 lb (3.5 kg; 3.5 kg) |
| In-Use Cover | Included |
| Communication | USB; RS232 |
| Power | AC Adapter (Included) |
| Units of Measurement | Singapore Tael; Pennyweight; Ounce Troy; Kilogram; Grain; Tical; Custom; Newton; Momme; Taiwan Tael; Baht; Gram; Hong Kong Tael; Pound; Tola; Mesghal; Ounce; Carat |
| Display | 2-Line LCD with Backlight |
| Pan Construction | Stainless Steel |
| Built-in Ionizer | No |
| Stabilization Time | 1 s; 1 s |
| Repeatability, typical | 0.1 g; 0.1 g |
| Minimum Weight (USP, 0.1%, typical) | 160 g; 160 g |
| Linearity ± | 0.2 g; 0.2 g |
| Width (Shipping) | 550 mm; 550 mm |
| Height (Shipping) | 291 mm; 291 mm |
| Length (Shipping) | 385 mm; 385 mm |
| Gross Weight (Shipping) | 5 kg; 5 kg |
