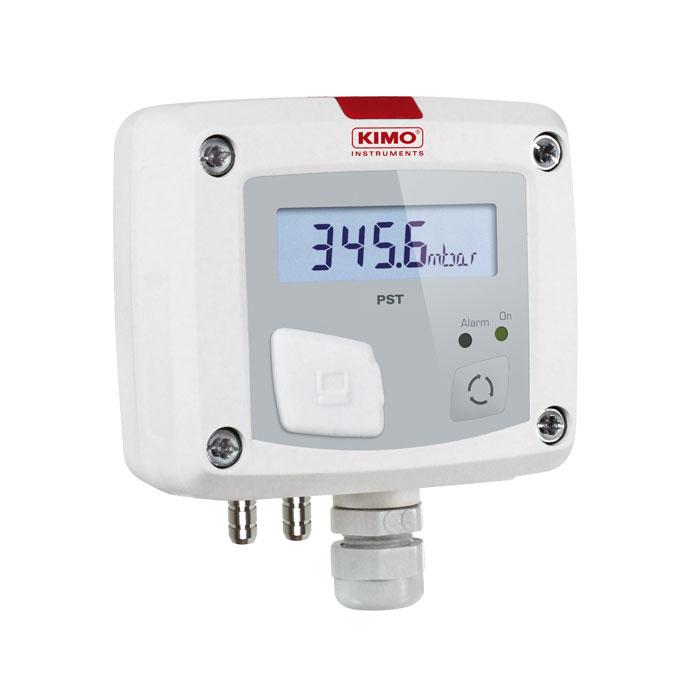

PST Pressostat

Pressostat

A manostat is a pressure gauge which has a switch inside its casing. At a selected pressure the switch activates an electrical contact and stops the machine on which it is wired.

Kimo’s PST is used to control pressure.

Measure details

• Units
  Pa, mbar, hPa, kPa, inWg, mmH₂O, mmHg, daPa
• Alarm
  Red led in front and internal buzzer (70 dB at 10 cm)

Technical details

• Parameters
  Differential pressure
• Displays
  1-line display
• IP Protection
  IP 65
• Standards
  UKCA

  2011/65/EU RoHS II

  2012/19/EU WEEE

  2014/30/EU EMC

  2014/35/EU Low Voltage
• Power supply
  24 Vac/Vdc ±10%
• Relay
  1 RCR relay 3 A / 230 VAC
• Ethernet communication
  No
• ModBus network
  No

Instrument Dimensions

• Length
  90 mm
• Width
  46 mm
• Height
  109 mm
• Weight
  143 g



Operating temperature

• Min
  0.00 °C
• Max
  50.00 °C

Storage temperature

• Min
  -10.00 °C
• Max
  70.00 °C
