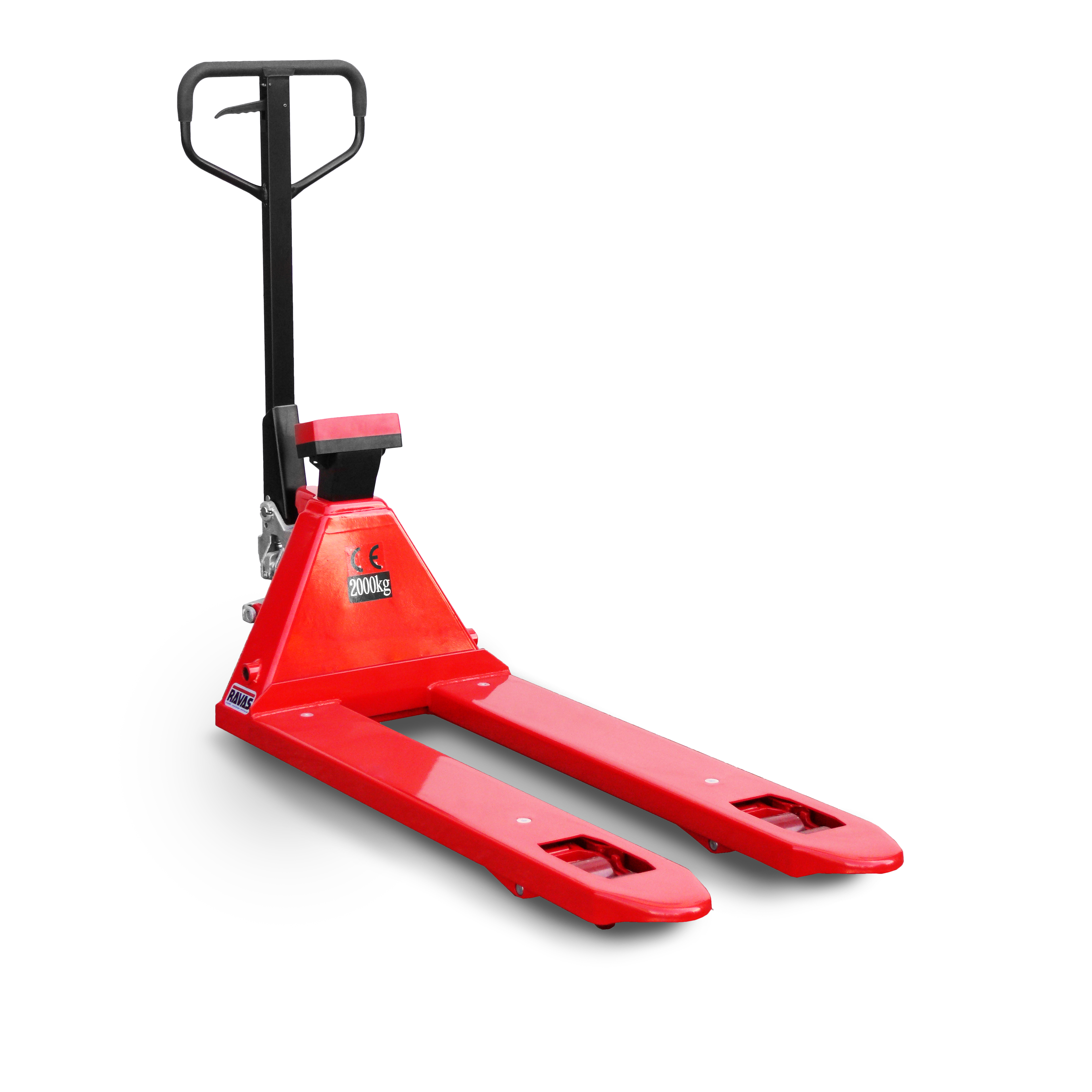

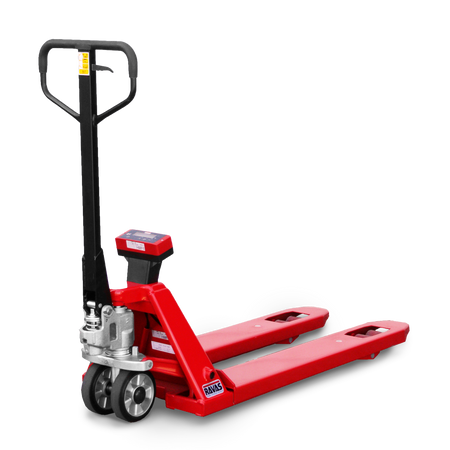

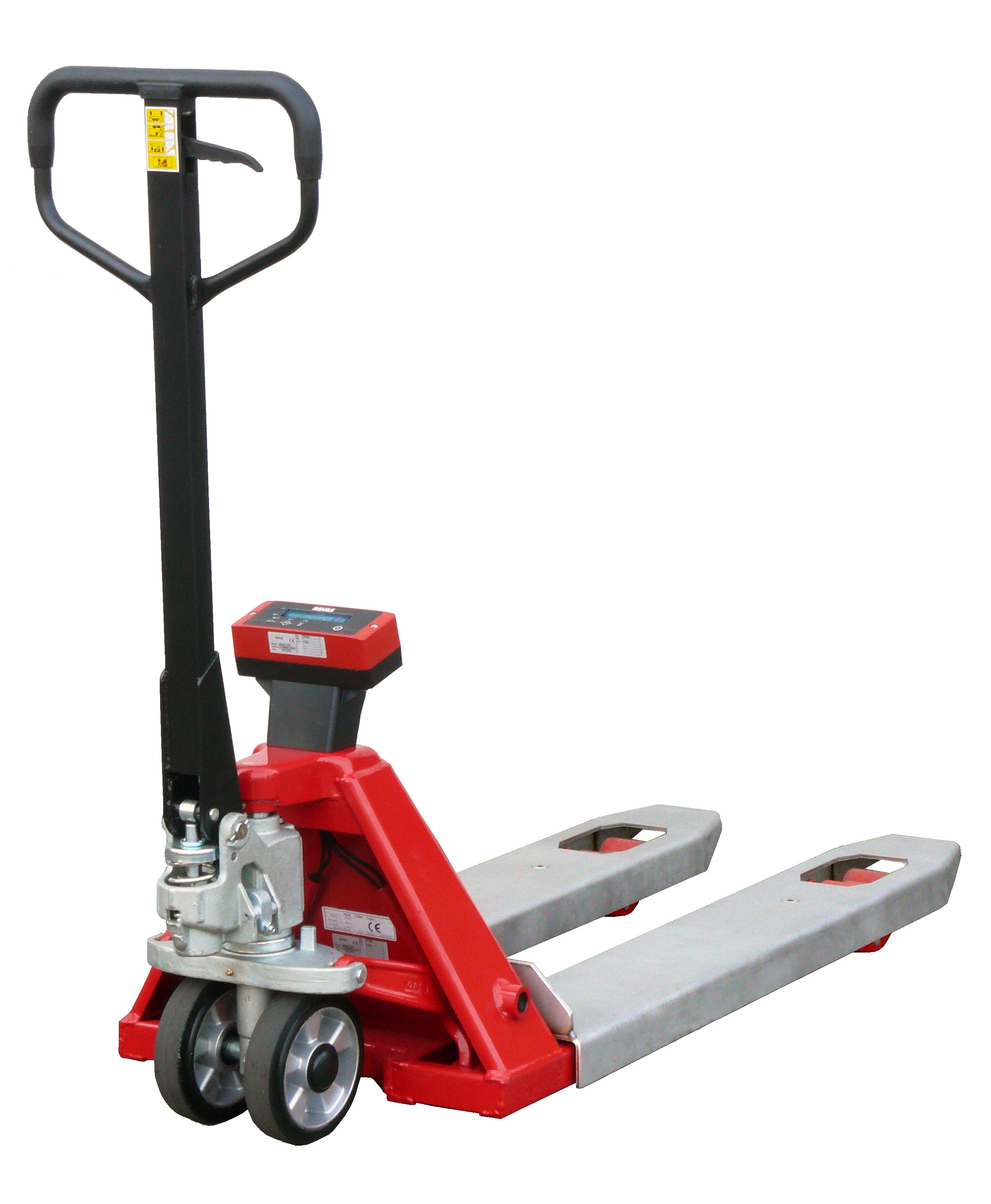

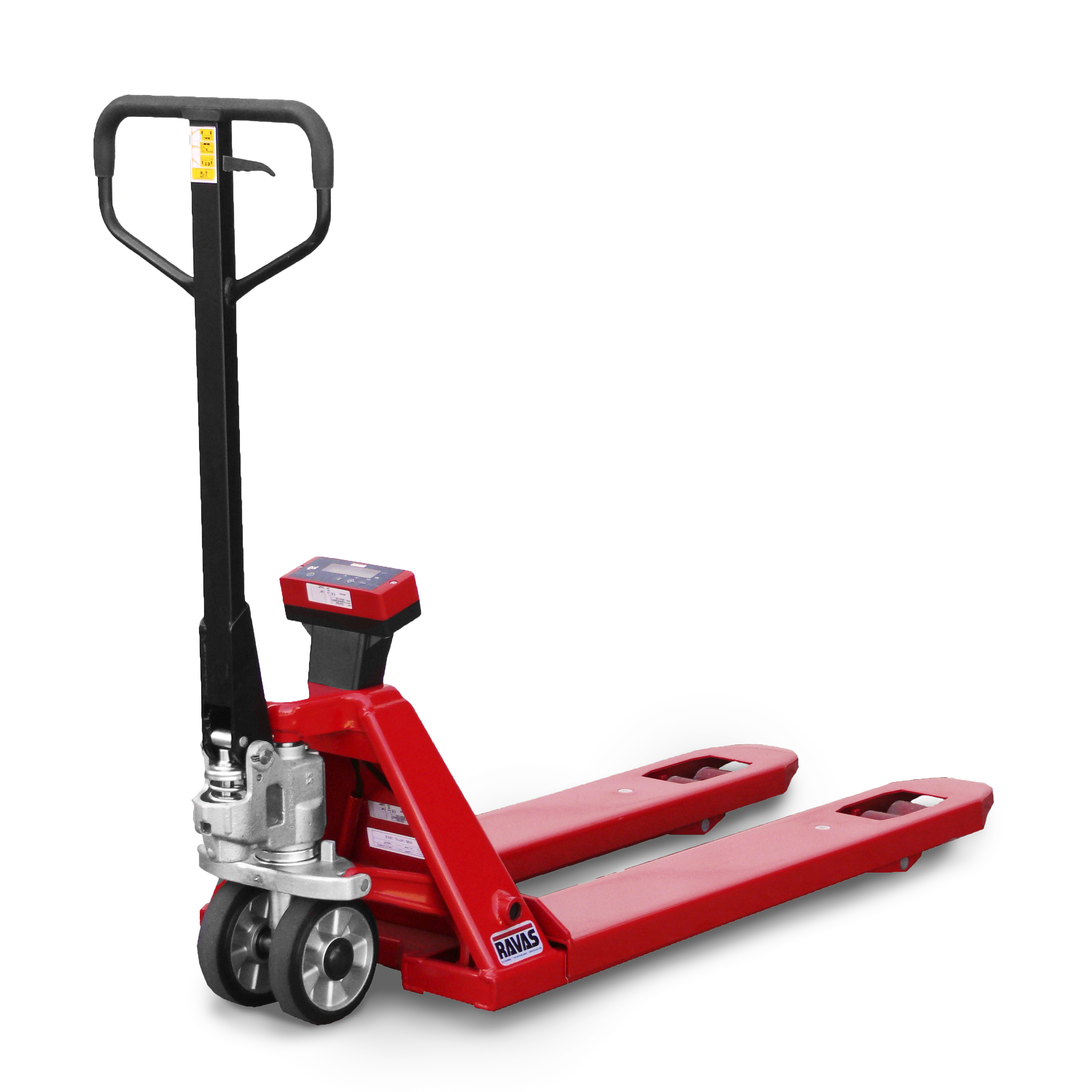

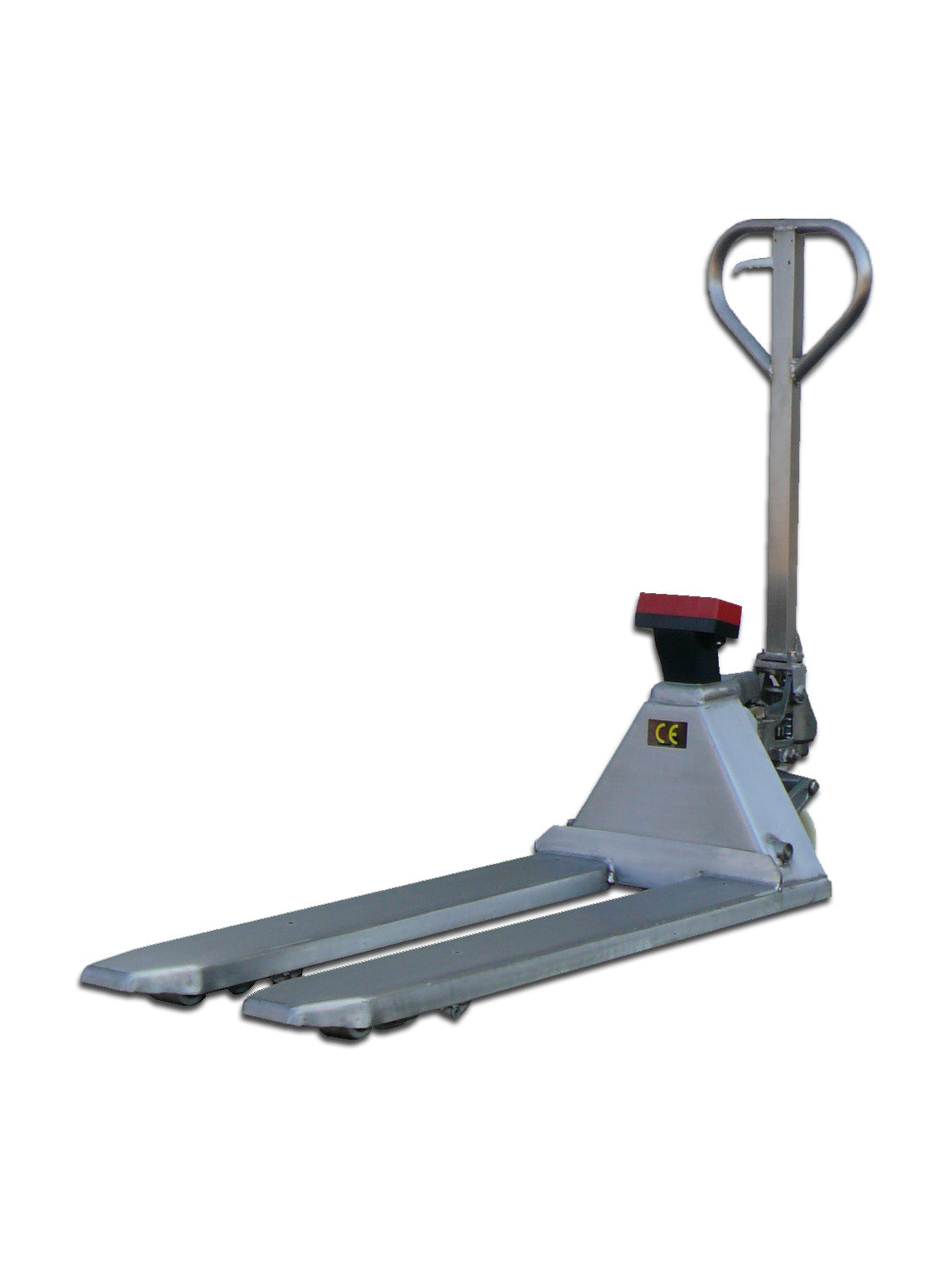

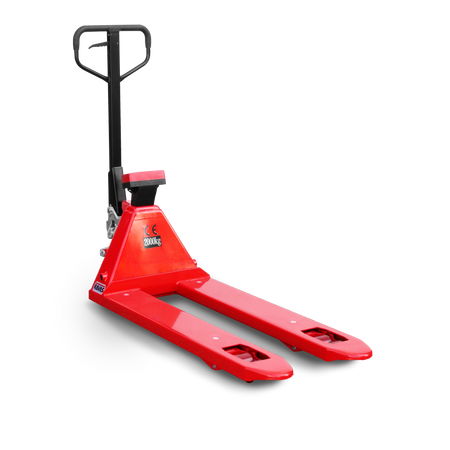

Pallet Truck Scale - RAVAS 1100 - with basic functions

FUNCTIONS

ƒ Low battery warning in display
ƒ Automatic switch-off after 3 minutes of non-use
ƒ Error messages in display
ƒ Totalling with sequence number
ƒ Gross/net weighing
ƒ Automatic and manual zero correction

STANDARD SPECIFICATIONS

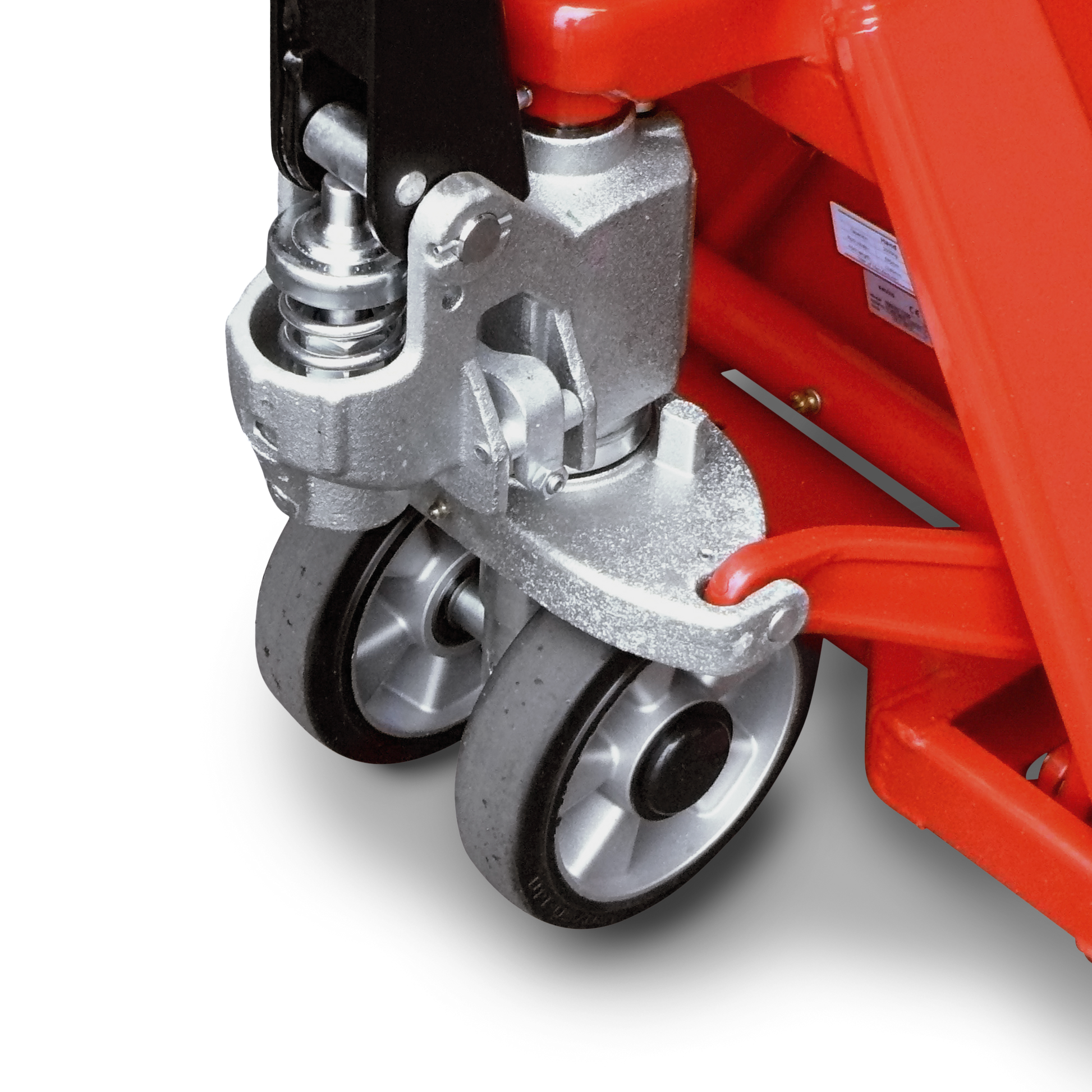

ƒ Pump quick lift
ƒ Battery life when used 5 times a day, the batteries last for a year
ƒ Power supply 4 x 1.5V AA-batteries
ƒ Own weight 104 kg
ƒ Colour red (RAL 3000), epoxy painted

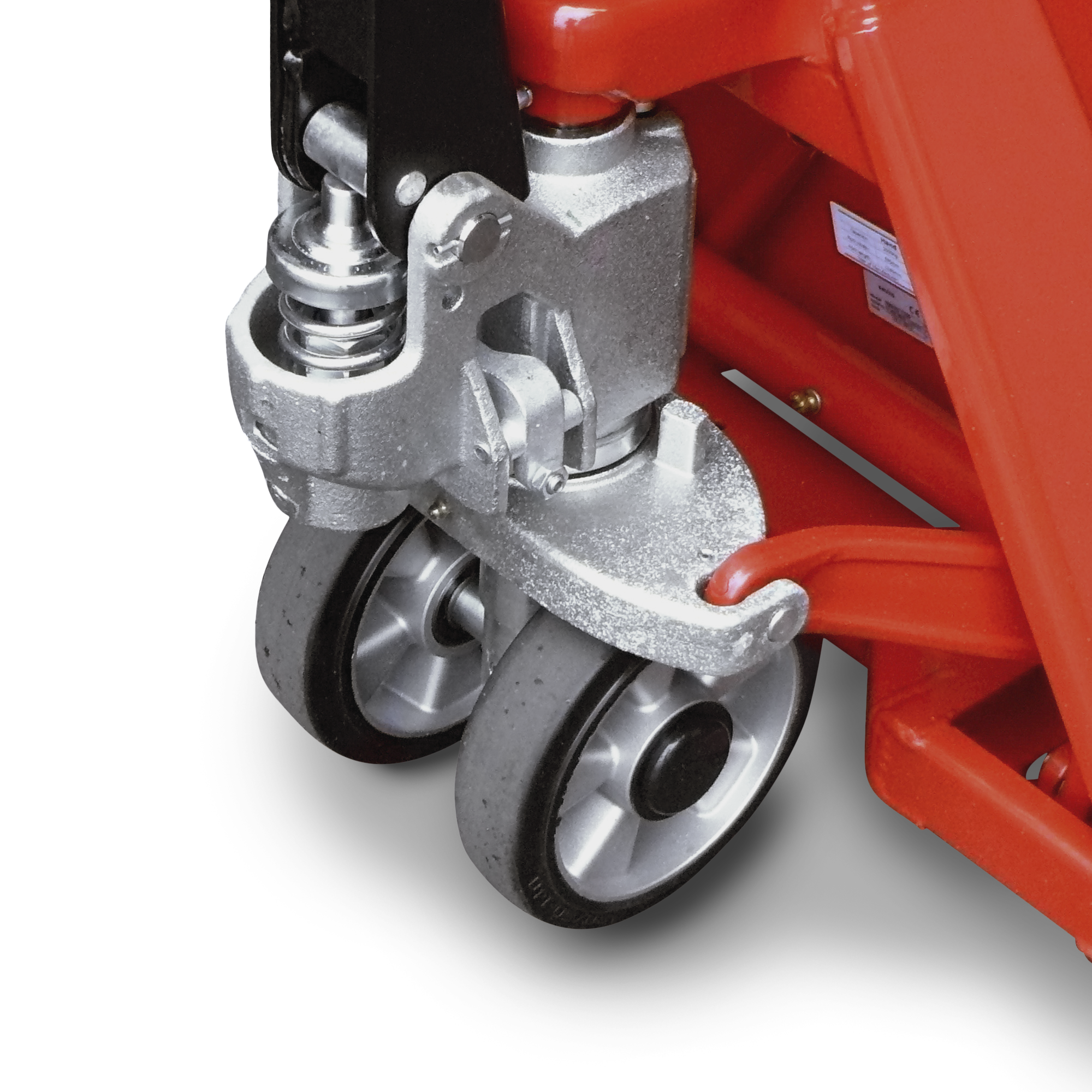

ƒ Loading wheels polyurethane, tandem
ƒ Steering wheels rubber
ƒ Protection class load cells IP67, indicator IP65

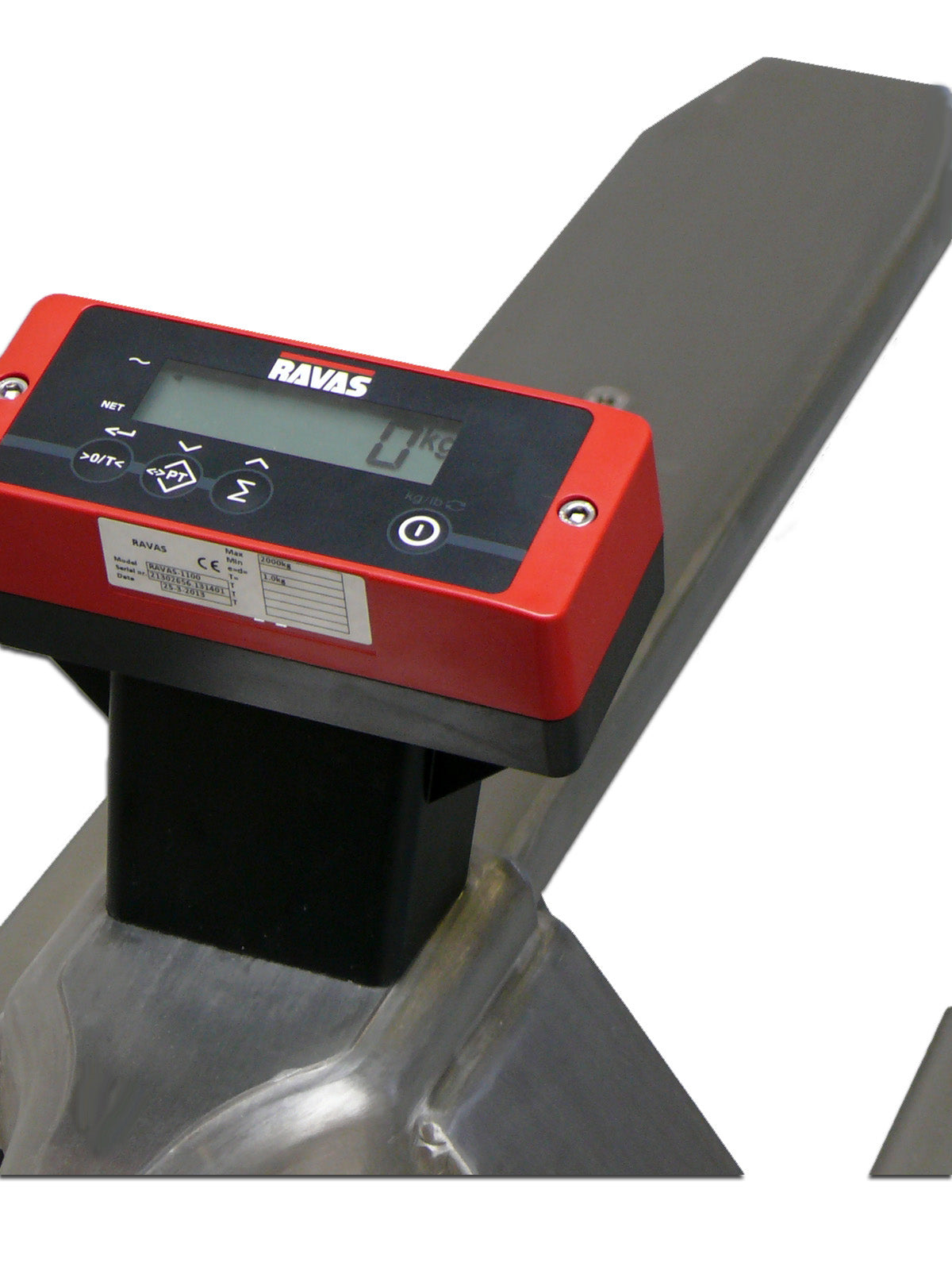

ƒ Keypad 3 function keys, on/off key

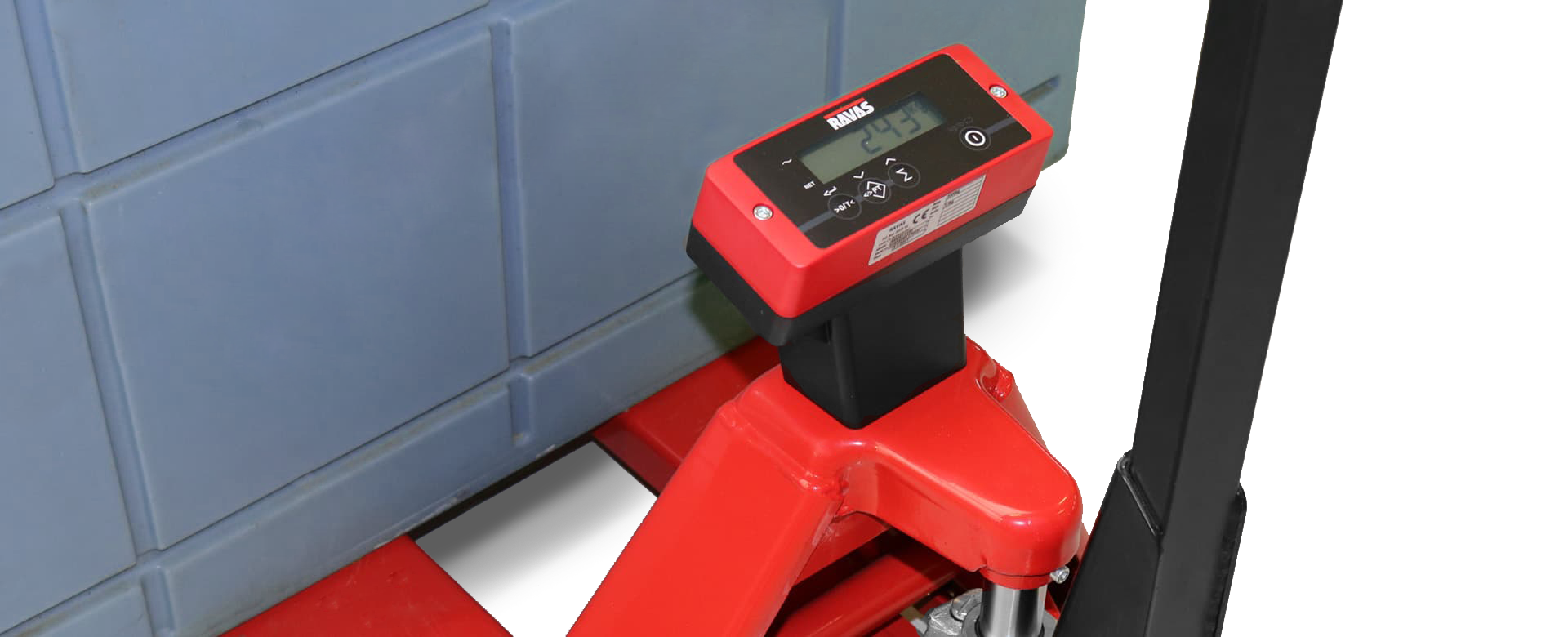

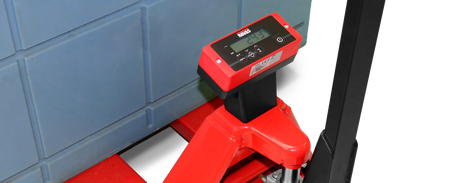

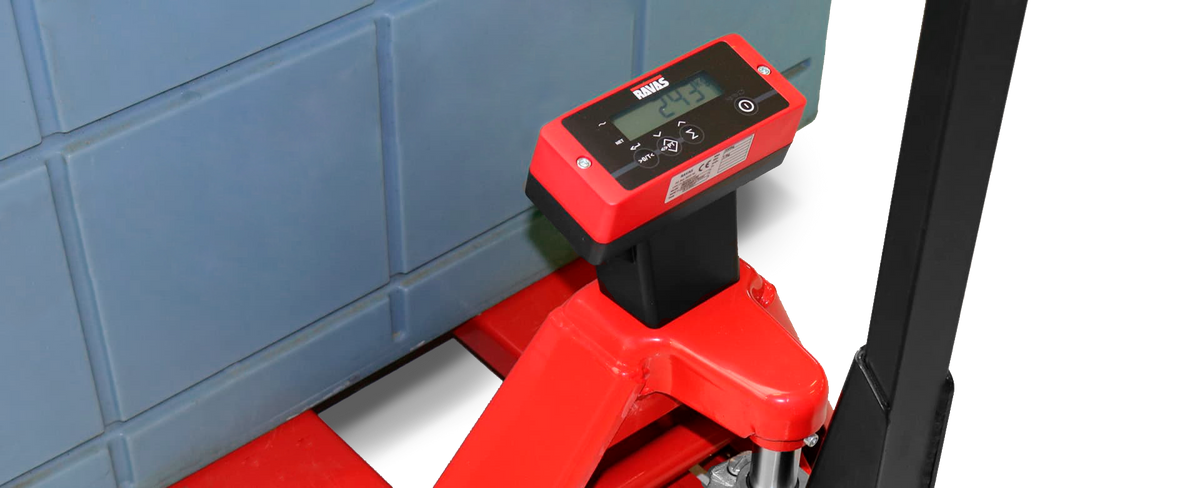

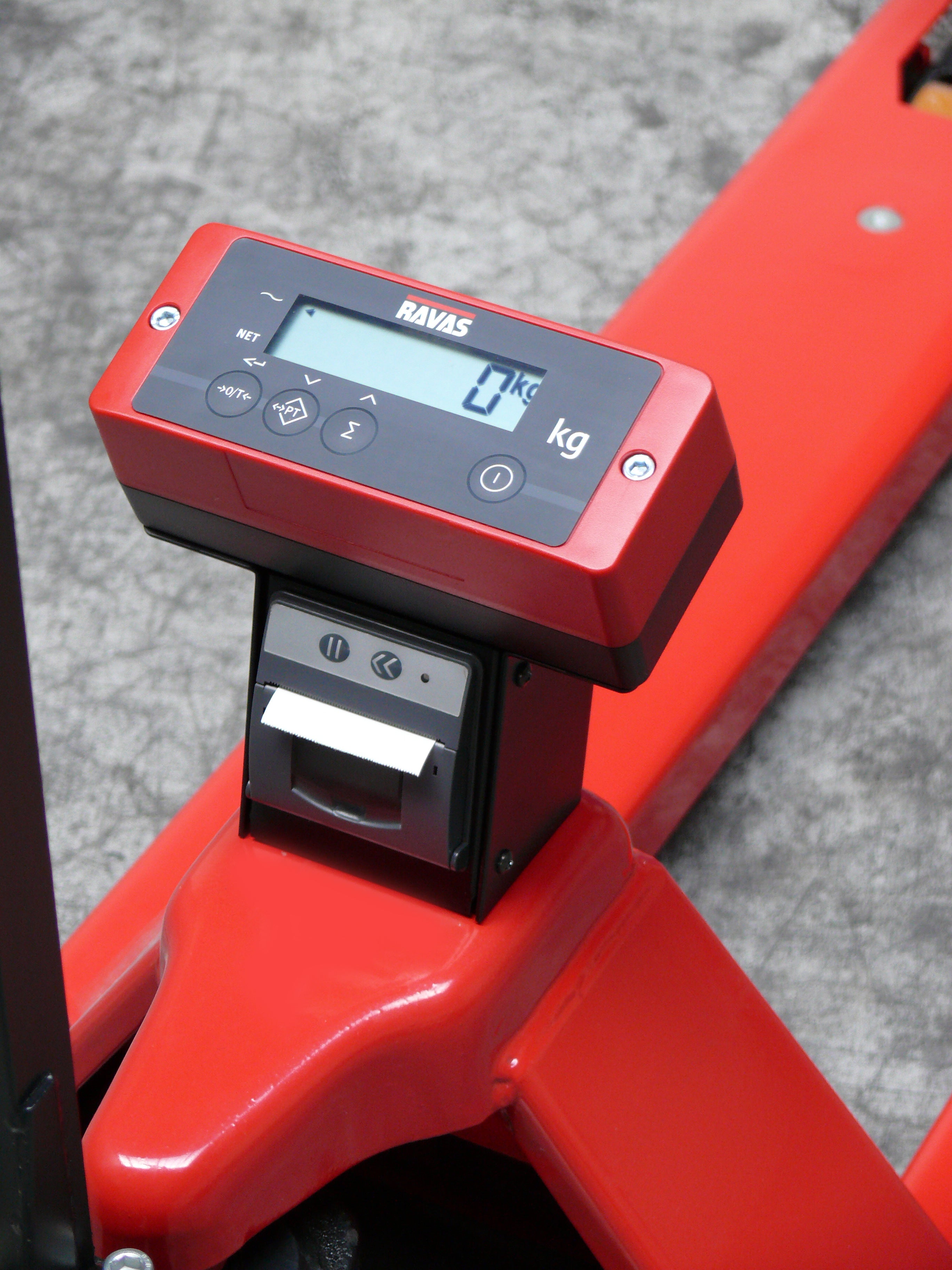

ƒ Display LCD, digit height 18 mm
ƒ Max. inaccuracy 0.1% of the load lifted
ƒ Graduation 1 kg
ƒ Weighing capacity 2,000 kg
