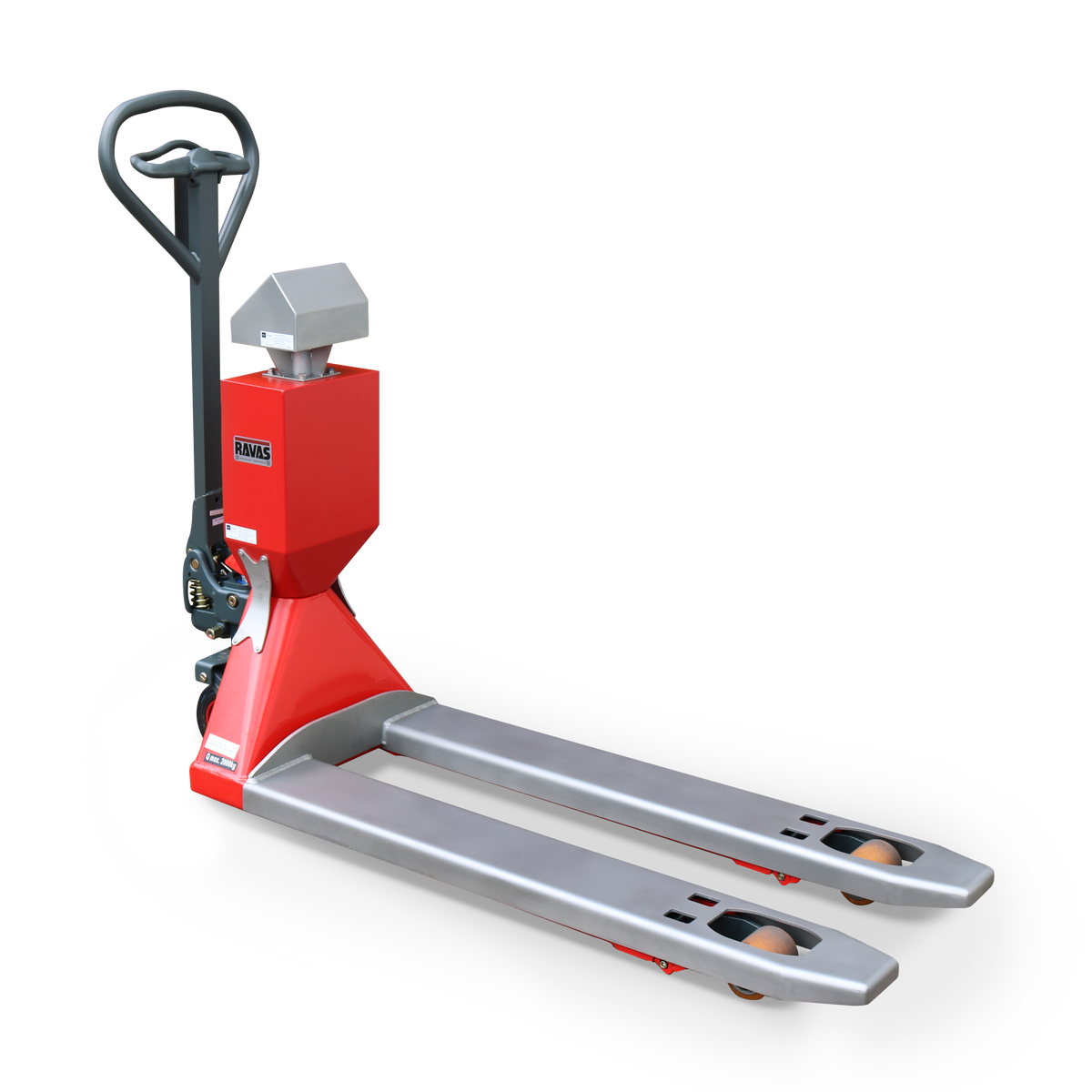

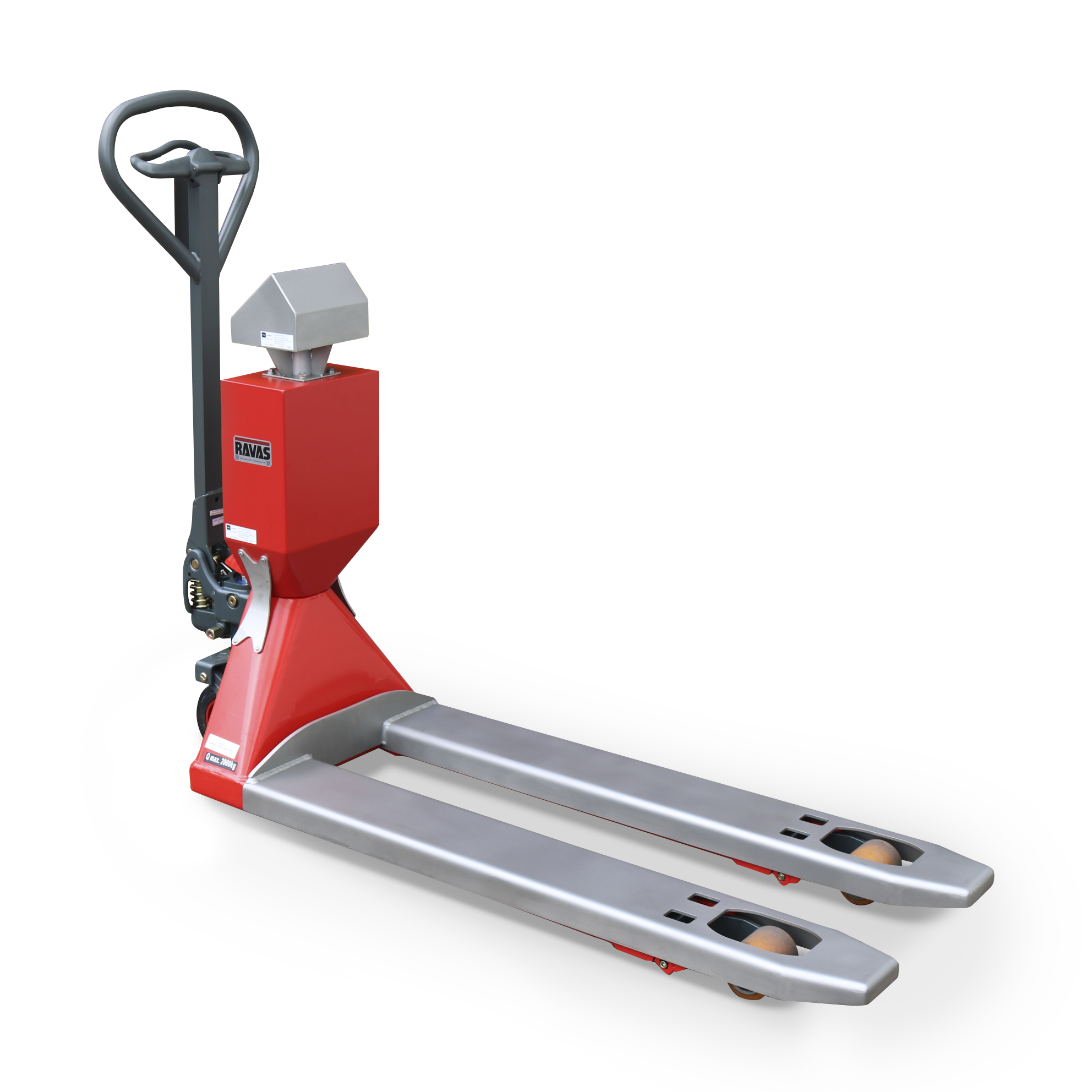

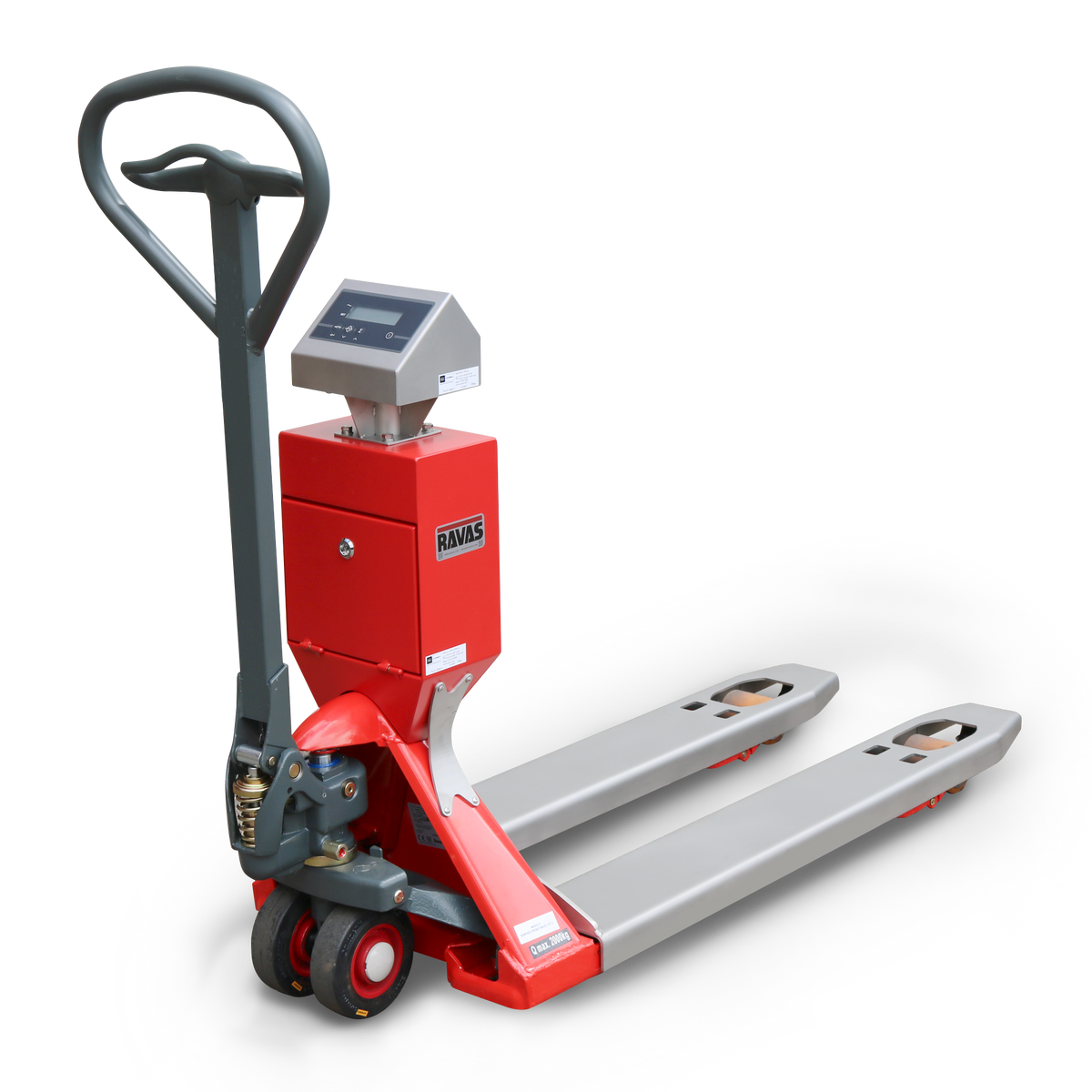

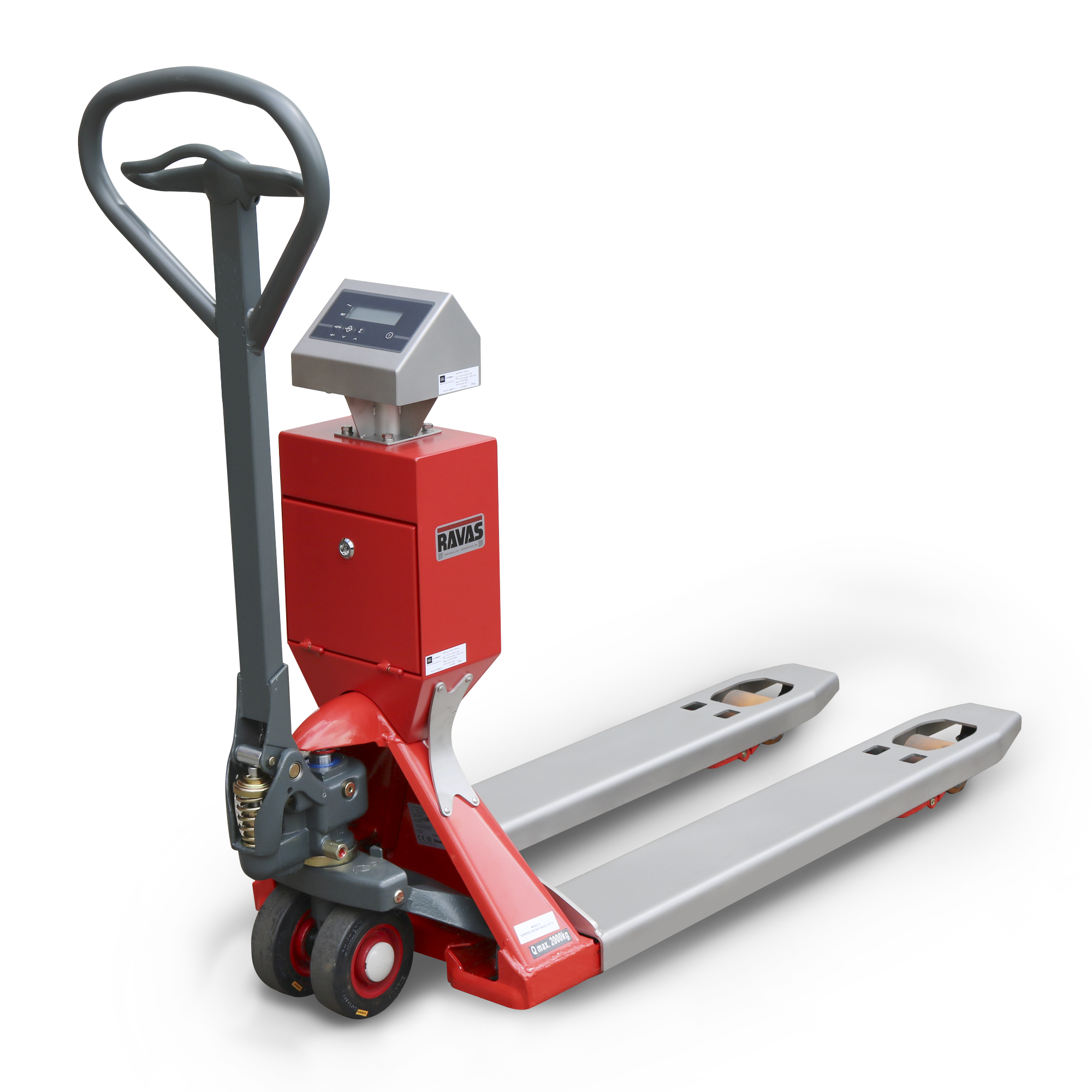

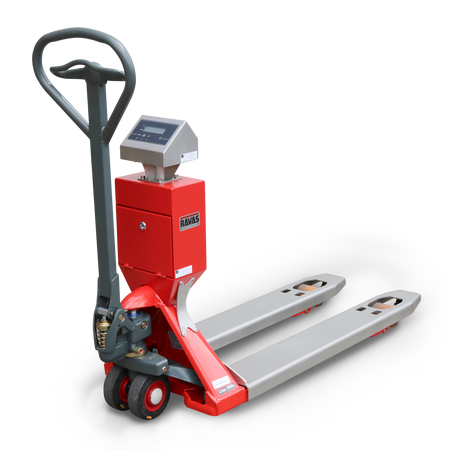

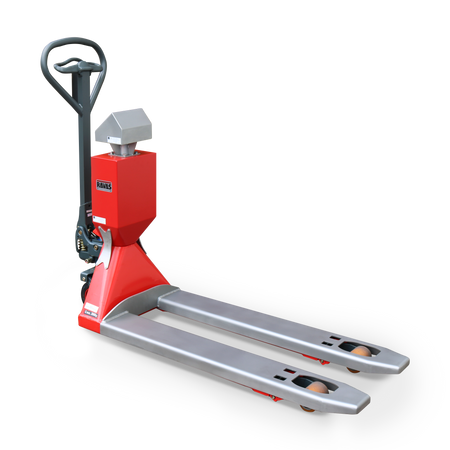

RAVAS 2100 Exi - Explosion proof pallet truck scale
BENEFITS
System certification ATEX II 2 G Exib IIB T4 Gb & ATEX II 2 D Ex ib IIIC T135°C Db
Approval number DEKRA 13ATEX 0044

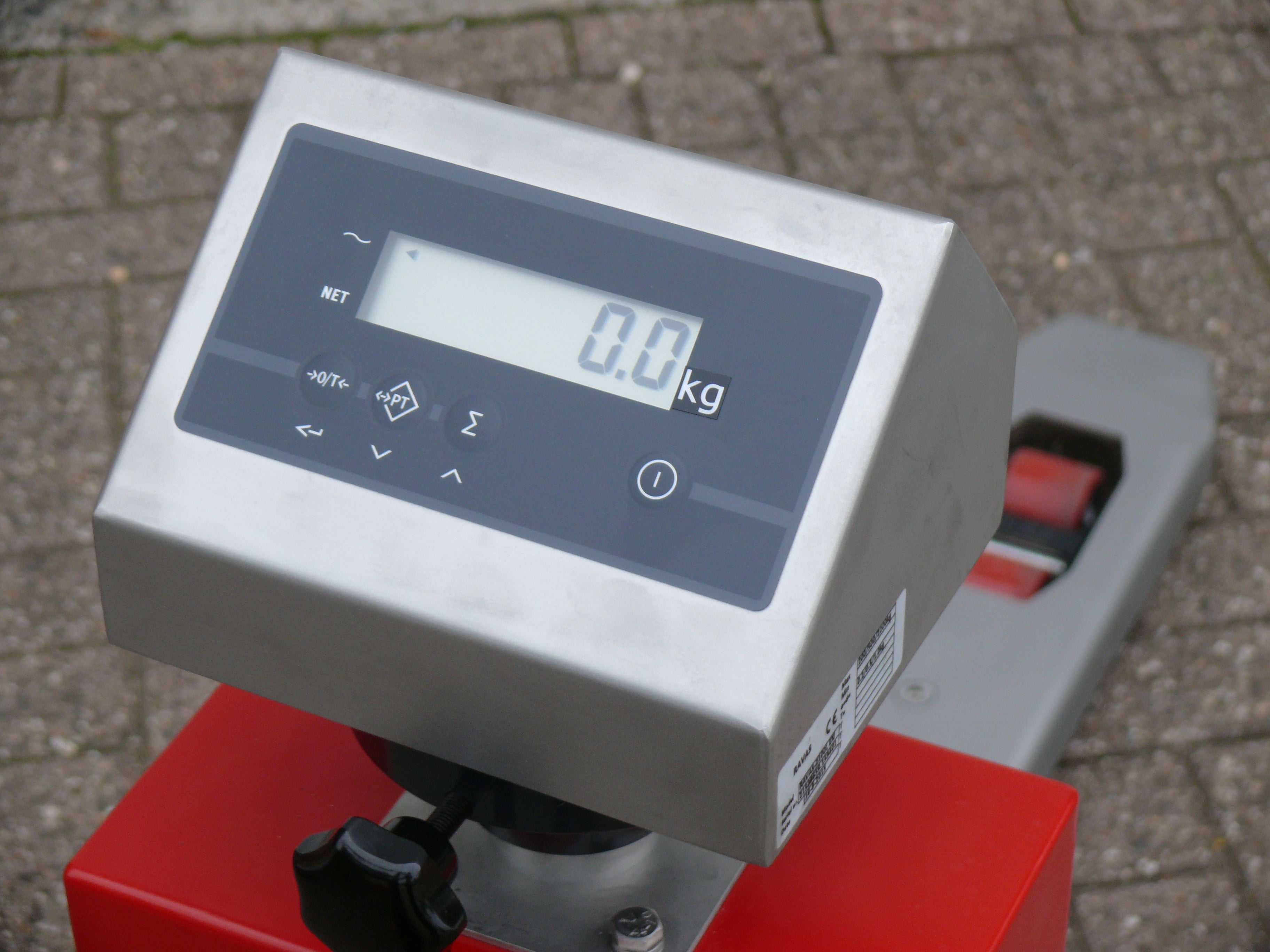

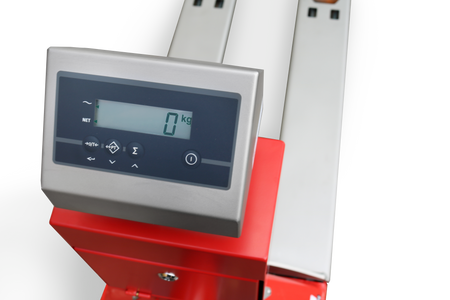

Rotating indicator and big push buttons, option
Exchangeable battery pack
Stainless steel forks (AISI 304)
Antistatic steering wheel
For mixing and batching in zone 1&21 or 2&22!
FUNCTIONS
Automatic and manual zero correction
Gross/net weighing
Automatic tare over the full scale. Pre-set tare maximum first range (200 kg)
Error messages in display
Automatic switch-off after 30 minutes of non-use
Low battery warning in display
STANDARD SCALE SPECIFICATIONS
Weighing capacity 2,000 kg
Graduation multirange:
0 - 200 kg: graduation 0.2 kg
200 - 500 kg: graduation 0,5 kg
500 - 2.000 kg: graduation 1 kg
Max. tolerance 0.1% of the load lifted
System certification II 2 G Ex ib IIB T4 Gb & II 2 D Ex ib IIIC T135°C Db, approval number DEKRA 13ATEX 0044

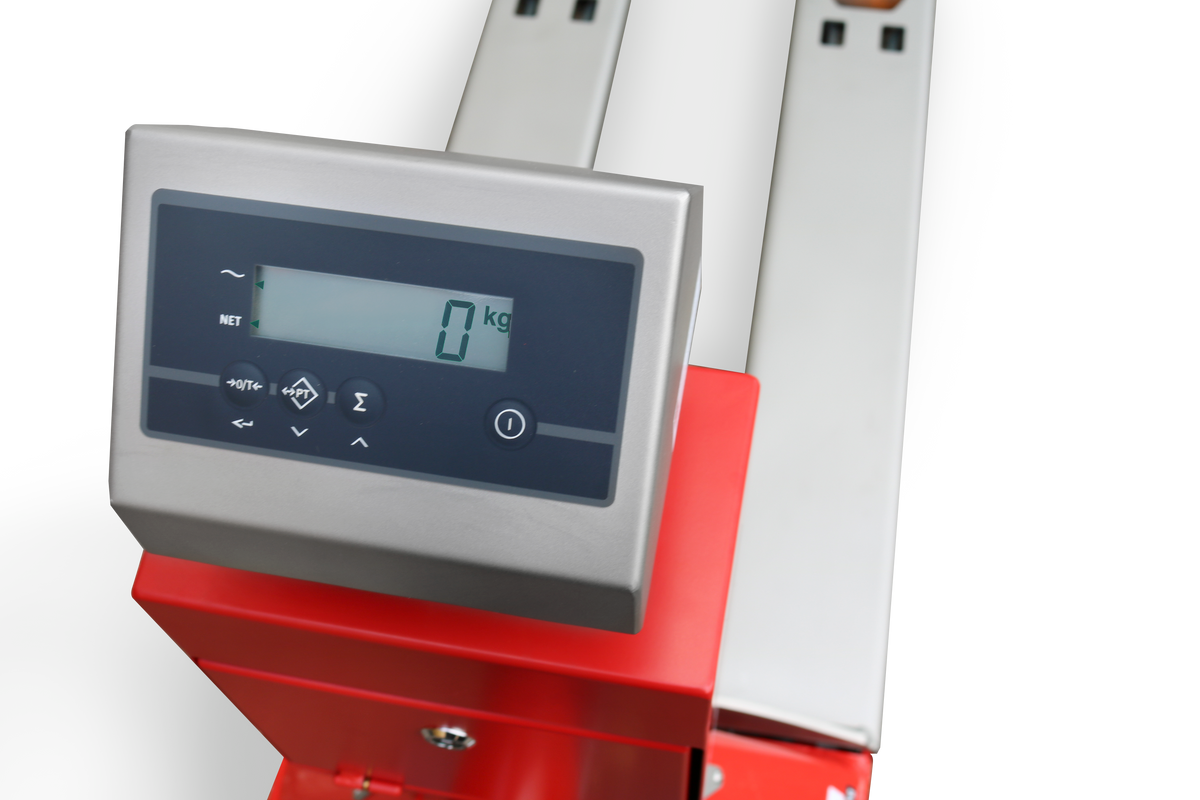

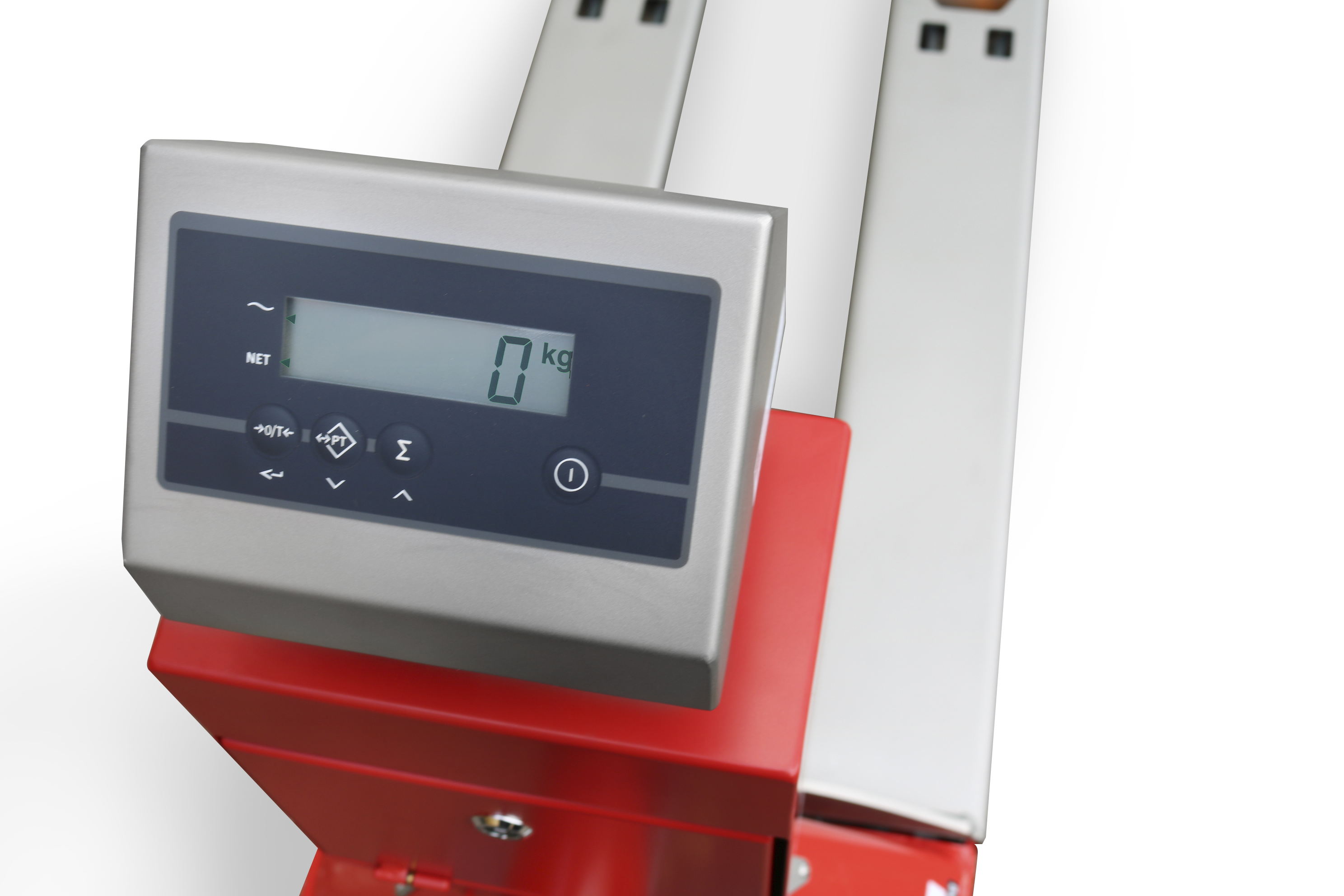

Display LCD, digit height 18 mm
Keypad foil keypad, 3 function keys, on/off key, resistant to chemicals
Protection class load cells IP67, indicator IP65

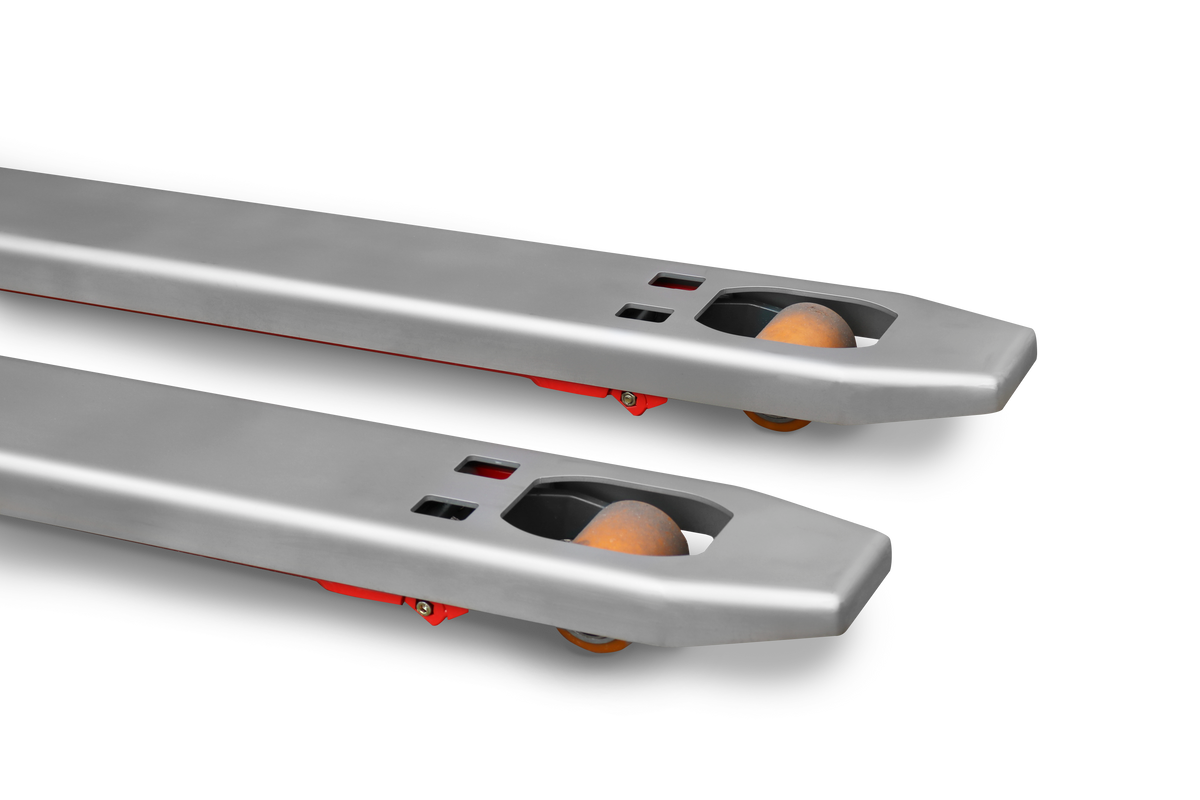

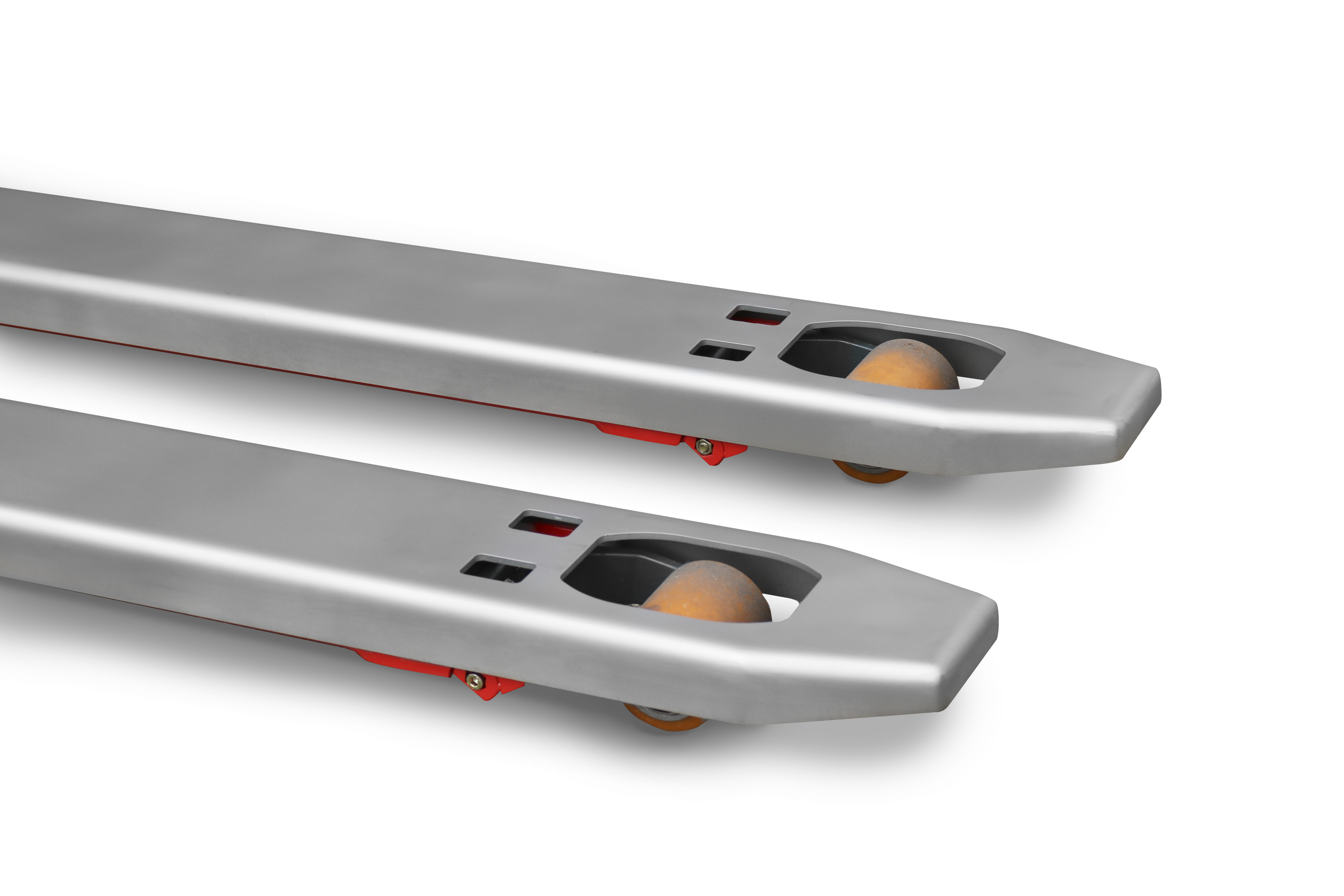

Fork shoes stainless steel (AISI 304)
Battery intrinsically safe, approval number DEKRA 13ATEX 0043, 8Vdc/3.5 Ah, rechargeable, exchangeable, maintenance free
Battery life 100 hours, low battery indication
Charger 230V/8Vdc - 1 A; for use outside hazardous zone
Charging time approximately 8 hours

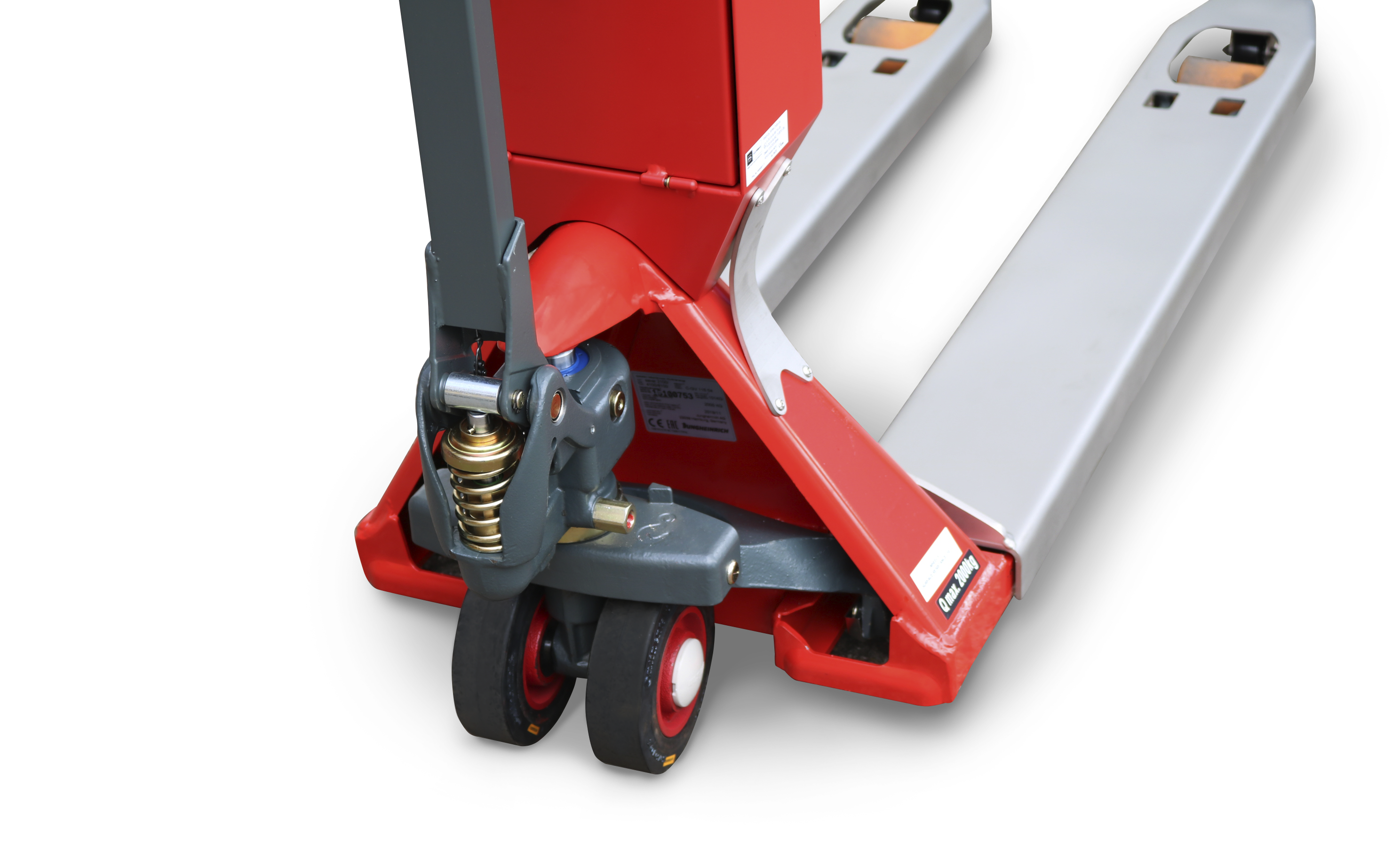

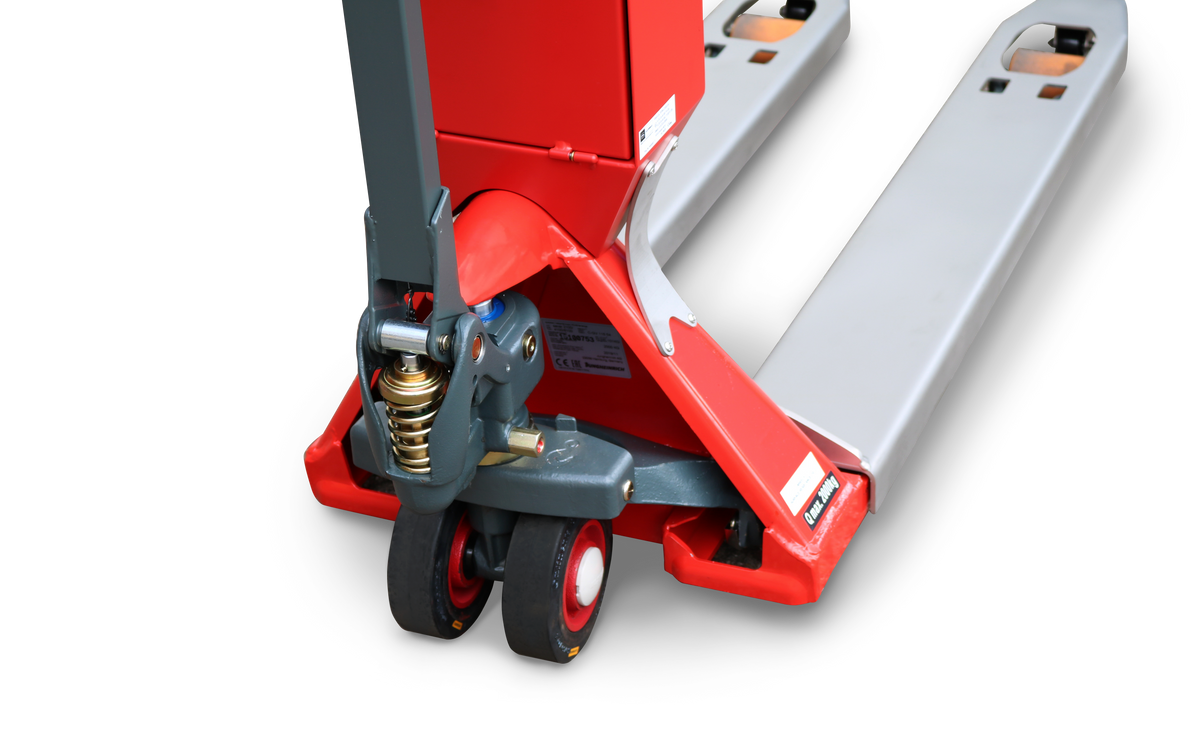

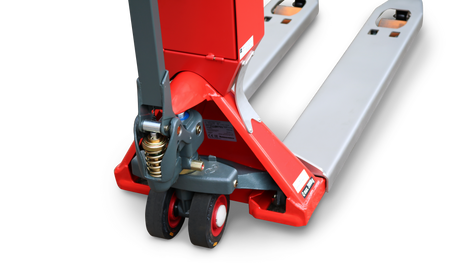

Steering wheels rubber, antistatic
Loading wheels polyurethane, tandem
Colour red (RAL 3000), epoxy painted
Own weight 145 kg
Pump quick lift
