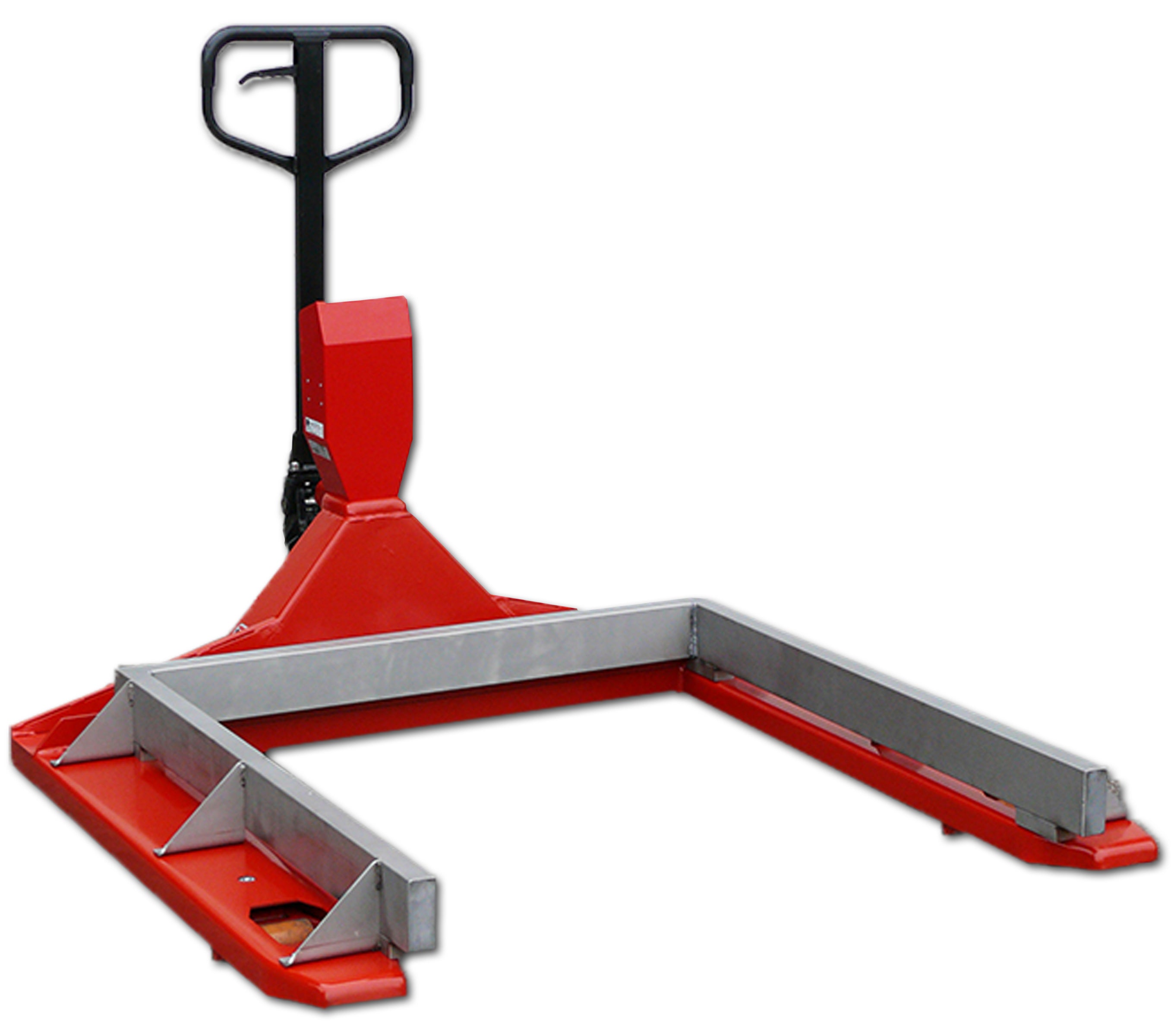

RAVAS 2100 Zone 2&22 - Explosion proof pallet truck scale
BENEFITS
System certification
Zone 2: II 3 G Ex ic IIB T6 Gc IIB
Zone 22: II 3 D Ex ic IIIC T85°C Dc
Rechargeable battery pack
Stainless steel forks
Antistatic steering wheel
Intrinsically safe indicator board
Rotating indicator (option)
For mixing and batching in zone 2&22!
FUNCTIONS
Automatic and manual zero correction
Gross/net weighing
Automatic tare over the full scale. Pre-set tare maximum first range (200 kg)
Error messages in display
Automatic switch-off after 30 minutes of non-use
Low battery warning in display
STANDARD SCALE SPECIFICATIONS
Weighing capacity 2,000 kg
Graduation multirange:
0 - 200 kg: graduation 0.2 kg
200 - 500 kg: graduation 0.5 kg
500 - 2.000 kg: graduation 1 kg
Max. tolerance 0.1% of the load lifted
System certification Zone 2: II 3 G Ex ic IIB T6 Gc IIB
Zone 22: II 3 D Ex ic IIIC T85° Dc
Display LCD, digit height 18 mm
Keypad foil keypad, 3 function keys, on/off key, resistant to chemicals
Protection class load cells IP67, indicator IP65
Fork shoes stainless steel
Battery intrinsically safe, 12Vdc, rechargeable
Battery life 100 hours, low battery indication
Charger 230V/8Vdc - 1 A; for use outside hazardous zone
Charging time approximately 8 hours
Steering wheels rubber, antistatic
Loading wheels polyurethane, tandem
Colour red (RAL 3000), epoxy painted
Own weight 145 kg
Pump quick lift
