RAVAS 2560 Exi - Explosion proof pallet truck scale
BENEFITS
Designed for hazardous environments
Stainless steel fork cover
Perfect for mixing and batching

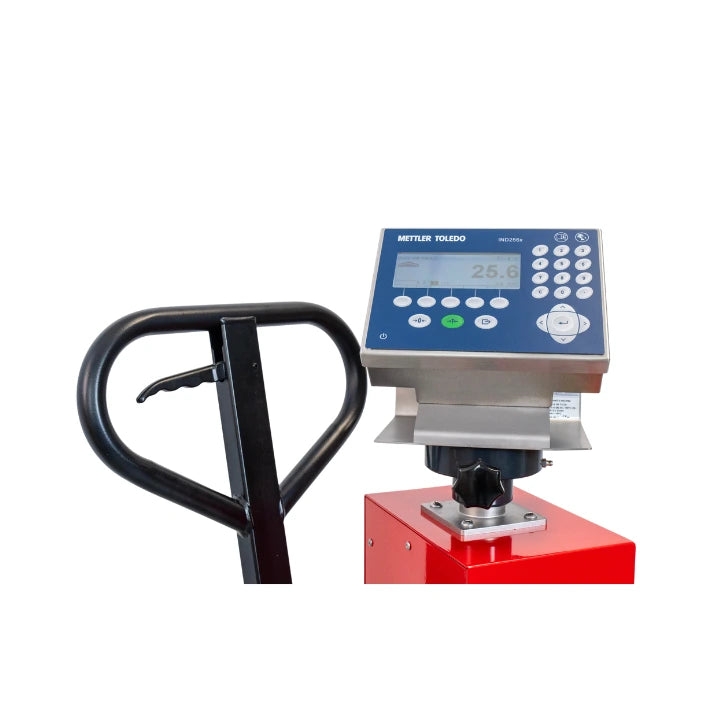

Rotating indicator, display visible from all sides
System certification:
ATEX II 2 G Ex ib IIC T4 Gb
ATEX II 2 D Ex tb [ib] IIIC T60°C Db
System certification with WiFi:
ATEX II 2 G Ex ib IIB T4 Gb
ATEX II 2 D Ex tb [ib] IIIC T60°C Db
Rechargeable battery
Large LCD display with backlight
For mixing and batching in Zone 1&21 or 2&22
FUNCTIONS
Automatic and manual zero correction
Gross/net weighing
Automatic tare by push button
Automatic switch-of after 10/30/60 minutes of non-use
Numeric keypad with large digits
On/off key
Internal clock
kg/lb setting
STANDARD SCALE SPECIFICATIONS
Weighing capacity 2,000 kg
Graduation multirange
0 - 200 kg: graduation 0.2 kg
200 - 500 kg: graduation 0.5 kg
500 - 2,000 kg: graduation 1.0 kg
Max. tolerance 0.1% of the load lifted
Display backlight LCD, digit height 25 mm
Protection class system IP65 indicator and battery IP66 terminal IP67
Battery 18Vdc/8Ah, NiMh battery pack charger included
Battery life 60 hours / 40 hours (WiFi)
Charger 230V/18Vdc - 0,9 A
Charging time approximately 6 hours
Steering wheels rubber, antistatic
Loading wheels polyurethane, tandem
Temperature operating at -10°C to 40°C
Colour red (RAL 3000), painted
Own weight 150 kg
System certification ATEX II 2 G Ex ib IIC T4 Gb
ATEX II 2 D Ex tb [ib] IIIC T60°C Db
System certification ATEX II 2 G Ex ib IIB T4 Gb
with WiFI ATEX II 2 D Ex tb [ib] IIIC T60°C Db
