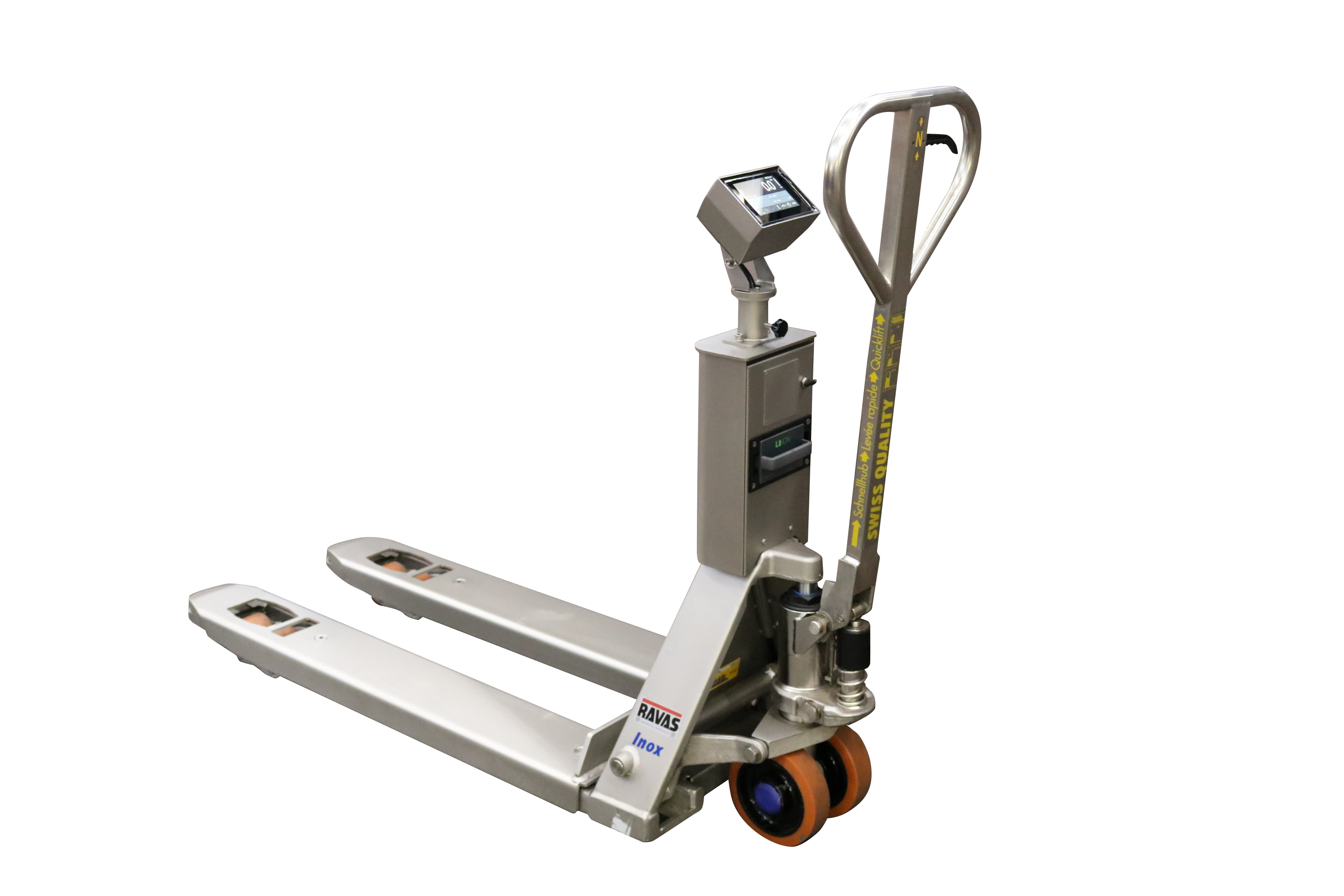

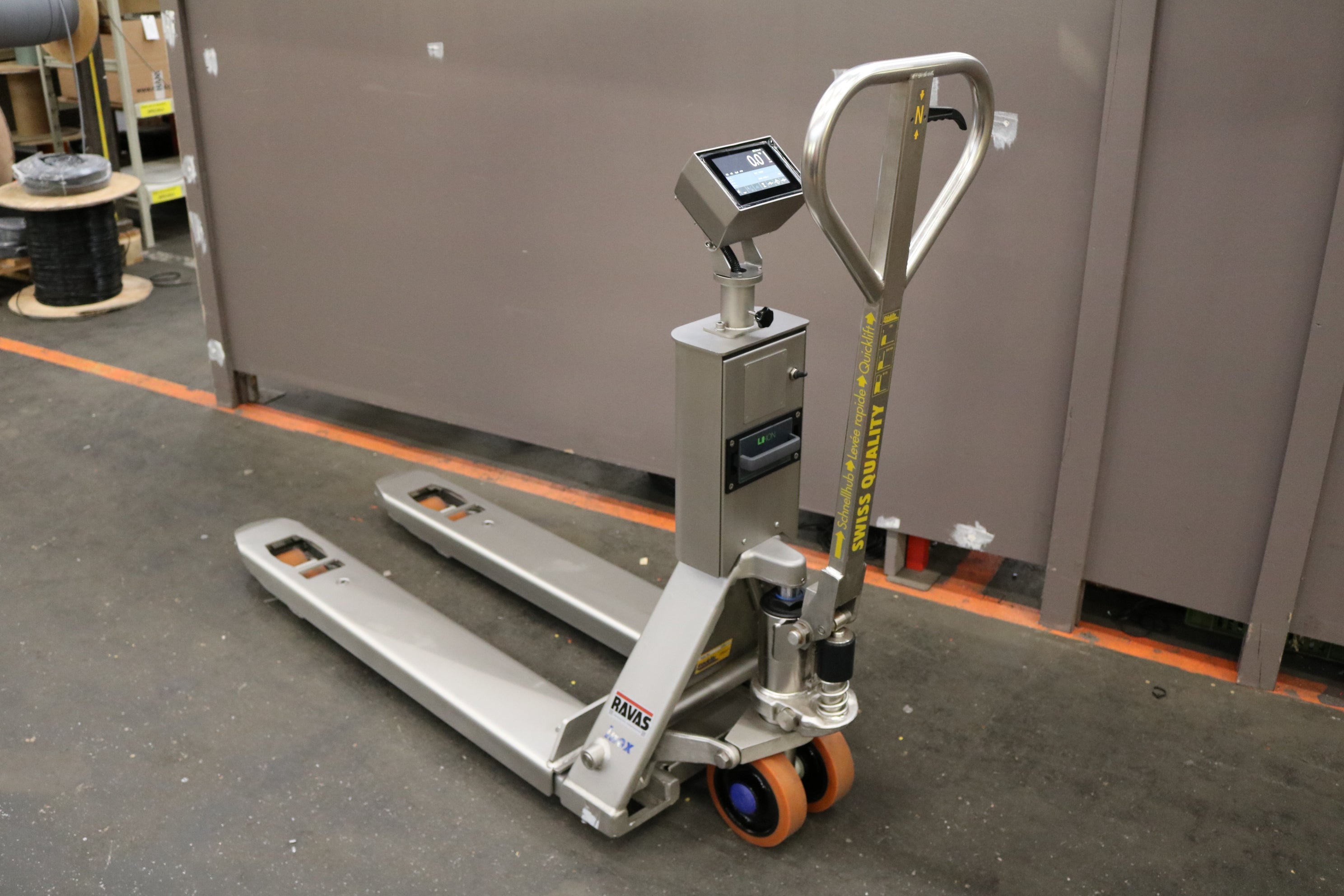

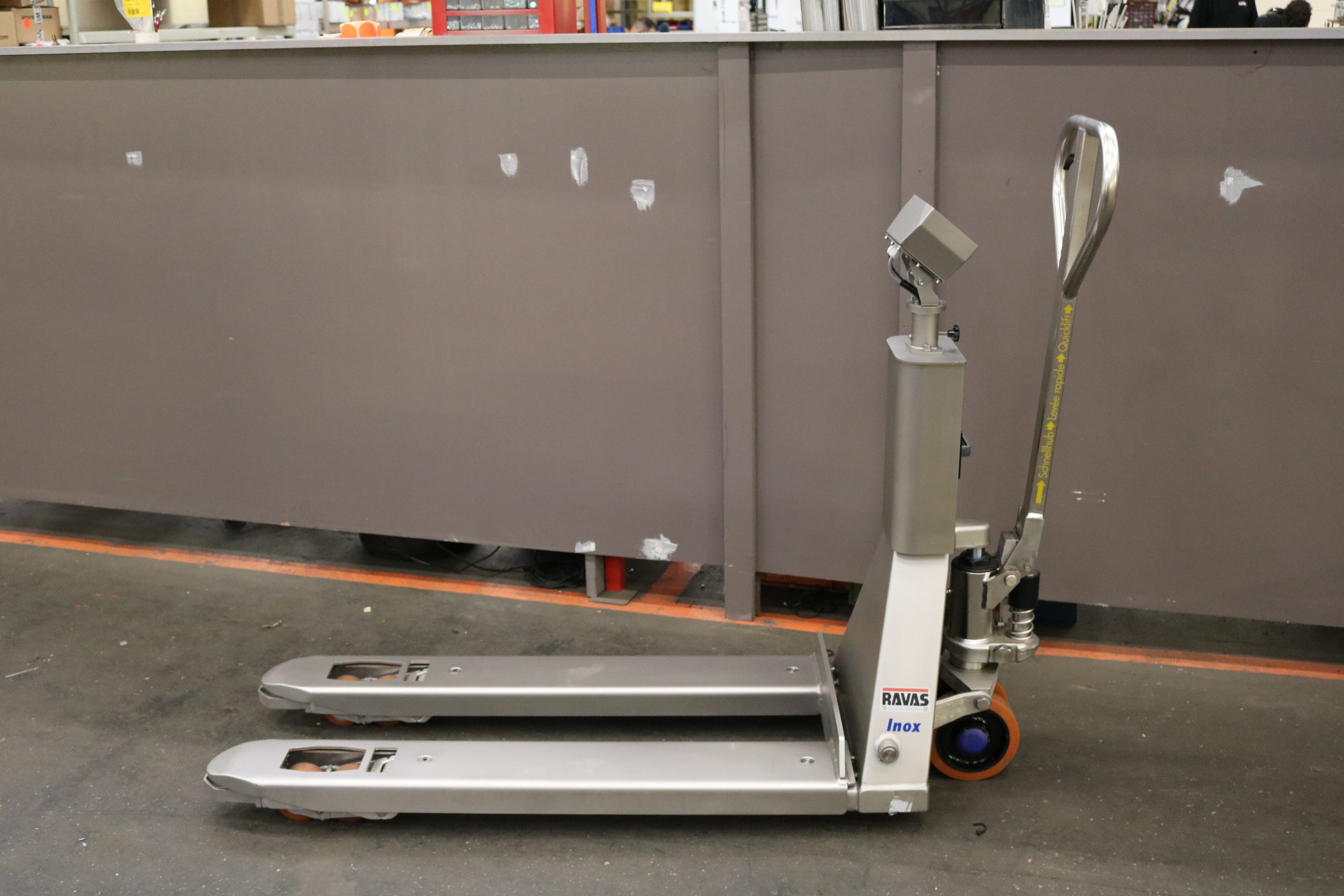

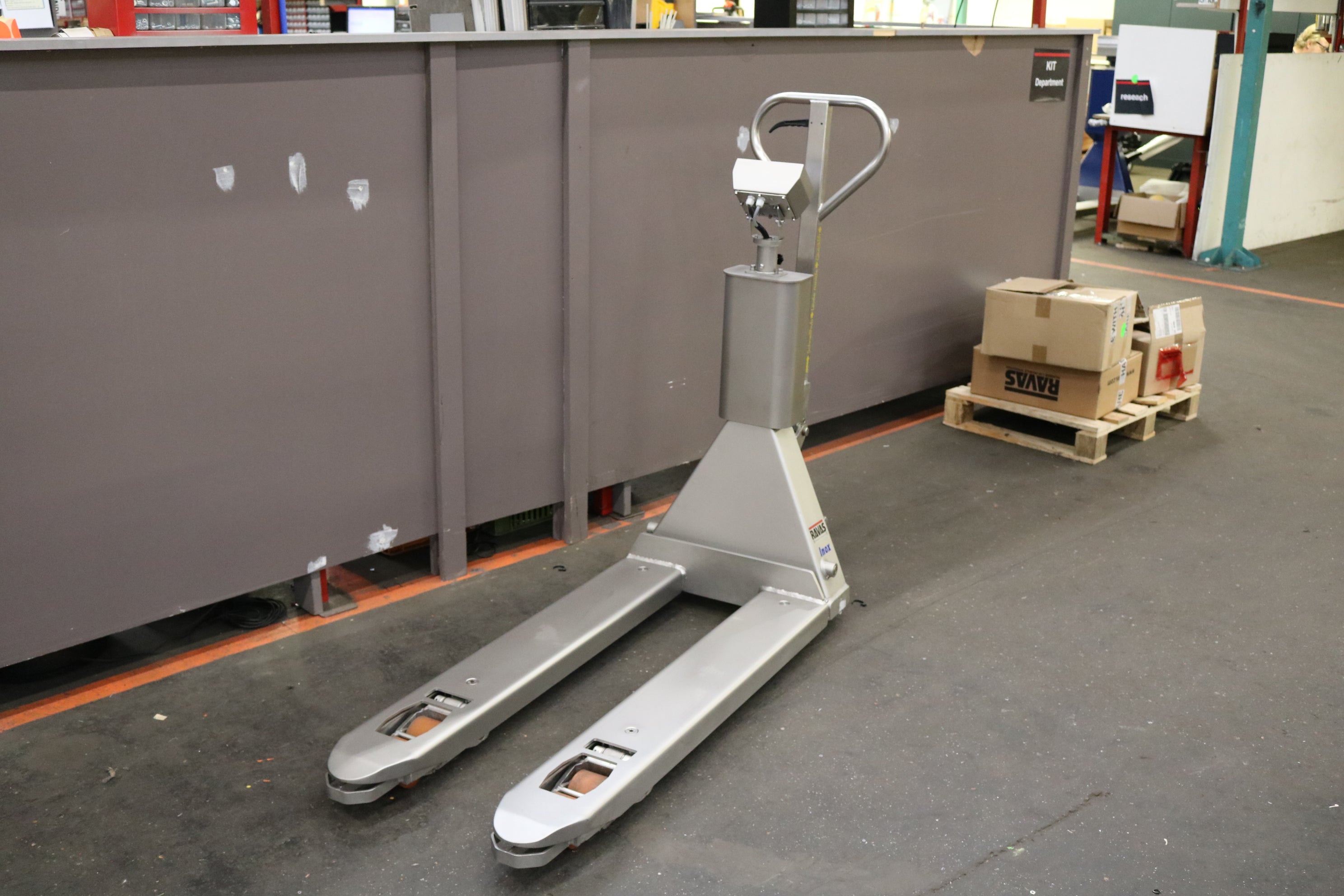

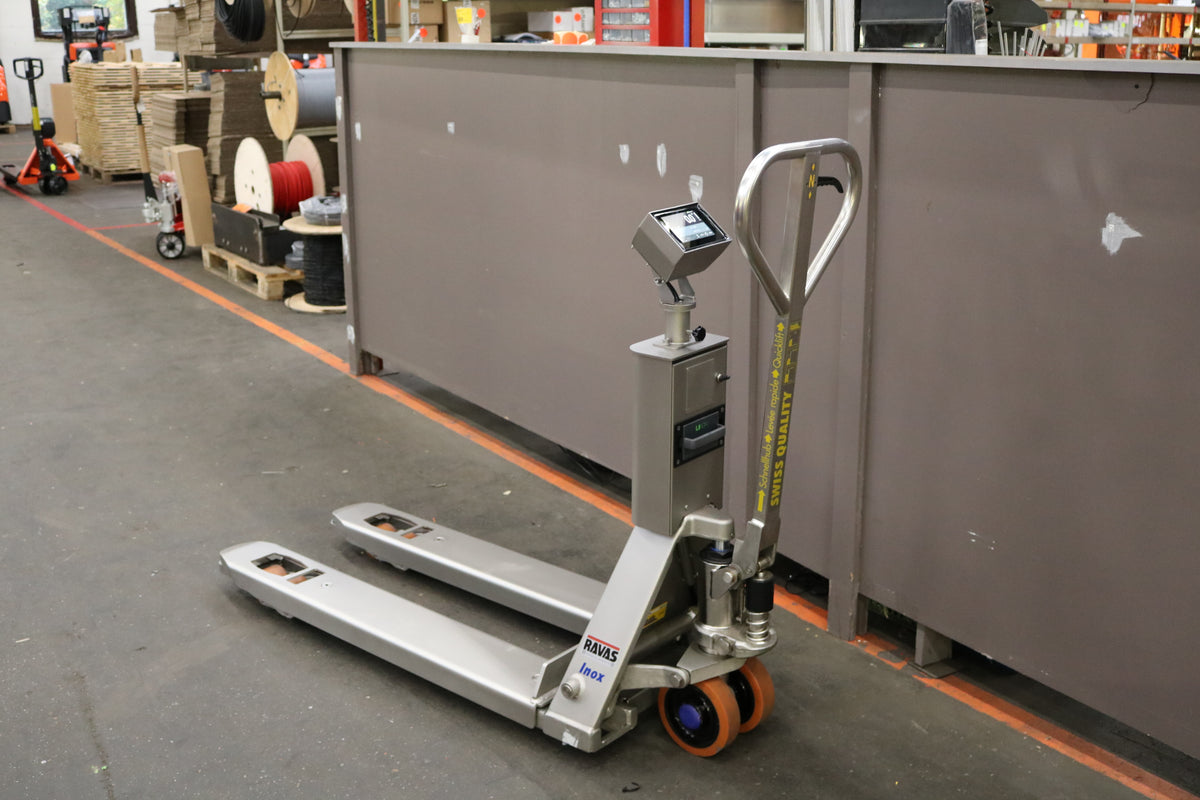

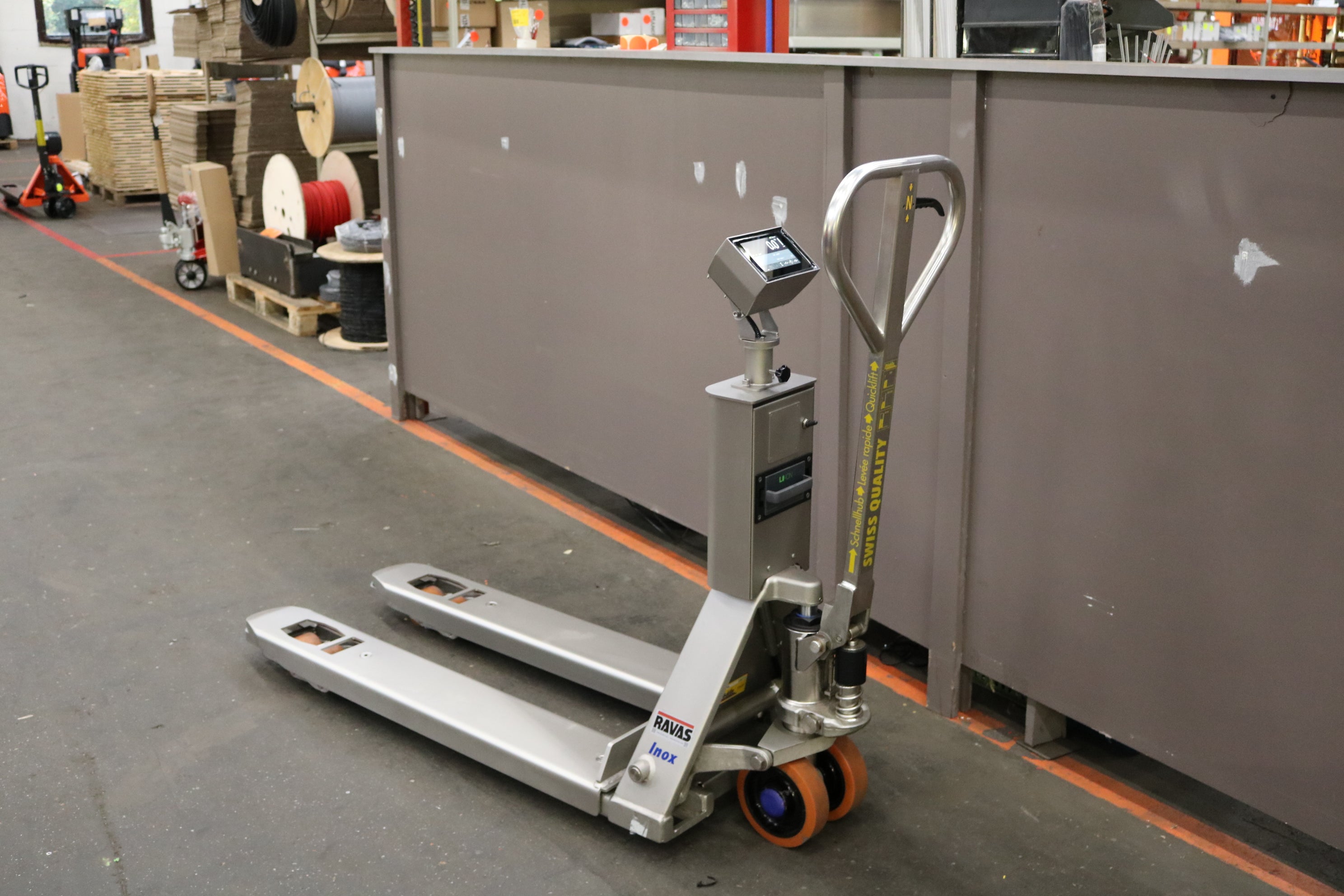

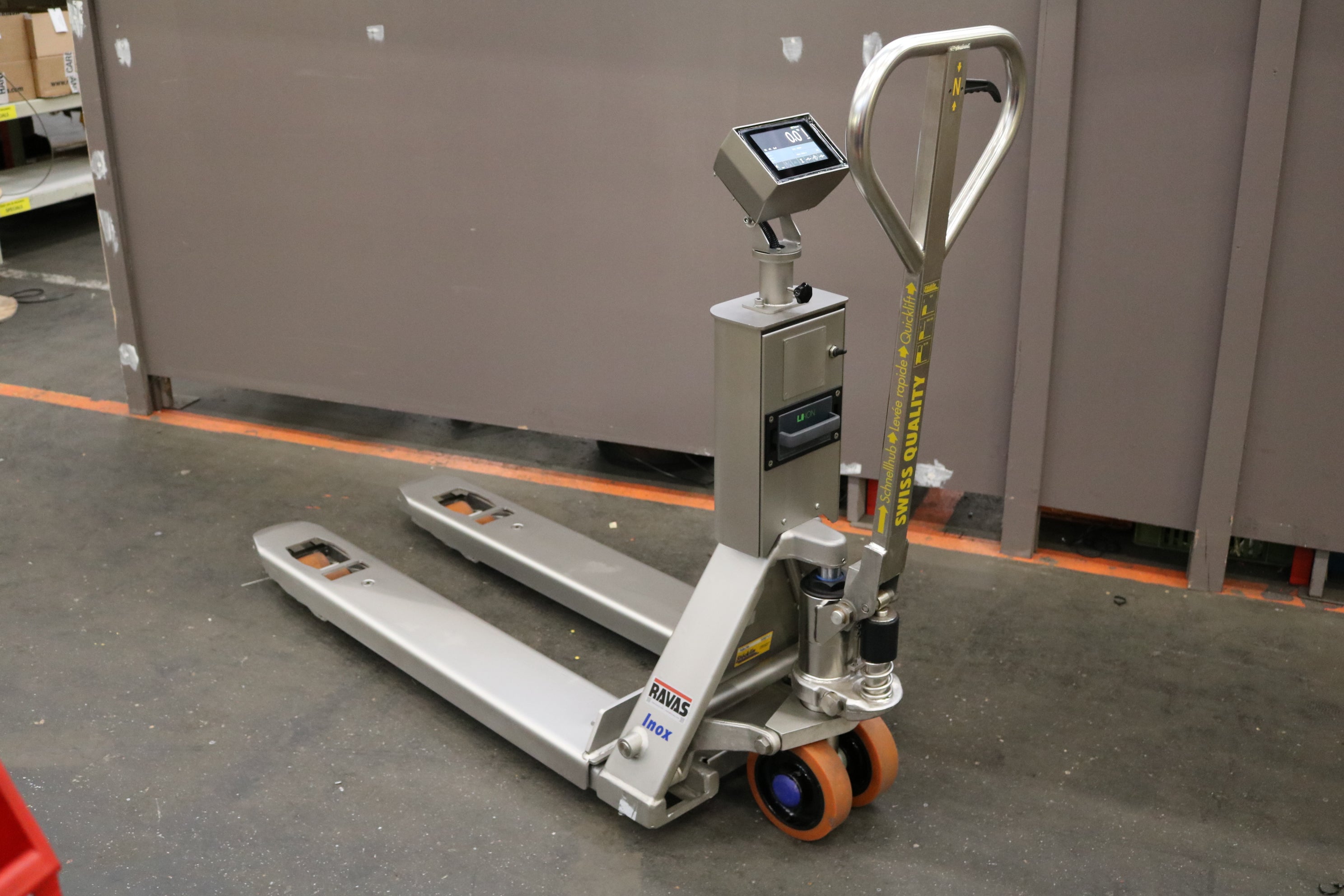

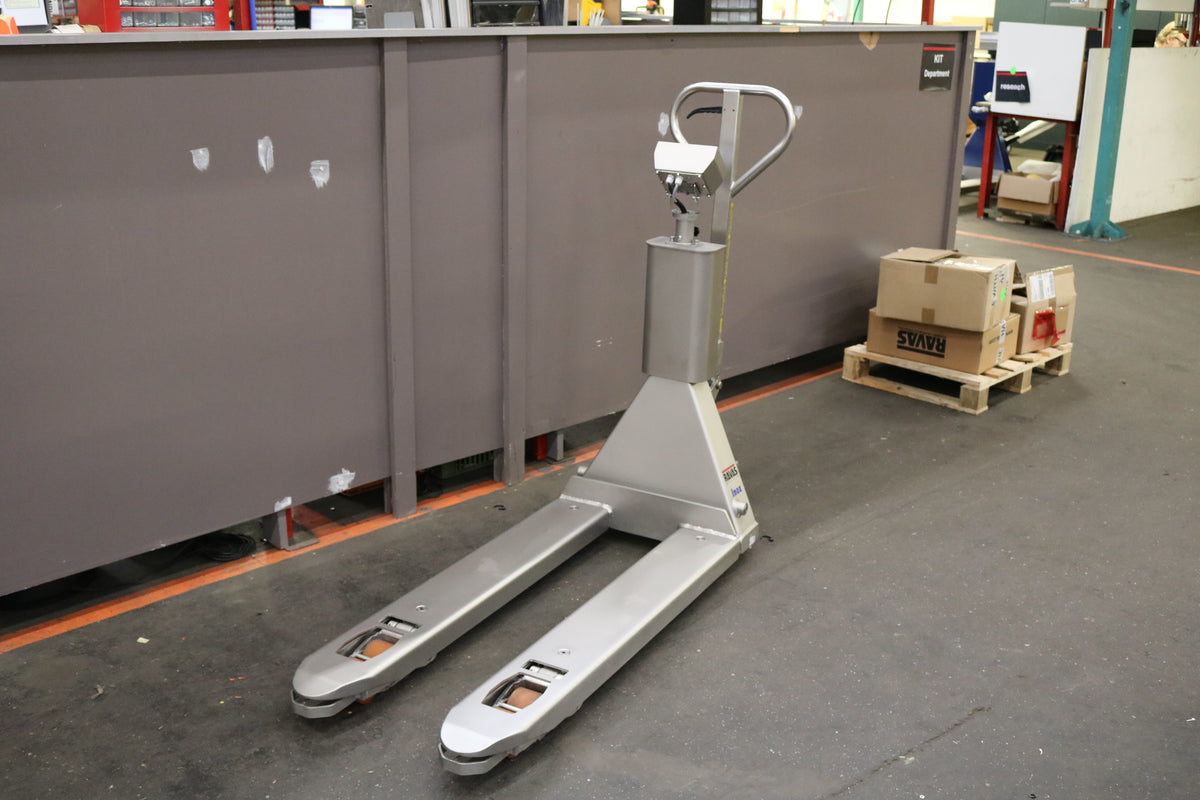

RAVAS 5200 INOX Pallet truck scale with touch screen indicator
BENEFITS
Full stainless steel chassis (AISI 316) and indicator housing (AISI 304)

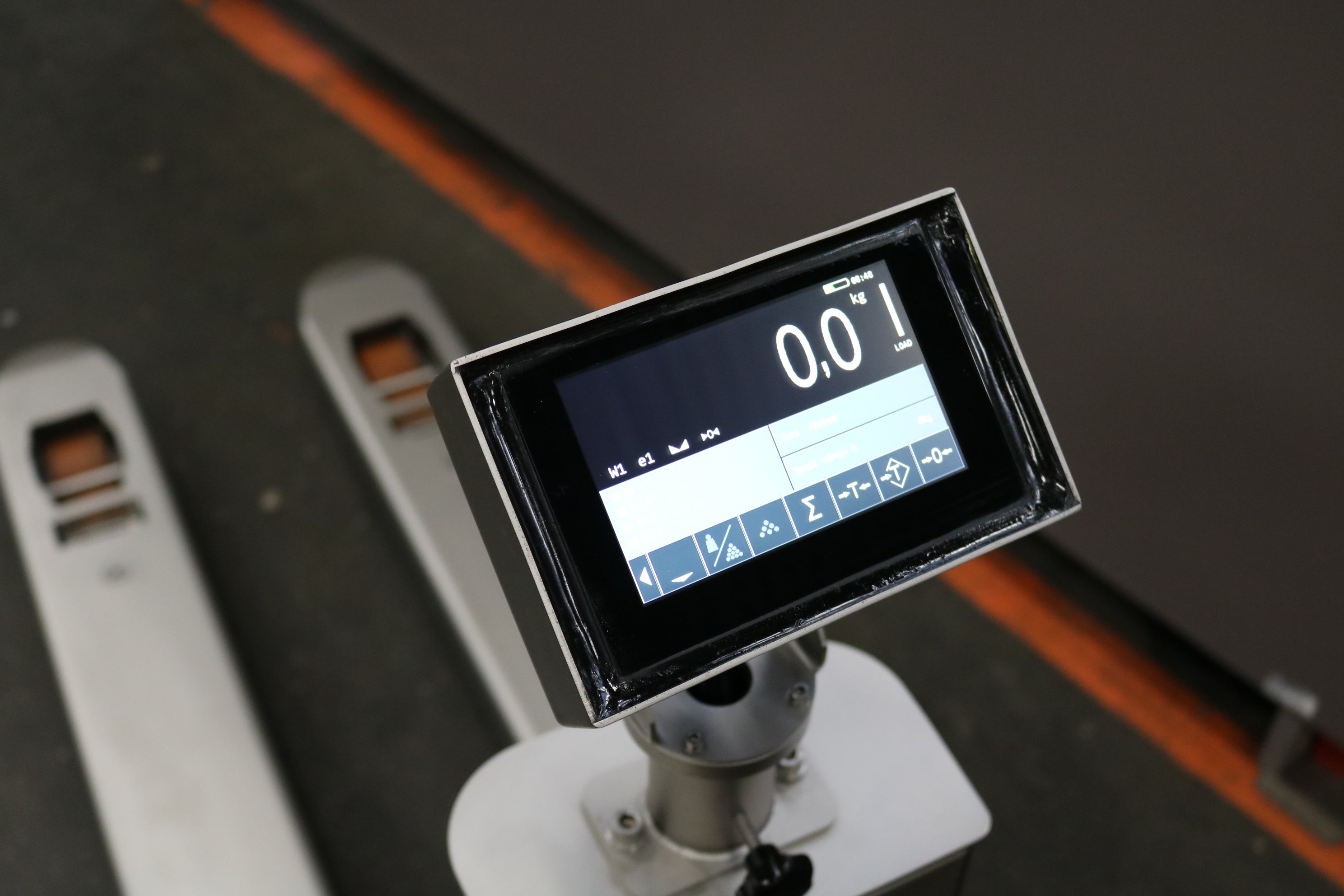

5 inch touch screen with 25 mm high digits
Power supply via Li-ion battery pack
Optimal ease of use, only active keys visible
Customer specific routines can be programmed
Integrated data connectivity
Counting scale functionality
Level compensation to 3 degrees
FUNCTIONS
Automatic and manual zero correction
Gross / net weighing
Tare memory for 10 values
ID-code entry for 4 ID-codes with 10 preset codes (each max.14 characters alpha numeric)
10 totalizing registers
Internal clock for date and time
On board: RS232 port connection for printer
USB output for data transfer (with USB Stick)
Free COM 1 for Wifi or RS232
Free COM2 for Wifi or RS232
The USB output can also be used to connect a bar-code scanner
Connectivity for RAVAS Indicator App
Sleep modes for saving power.
Error message in display incl. logging
STANDARD SCALE SPECIFICATIONS
Capacity 2.000 kg (2.500 kg or 3.000 kg optional)
Graduation multi-range
0 - 200 kg; graduation 0,2 kg
200 - 500 kg; graduation 0,5 kg
500 - 2.000 kg; graduation 1 kg
Max. system tolerance 0.1 % of applied load
Display full-colour 5” touch display with 25 mm high digits
Power consumption 12V –160 mA
Power supply Li-ion battery pack 14.8V / 5Ah incl. charger
Autonomy 25 hours continuous use (50 hours with sleep modes)
Keyboard display mode defines the available keys, on/off key
Protection class Loadcells IP 67, indicator IP65
Indicator mounting rotating and tiltable

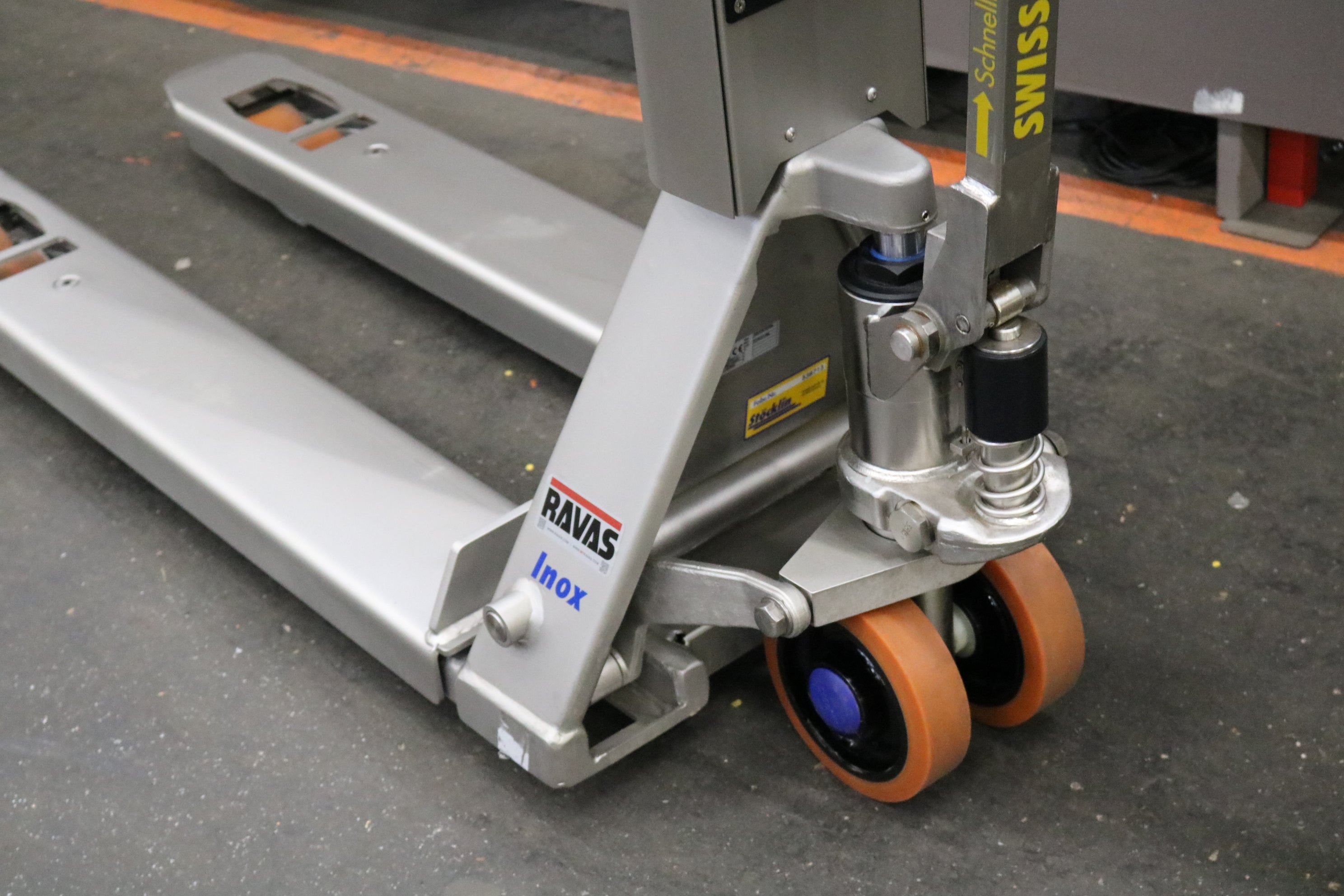

Steering wheels nylon
Loading wheels nylon, tandem
Colour stainless steel
Pump stainless steel, quick lift
Own weight 125 kg
