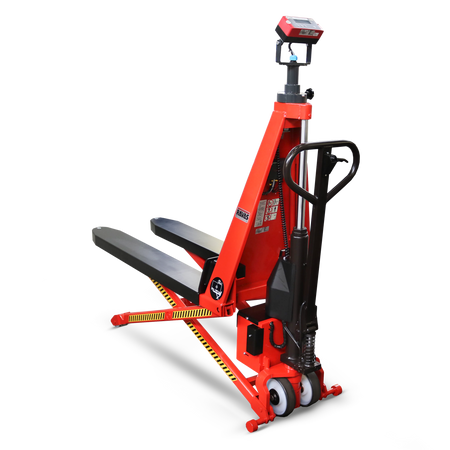

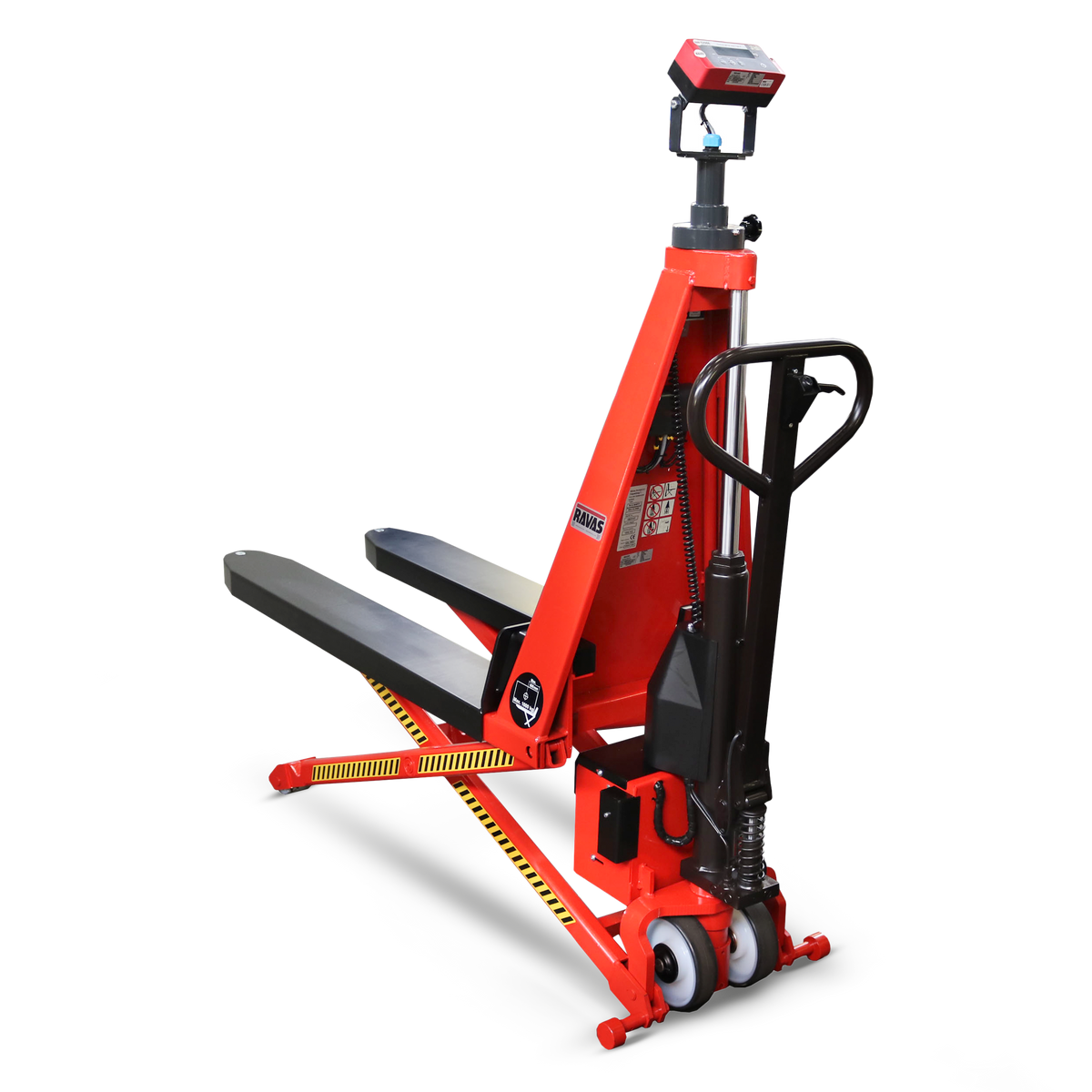

RAVAS Electric Ergo Scissor Lift Ind 3200
BENEFITS
Weighing at ergonomic height
Standard scale functionality
Lowest fork height only 92 mm
High accuracy
Scale preparation in factory (no retrofit)
STANDARD SCALE SPECIFICATIONS
Capacity 1.000 kg
Graduation multi-range 0.5 kg till 500 kg / 1 kg at 500 till max 1,000 kg
System tolerance 0,1 % of applied load

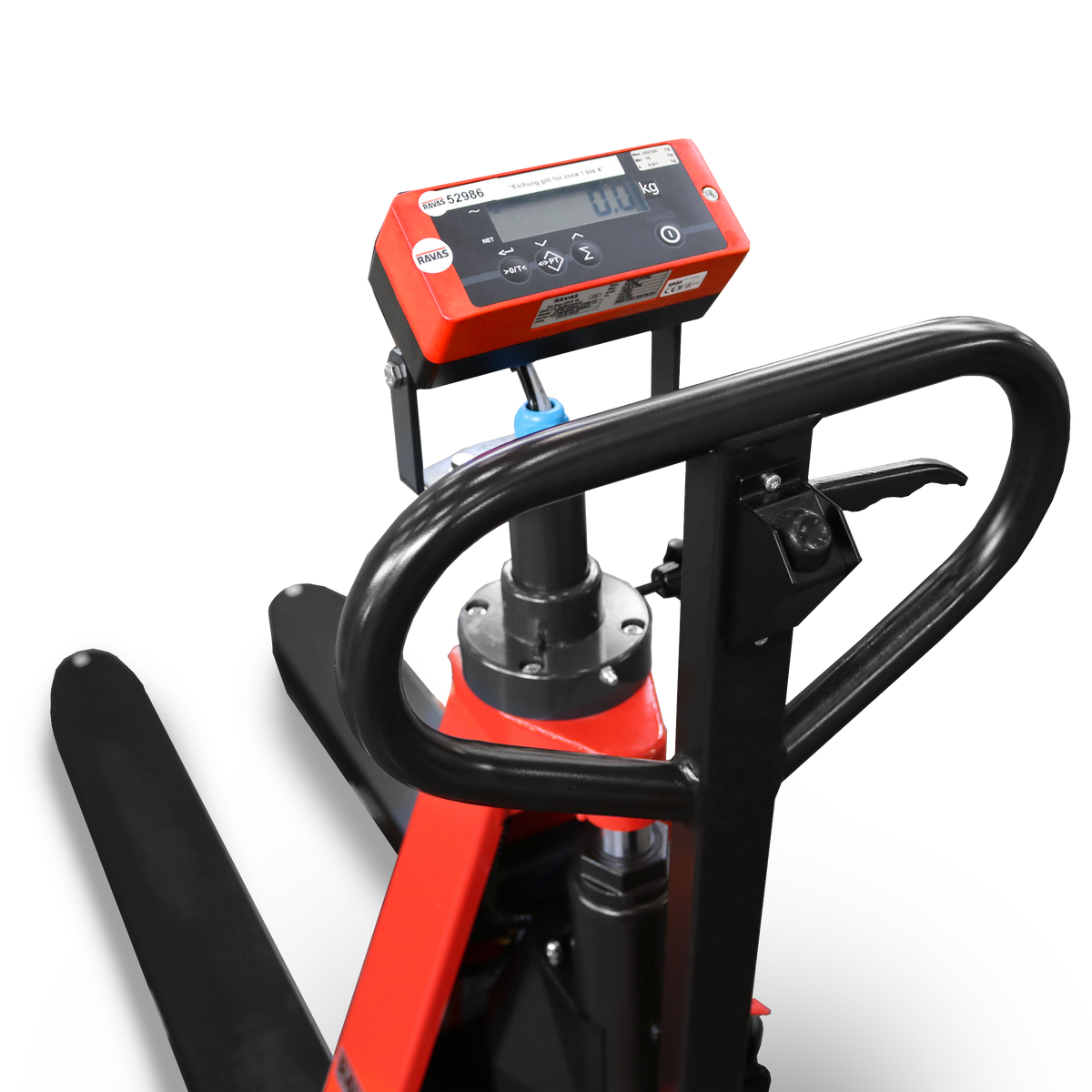

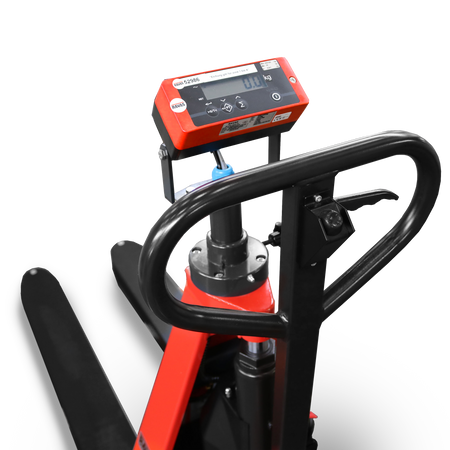

Display LCD dual color, digit height 20 mm, backlight
Power consumption 12V – 34mA
Power supply:
- electric via truck battery
- manual via (exchangeable) Li-ion battery pack
Keys 5 function keys, on/off key
Protection class IP65
Dimensions excl. bracket L x B x H = 60 x 77 x 182 mm
Indicator mounting rotating and tiltable
Wheels nylon core with rubber outer layer
Available with indicator types 3200 and 5200
Legal for trade version OIML III
Thermal or matrix printer 12V
Data transfer to devices that have WiFi or Bluetooth® technology
Reference scale (for more accurate piece counting)
RDC, RAVAS Data Collector Software
RIS, RAVAS Integration Software
STANDARD TRUCK SPECIFICATIONS (electric version)
• Battery 12V / 50Ah including charger 5A
• Autonomy battery 5 hours continuous lifting
• Lifting motor 12V / 0,8kW
• Lifting speed unloaded 0,08 m/sec
• Lifting speed loaded 0,05 m/sec
