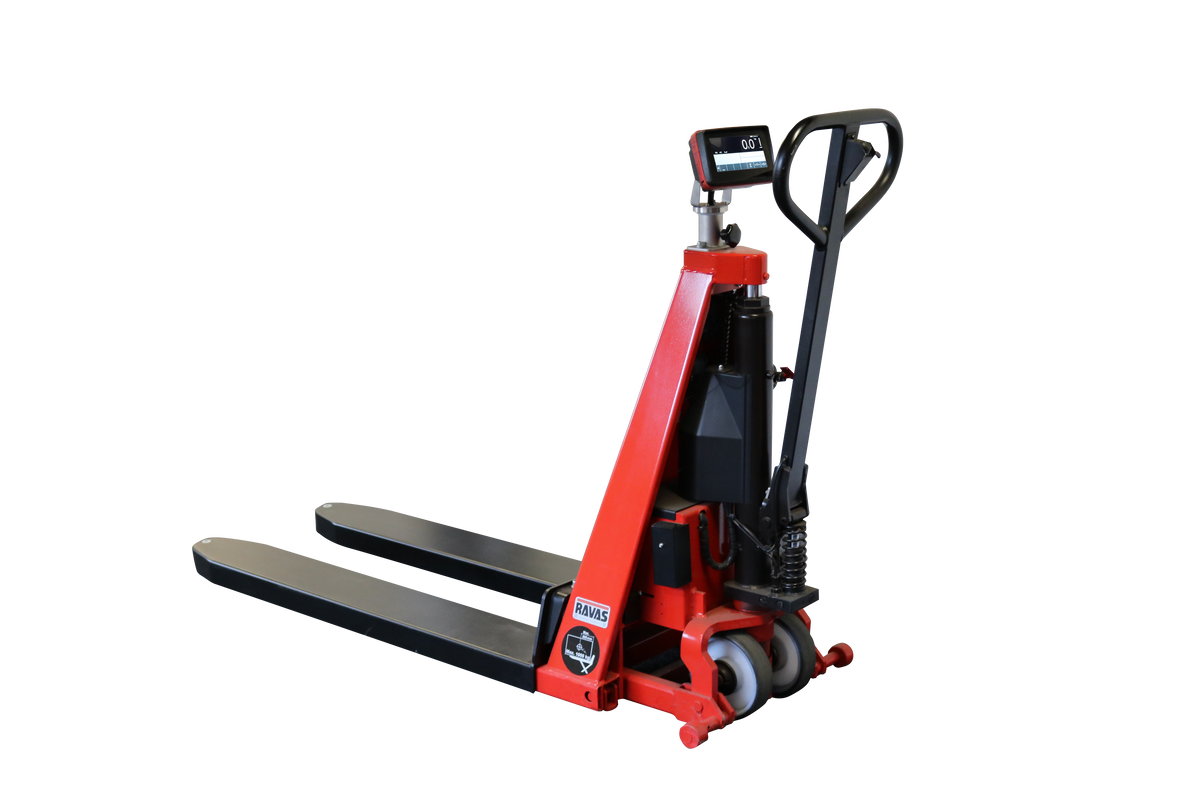

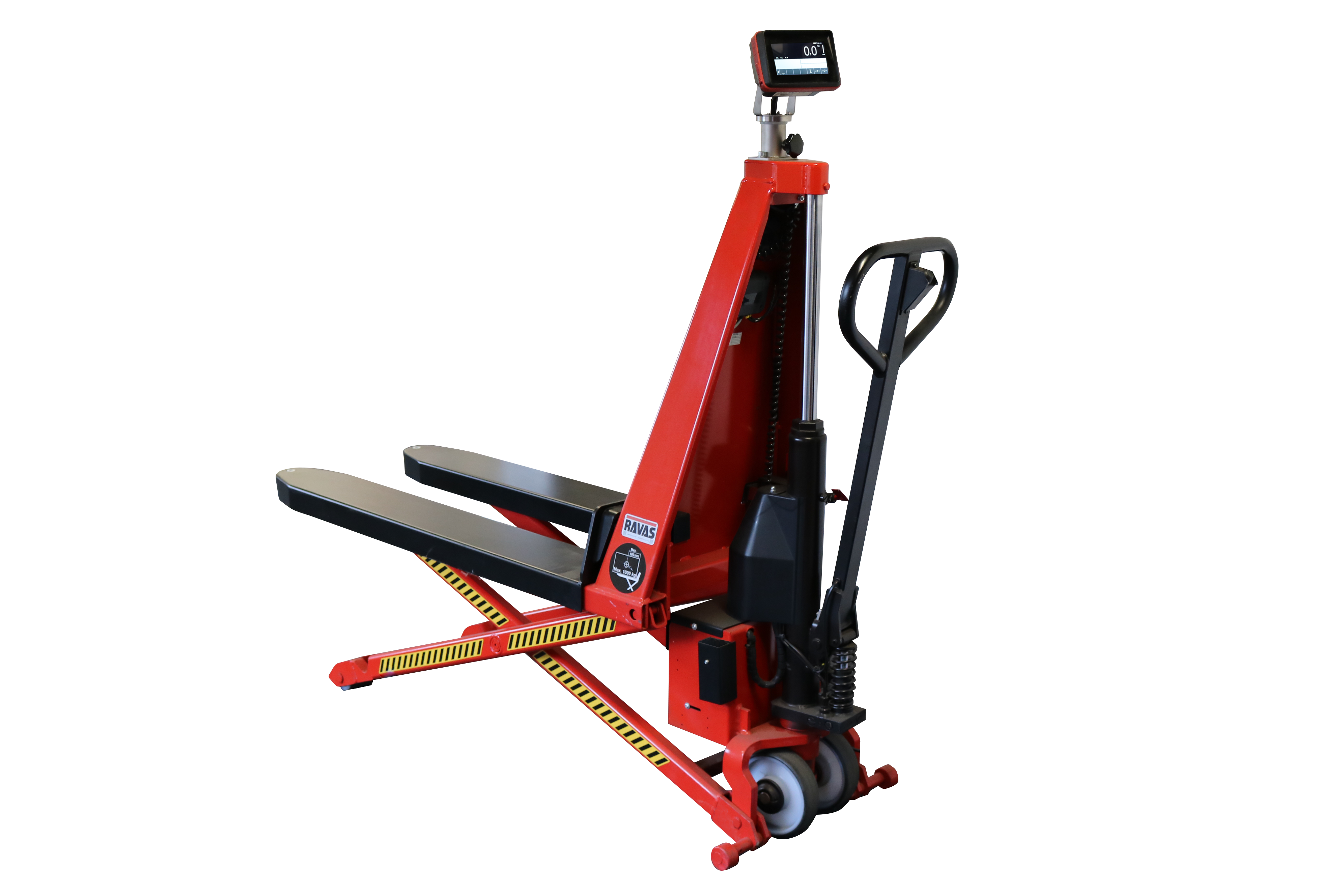

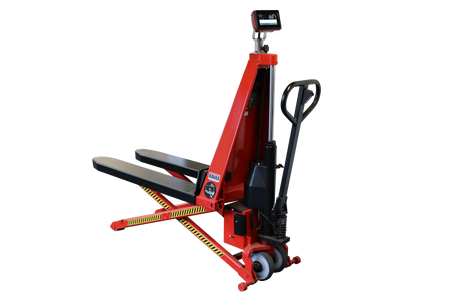

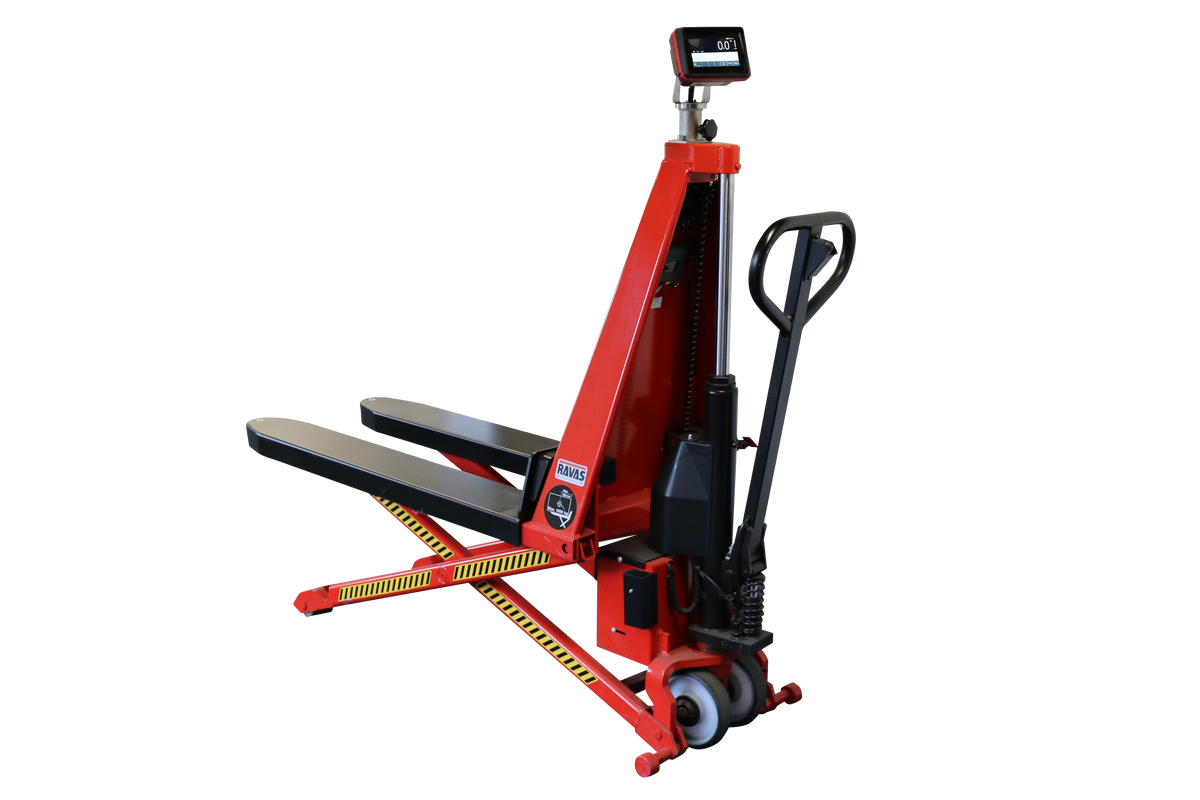

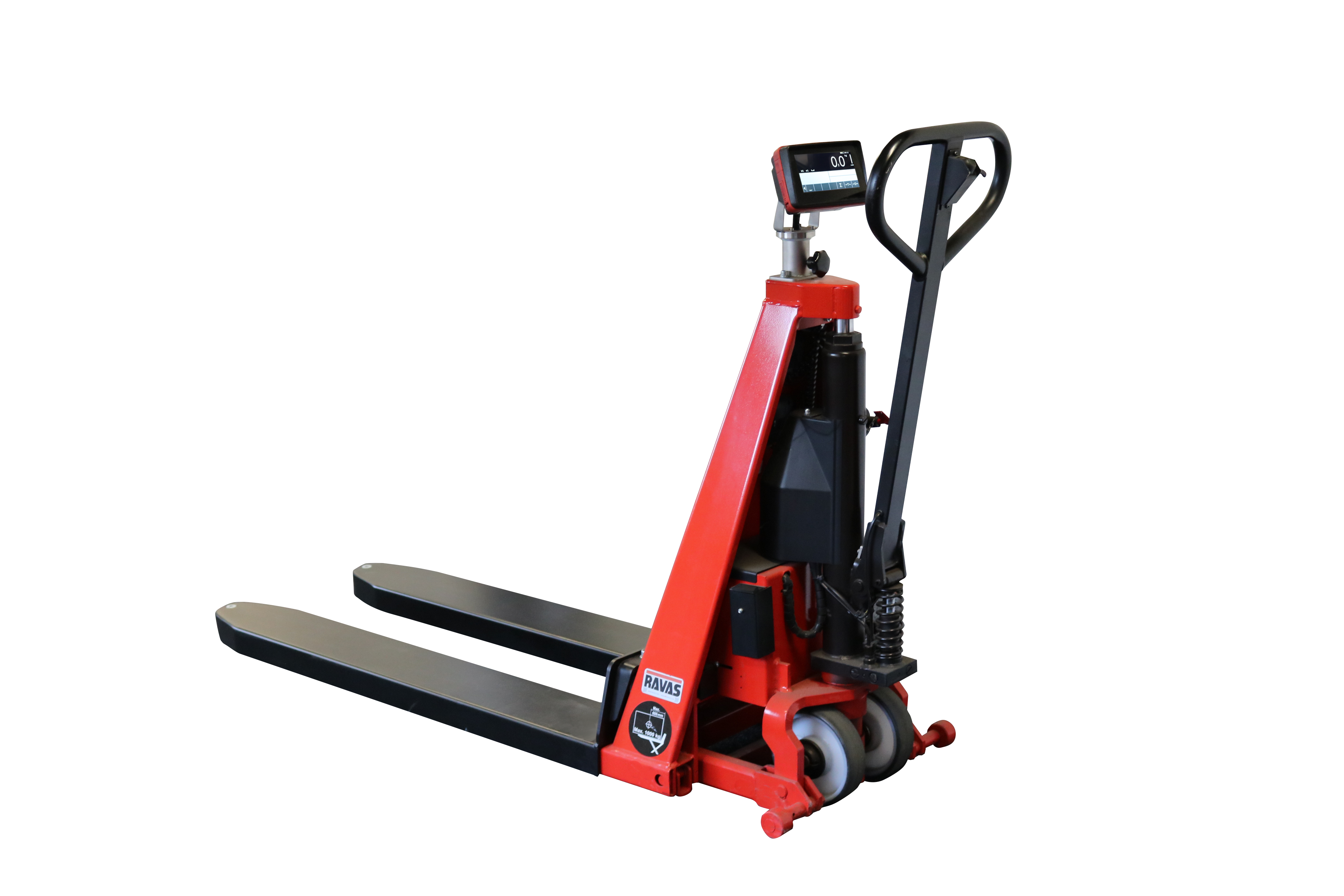

RAVAS Electric Ergo Scissor Lift Ind 5200

BENEFITS

ƒ Weighing at ergonomic height
ƒ Standard scale functionality
ƒ Lowest fork height only 92 mm
ƒ High accuracy
ƒ Scale preparation in factory (no retrofit)

STANDARD SCALE SPECIFICATIONS

ƒ Capacity 1.000 kg
ƒ Graduation multi-range 0.5 kg till 500 kg / 1 kg at 500 till max 1,000 kg
ƒ System tolerance 0,1 % of applied load
ƒ Display LCD dual color, digit height 20 mm, backlight
ƒ Power consumption 12V – 34mA
ƒ Power supply:
- electric via truck battery
- manual via (exchangeable) Li-ion battery pack
ƒ Keys 5 function keys, on/off key
ƒ Protection class IP65
ƒ Dimensions excl. bracket L x B x H = 60 x 77 x 182 mm
ƒ Indicator mounting rotating and tiltable
ƒ Wheels nylon core with rubber outer layer

STANDARD TRUCK SPECIFICATIONS (electric version)

• Battery 12V / 50Ah including charger 5A
• Autonomy battery 5 hours continuous lifting
• Lifting motor 12V / 0,8kW
• Lifting speed unloaded 0,08 m/sec
• Lifting speed loaded 0,05 m/sec

Datasheet RAVAS Ergo Scissor Lift
