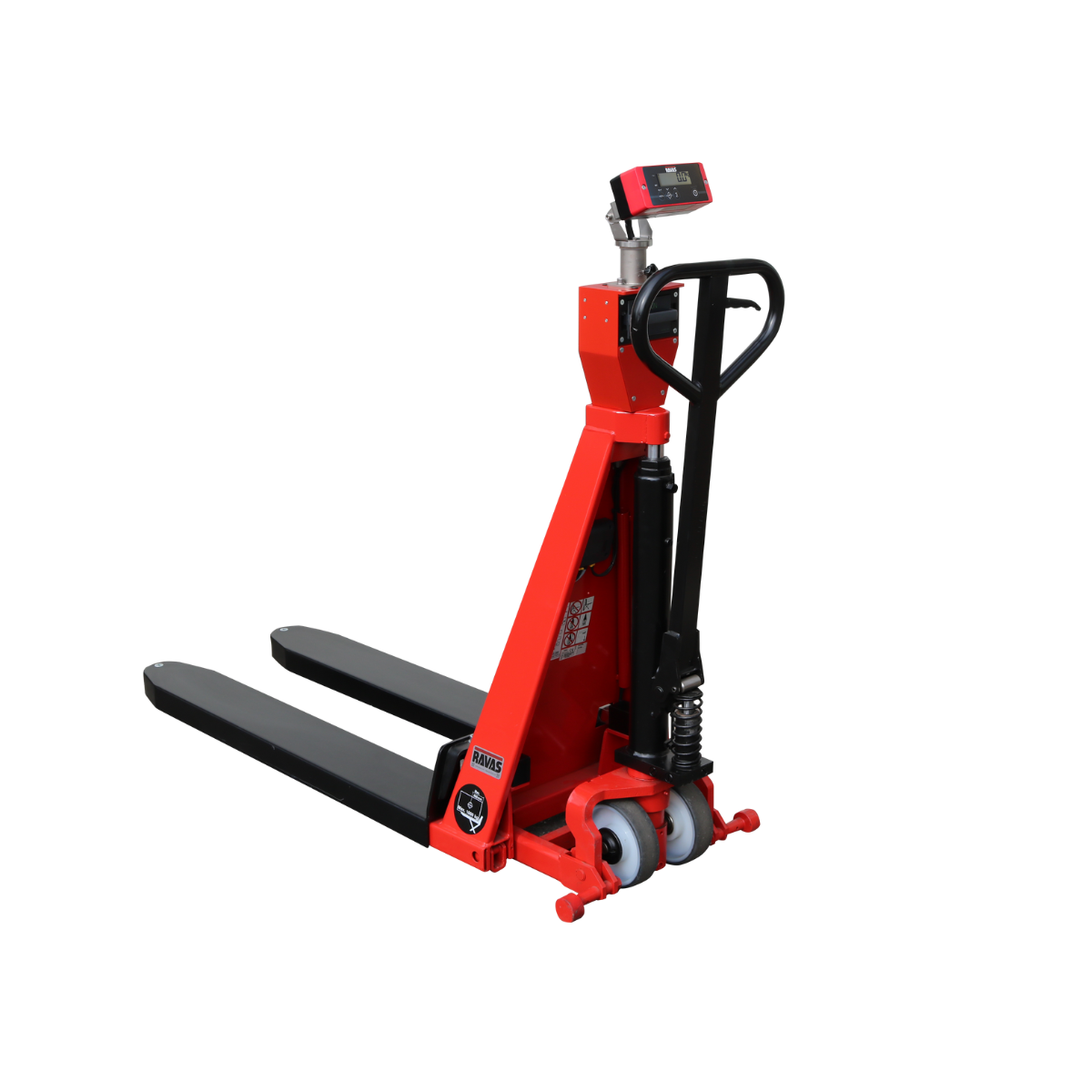

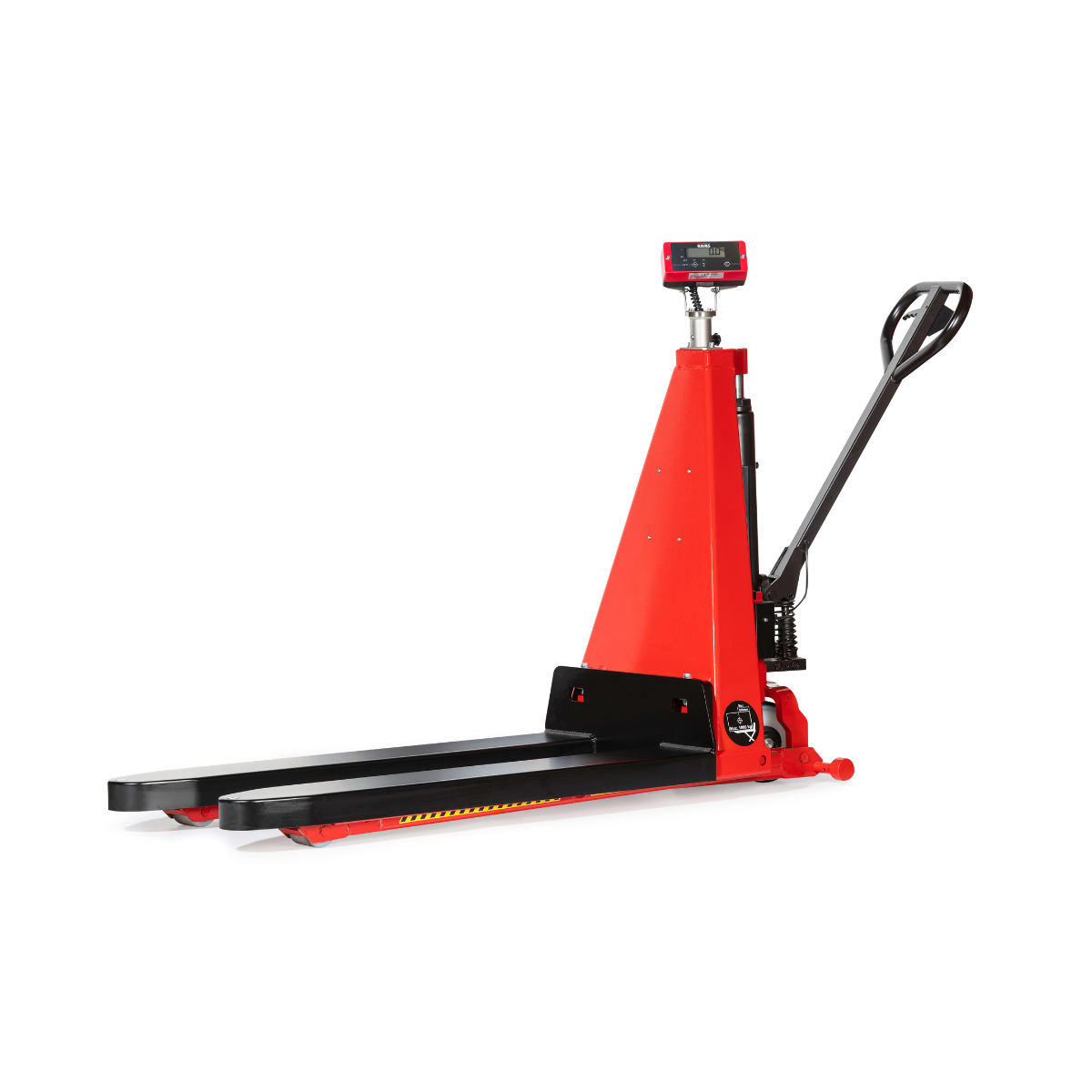

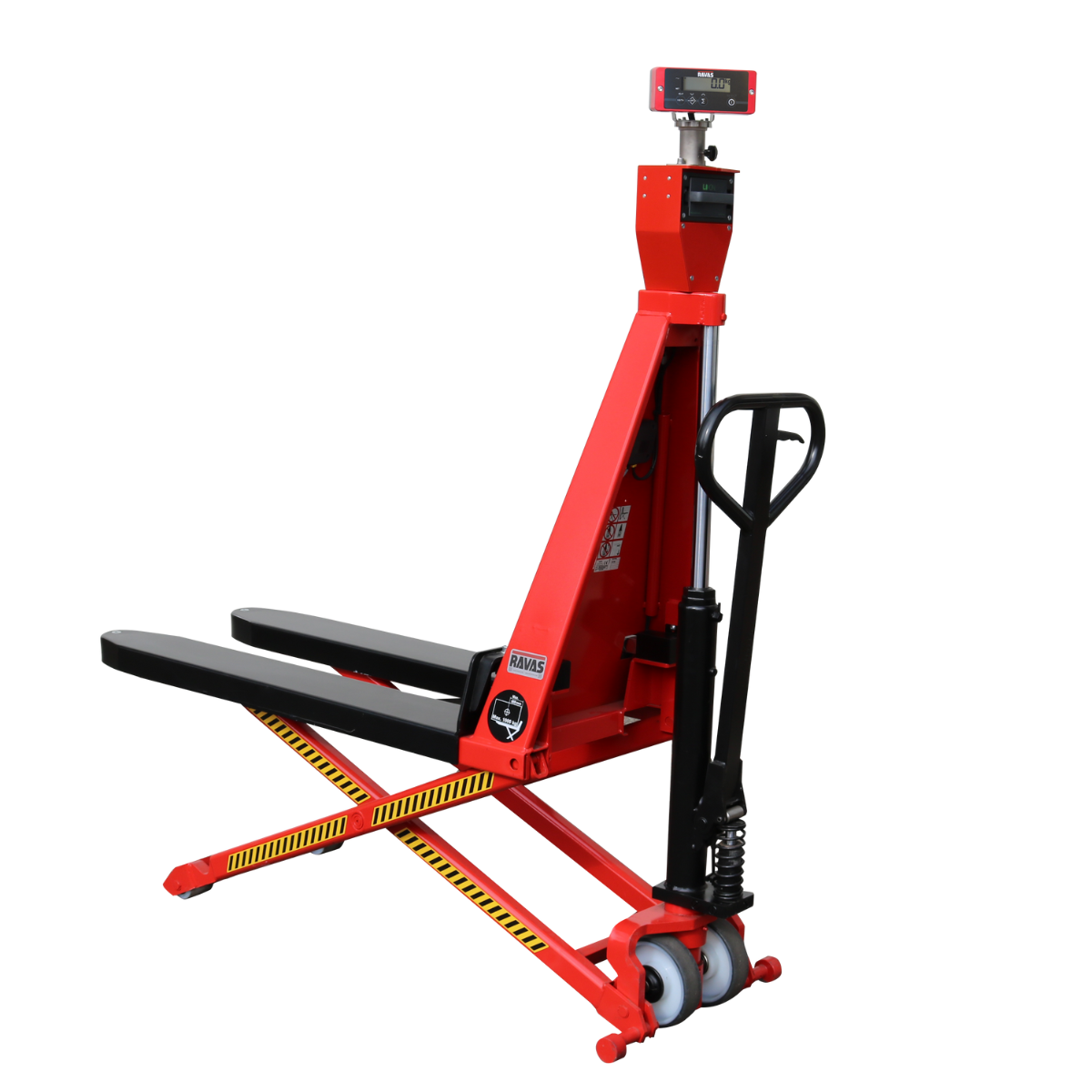

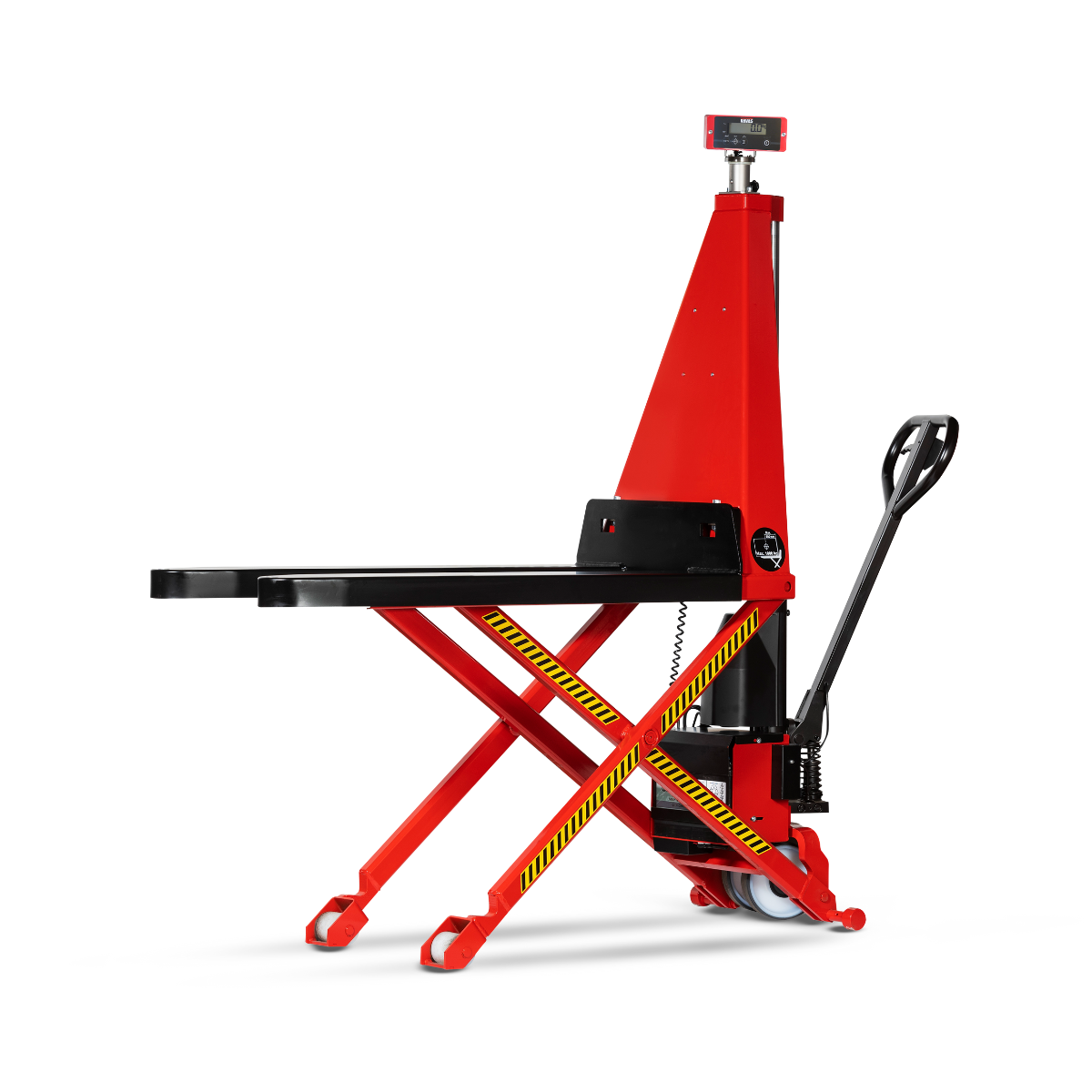

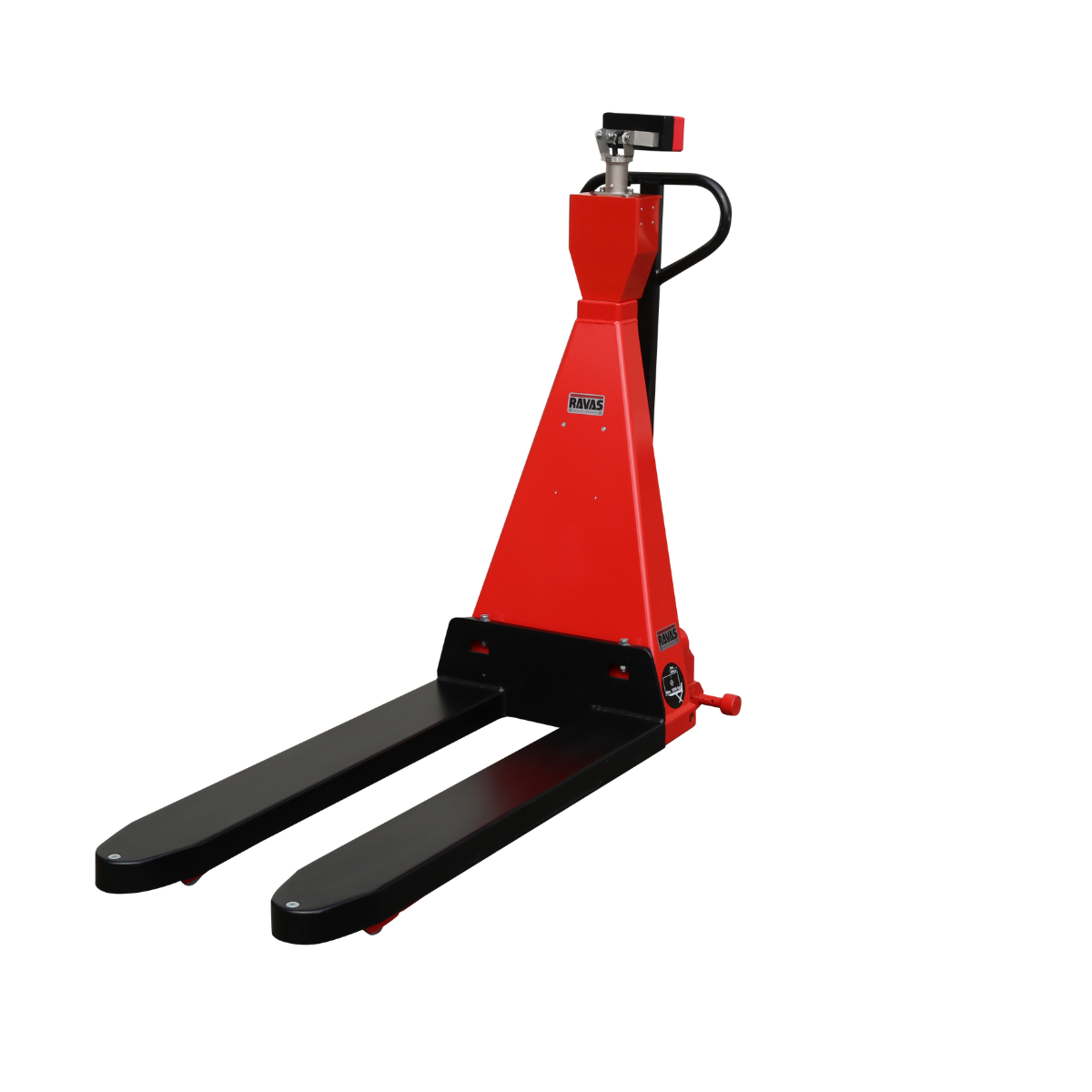

RAVAS Ergo Scissor Lift - Manual & Electric Scissor lift with scale function

BENEFITS

ƒ Weighing at ergonomic height
ƒ Standard scale functionality
ƒ Lowest fork height only 92 mm
ƒ High accuracy
ƒ Scale preparation in factory (no retrofit)

STANDARD SCALE SPECIFICATIONS

ƒ Capacity 1.000 kg
ƒ Graduation multi-range 0.5 kg till 500 kg / 1 kg at 500 till max 1,000 kg
ƒ System tolerance 0,1 % of applied load

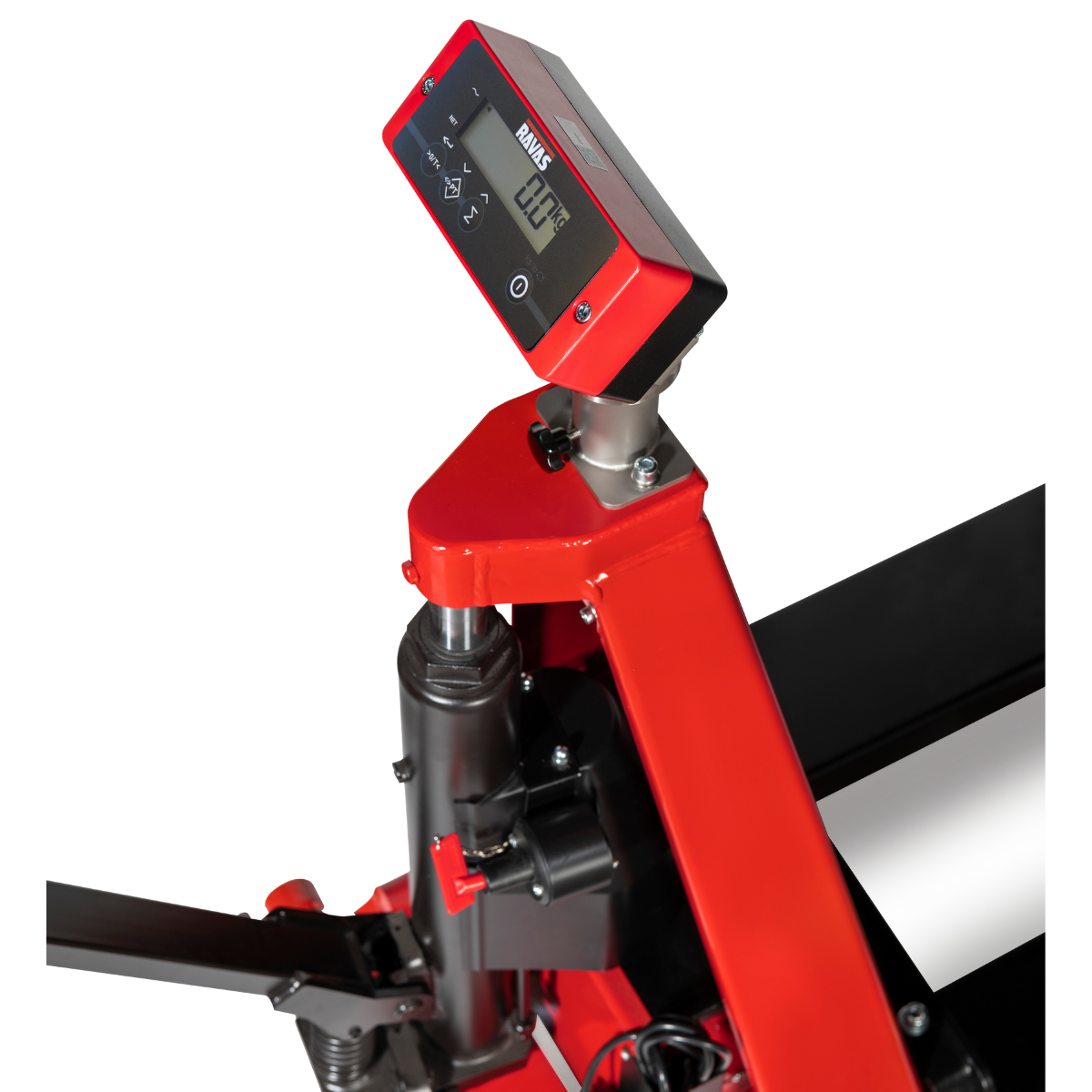

ƒ Display LCD dual color, digit height 20 mm, backlight
ƒ Power consumption 12V – 34mA
ƒ Power supply:
- electric via truck battery
- manual via (exchangeable) Li-ion battery pack
ƒ Keys 5 function keys, on/off key
ƒ Protection class IP65
ƒ Dimensions excl. bracket L x B x H = 60 x 77 x 182 mm
ƒ Indicator mounting rotating and tiltable
ƒ Wheels nylon core with rubber outer layer

STANDARD TRUCK SPECIFICATIONS (electric version)

• Battery 12V / 50Ah including charger 5A
• Autonomy battery 5 hours continuous lifting
• Lifting motor 12V / 0,8kW
• Lifting speed unloaded 0,08 m/sec
• Lifting speed loaded 0,05 m/sec

STANDARD TRUCK SPECIFICATIONS (manual lift)

• Power supply indicator via rechargeable 14,8V/5aH Li-ion battery pack
• Pumping to maximum lifting height in 30 strokes

OPTIONS

ƒ Available with indicator types 3200 and 5200
ƒ Legal for trade version OIML III
ƒ Thermal or matrix printer 12V
ƒ Data transfer to devices that have WiFi or Bluetooth® technology
ƒ Reference scale (for more accurate piece counting)
ƒ RDC, RAVAS Data Collector Software
ƒ RIS, RAVAS Integration Software

Datasheet RAVAS Ergo Scissor Lift
