OVERVIEW

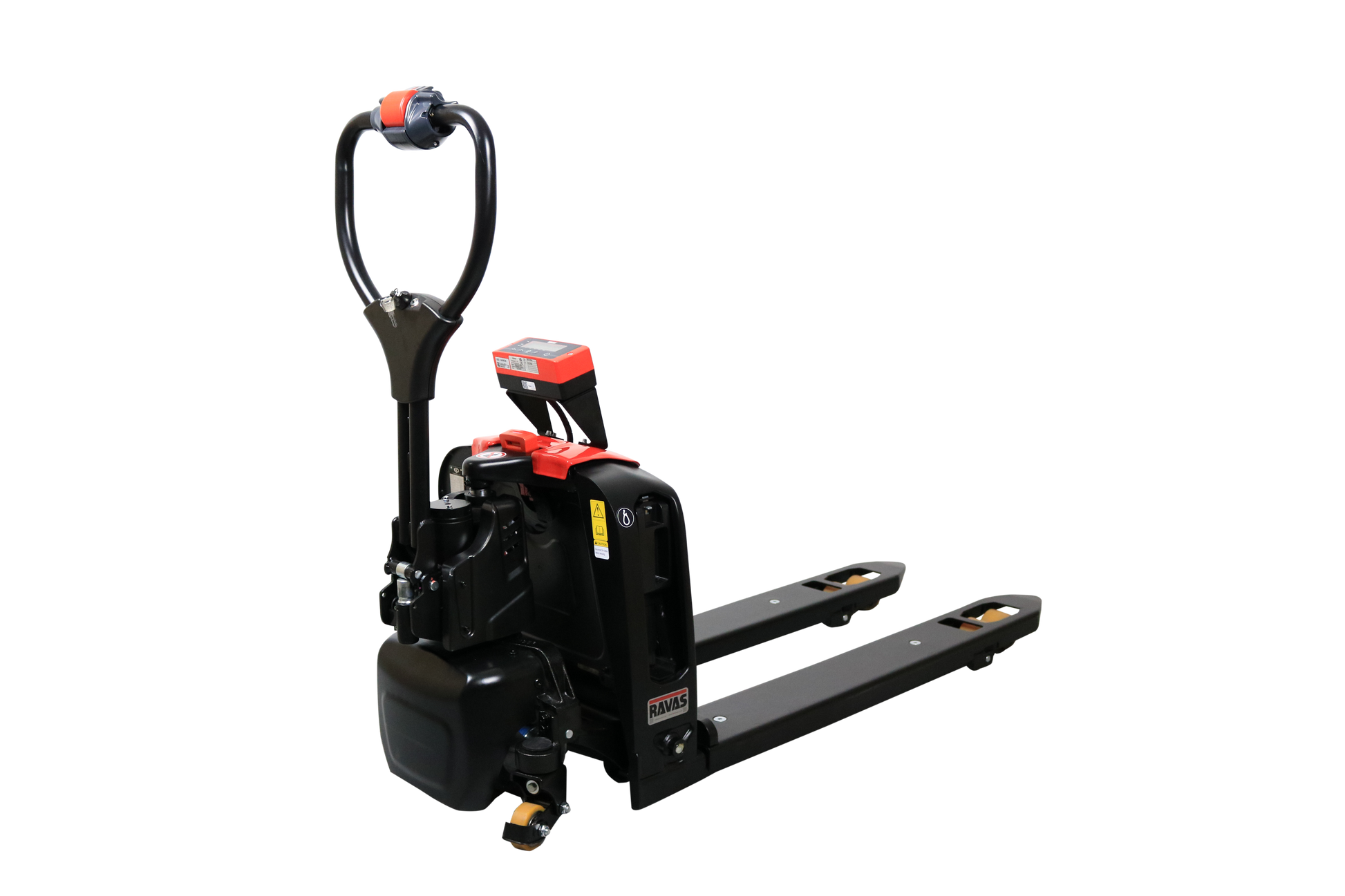

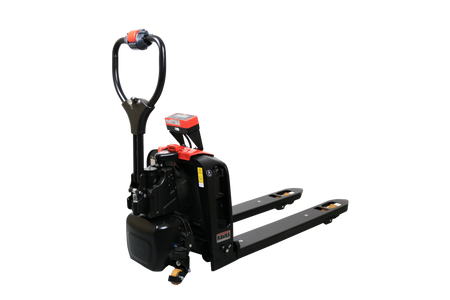

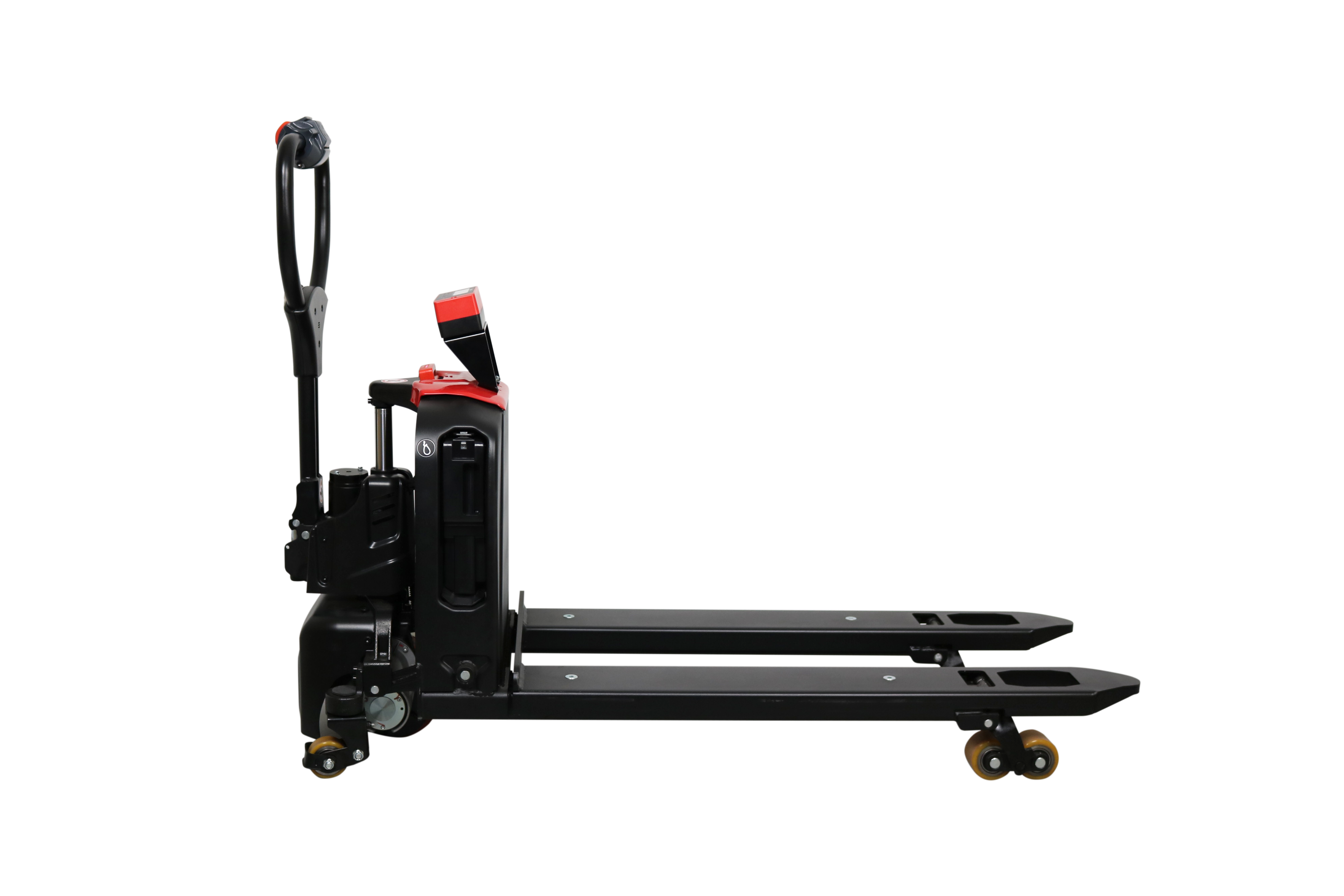

The RAVAS Ergo Truck-2 is an electric pallet truck suitable for a wide variety of
applications, from occasional to intensive use, from standard to large loads. The RAVAS

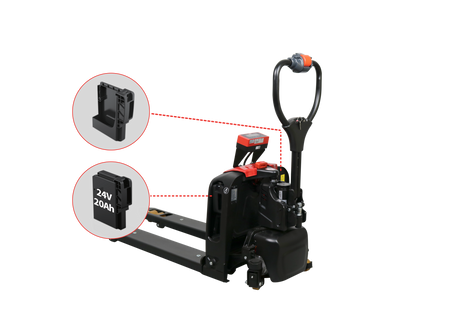

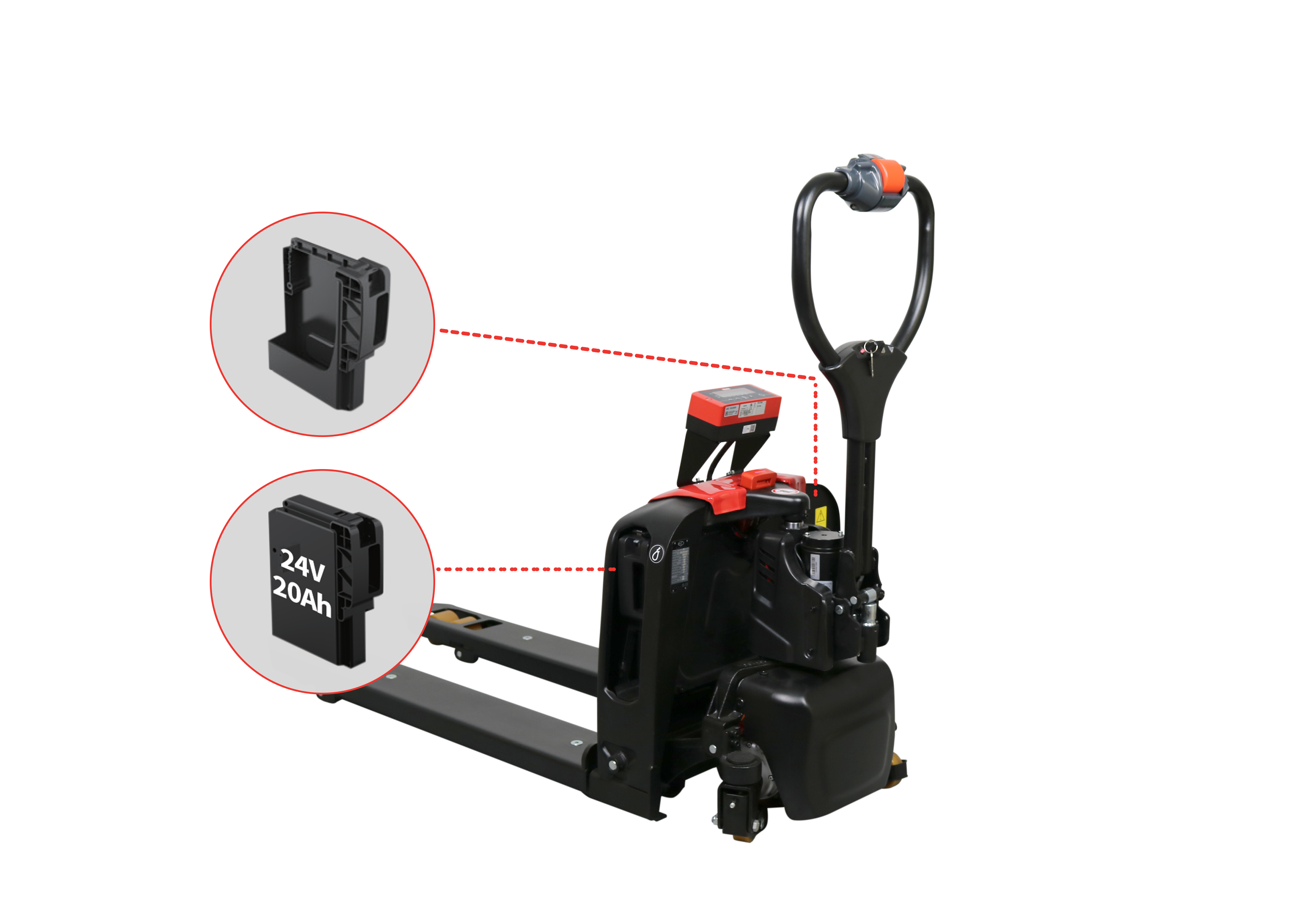

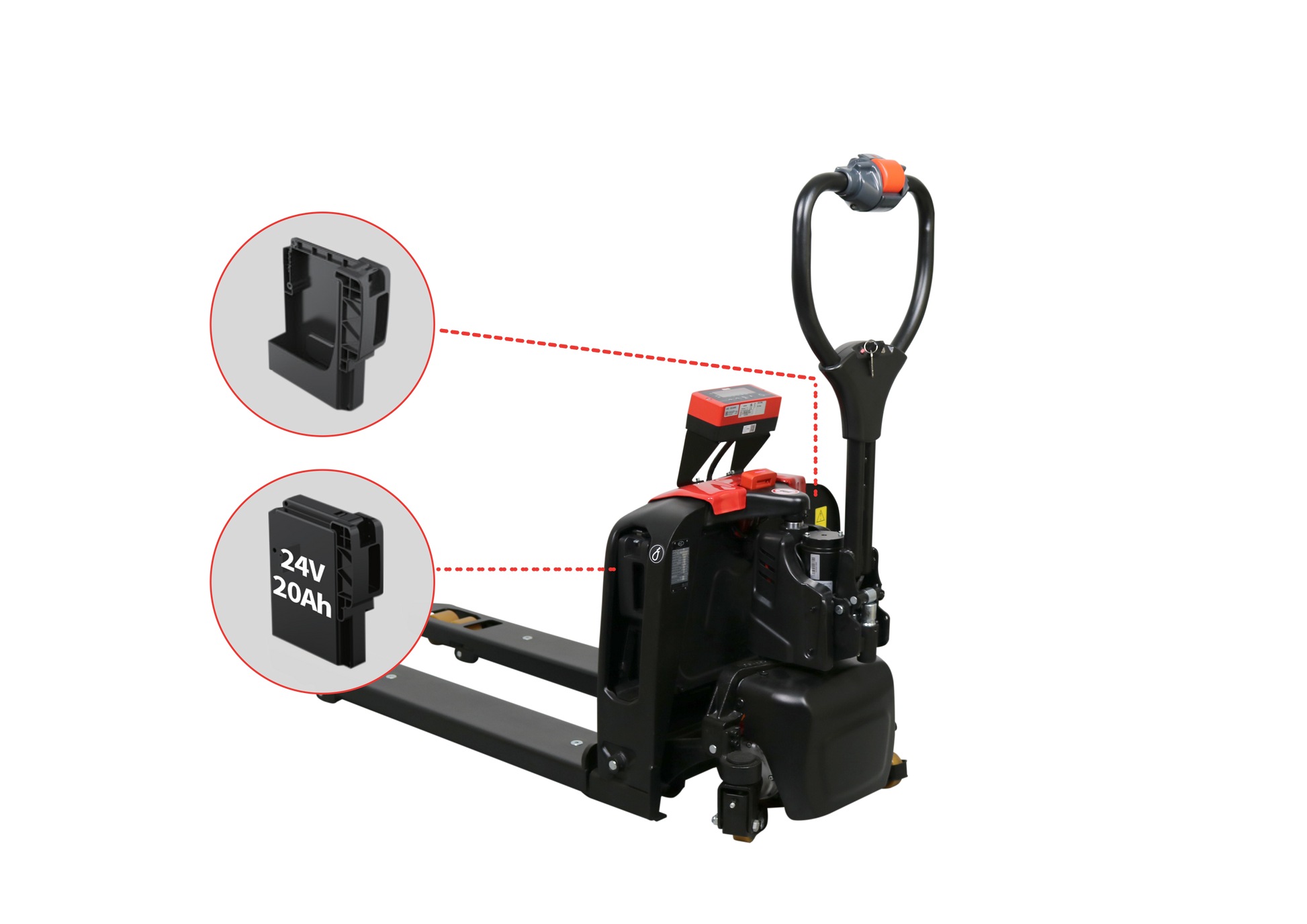

Ergo Truck-2 offers the possibility of two Li-ion 24V/20Ah batteries, which maximizes the
operating time. The system is equipped as standard with two stabilizing wheels. This allows
larger loads to be processed and also reduces the risk of tipping and damages.
STANDARD SCALE SPECIFICATIONS
• Weighing capacity 1,500 kg
• Graduation multirange 0 - 500 kg; 0.5 kg 500 - 1,500 kg; 1 kg
• System tolerance 0,1% of applied load

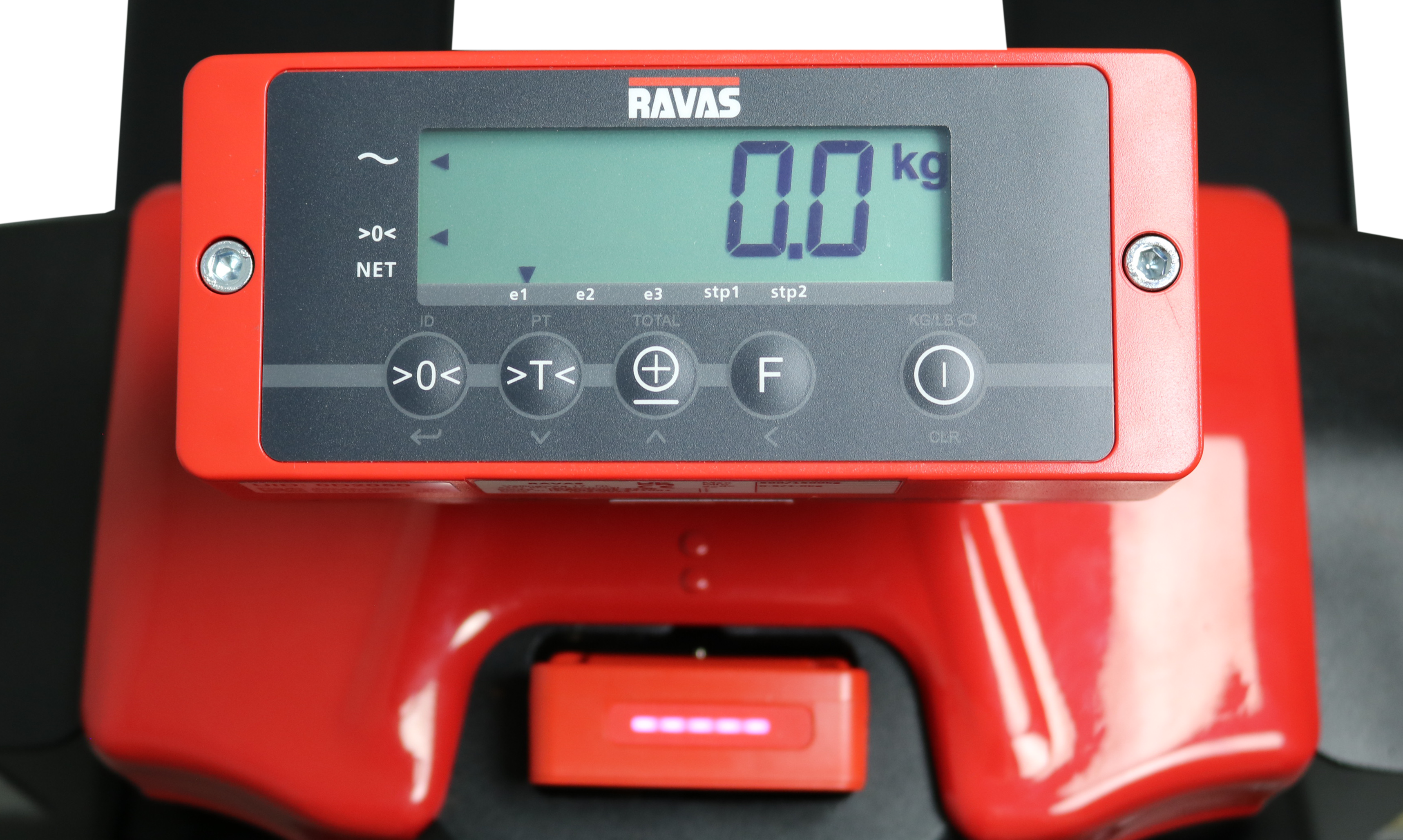

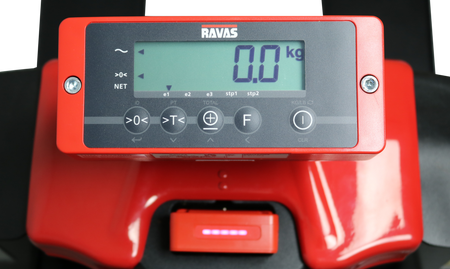

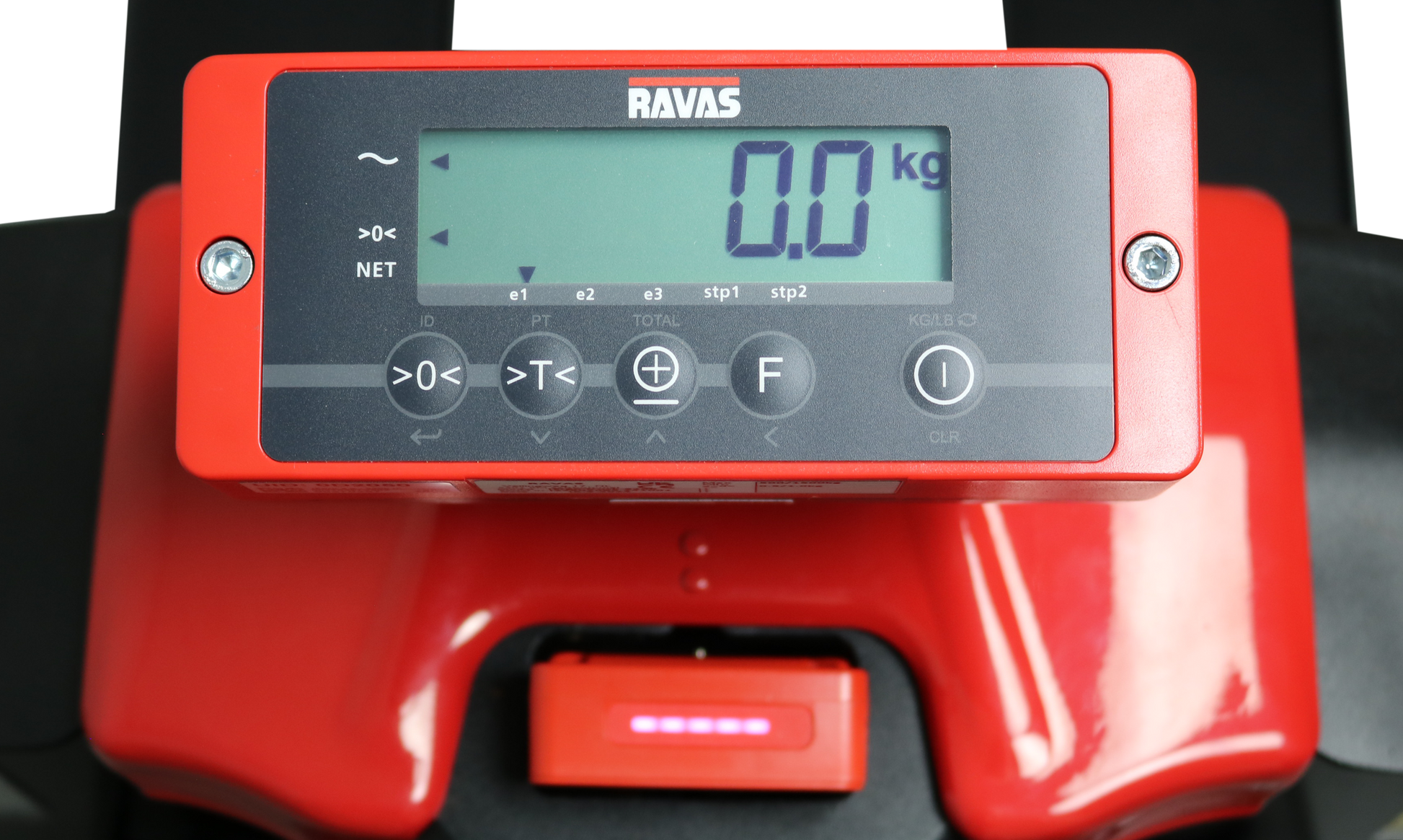

• Display LCD dual color, backlight, digit height 20 mm
• Power consumption 12V - 34mA
• Power supply via truck battery incl. power convertor/regulator
• Keys 5 function keys, on/off key
• Protection class system IP65
• Dimensions L x B x H = 60 x 77 x 182 (excl. bracket)
STANDARD TRUCK SPECIFICATIONS
• Li-ion battery 24V/20Ah, incl. separate charger
• Autonomy battery up to 5,5 hours working at one charge; depending on work and environmental conditions
• Standard equipped with stability wheels
• Driving wheel polyurethane 210 x 70 mm

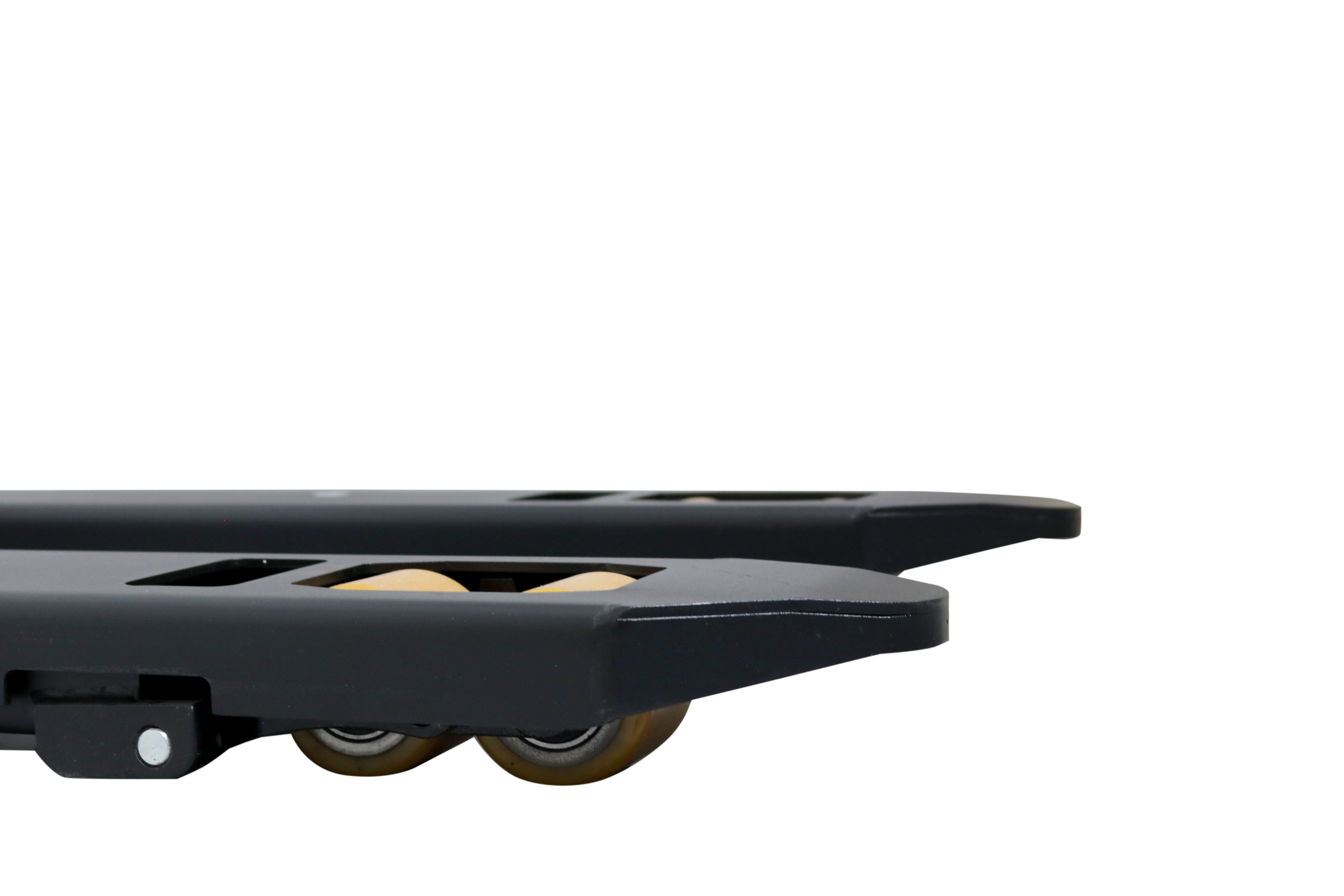

• Dual loading wheels polyurethane 80 x 60 mm (74 x 30)
• Driving motor 0,75 kW
• Lifting motor 0,5 kW
• Lifting speed (loading/unloading) 0,017-0,02 m/s
• Lowering speed (loading/unloading) 0,058-0,046 m/s
• Travel speed (loading/unloading) 4-4,5 km/h
• Buzzer, battery indicator (without time)
OPTIONS
• Second Li-ion battery to maximize uptime
• Legal for trade version
• Data transfer to devices that have WiFi or Bluetooth® technology
• Thermal or matrix printer 12V
• RDC, RAVAS Data Collector Software
• RIS, RAVAS Integration Software
