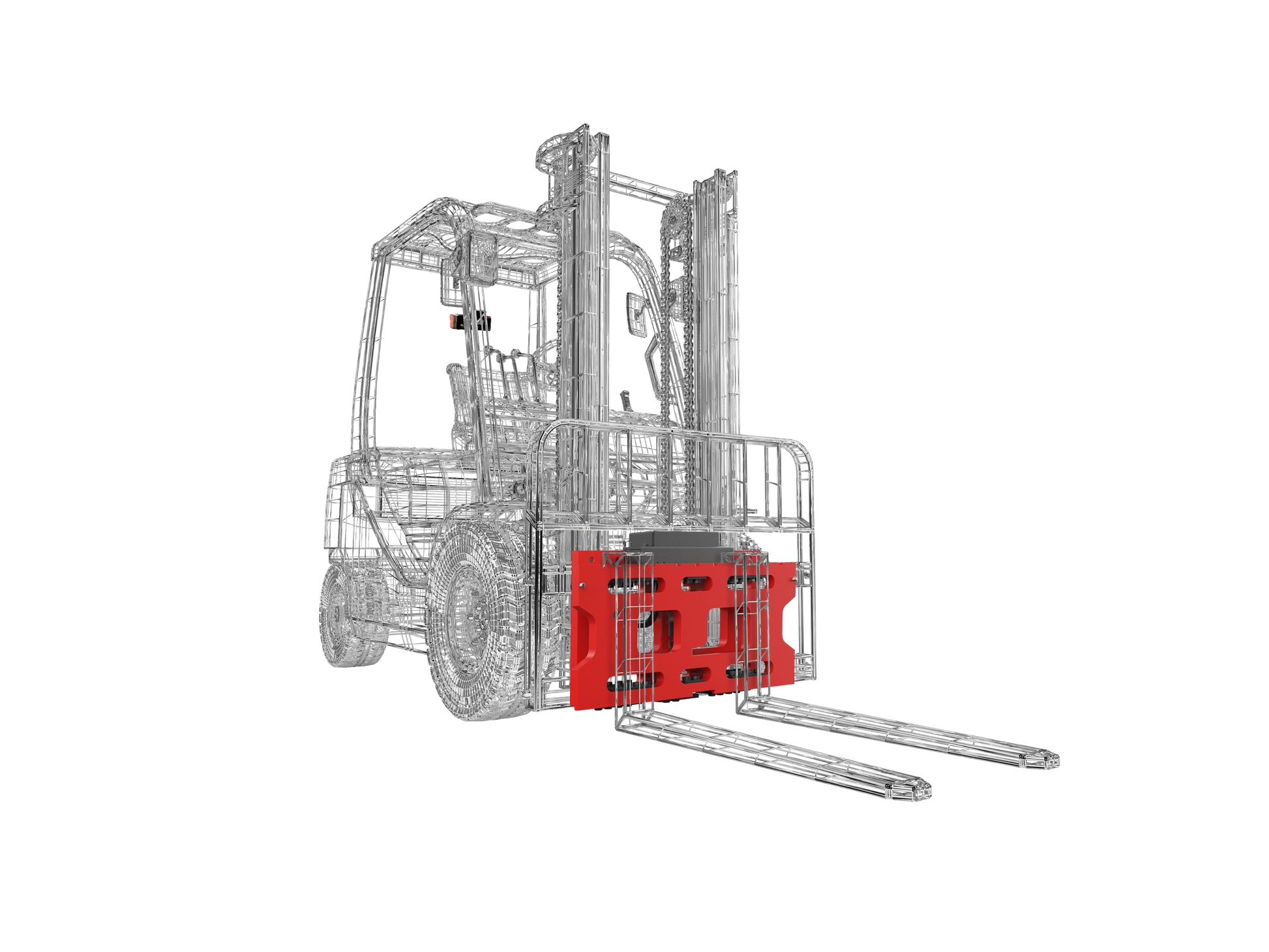

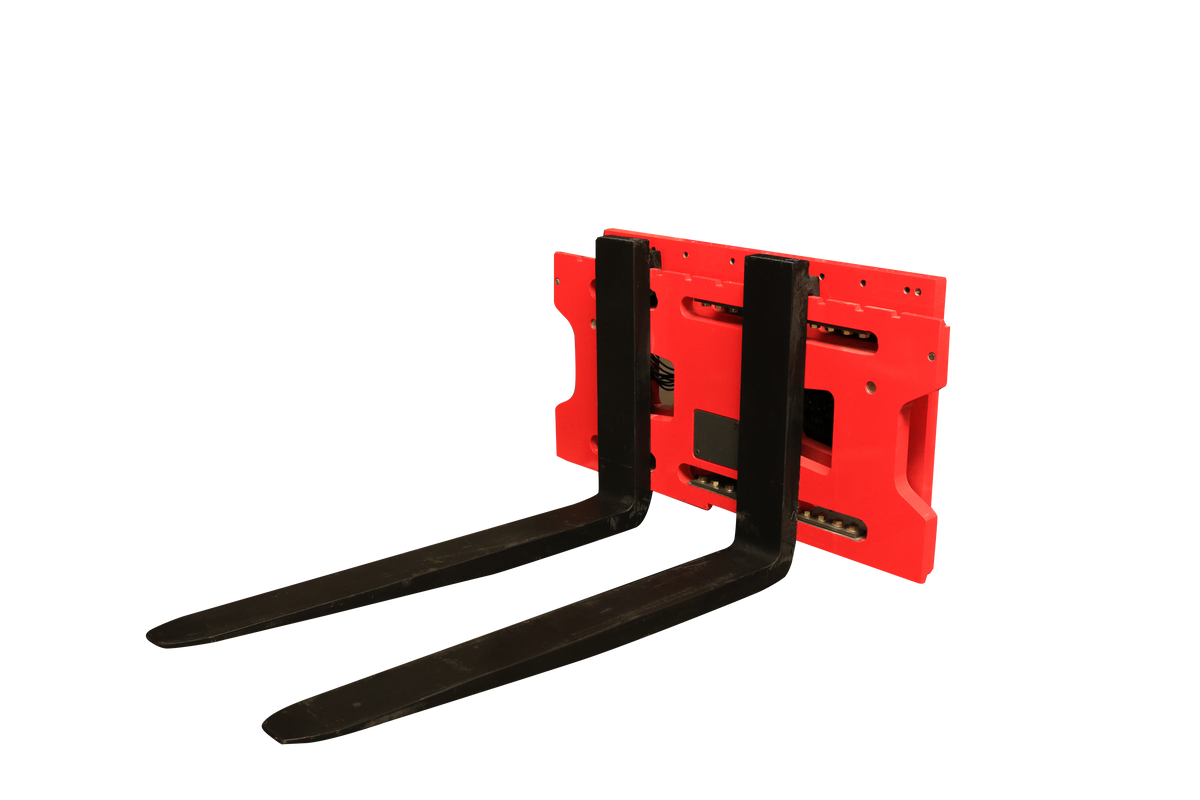

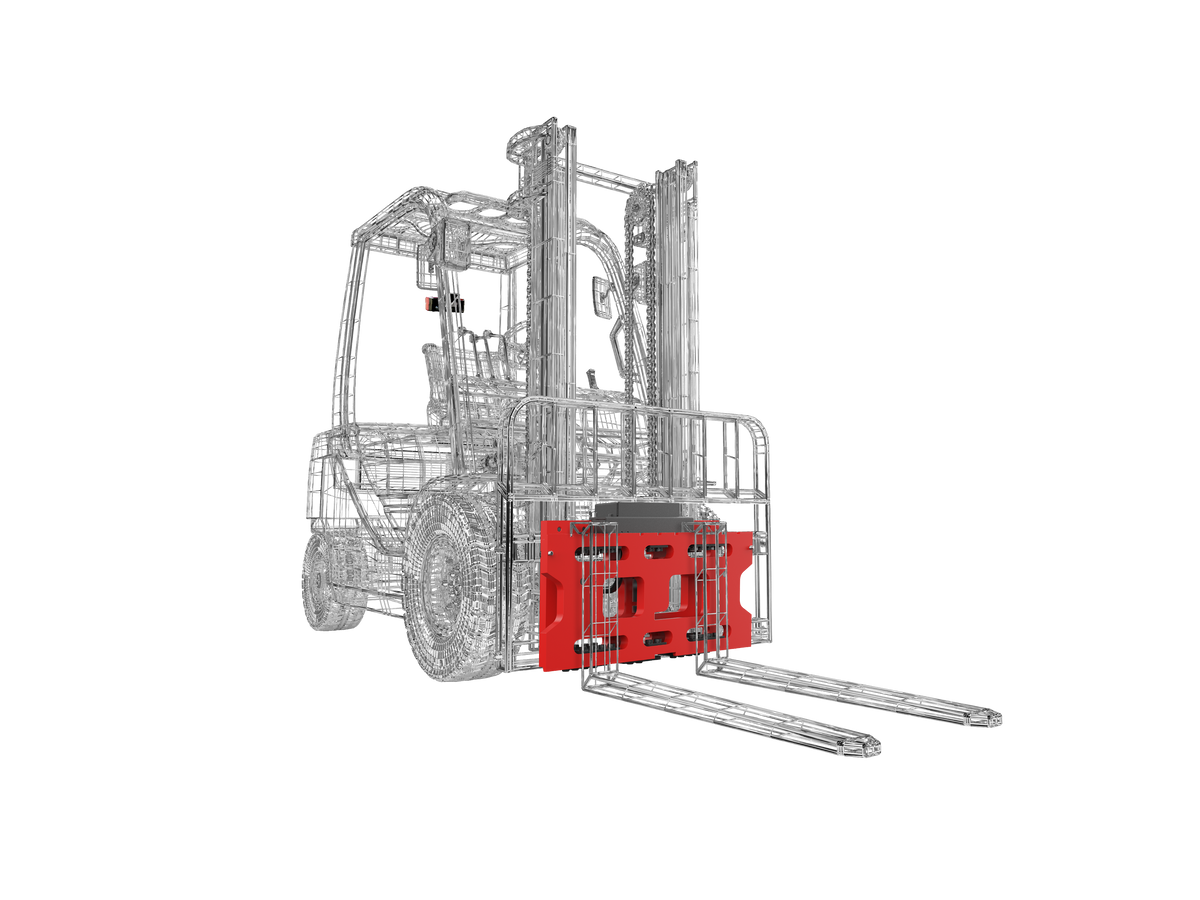

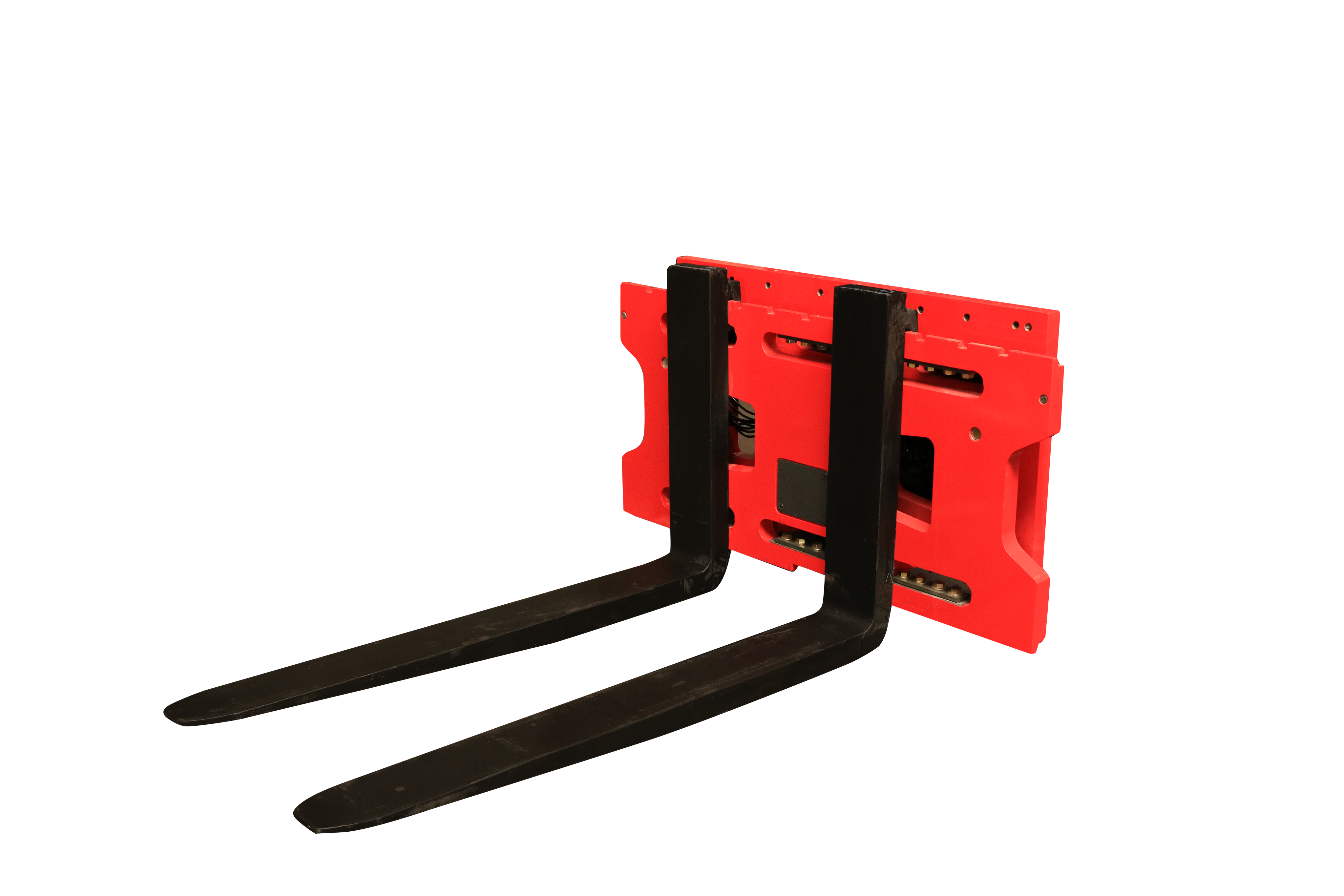

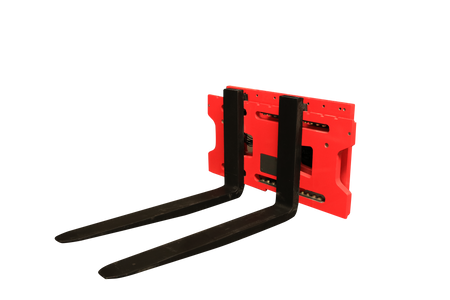

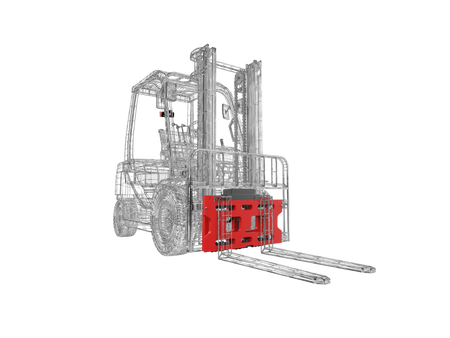

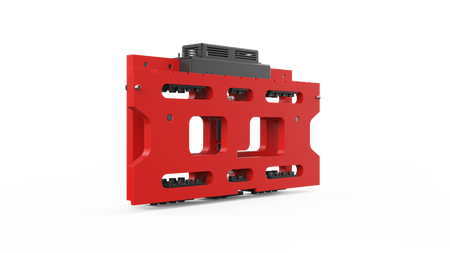

RAVAS iCP-32 - Carriage plate scale for counterbalanced trucks
BENEFITS

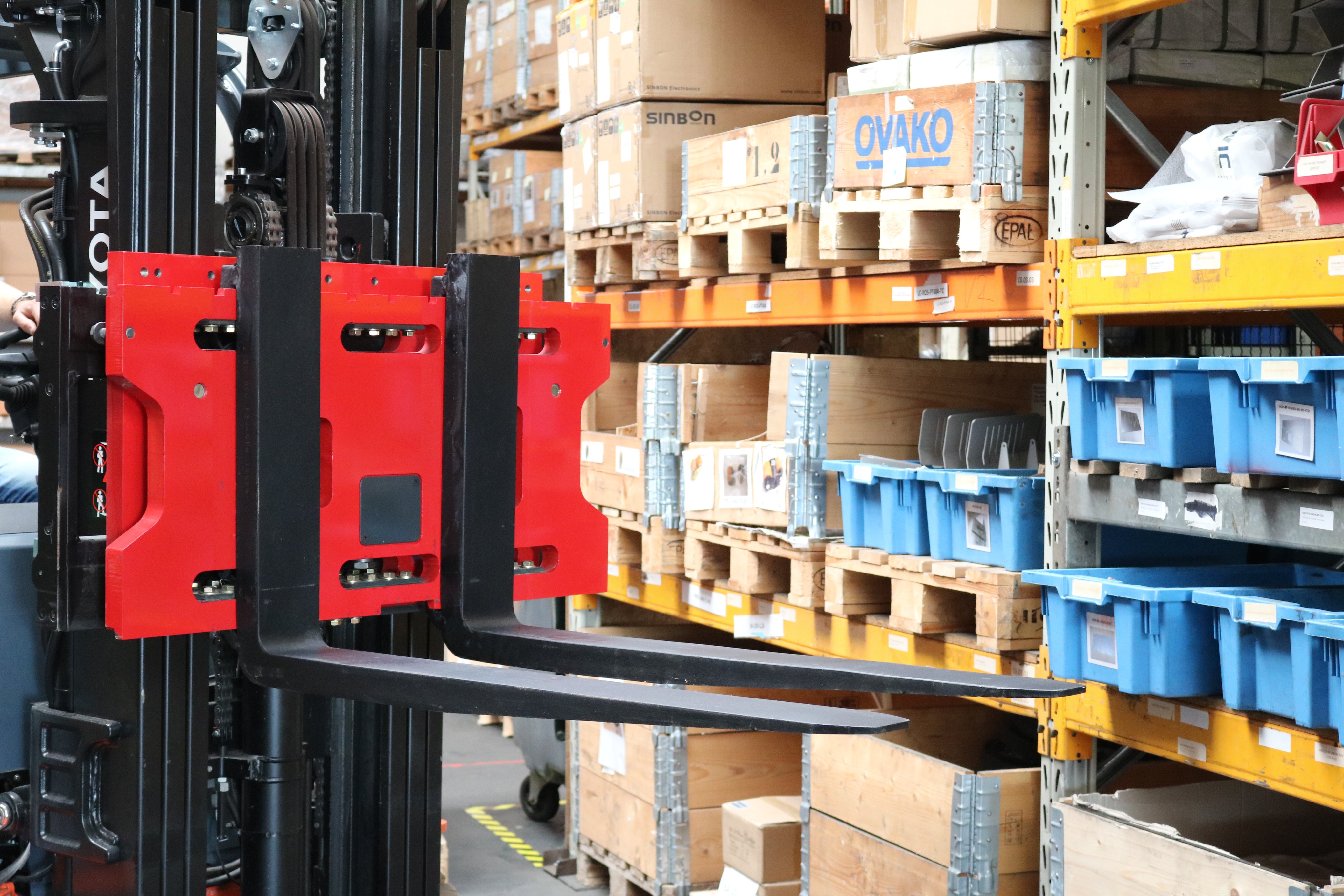

Robust forklift scale, for heavy duty applications
Total width of front plate available for weighing

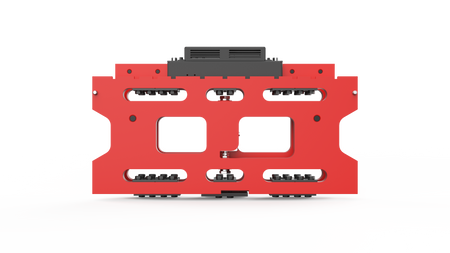

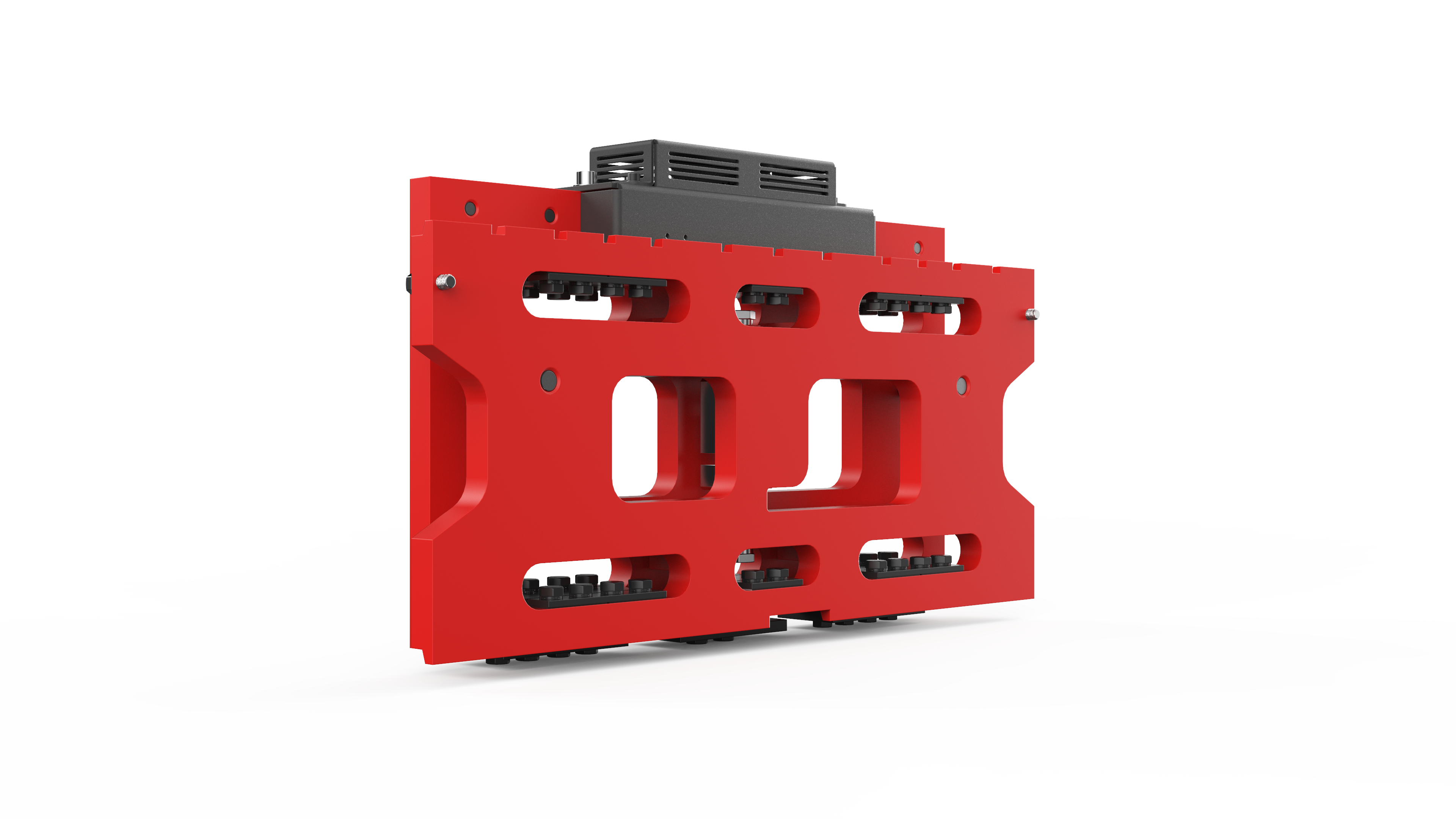

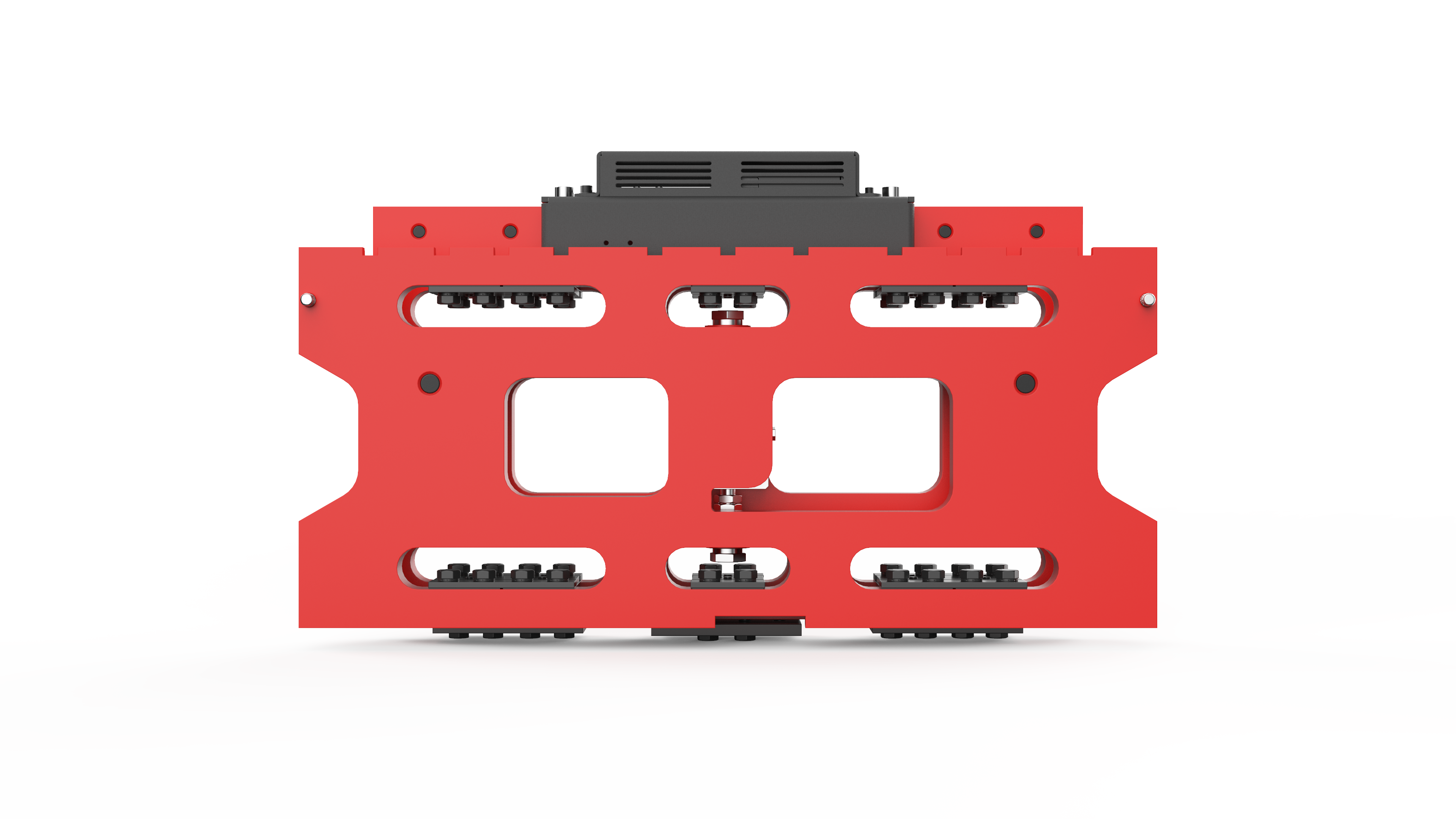

Cabled or wireless connection between indicator and RAVAS iCP
Also weighs in combination with rotators and clamps
Optional: legal for trade version
RAVAS Indicator App for data capture on tablets and smart phones
FUNCTIONS
Automatic and manual zero correction
Gross/net weighing
Totaling with sequence number
ID-code entry (5 digits)
Integrated level switch (cabled) or integrated level sensor (wireless)
Internal clock for date and time
RS232 port connection for printer
Connectivity for RAVAS Indicator App
Wireless: sleep mode with automatic start up
STANDARD SPECIFICATIONS
Capacity 2,500, 5,000 or 7,000 kg
Graduation 2 kg at 2,500 kg capacity 5 kg at 5,000 kg capacity 10 kg at 7,000 kg capacity
System tolerance 0.2% of the load lifted
Overload protection 200% on mechanical construction; according ISO 2330
Protection class IP65 / NEMA 4
Power supply - cabled from truck battery, via power convertor / regulator - wireless scale transmitter via rechargeable Li-ion 3,7V / 5,2 Ah battery indicator from truck battery, via regulator (optional via AA-batteries)
CONNECTION BETWEEN PLATE AND INDICATOR
Cabled standard via spiral cable optional over rolls, integrated in the mast
OPTIONS
Thermal or matrix printer
Wireless output for data communication between indicator and external device that works with WiFi or Bluetooth® technology
Converter 9-100Vcd - 12 Vdc
RDC, RAVAS Data Collector Software
RIS, RAVAS Integration Software
Legal for trade version
