FUNCTIONS
Automatic and manual zero correction
Gross/net weighing
Totaling with sequence number
ID-code entry (5 digits)
Integrated level correction in the forks
Internal clock for date and time
On board: RS232 port connection for printer
Connectivity for RAVAS Indicator App
Optional: Data transfer to devices that have WiFi or Bluetooth® technology
Tip loading error message with logging
Sleep mode for the forks with automatic start up
Overload protection 200% on mechanical construction;
according ISO 2330
STANDARD SPECIFICATIONS
Capacity: 2.500 kg; 3.000kg; 5.000 kg*; 8.000 kg **
Graduation multirange: Q-max 2.500 kg and Q-max 3.000 kg:
0 - 1.000 kg: graduation 1 kg
1.000 - Q.max: graduation 2 kg
Q-max 5.000 kg:
0 - 2.000 kg: graduation 2 kg
2.000 - Q.max: graduation 5 kg
System tolerance: 0.1% of the load lifted
Display: dual color (green / red), digit height 20mm, with backlight, 5 digits
Signal: wireless connection between load cell and indicator
Controls 4 function keys, on/off key
Protection class IP65
Dimensions housing 60 x 77 x 182 mm (excl. bracket)
* in combination with rotators: capacity reduction of 40%
** iForks 8.000: for dimensions, options, etc. request a quote
POWER SUPPLY

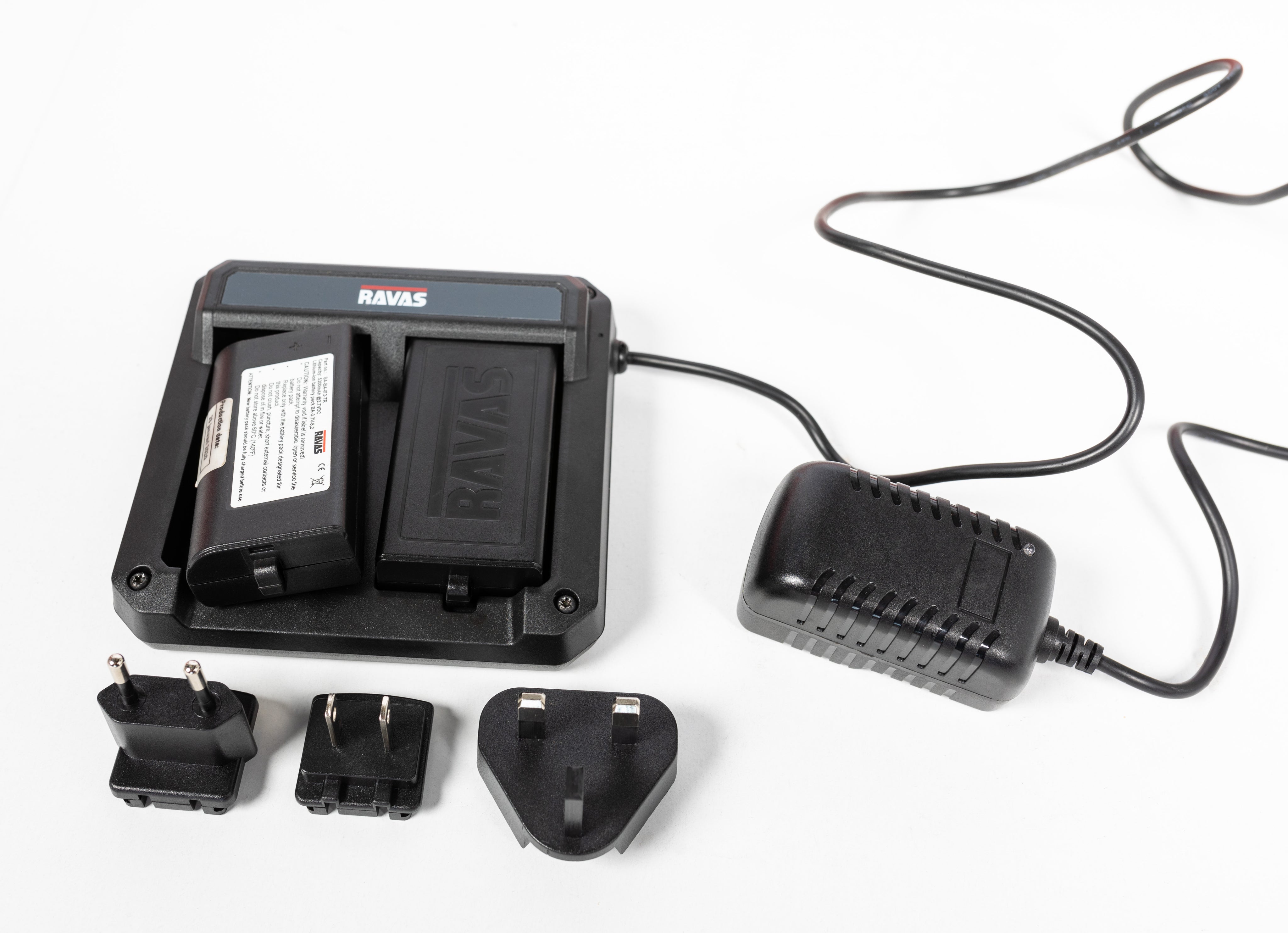

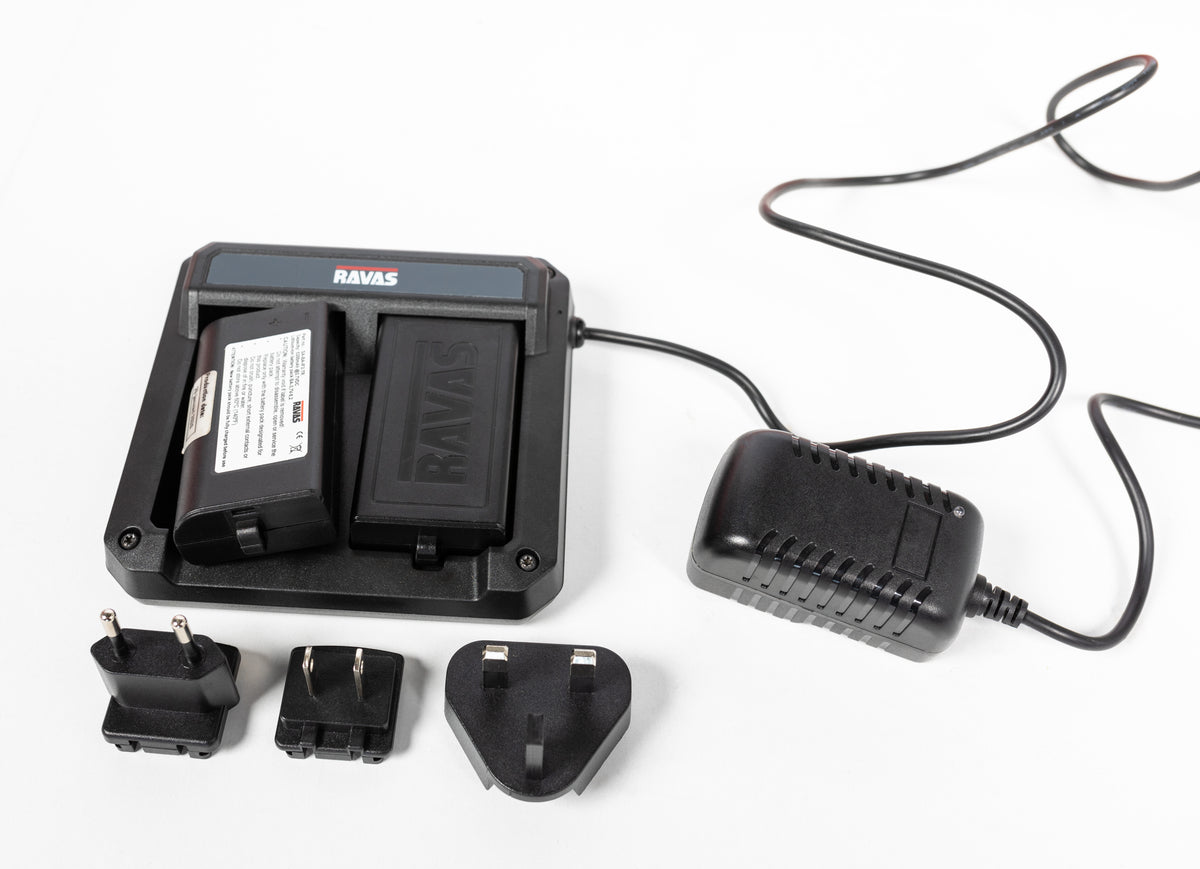

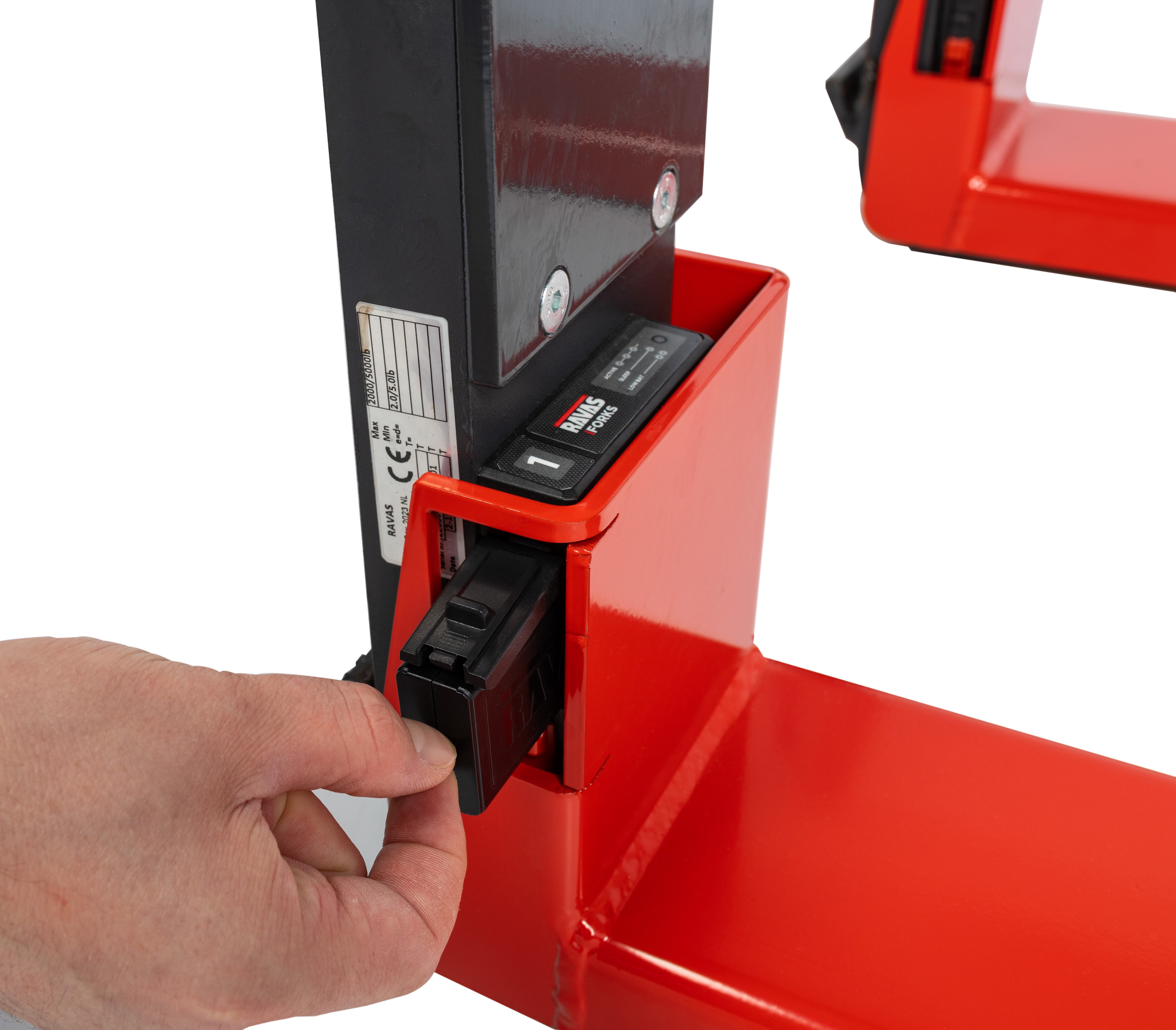

Each fork has its own rechargeable Li-ion 3.7V / 5.2Ah battery pack. Autonomy 75 hours continuous use, incl. charger station.
Indicator powered by 4 AA-batteries. Autonomy ca. 50 hours continuous use with no further options. Power supply from truck battery optional.
Sleep function with automatic start up for the fork transmitters, auto shut-off function for the indicator.
