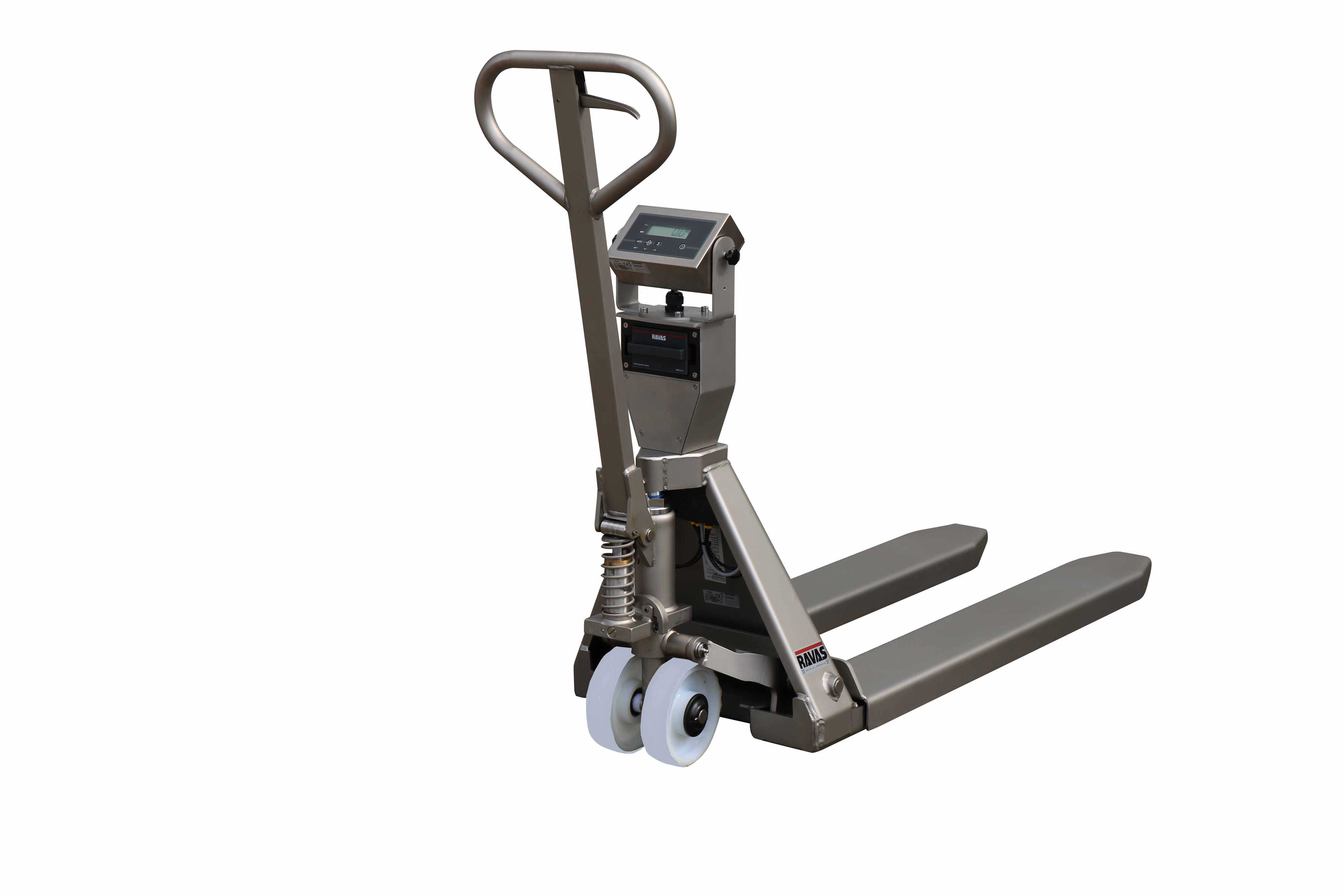

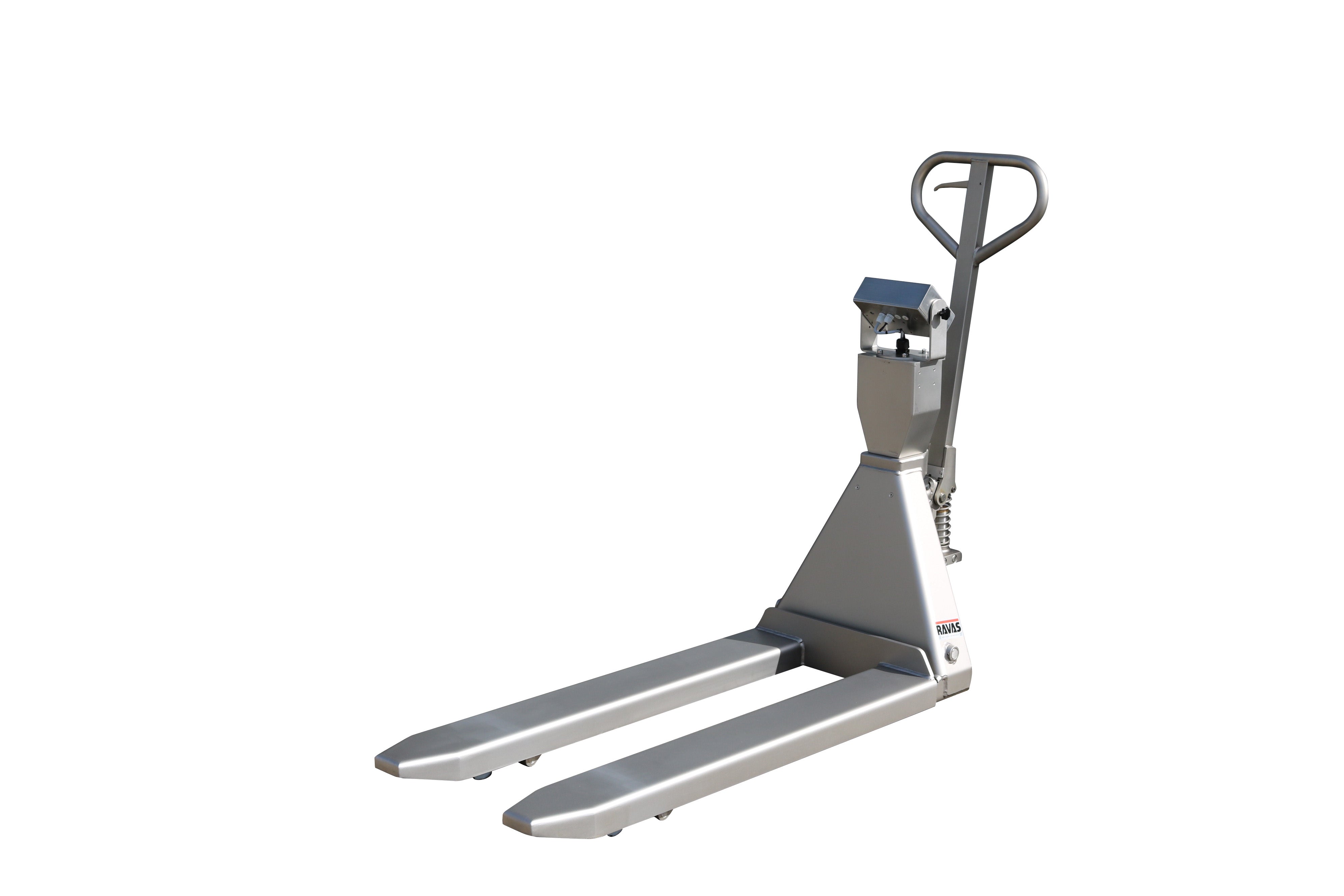

RAVAS 3200 INOX Pallet truck scale with extended scale functions
BENEFITS
Angled fork tips for easy access to low and closed pallets
High capacity Li-ion battery pack for 75 hours of autonomy
Automatic dosing function (option)
Three communication protocols
For warehousing, dosing and mixing
Connectivity for RAVAS Indicator App
Data transfer to devices that have Bluetooth® technology (option)
Connectivity software available
RAVAS 3200 INOX with full stainless steel chassis (AISI 316) and indicator housing (AISI 304)
FUNCTIONS
Automatic and manual zero correction
Gross/net weighing
Automatic and manual tare
Totalling with sequence number Code entry (5-digit)
RS232 port for connection with printer
Extra port for wireless connectivity options with devices that have Bluetooth® technology
Connectivity for RAVAS Indicator App
Internal clock
Error messages in display
Automatic switch-of after 30 minutes of non-use
kg/lb toggle
STANDARD SCALE SPECIFICATIONS
Weighing capacity 2,000 kg (2,500 kg optional)
Graduation multirange: 0 - 200 kg: graduation 0.2 kg 200 - 500 kg: graduation 0.5 kg
500 - 2.000 kg: graduation 1 kg
Max. tolerance 0.1% of the load lifted

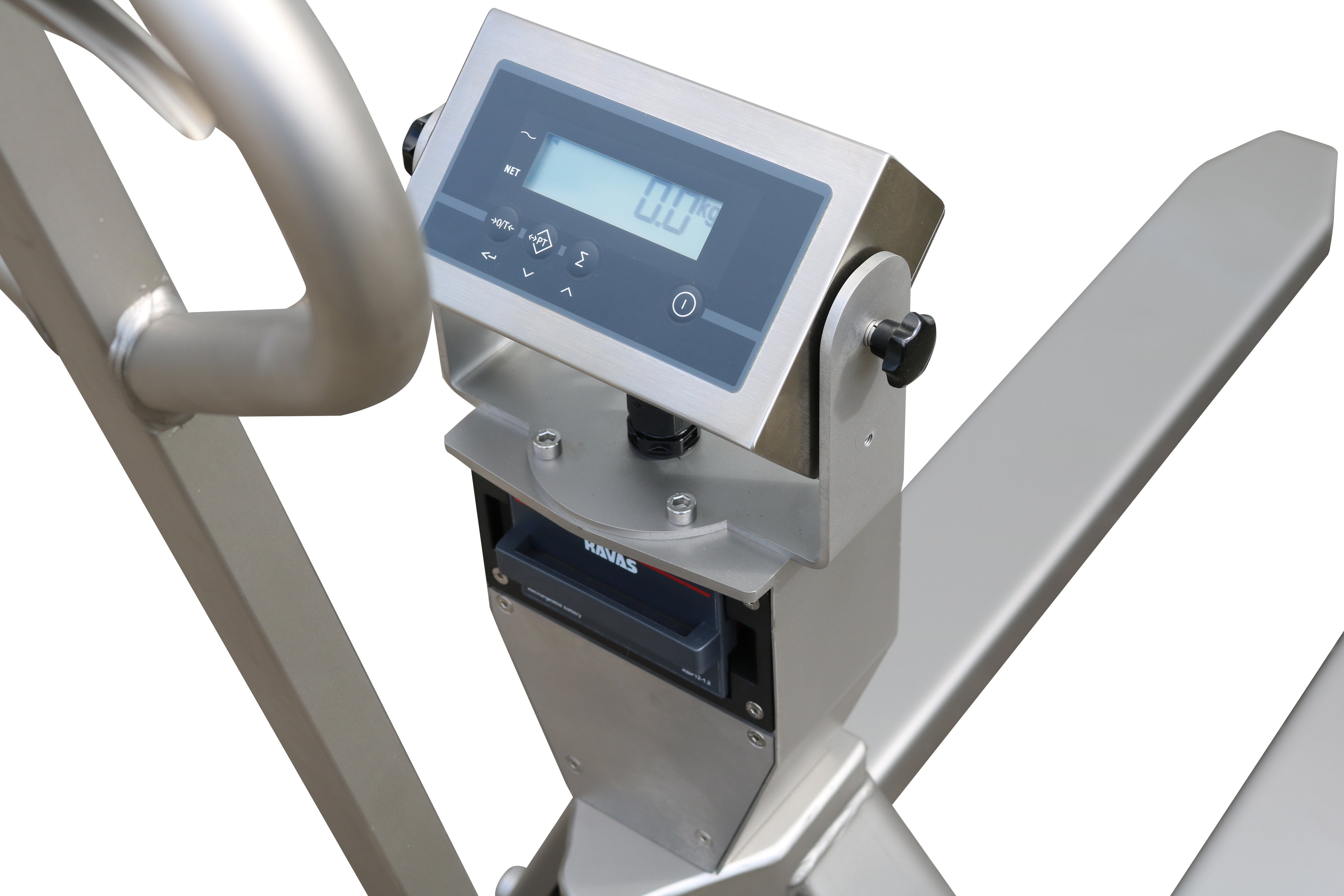

Display LCD dual color, digit height 20 mm, backlight
Keypad 5 function keys, on/off key
Protection class load cells IP67, indicator IP65
Battery 14,8Vdc/5Ah, exchangeable; Li-ion battery pack charger included
Battery life 75 hours, low battery indication in display
Charger 230V/14,8Vdc - 1 A
Charging time approximately 6 hours
Steering wheels nylon
Loading wheels nylon, tandem
Colour stainless steel
Own weight 120 kg

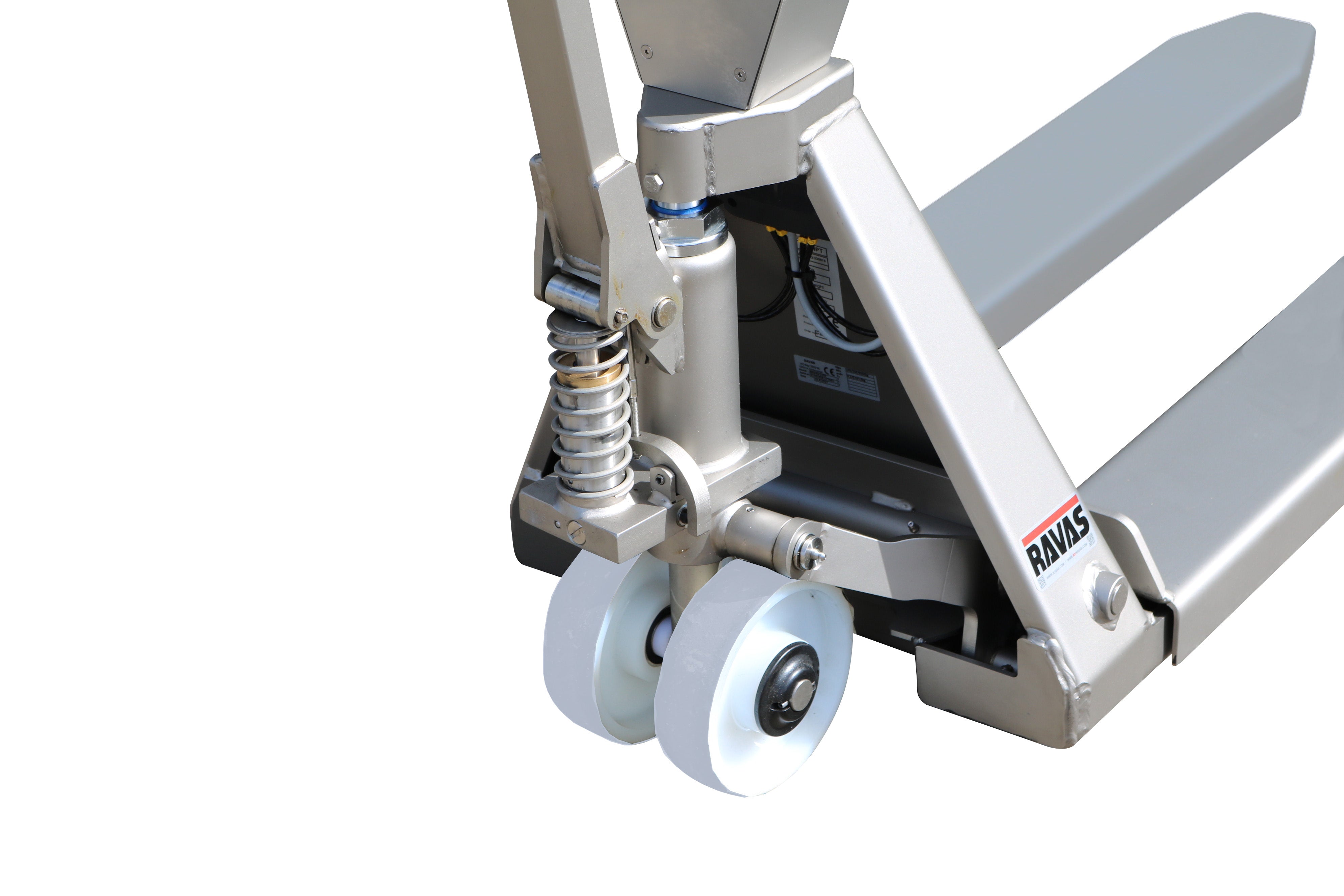

Pump stainless steel, quick lift
APPLICATIONS INOX WEIGHING SYSTEMS
Food industry
suitable for refrigerated or packaged pallet transport
Fish and meat processing
resistant to salt, moisture and intensive cleaning
Chemical industry
safe for use with aggressive substances
Pharmaceutical sector
can be used in sterile and controlled environments
Cleanrooms and laboratories
no risk of contamination or pollution
