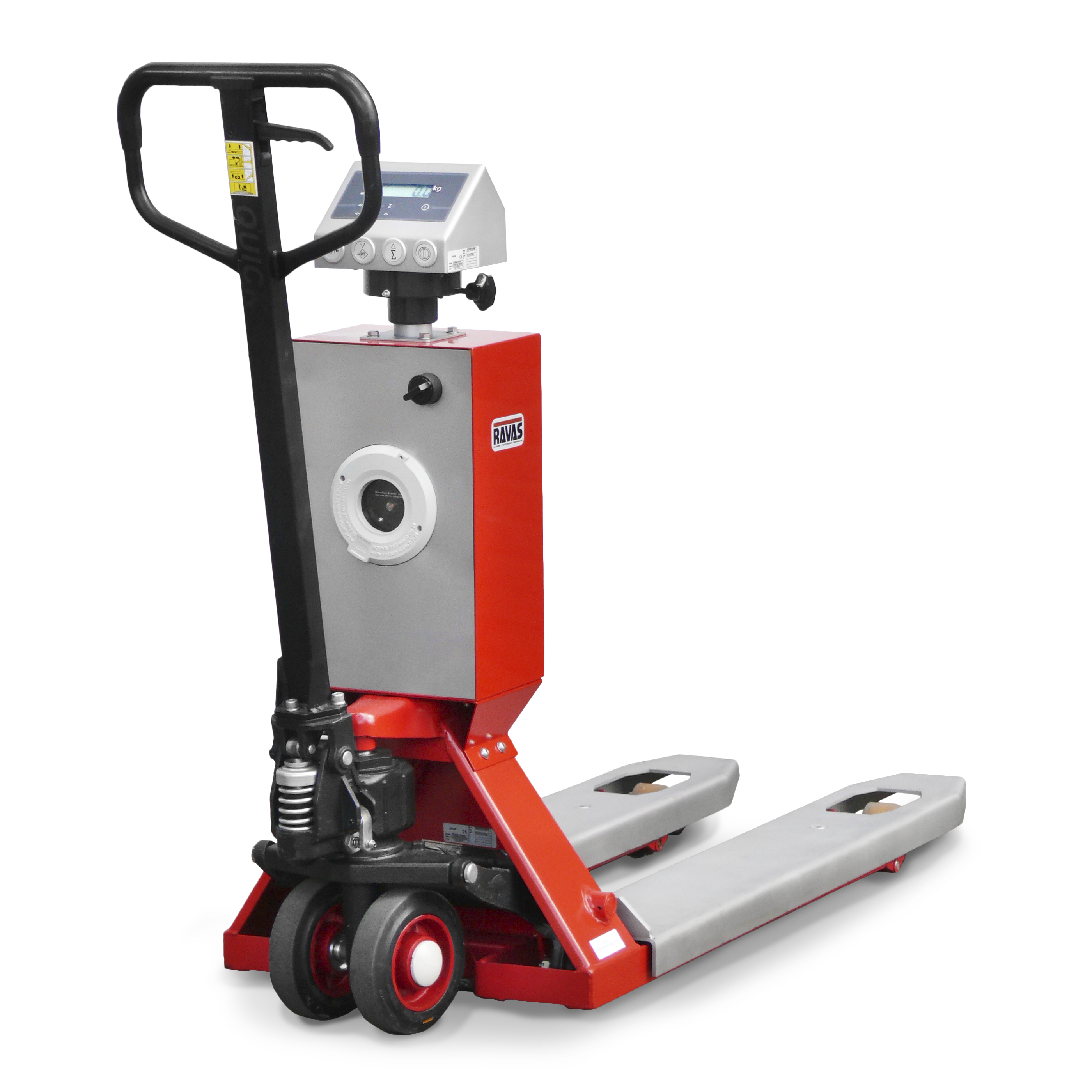

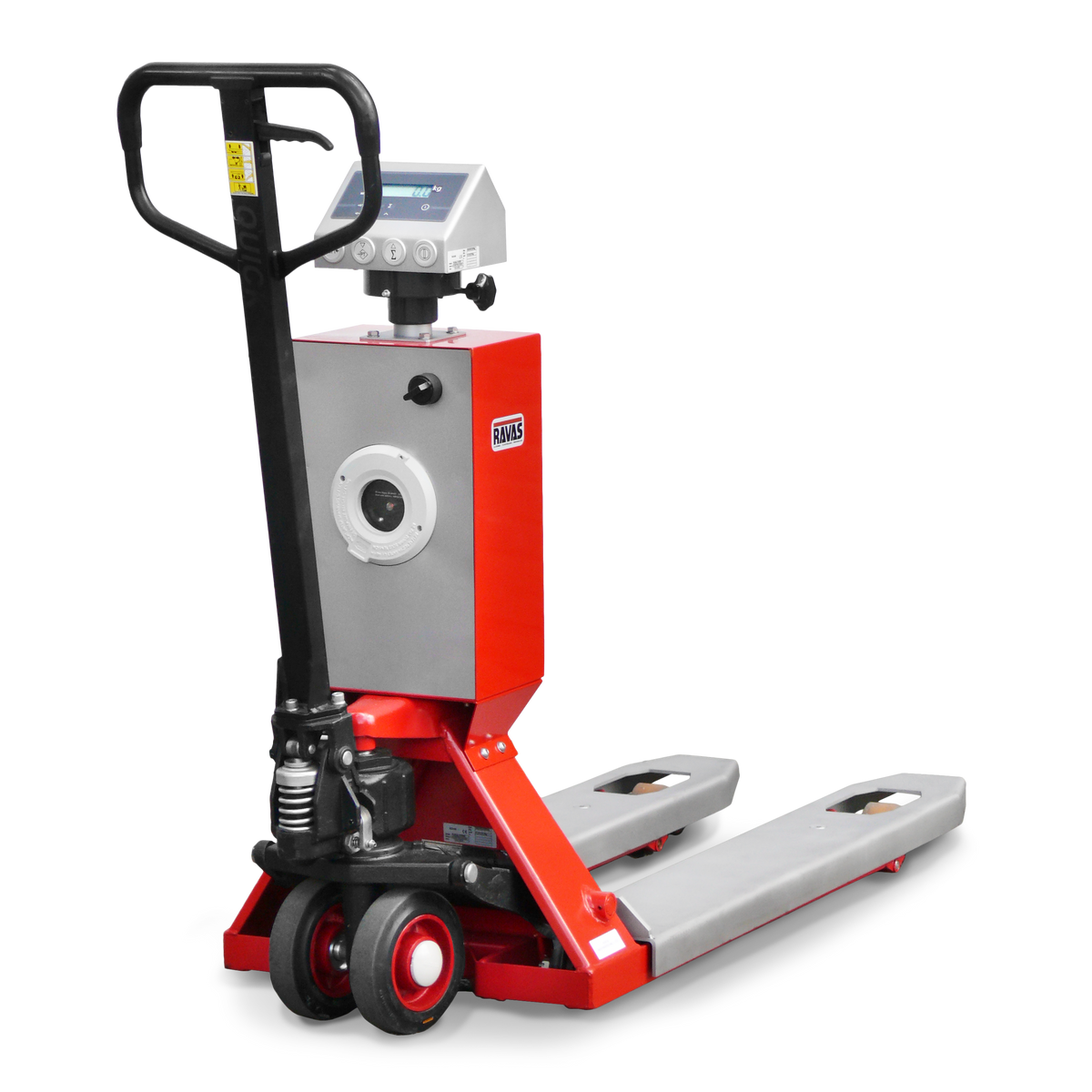

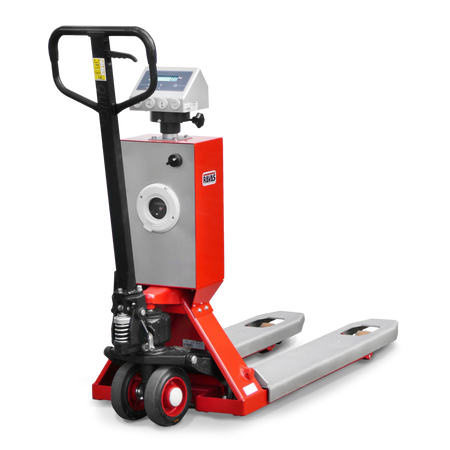

RAVAS ProLine 2100 Exi - Explosion proof pallet truck scale
BENEFITS
Superb accuracy
System certification ATEX II 2 G Ex
ib IIB T4 Gb & ATEX II 2 D Ex ib IIIC T135°C Db

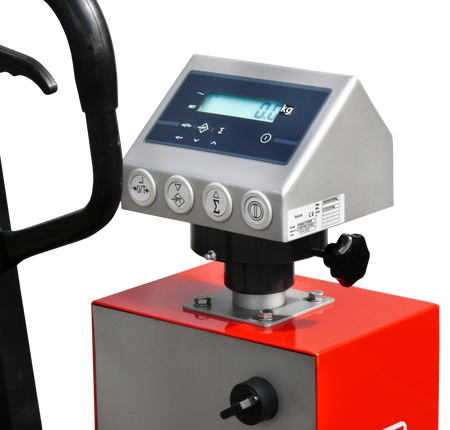

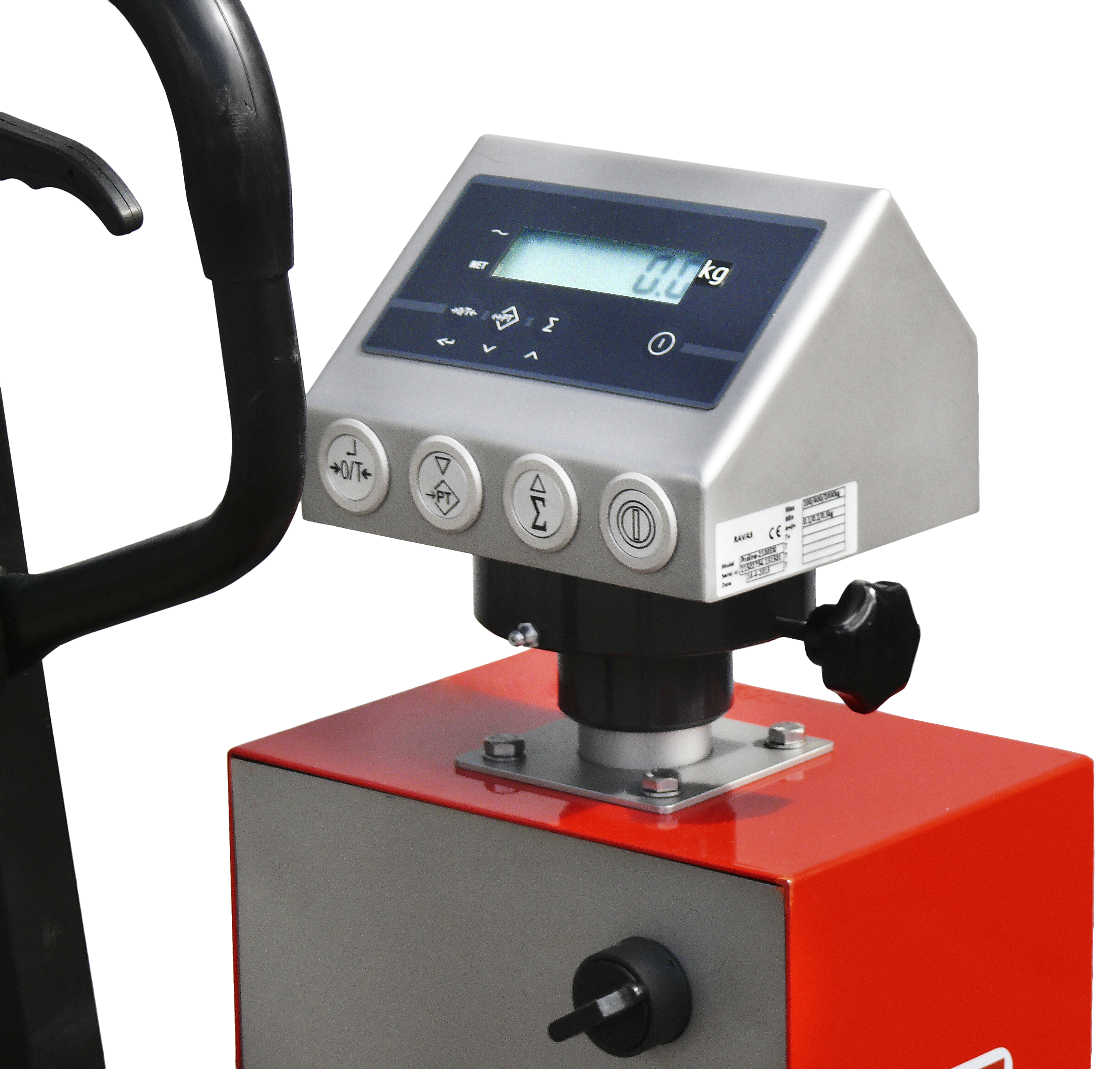

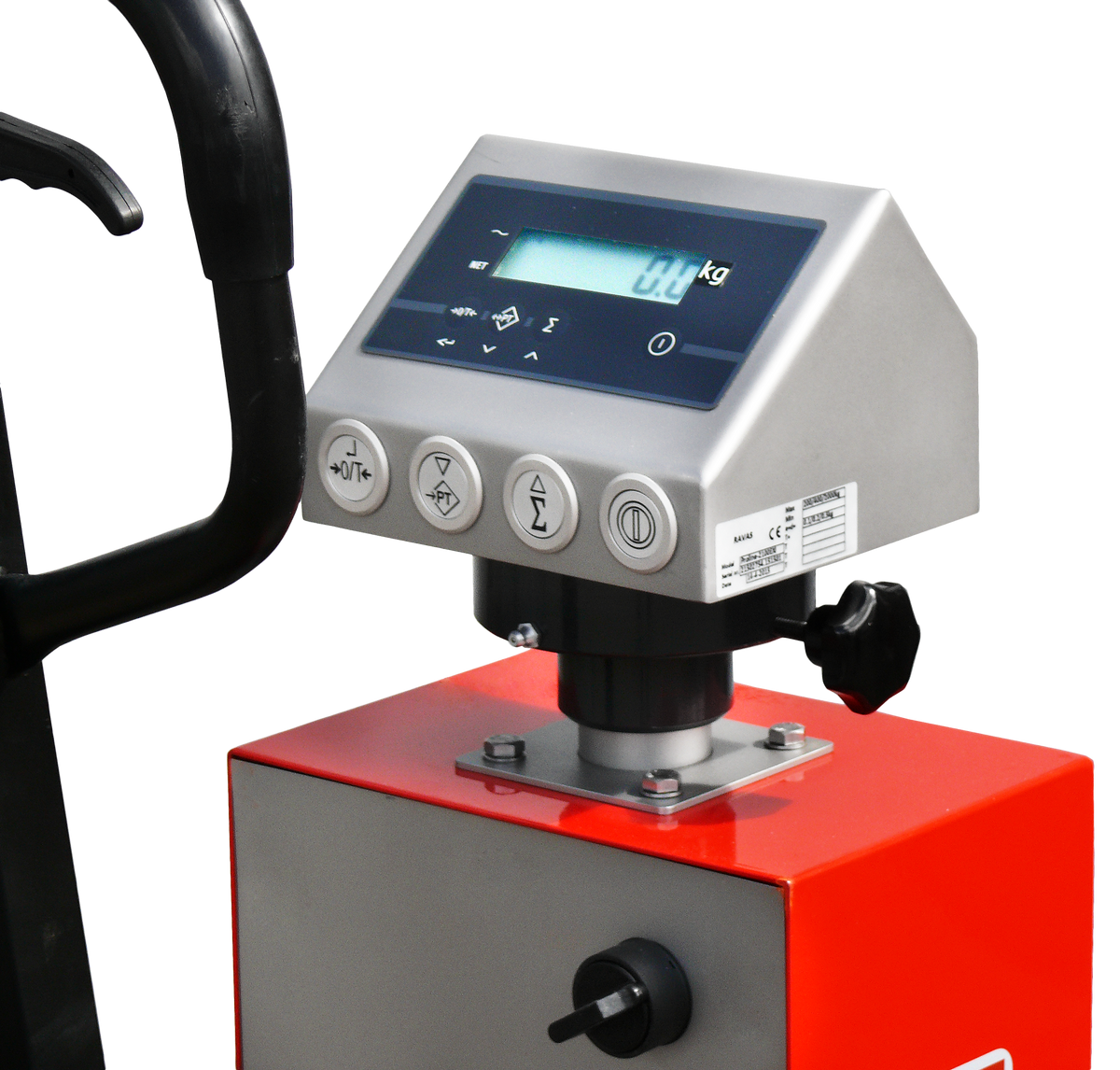

Rotating indicator and big push buttons
Exchangeable battery pack
Stainless steel forks
Antistatic steering wheels
For mixing and batching in zone 1&21 or 2&22!
FUNCTIONS
Automatic and manual zero correction
Gross/net weighing
Automatic tare over the full scale. Pre-set tare maximum first range (200 kg)
Error messages in display
Automatic switch-off after 30 minutes of non-use
Low battery warning in display
STANDARD SCALE SPECIFICATIONS
Weighing capacity 2,000 kg
Graduation multirange:
0 - 200 kg: graduation 0.1 kg
200 - 400 kg: graduation 0.2 kg
400 - 2,000 kg: graduation 0.5 kg
Max. tolerance 0.08 % of the load lifted
System certification II 2 G Ex ib IIB T4 Gb & II 2 D Ex ib IIIC T135°C Db, approval number DEKRA 13ATEX 0044
Display Pivoting, LCD, digit height 18 mm
Keypad foil keypad and push buttons, 3 function keys, on/off key, resistant to chemicals
Protection class load cells IP67, indicator IP65
Fork shoes stainless steel
Battery intrinsically safe, approval number DEKRA 13ATEX 0043, 8Vdc/3.5 Ah, rechargeable, exchangeable, maintenance free
Battery life 100 hours, low battery indication 5 hours before automatic switch-off
Charger 230V/8Vdc - 1 A; for use outside hazardous zone
Charging time approximately 8 hours
Steering wheels rubber, antistatic < 10^9ohm
Loading wheels polyurethane, tandem
Colour red (RAL 3000), epoxy painted
Own weight 130 kg
Pump ergonomic lift
