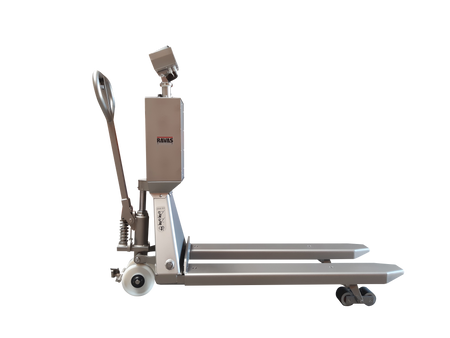

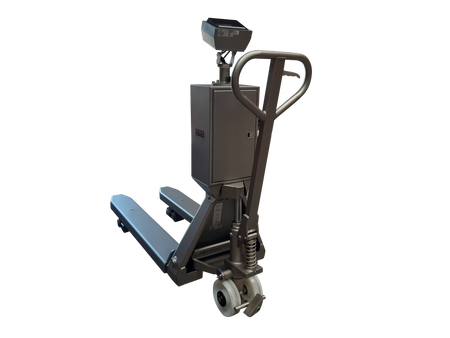

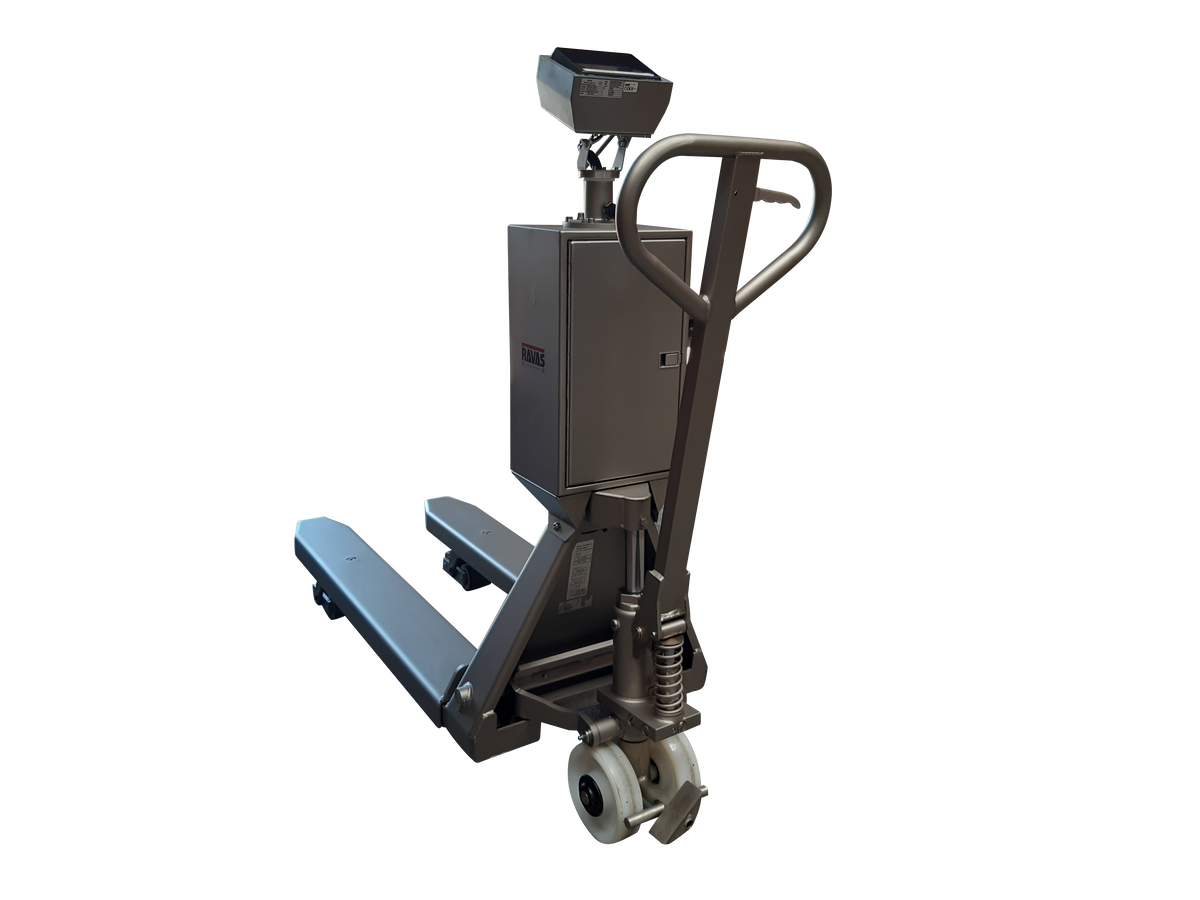

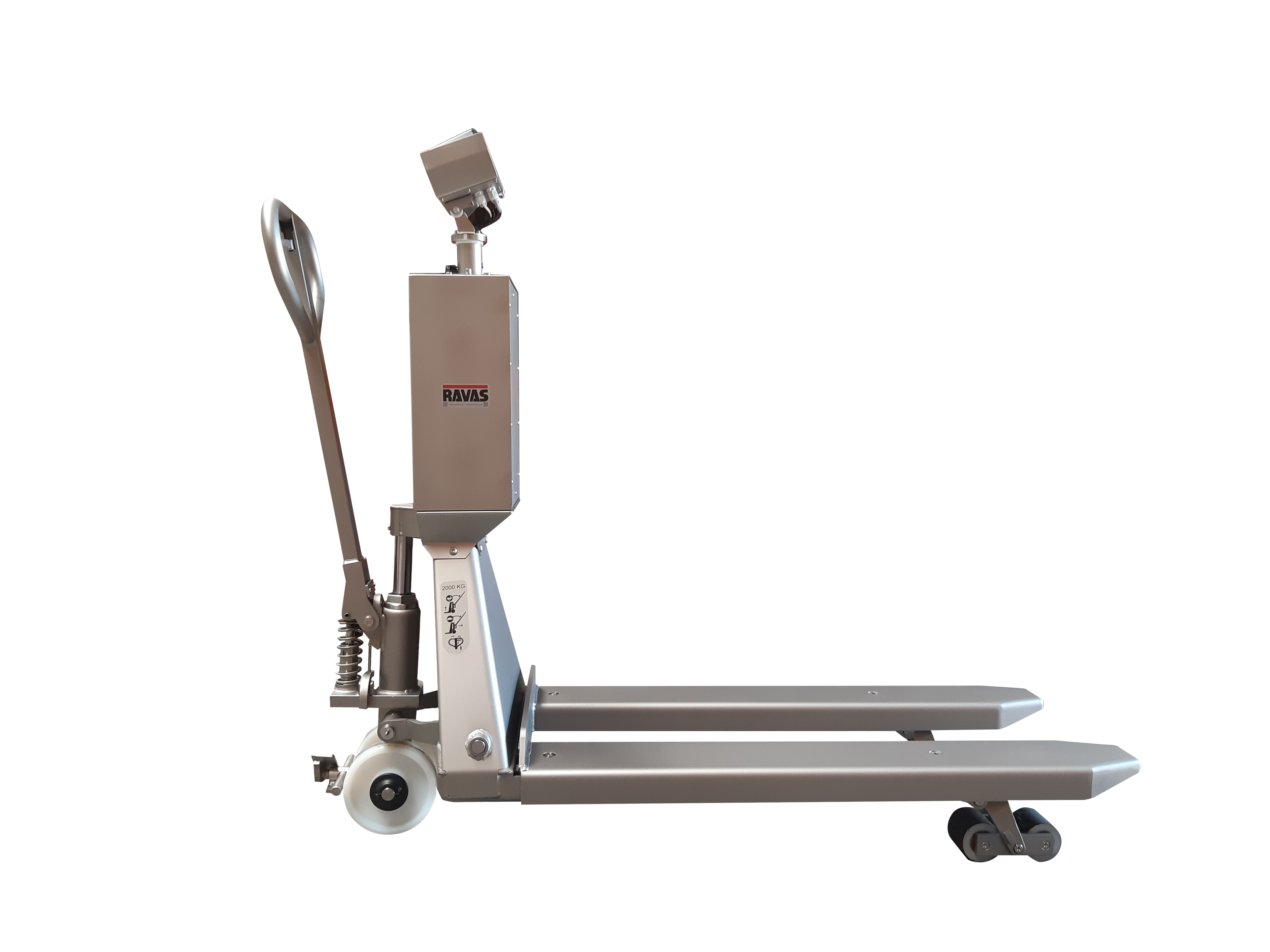

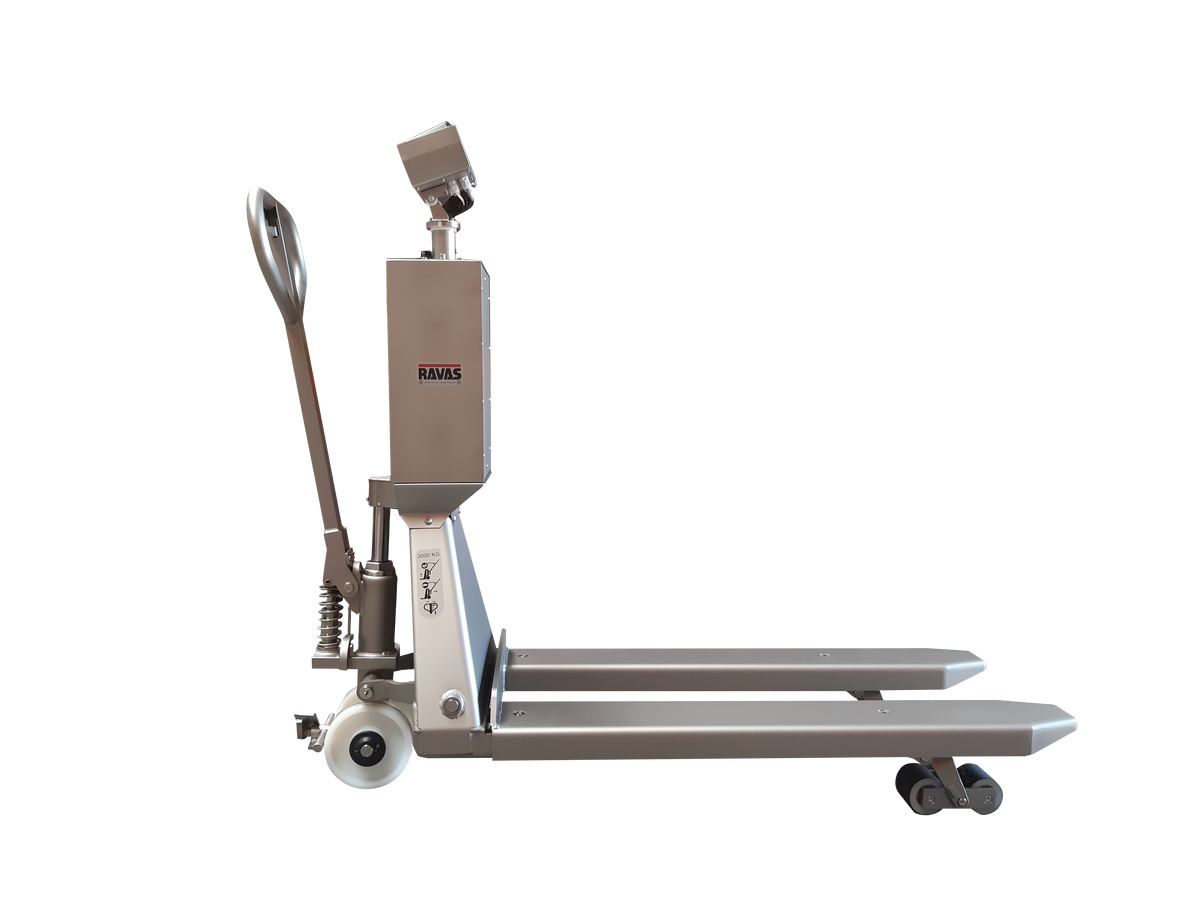

RAVAS ProLine 5200 INOX - Custom designed for professional use with touch screen indicator
BENEFITS
Superb accuracy
Rotating and tiltable indicator
5 inch touch screen with 25 mm high digits
High capacity Li-ion battery pack for 25 hours of autonomy
Optimal ease of use, only active keys visible
Customer specific routines can be programmed
Integrated data connectivity
Counting scale functionality
Level compensation to 3 degrees

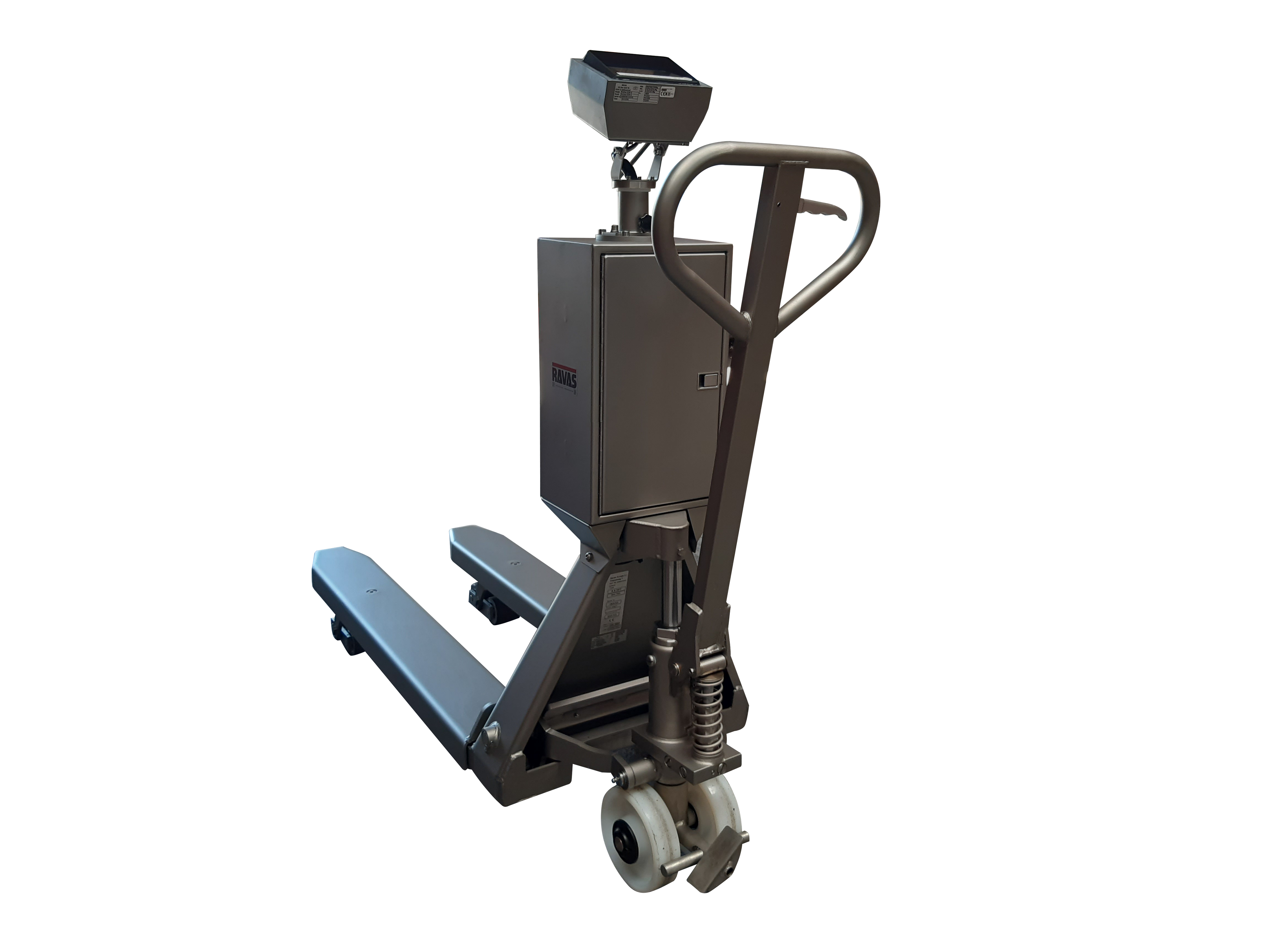

RAVAS ProLine 5200 INOX: Full
stainless steel chassis
FUNCTIONS
Automatic and manual zero correction
Gross / net weighing
Tare memory for 10 values
ID-code entry for 4 ID-codes with 10 preset codes (each max.14 characters alpha-numeric)
10 totalizing registers
Internal clock for date and time
On board: RS232 port connection for printer
USB output for data transfer (with USB Stick)
Free COM 1 and COM2 for connection to
RS232, WiFi or devices that have Bluetooth® technology
The USB output can also be used to connect a bar-code scanner
Connectivity for RAVAS Indicator App
Sleep modes for saving power.
Error message in display incl. logging
STANDARD SCALE SPECIFICATIONS
Capacity 2,000 kg
Graduation multi-range
0 - 200 kg: graduation 0.1 kg
200 - 400 kg: graduation 0.2 kg
400 - 2.000 kg: graduation 0.5 kg
System tolerance 0.08 % of applied load

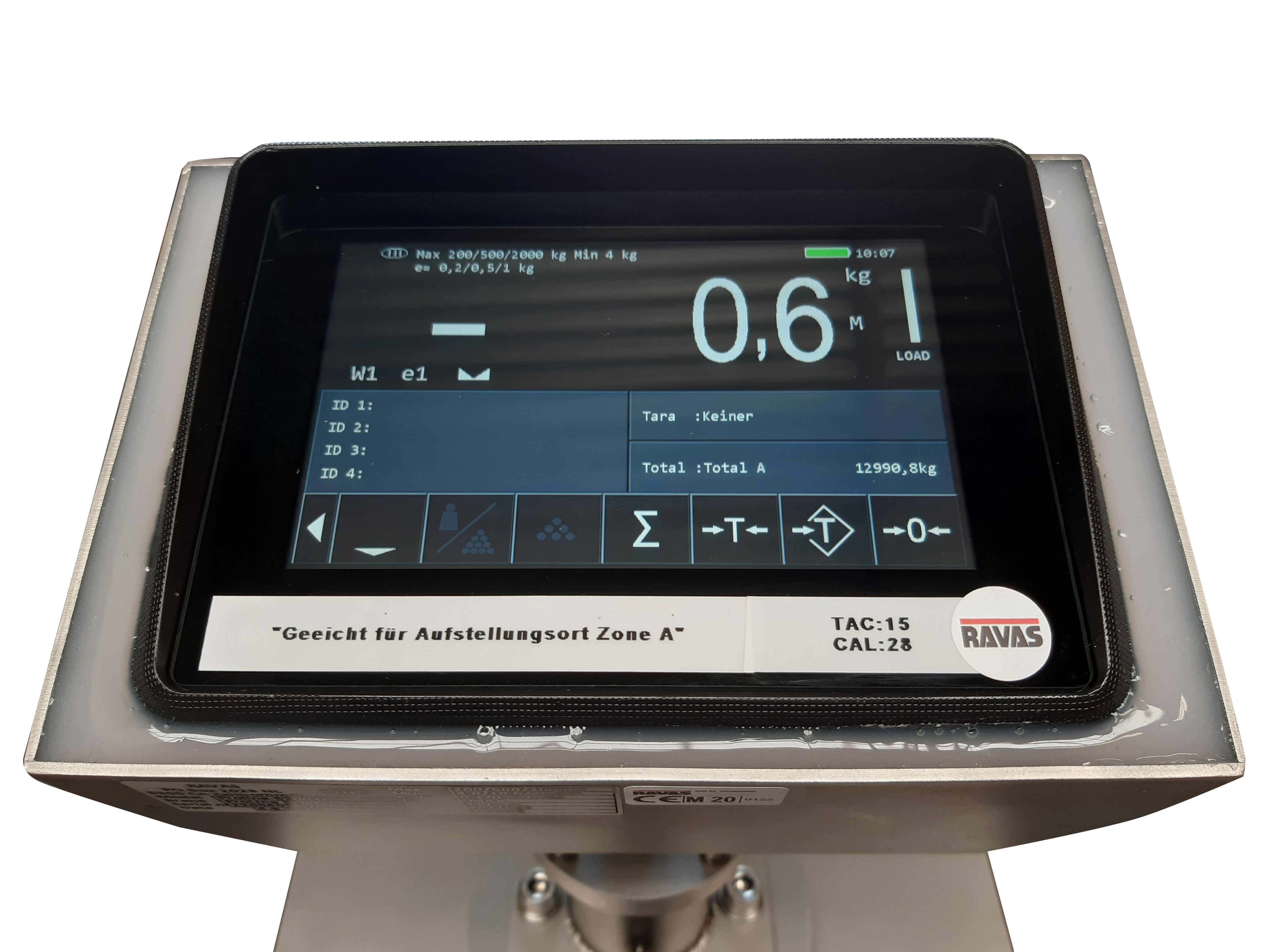

Display full-colour 5” touch display with 25 mm high digits
Power consumption 12V –160 mA

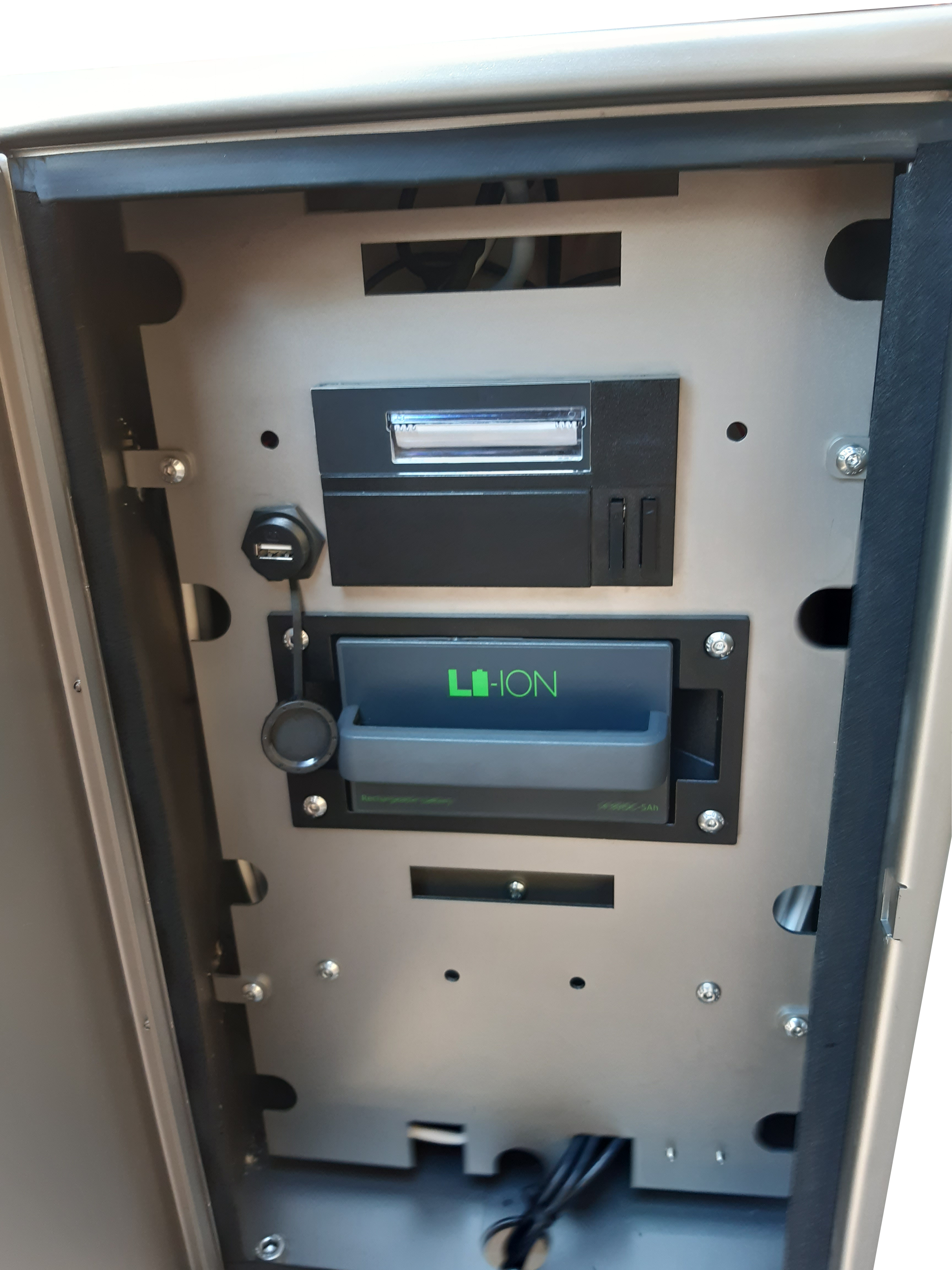

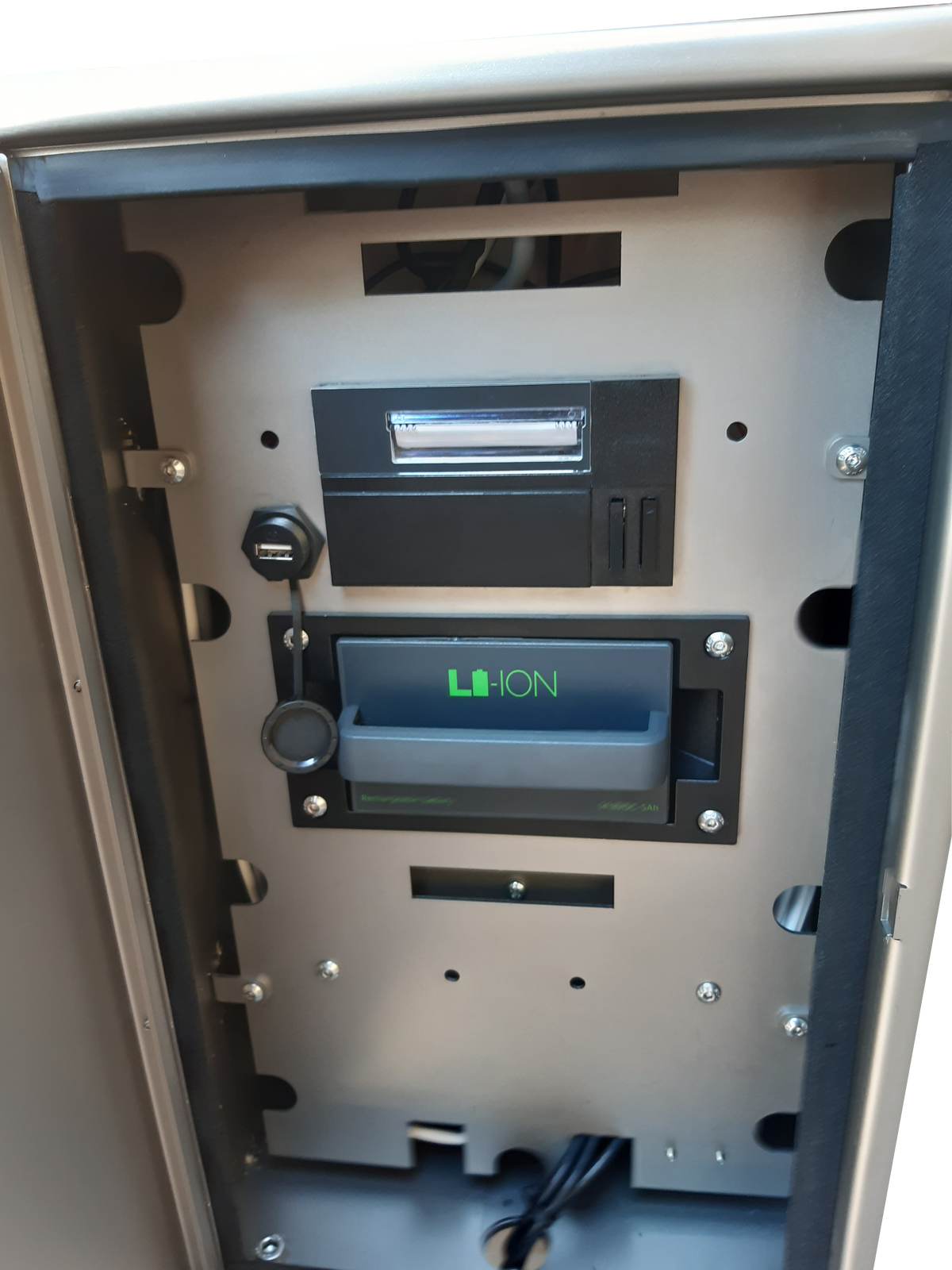

Power supply Li-ion battery pack 14.8V / 5Ah incl. charger
Autonomy 25 hours continuous use (50 hours with sleep modes)
Keyboard display mode defines the available keys, on/off key
Protection class Loadcells IP 67, indicator IP65
Indicator mounting rotating and tiltable
Steering wheels rubber
Loading wheels polyurethane, tandem
Pump ergonomic lift
Own weight 180 kg
Colour INOX stainless steel
