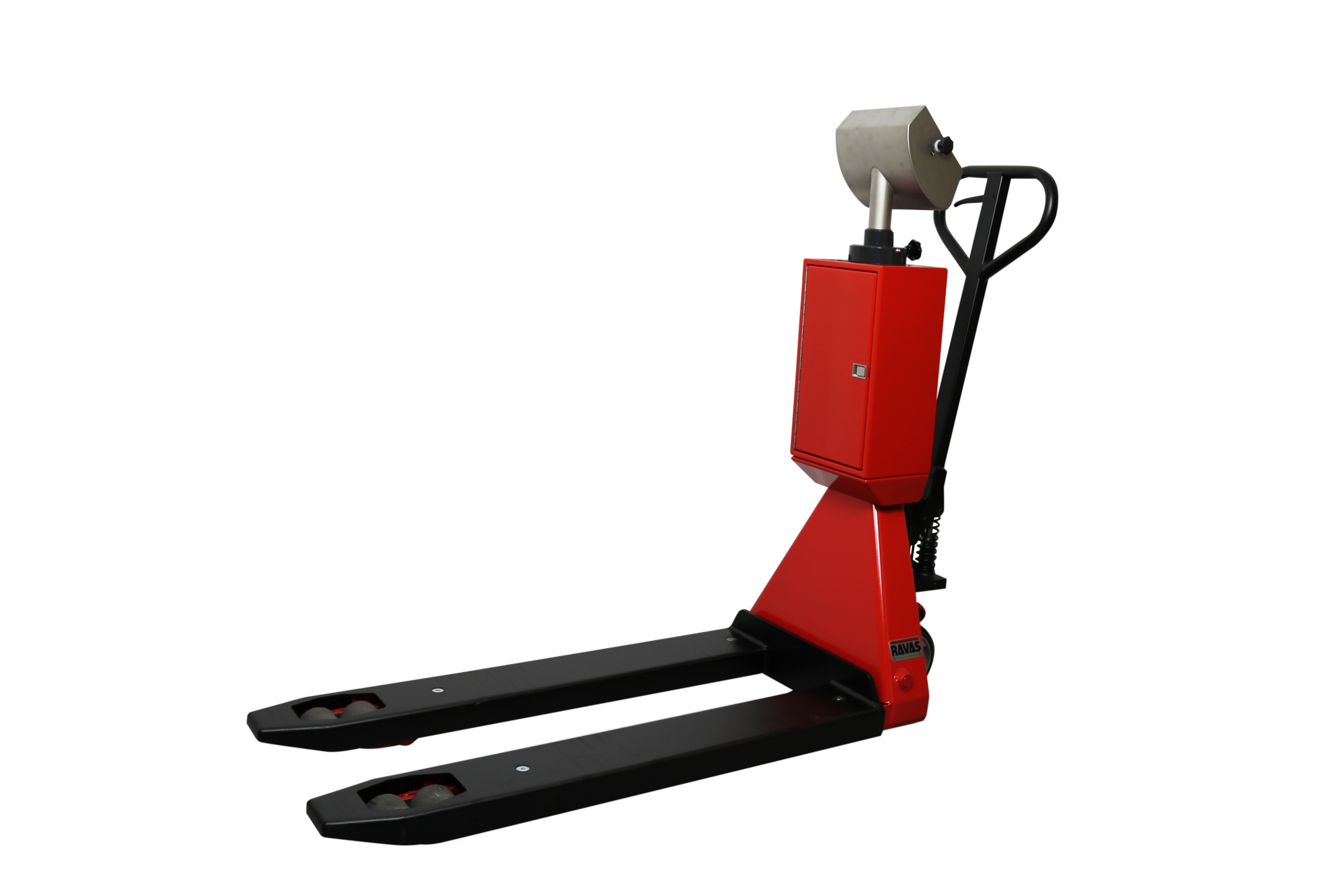

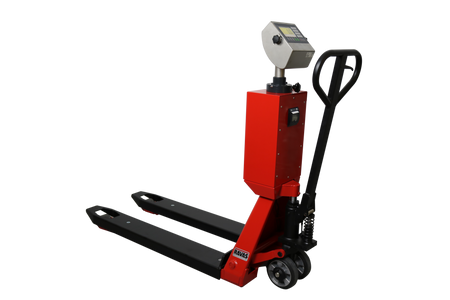

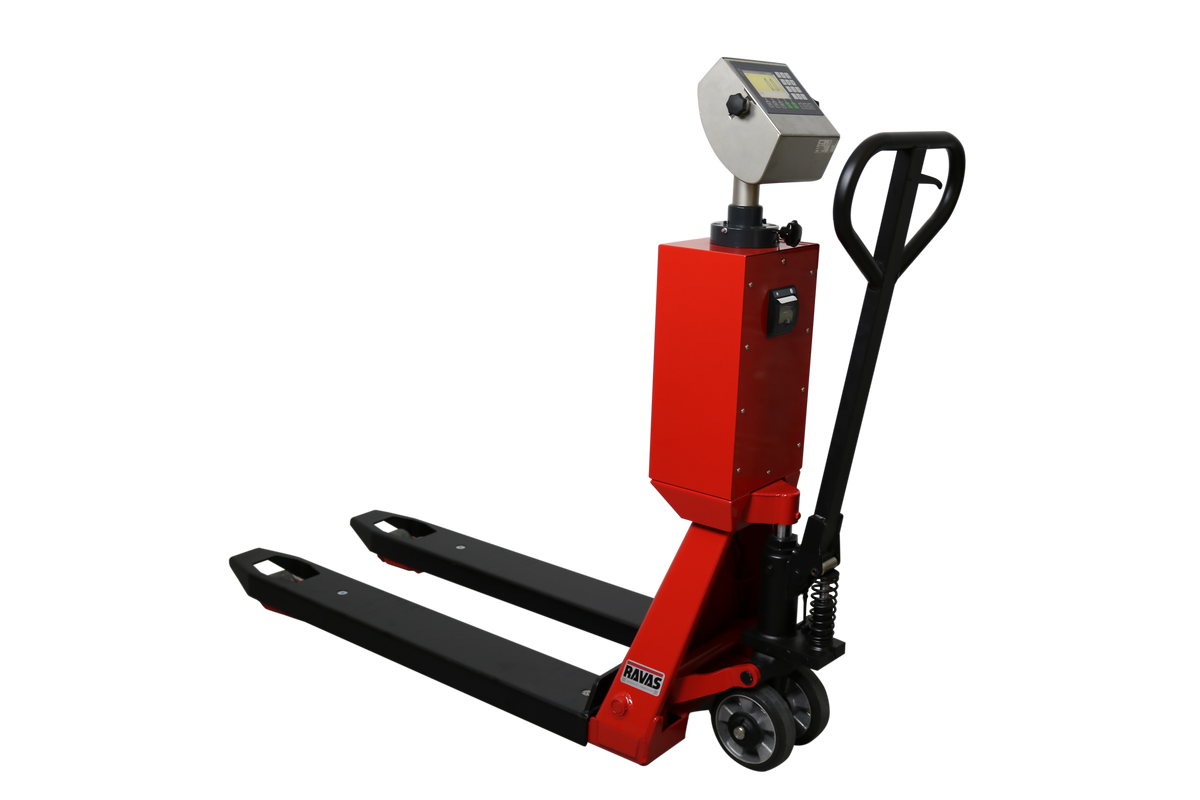

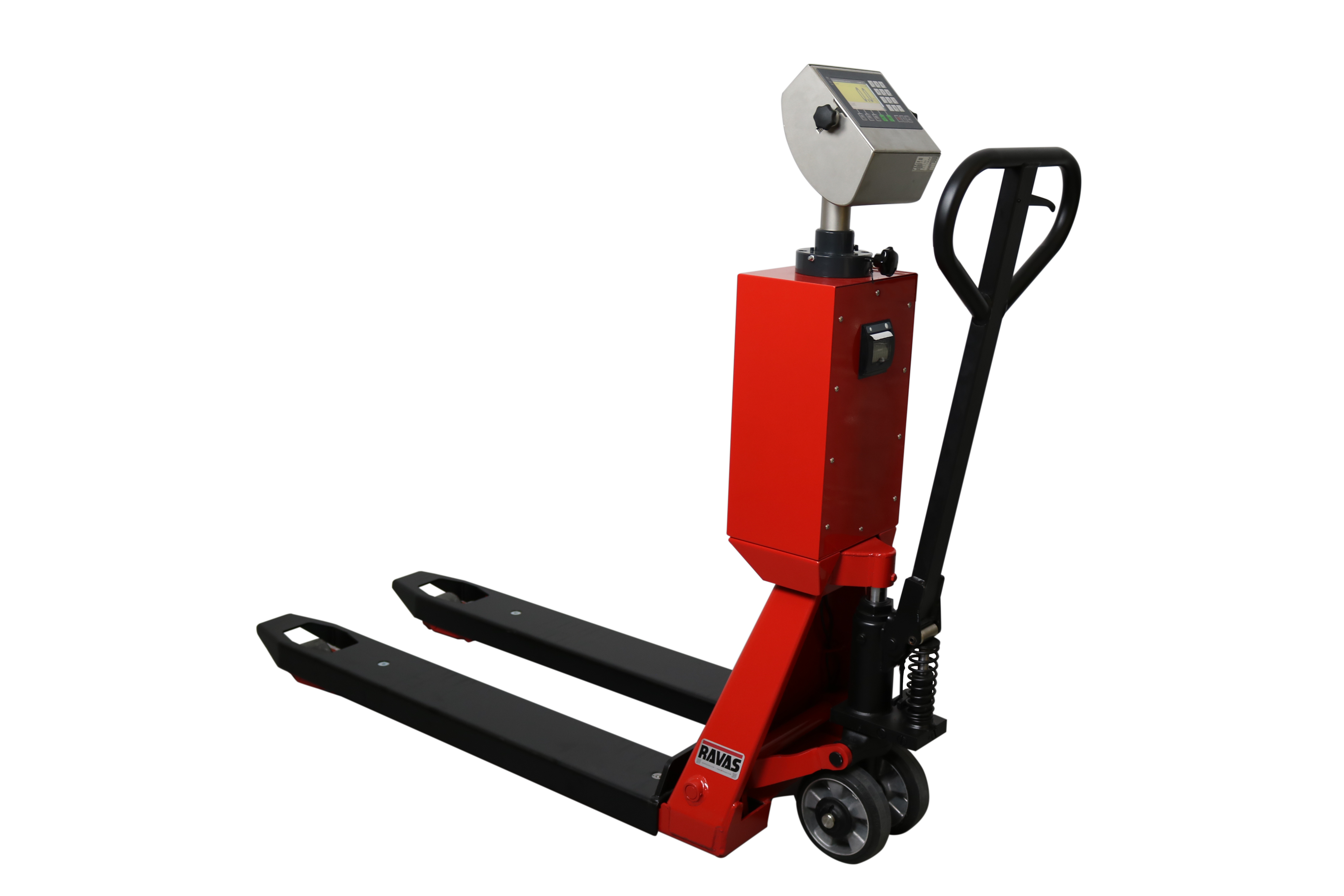

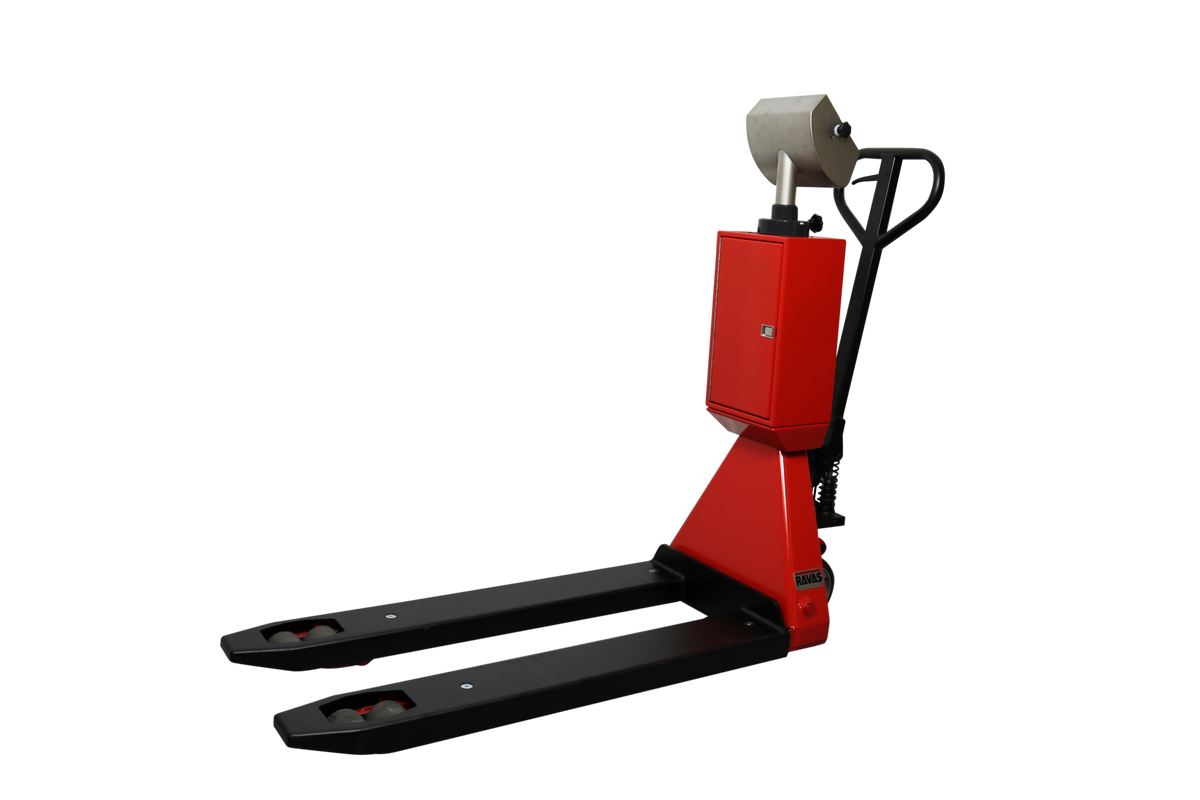

RAVAS ProLine 6200 - Pallet truck scale with programmable scale functions
BENEFITS
Superb accuracy

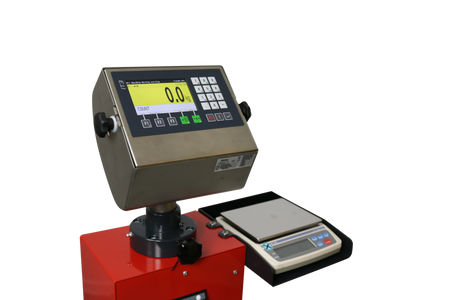

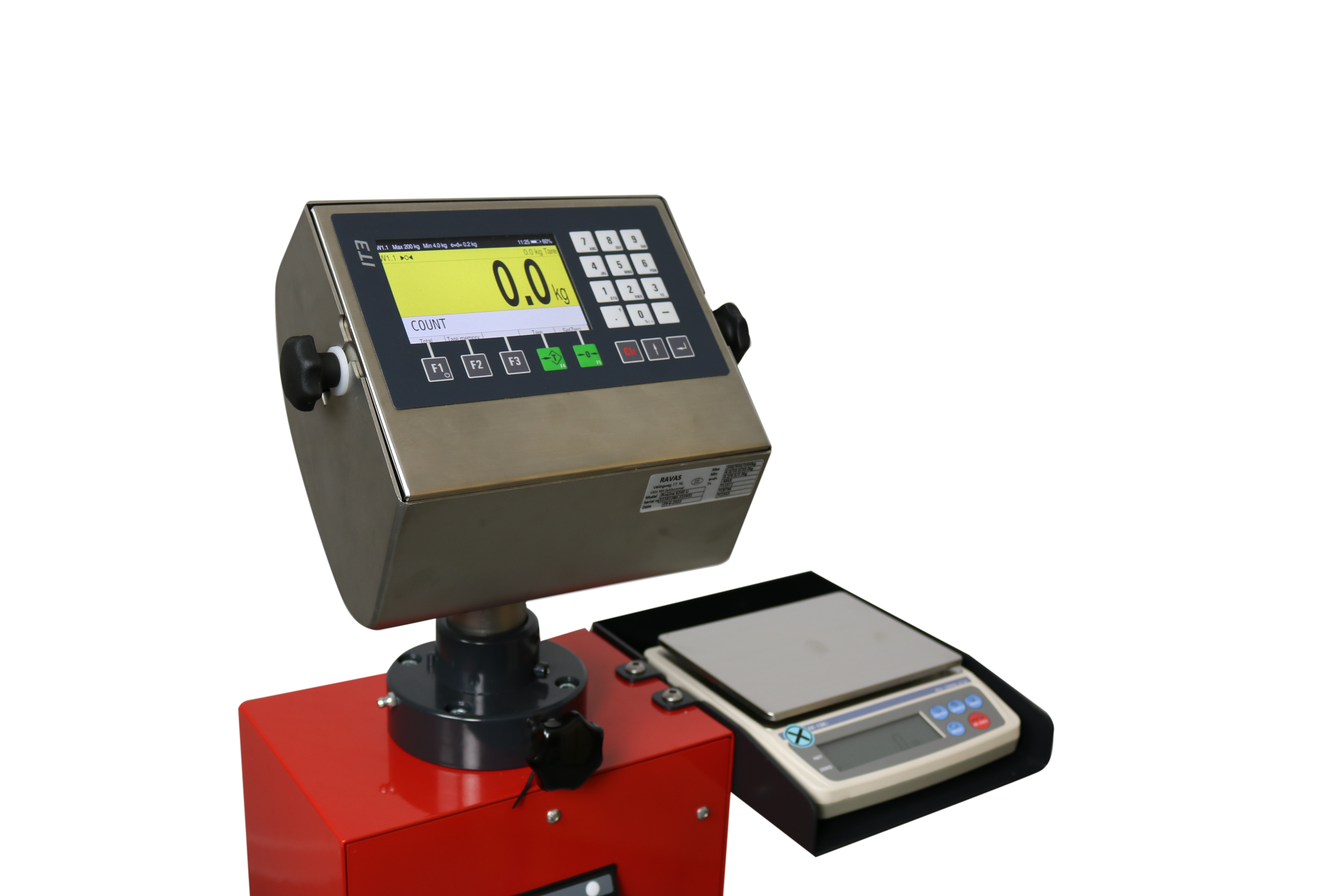

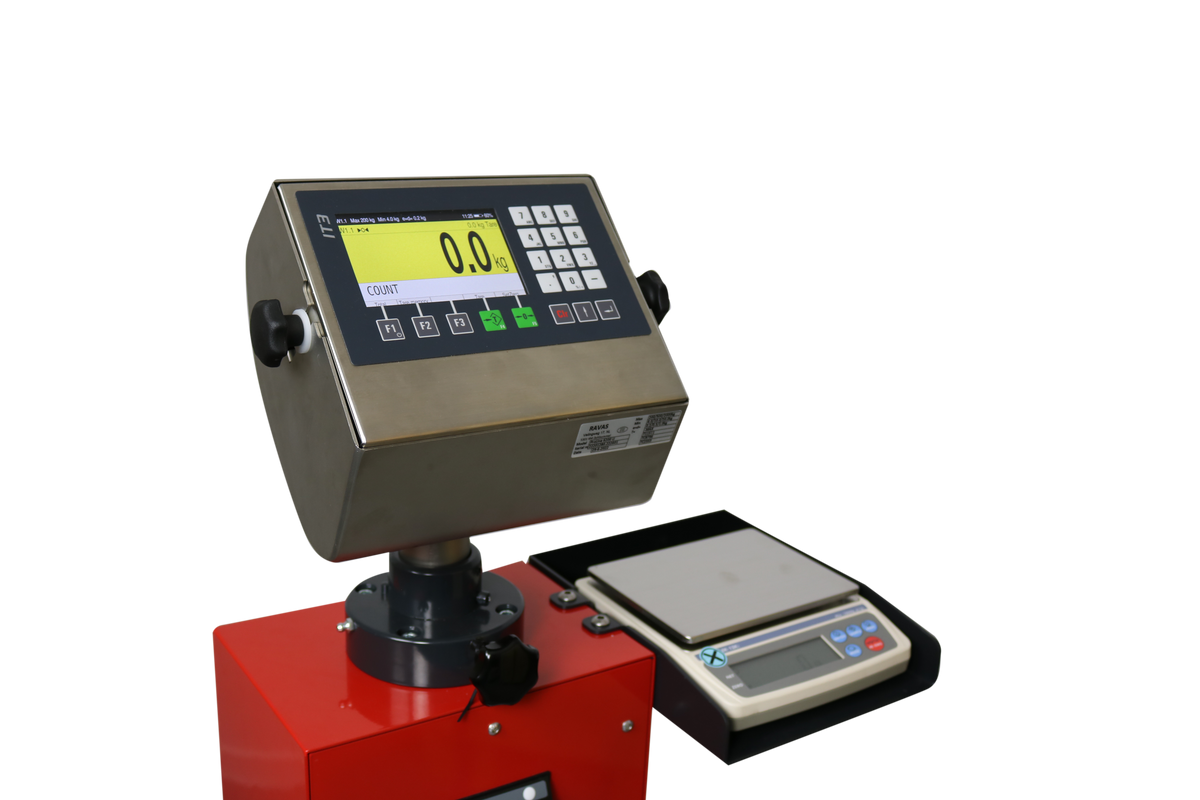

Rotating RVS indicator
5” colour TFT display
Programmable scale functions
RS232, RS485, 4-20 mA or 0-10V output optional
High capacity 14.8V / 5Ah Li-ion battery pack
For parts counting and special
applications
FUNCTIONS
Automatic and manual zero correction
Gross/net weighing
Automatic and manual tare through numeric keypad
Entry of alphanumeric codes (max. 10 characters)
Internal memory for 9 pre-set tare values
Totalling
Piece counting by sampling or calculation of piece weights
Functions through parameters (on demand):
- different print layout
- different basic functionality (e.g. dosing)
Error messages in display
Printer power supply is switched on and of by the indicator
Internal clock for date and time
STANDARD SCALE SPECIFICATIONS
Weighing capacity 2.000 kg
Graduation multirange:
0 - 200 kg: graduation 0,1 kg
200 - 400 kg: graduation 0,2 kg
400 - 2.000 kg: graduation 0,5 kg
Max. tolerance 0.08% of the load lifted
Display TFT, 5” colour
Foil keypad 20 keys
Protection class load cells IP67, indicator IP69
Power consumption 240 mA

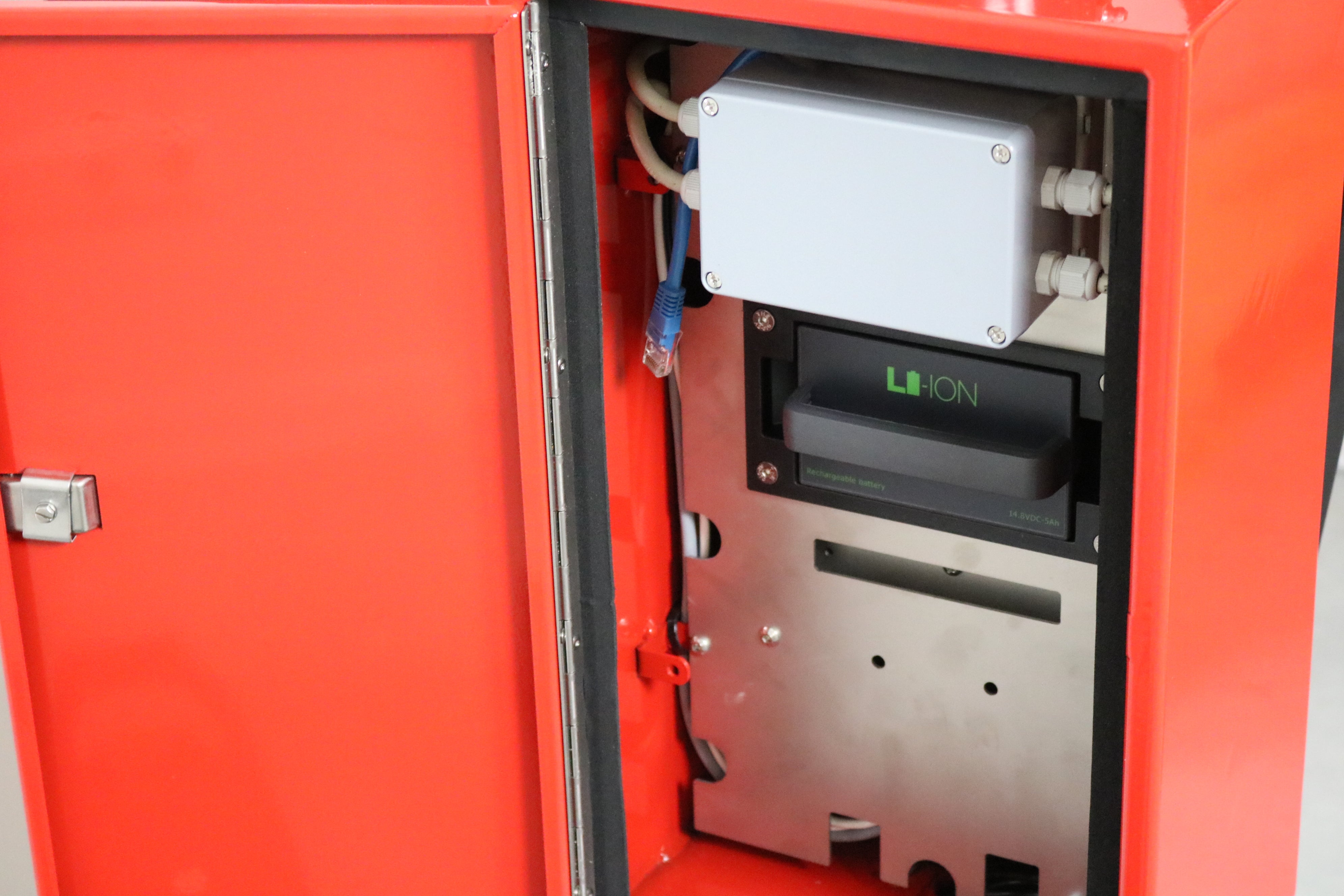

Battery 14,8Vdc / 5Ah, exchangeable; Li-ion battery pack, charger included
Battery life 25 hours (depending on work and environmental conditions)
Charger 230V/14,8Vdc - 1A
Charging time approx. 6 hours

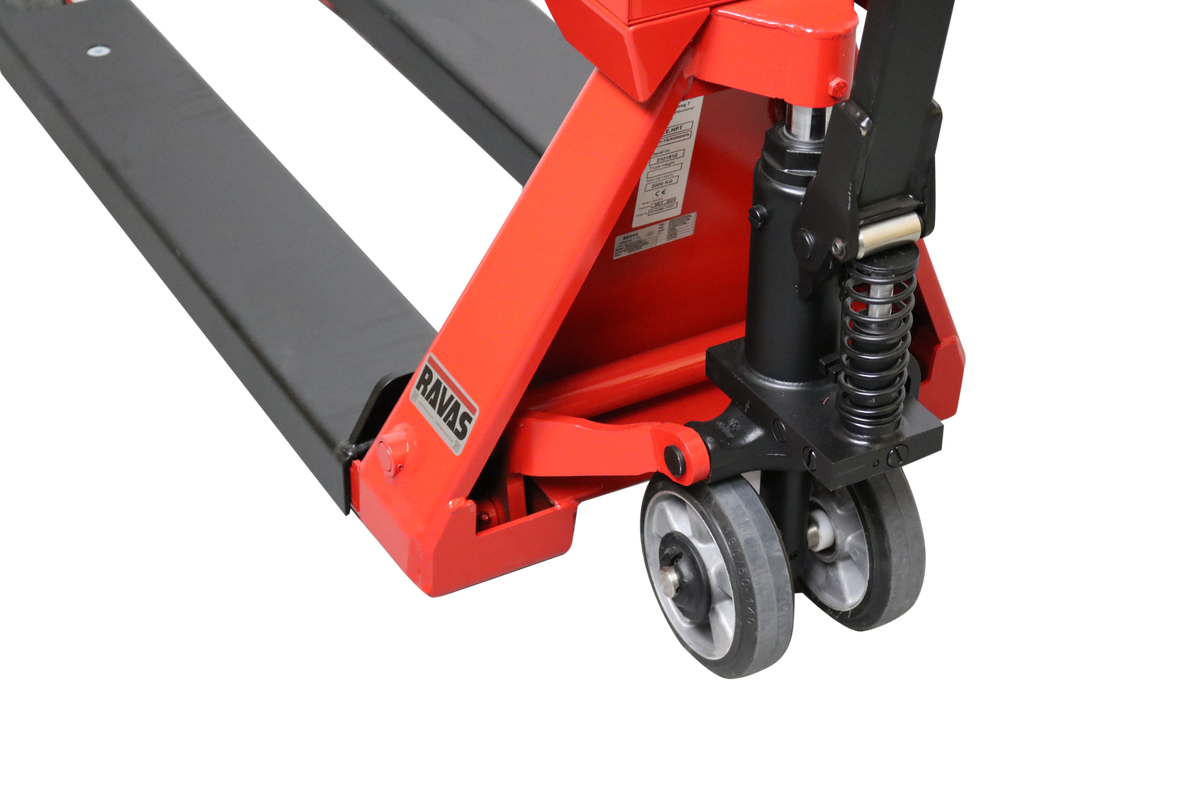

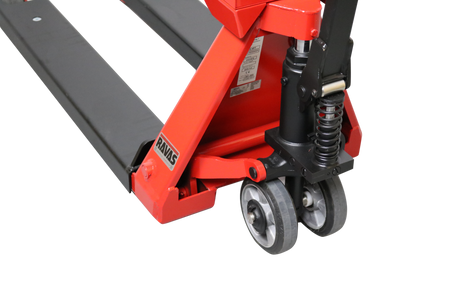

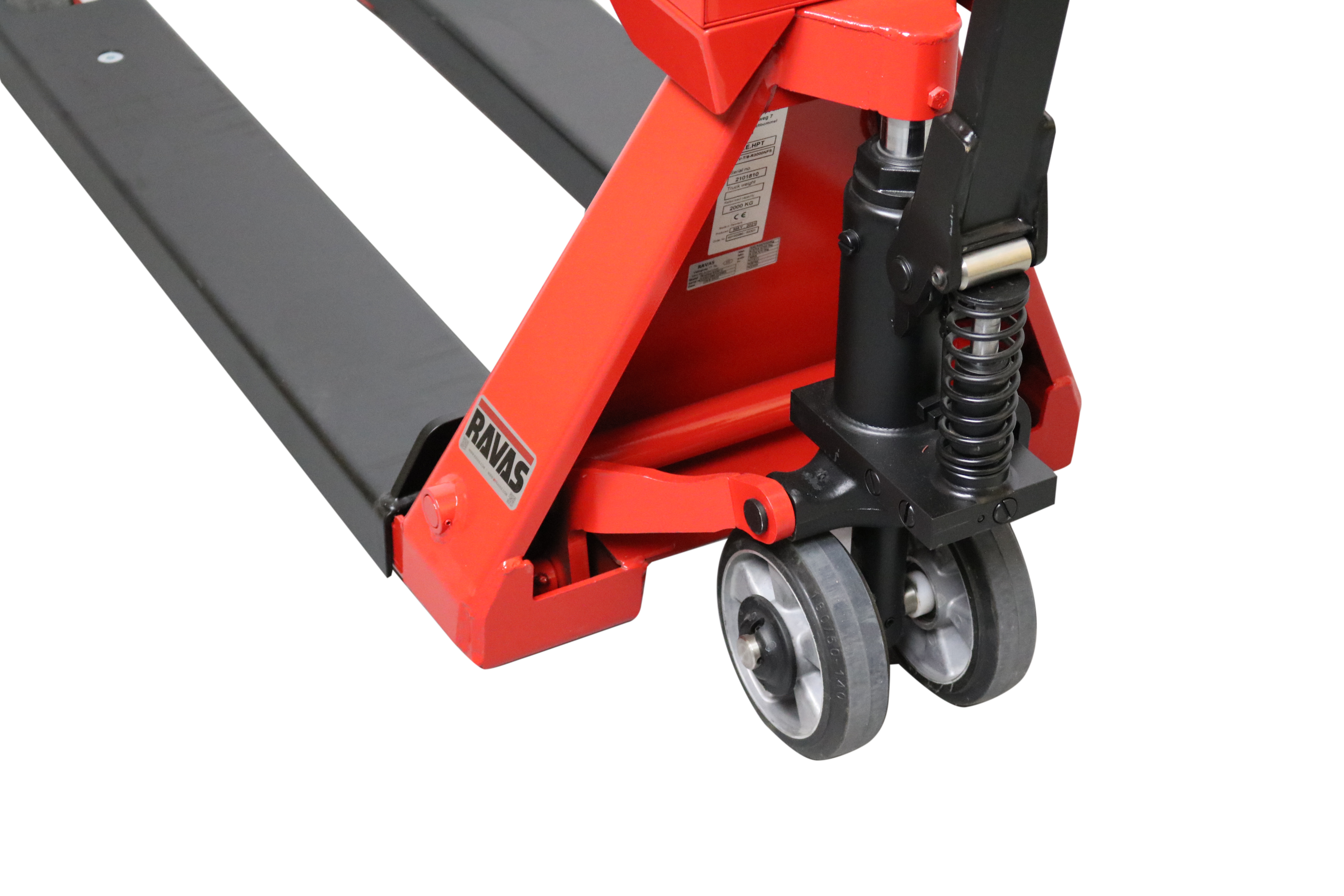

Steering wheels rubber

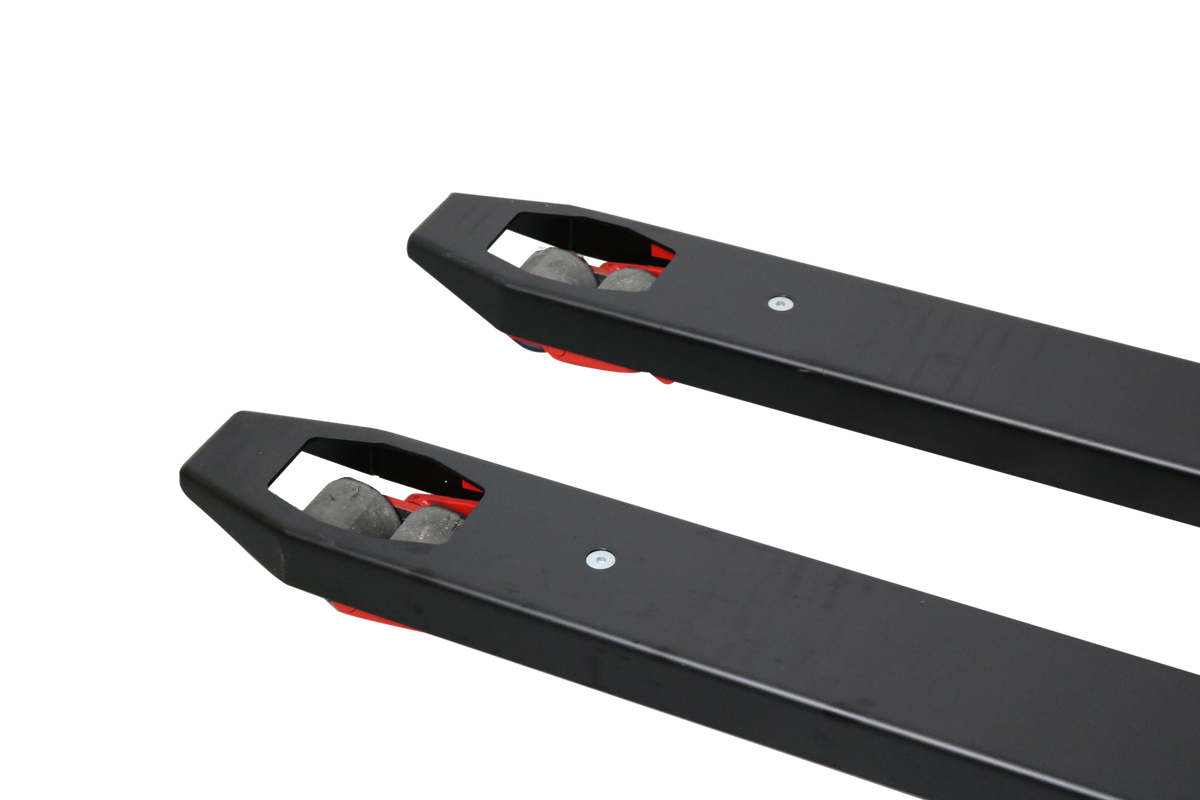

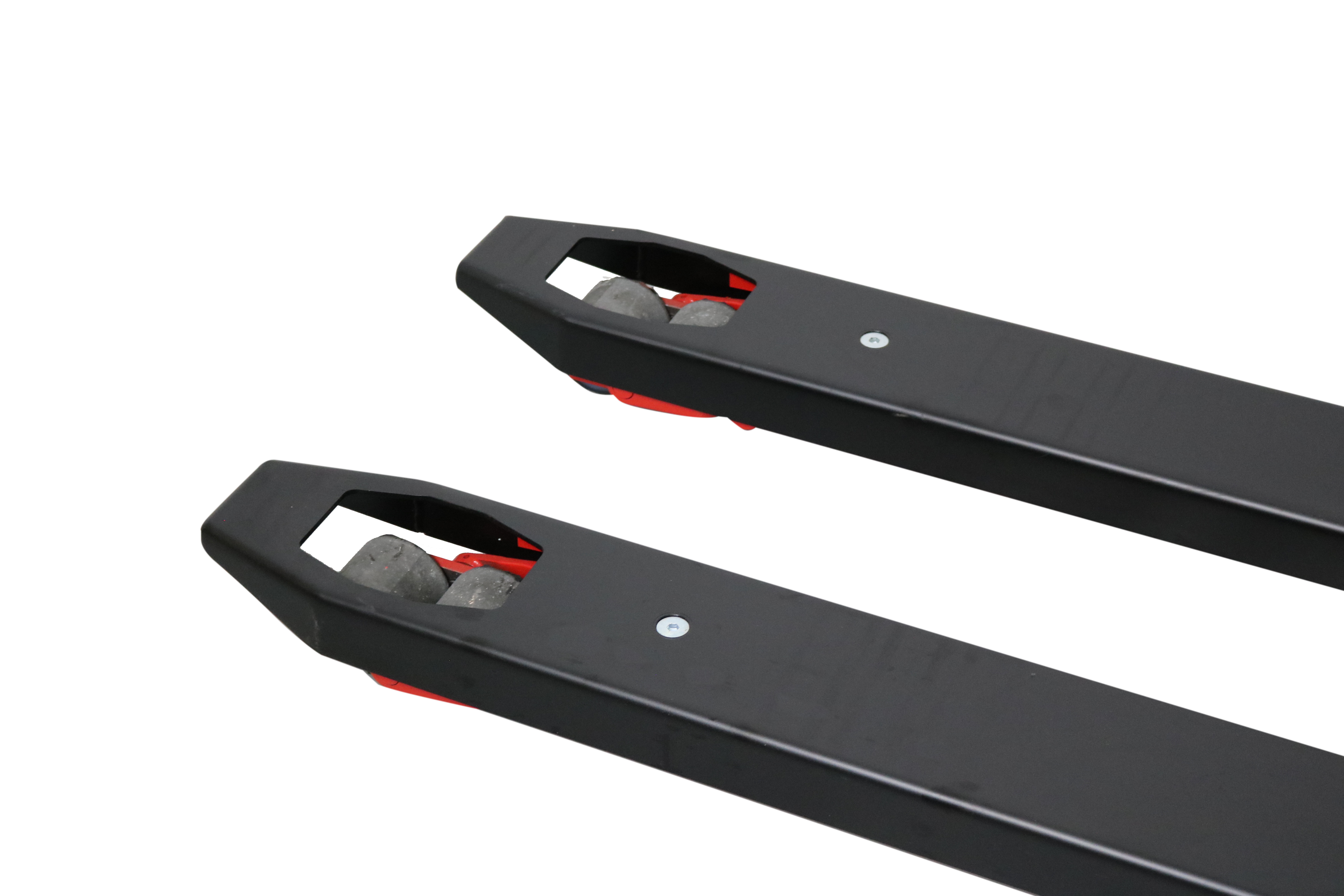

Loading wheels polyurethane, tandem
Colour red (RAL 3000), epoxy painted
Colour INOX stainless steel
Own weight 180 kg
Pump with ergonomic lift
