RAVAS 3200 - Pallet truck scale with extended scale functions
BENIFITS
Angled fork tips for easy access to low and closed pallets
High capacity Li-ion battery pack for 75 hours of autonomy
Automatic dosing function (option)
Three communication protocols
Internal clock for date/time
For warehousing, dosing and mixing
Connectivity for RAVAS Indicator App
Data transfer to devices that have
Bluetooth® technology (option)
Connectivity software available
FUNCTIONS
Automatic and manual zero correction
Gross/net weighing
Automatic and manual tare
Totalling with sequence number
Code entry (5-digit)

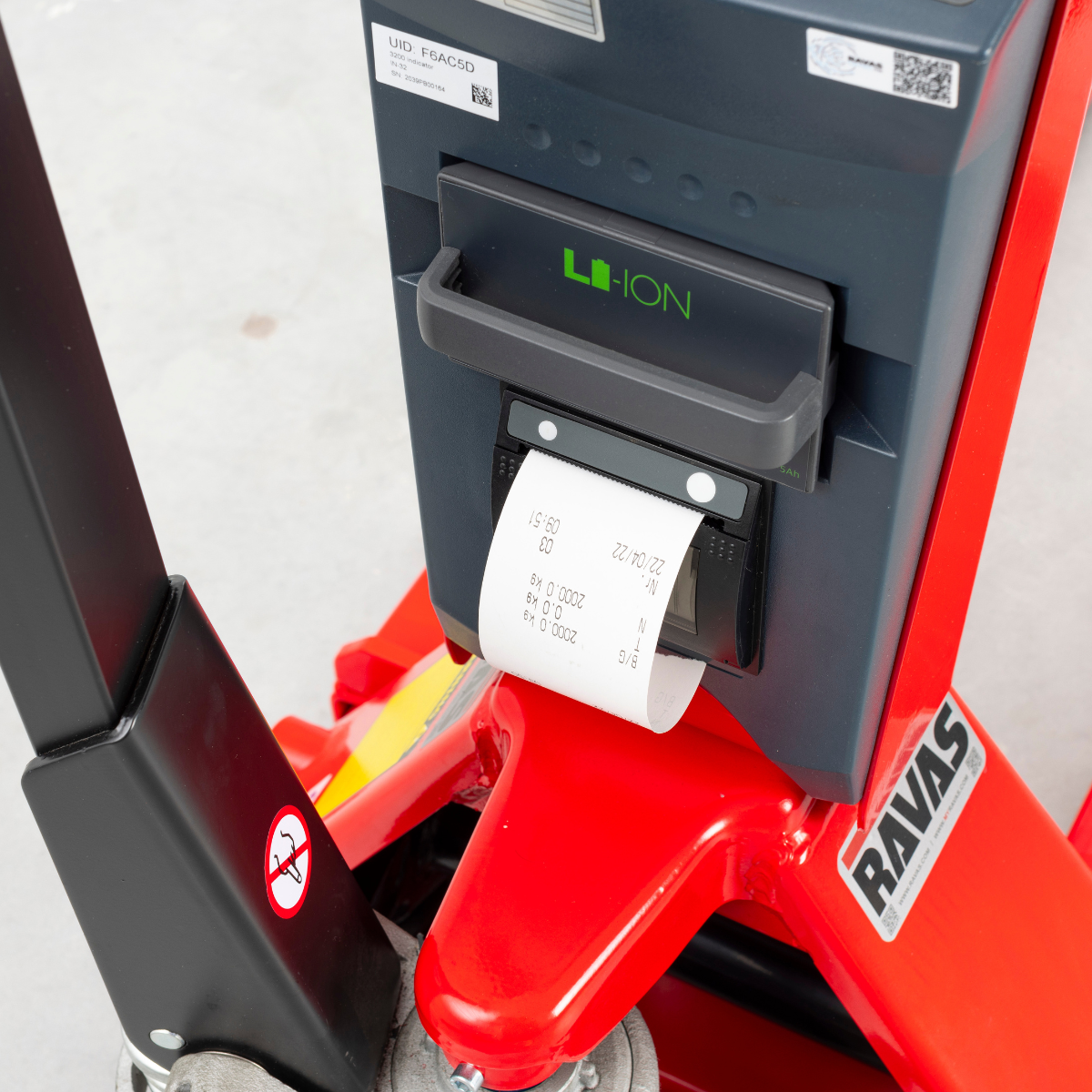

RS232 port for connection with printer
Extra port for wireless connectivity options with devices
that have Bluetooth® technology
Connectivity for RAVAS Indicator App
Internal clock
Error messages in display
Automatic switch-of after 30 minutes of non-use
kg/lb toggle
STANDARD SPECIFICATIONS
Weighing capacity 2.000 kg (2.500 kg or 3.000 kg optional)
Graduation multirange:
0 - 200 kg: graduation 0,2 kg
200 - 500 kg: graduation 0,5 kg
500 - 2.000 kg: graduation 1 kg
Max. tolerance 0,1% of the load lifted

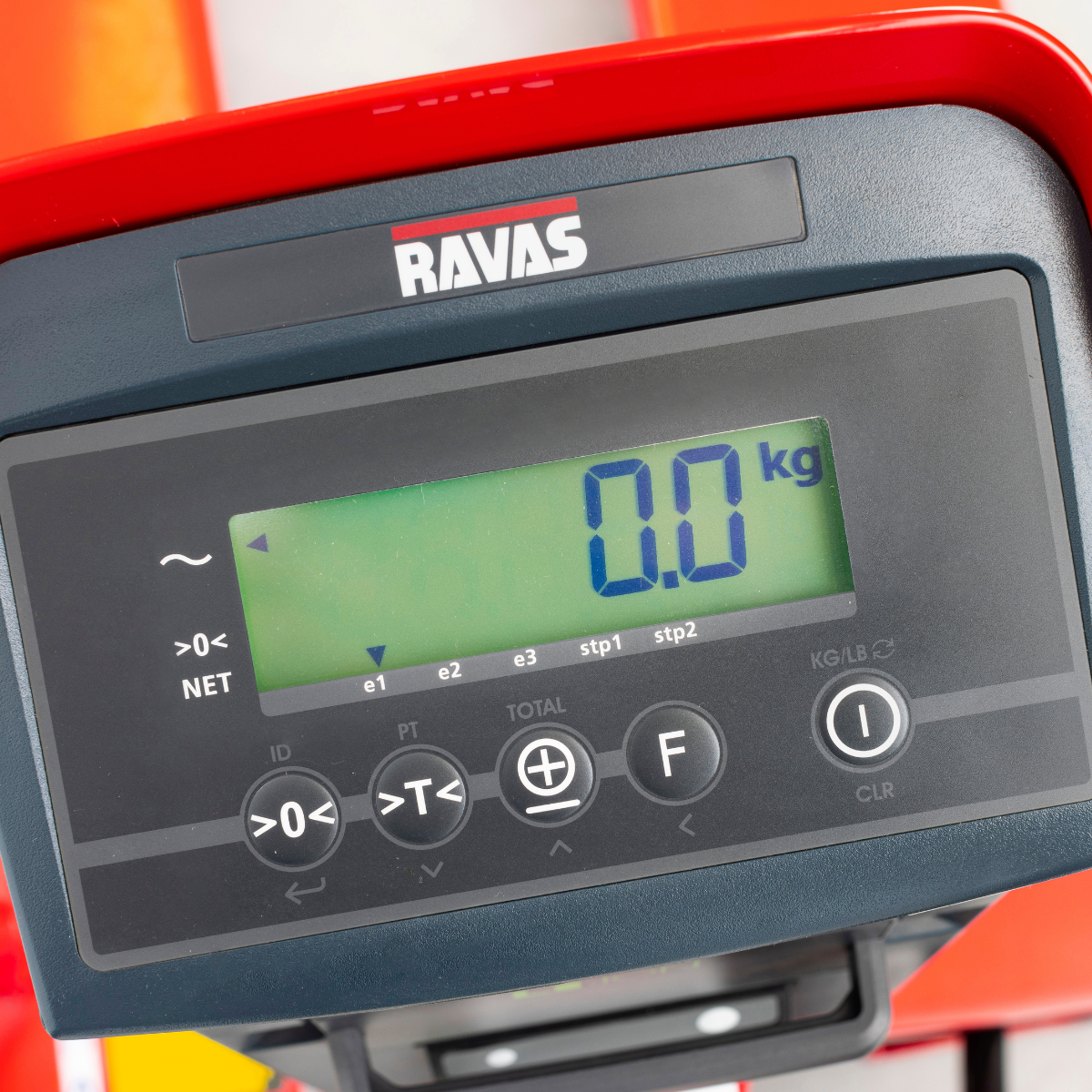

Display LCD dual color, digit height 20 mm, backlight
Keypad 5 function keys, on/off key
Protection class load cells IP67, indicator IP65
Battery 14,8Vdc/5Ah, exchangeable; Li-ion battery pack charger included
Battery life 75 hours, low battery indication in display
Charger 230V/14,8Vdc - 1 A
Charging time approximately 6 hours
Steering wheels rubber
Loading wheels polyurethane, tandem
Colour red (RAL 3000), epoxy painted
Own weight 120 kg
Pump quick lift
