Description

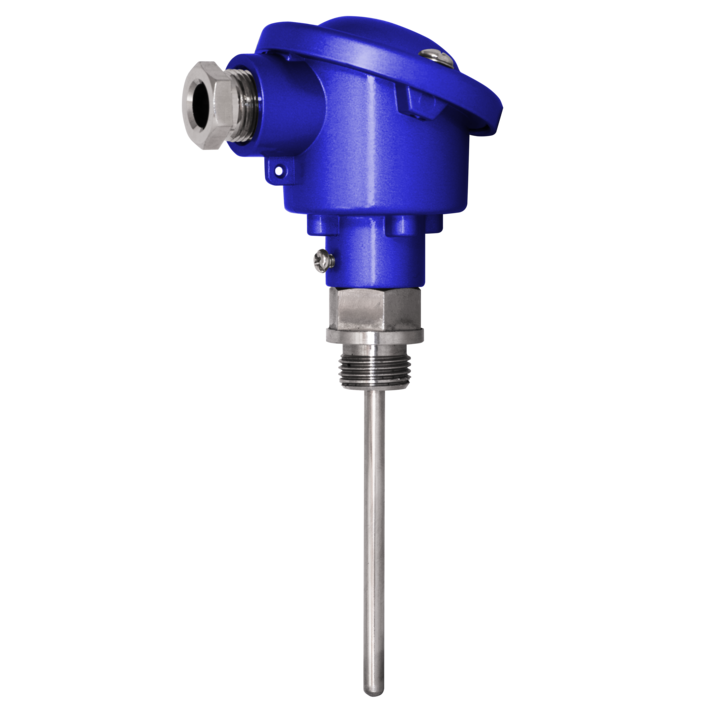

Resistance thermometers SCR100 consists of an optional exchangeable measuring insert, outer protective tube (thermowell) and aluminum connection head where mounting a temperature transmitter with 4-20 mA output signal is possible. The measuring insert represents the replaceable element of the complete sensor which reduces time and costs of maintenance of the measuring apparatus installed in the object.
Application areas:
- machine construcion, tanks or containers,
- fine chemicals industry,
- general industrial services,
- light energy industry.
Specification
| Measurement range |
-50...+200°C (Pt100, Pt500, Pt1000)
|
| Measuring element |
Pt500 resistor
Pt100 resistor
Pt1000 resistor
|
| Accuracy |
A class
B class
1/3 B class
|
| Sheath |
diameter: 4...15 mm
stainless steel 1.4541
nominal length: 100...1500 mm
|
| Process connection |
G 1/2
M20x1,5
|
| Connection head |
B, IP65, -40...150ºC, aluminum
NA, IP65, -40...150ºC, aluminum
DAN, IP65, -40...150ºC, aluminum
DANW, IP65, -40...150ºC, aluminum
|
