Description

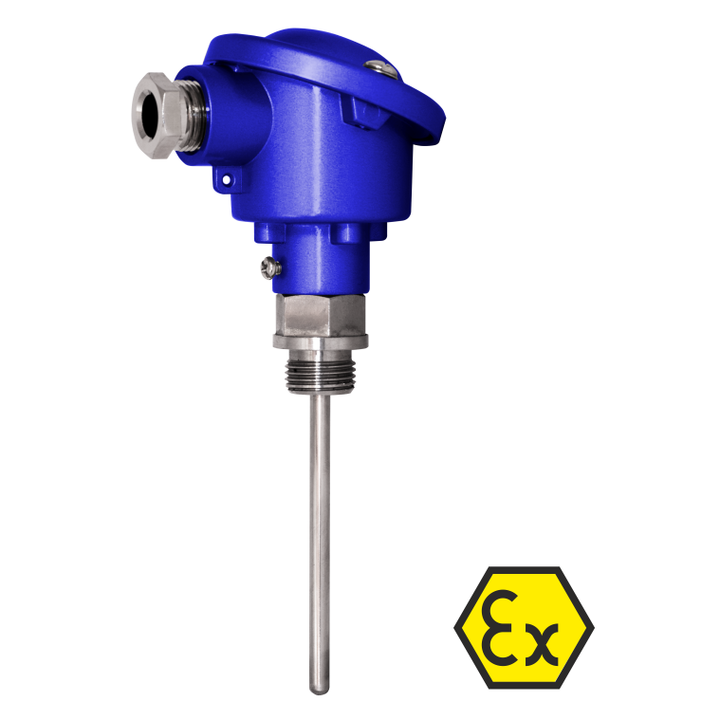

The resistance thermometer SCR100-Exi consists of an optional exchangeable measuring insert, outer protective tube (thermowell) and aluminum connection head, where mounting a temperature transmitter with 4...20 mA output signal is possible. The measuring insert represents the replaceable element of the complete sensor, which reduces time and costs of maintenance of the measuring apparatus installed in the object.
Application areas:
- machine construction, tanks or containers,
- fine chemical industry,
- light energy industry,
- general industrial services.
Specification
| Measurement range |
-40...+550°C
-40...+450°C
|
| Measuring element |
Pt500 resistor
Pt100 resistor
Pt1000 resistor
|
| Accuracy |
A class
B class
1/3 B class
|
| Sheath |
stainless steel 1.4541
|
| Process connection |
G 1/2
M20x1,5
|
| Connection head |
B, IP65, -40...150ºC, aluminum
NA, IP65, -40...150ºC, aluminum
DAN, IP65, -40...150ºC, aluminum
|
| Intrinsic safety |
II (1)G [Ex ia] IIC
II (1)D [Ex ia] IIIC
|
| Protection class |
IP 54
|
