Description

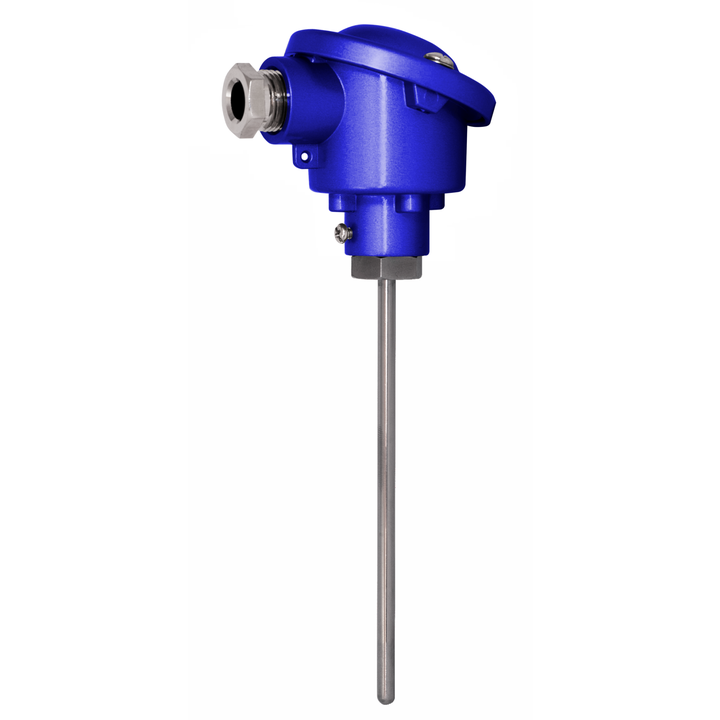

The SCR101 resistance head sensor is designed to measure the temperature of pipelines, tanks and all types of machines and devices.
The sensor consists of an aluminum connection head, a stainless steel cover with a
measuring element. The sensor is mounted using a threaded sliding handle or a collar.
The sensor is made with a replaceable measuring insert, which allows the element to be regenerated without having to dismantle the entire cover.
Application:
- tank temperature measurement,
- ventilation and air conditioning industry,
- heating,
- process temperature measurement in all industries
General Specifications
| Measurement range |
-50...+550°C
|
| Measuring element |
Pt100 resistor
Pt500 resistor
Pt1000 resistor
|
| Accuracy |
Class B
Class A
class 1/3 B
|
| Cover |
acid-resistant steel 1.4541
length 100...1500 mm
diameter 4...15 mm
|
| Head |
B, IP65, -40...150ºC, aluminum
NA, IP65, -40...150ºC, aluminum
DAN, IP65, -40...150ºC, aluminum
DANW, IP65, -40...150ºC, aluminum
|
