Description

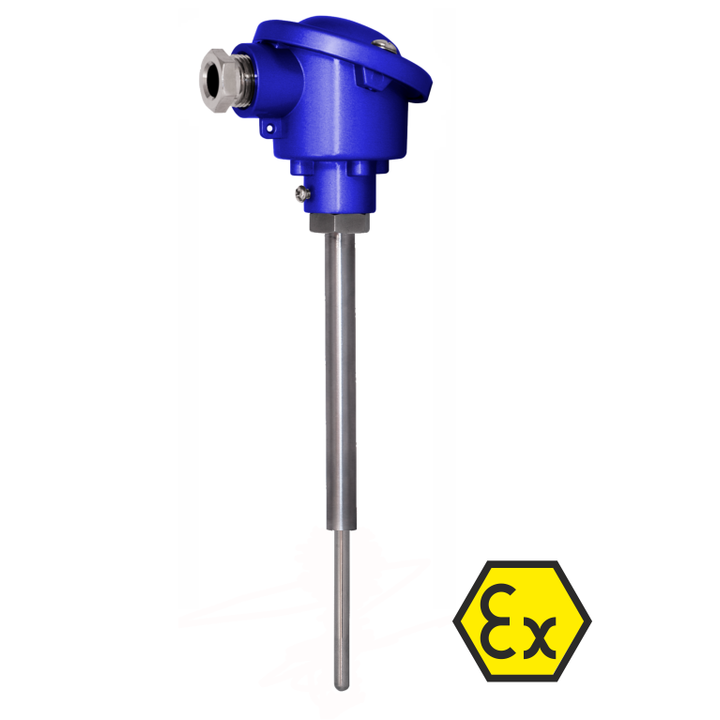

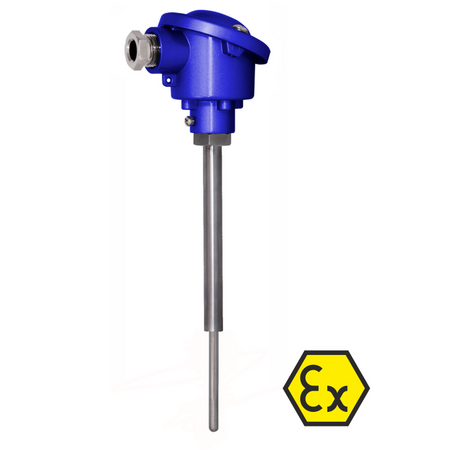

The resistance thermometer SCR122-Exi is intended for measuring the temperature of pipelines, tanks, machines and devices in various industrial installations. The sensor consists of an aluminum connection head and a stepped sheath of a selected diameter, which results in increased measurement dynamics. The sensor is made with a replaceable measuring insert, which makes it possible to regenerate the element without having to dismantle the entire cover.
Application areas:
- industrial and technological installations in various industries,
- temperature measurement of pipelines, tanks, boilers,
- measurement of all media (gases, liquids, solids).
Specification
| Measurement range |
-40...+550°C
-40...+450°C
|
| Measuring element |
Pt500 resistor
Pt100 resistor
Pt1000 resistor
|
| Accuracy |
A class
B class
1/3 B class
|
| Sheath |
acid-resistant steel 1.4571
|
| Connection head |
B, IP65, -40...150ºC, aluminum
NA, IP65, -40...150ºC, aluminum
DAN, IP65, -40...150ºC, aluminum
|
| Intrinsic safety |
II (1)G [Ex ia] IIC
II (1)D [Ex ia] IIIC
|
