Description

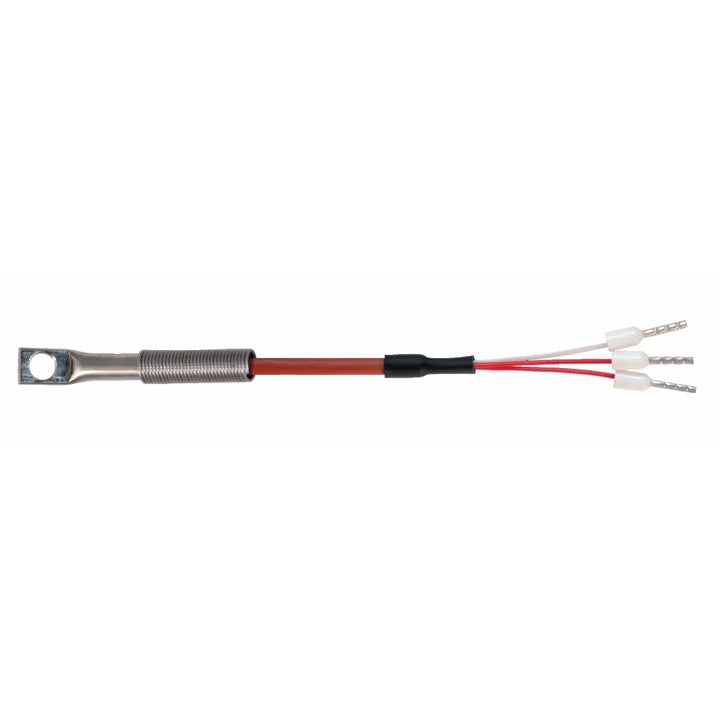

Resistance thermometers SCR203 are designed for assembling directly onto machine parts or other construction element. SCR203 consists of thermometric resistor, protection tube made out of stainless steel and connection cable. Number of sensors, accuracy, cable length and insulation can be selected individually for the respective application.
Application areas:
- fine chemical industry,
- light energy industry,
- general industrial services.
Specification
| Measurement range |
-50...+400°C
|
| Measuring element |
Pt500 resistor
Pt100 resistor
Pt1000 resistor
|
| Accuracy |
A class
B class
1/3 B class
|
| Sheath |
stainless steel 1.4541
diameter 4 mm
diameter 6 mm
|
