Description

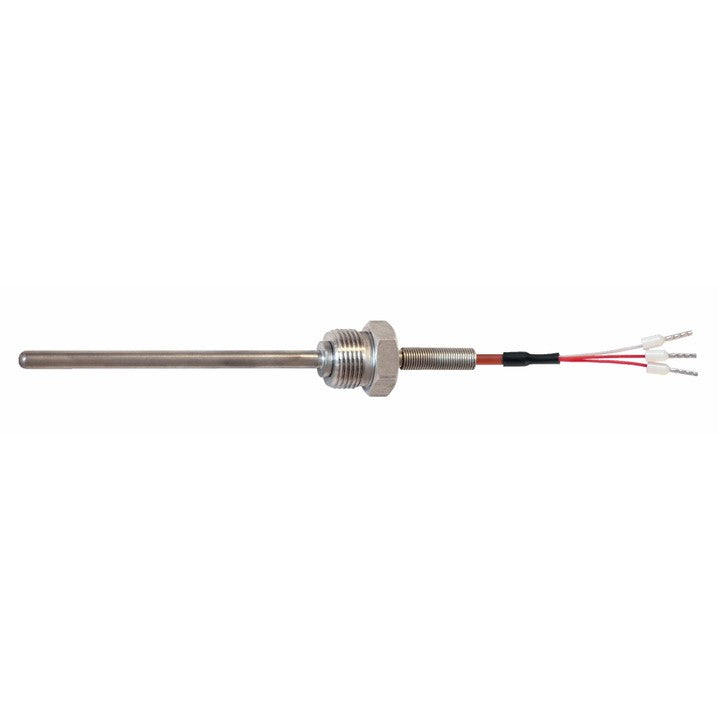

Resistance thermometers SCR207 are designed for screw-fitting directly into machine body or parts. SCR207 sensor consists of thermometric resistor, protection tube made out of stainless steel, moveable threaded process connection and connection cable.
Application areas:
- fine chemical industry,
- light energy industry,
- general industrial services.
Specification
| Measurement range |
-50...+400°C
|
| Measuring element |
Pt500 resistor
Pt100 resistor
Pt1000 resistor
|
| Accuracy |
A class
B class
1/3 B class
|
| Process connection |
G 1/2
M12x1
M14x1,5
|
| Sheath |
stainless steel 1.4541
length min. 15 mm
|
