Description

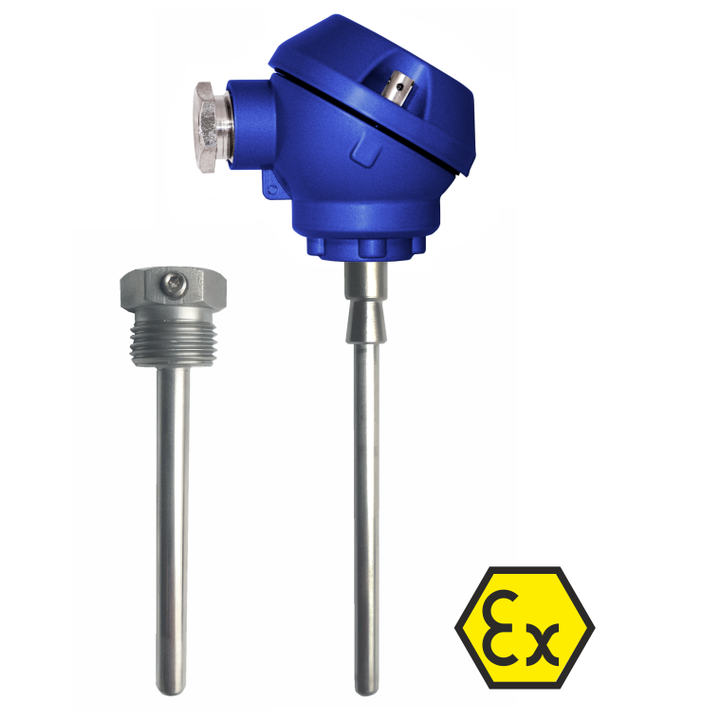

The thermocouple SCT105-Exi consists of a non-exchangeable measuring insert, outer protective tube with threaded process connection (thermowell), and aluminum connection head. Miniature connection head MA type reduces the size of complete sensor construction to make possible installation in confined areas.
Application areas:
- fine chemical industry,
- light energy industry,
- general industrial services.
Specification
| Measurement range |
-40...+200°C
|
| Measuring element |
TC N
TC T
TC J
TC K
TC S
TC R
TC B
|
| Accuracy |
II class
I class
|
| Sheath |
stainless steel 1.4541
diameter 8 mm
|
| Process connection |
G 1/2
M20x1,5
|
| Connection head |
MA, IP54, -40...100ºC, aluminum
|
| Intrinsic safety |
II (1)G [Ex ia] IIC
II (1)D [Ex ia] IIIC
|
| Protection class |
IP 54
|
