Description

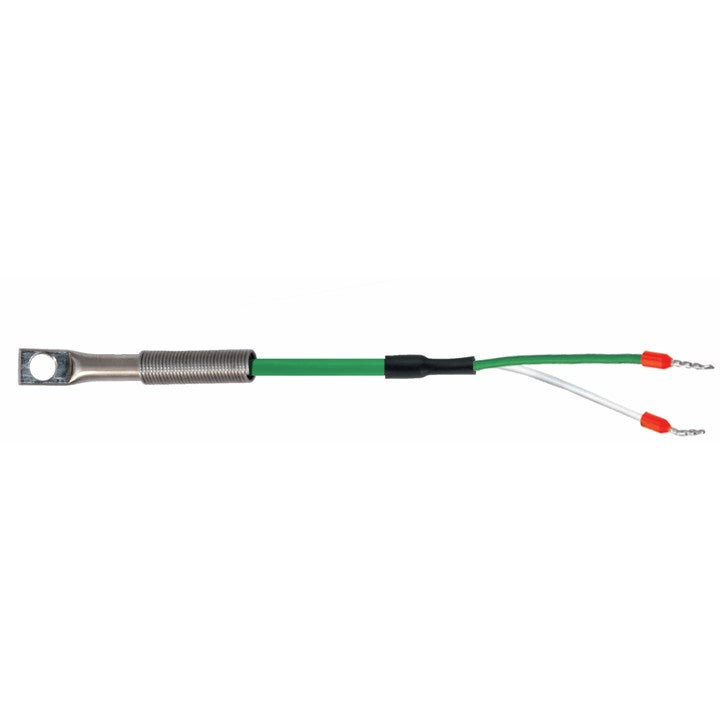

The thermocouples SCT203 are designed for assembling directly onto machine parts or other construction element. SCT203 consists of thermometric resistor, protection tube made out of stainless steel and connection cable. Number of sensors, accuracy, cable length and insulation can be selected individually for the respective application.
Application areas:
- fine chemical industry,
- light energy industry,
- general industrial services.
Specification
| Measurement range |
-40...+750°C (J)
-40...+1200°C (K, N)
0...+1600°C (R, S)
600...+1700°C (B)
|
| Measuring element |
TC N
TC J
TC K
TC S
TC R
TC B
|
| Accuracy |
II class
I class
|
| Probe diameter |
Ø4 mm
Ø6 mm
|
| Sheath |
stainless steel 1.4541
diameter 4 mm
diameter 6 mm
|
| Operating temperature |
max. 400°C
|
