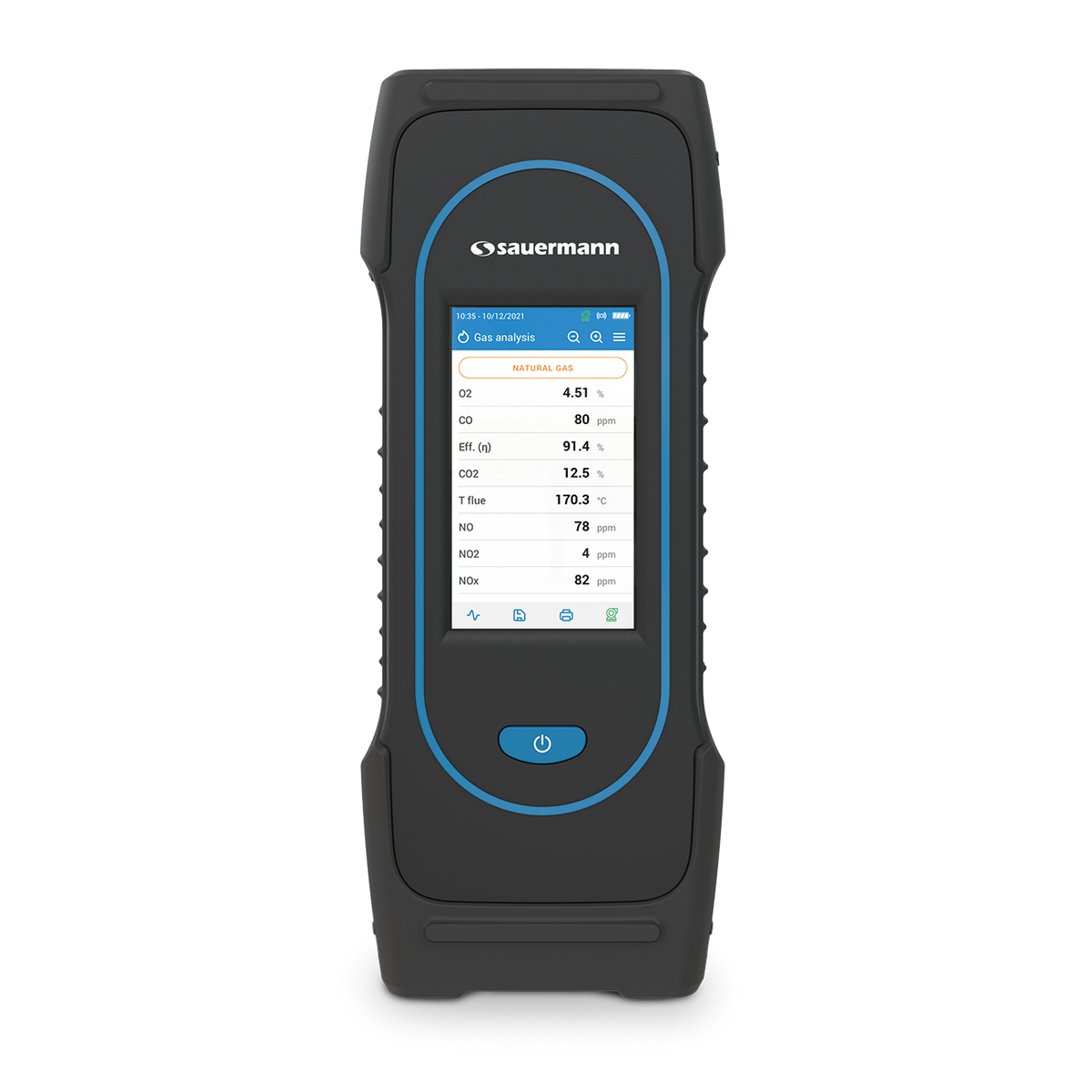

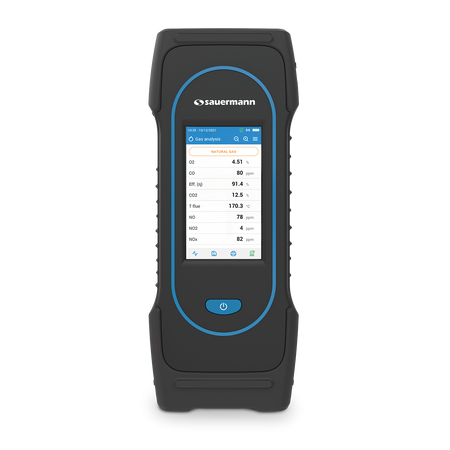

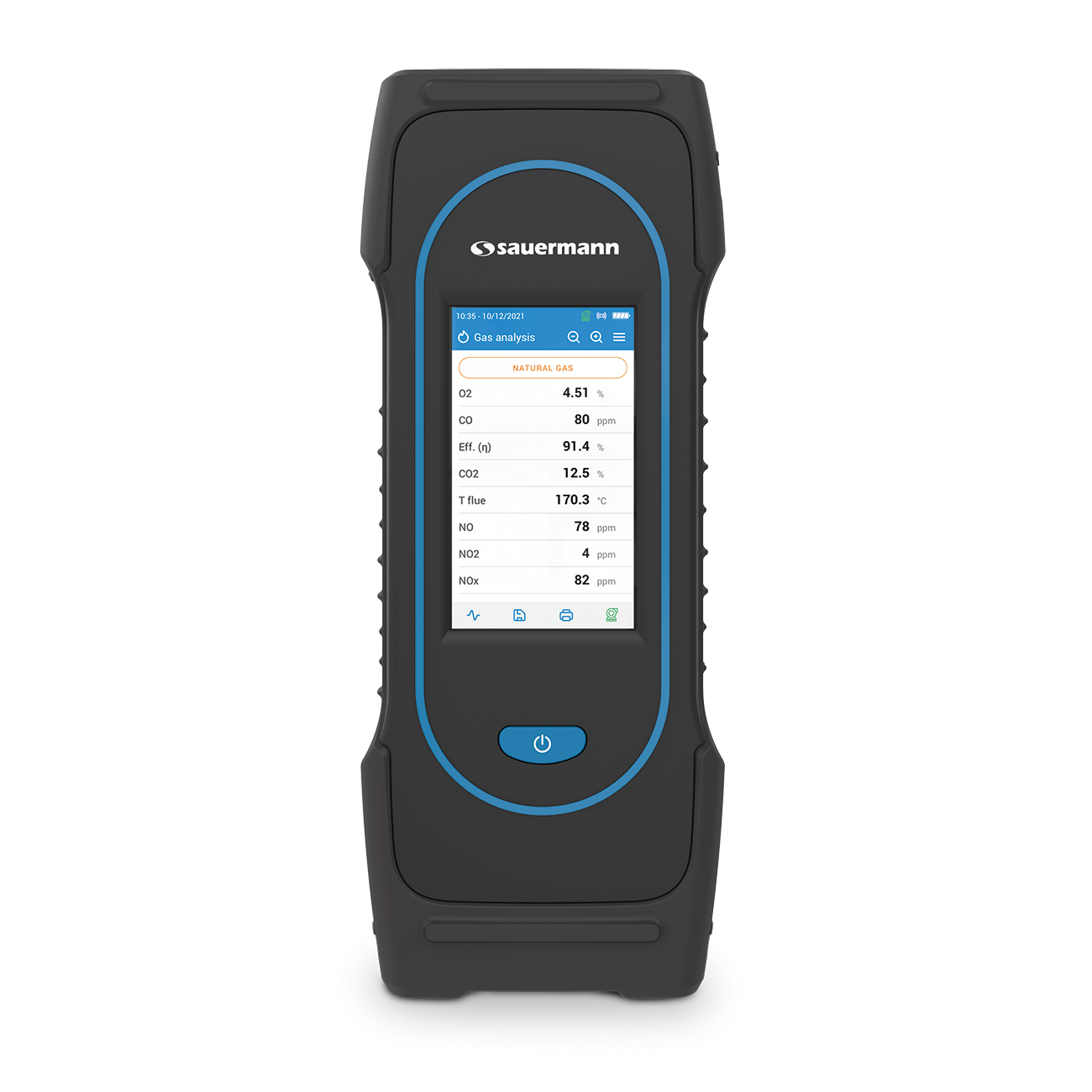

Si-CA 230 Combustion Analyzer

High performance analyzer, powered for industrial capablities

With double the number of cells and expanded measurement capabilities, the Si-CA 230 is suited to the most powerful industrial machines. And with support for more gases and a high CO tolerance threshold, its versatility makes it the ideal choice across residential, commercial and industrial applications.

Features:

•Ergonomic, light weight, & durable design

•Data management with automatic logging & report creation
• Predictive maintenance with estimated sensor life & calibration reminders
• One touch pump On/Off with purge
• PC software with wireless and USB connectivity
• Auto pump cut-off for high CO levels
• Graphical data display
• Customizable gas analysis screen
• Sample conditioning unit for low NOx & high moisture applications
• Stack gas velocity with Pitot tube
• Draft & differential pressure measurements
• Emissions values adjusted for reference O2
• CO & CO2 Monitoring in Ambient Air
• Hose extensions for tall & difficult to reach stacks
• Wireless Printer
• Protective rubber holster
• Maintenance contracts and extended warranties available

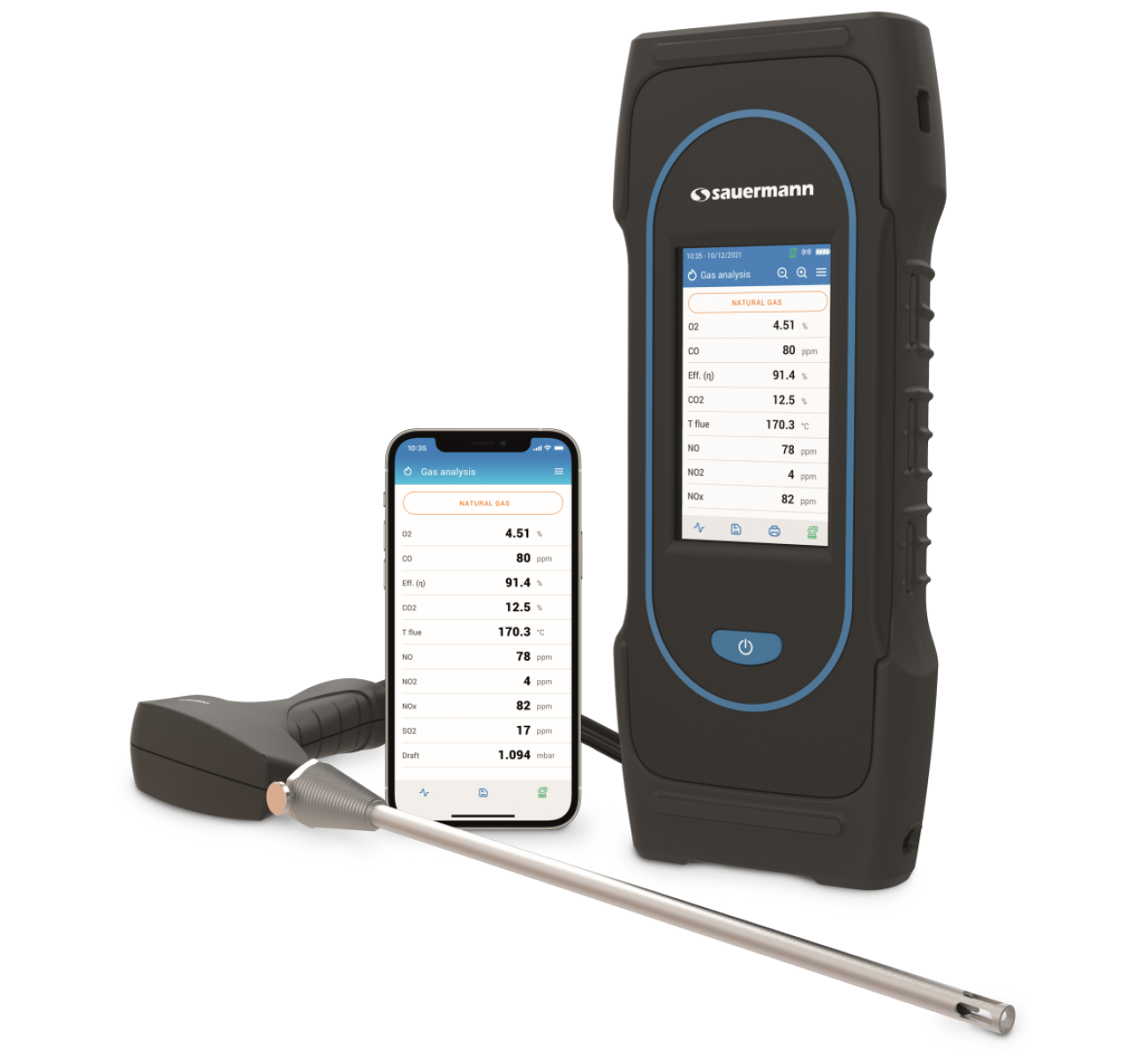

Si-CA 230 kit content
• Si-CA 230 analyzer
• O2 & CO gas sensors (other gas sensors available, see Optional accessories)
• CO Dilution Auto-Range to 50,000 ppm
• Protective rubber holster
• 300 mm flue gas probe with 3 m dual hose (other probe lengths available)
• Water trap with filter
• AC power supply / charger
• USB cable
• Mobile app & PC software
• Internal wireless communication module
• Carrying case
• Quick Start Guide
• Calibration certificate

Apps and software
• Free apps for iOS & Android mobile devices
• PC software with USB & wireless connectivity
• Fast, easy wireless connection
• Remote live view of combustion analysis data as list or graph
• Remote control to change settings
• Data saving, including automatic logging
• Report creation in PDF, CSV (for Excel) and XML formats
• Databases for customers, operators, & equipment

Measure details

• Units
  °C, %, Pa, ppm, m/s, mbar



Measuring ranges

• O2
  0.00 % ... 25.00 %
• CO (H2 comp.)
  0.00 ppm ... 10000.00 ppm
• CO (with dilution)
  100.00 ppm ... 50000.00 ppm
• CO2
  0.00 % ... 99.00 %
• NO
  0.00 ppm ... 5000.00 ppm
• Low NO
  0.00 ppm ... 300.00 ppm
• NO2
  0.00 ppm ... 1000.00 ppm
• Low NO2
  0.00 ppm ... 100.00 ppm
• NOx
  0.00 ppm ... 7500.00 ppm
• Low NOx
  0.00 ppm ... 450.00 ppm
• SO2
  0.00 ppm ... 5000.00 ppm
• Low SO2
  0.00 ppm ... 100.00 ppm
• CxHy (HC)
  0.00 % ... 5.00 %
• H2S
  0.00 ppm ... 500.00 ppm
• Flue temperature
  -20.00 °C ... 1250.00 °C
• Air temperature
  -20.00 °C ... 120.00 °C
• Differential temperature
  0.00 °C ... 1250.00 °C
• Pressure/Draft
  -200.00 mbar ... 200.00 mbar
• High accuracy draft
  500.00 Pa ... 500.00 Pa
• Excess air
  0.00 % ... 999.00 %
• Efficiency
  0.00 % ... 100.00 %
• Efficiency (condensation)
  0.00 % ... 125.00 %
• Stack Gas Velocity
  0.00 m/s ... 99.00 m/s

Technical details

• Parameters
  Air quality

  Gas analysis

  CO

  CO₂

  H₂S

  NO

  NO₂

  O₂

  SO₂
• Displays
  Color graphical display
• IP Protection
  IP 42
• Battery life
  8 hours
• Standards
  2015/863 EU (RoHS 3)

  TÜV SÜD Certification

  UKCA

  NF EN 50379-1

  NF EN 50379-2

  2014/53/EU RED
• Wireless connection
  1
• Power supply
  Rechargeable battery, Li-Ion 5100 mA/h 3.6 V
• Usb
  Yes
• Sensors
  CO

  CO2

  CxHy

  H2S

  NOx

  NO

  NO2

  O2

  SO2
• Auto zero
  Yes
• Printer
  Remote
• Sensor protection
  Sensor protection by pump stopping
• Mobile application
  Yes

Instrument Dimensions

• Length
  112 mm
• Width
  55 mm
• Height
  280 mm
• Weight
  825 g



Operating temperature

• Min
  -5.00 °C
• Max
  45.00 °C
