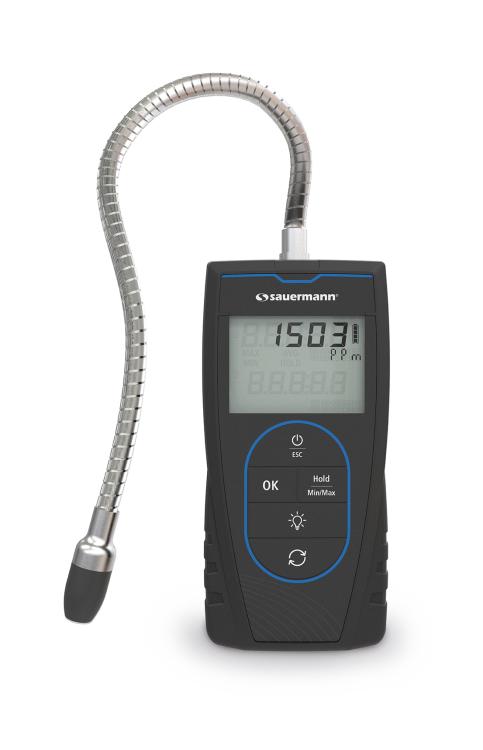

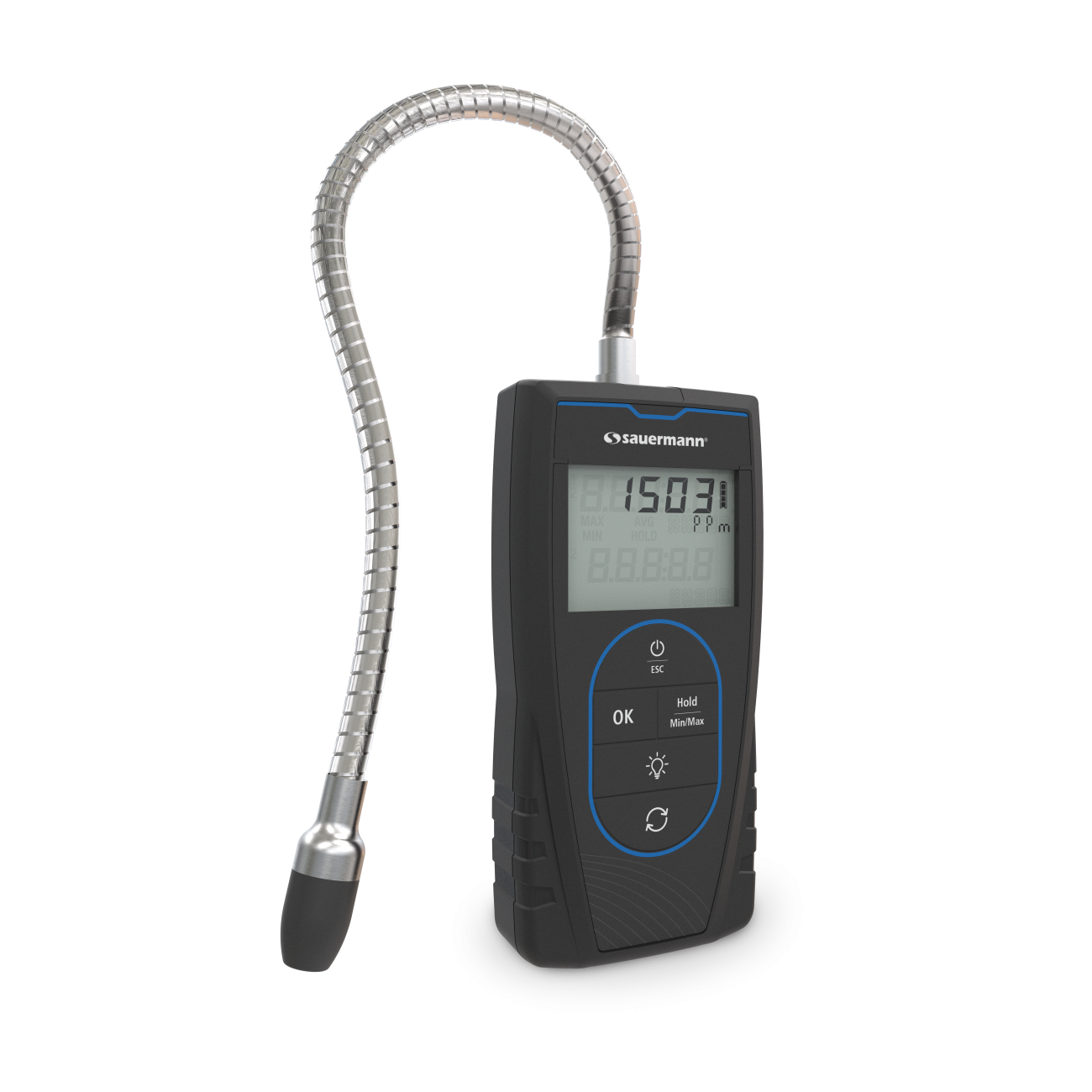

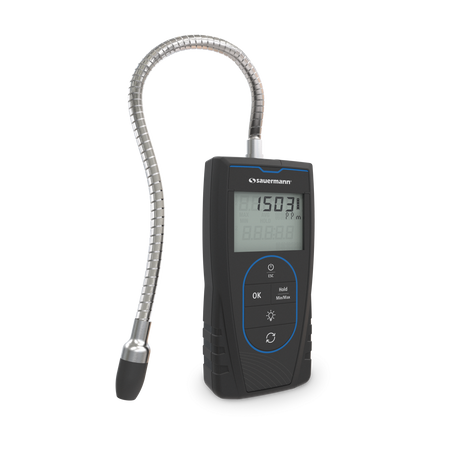

Sauermann

Si-CD3 Gas leak detector

SKU: 27868
317.14 € (ex VAT)

Si-CD3

Gas leak detector

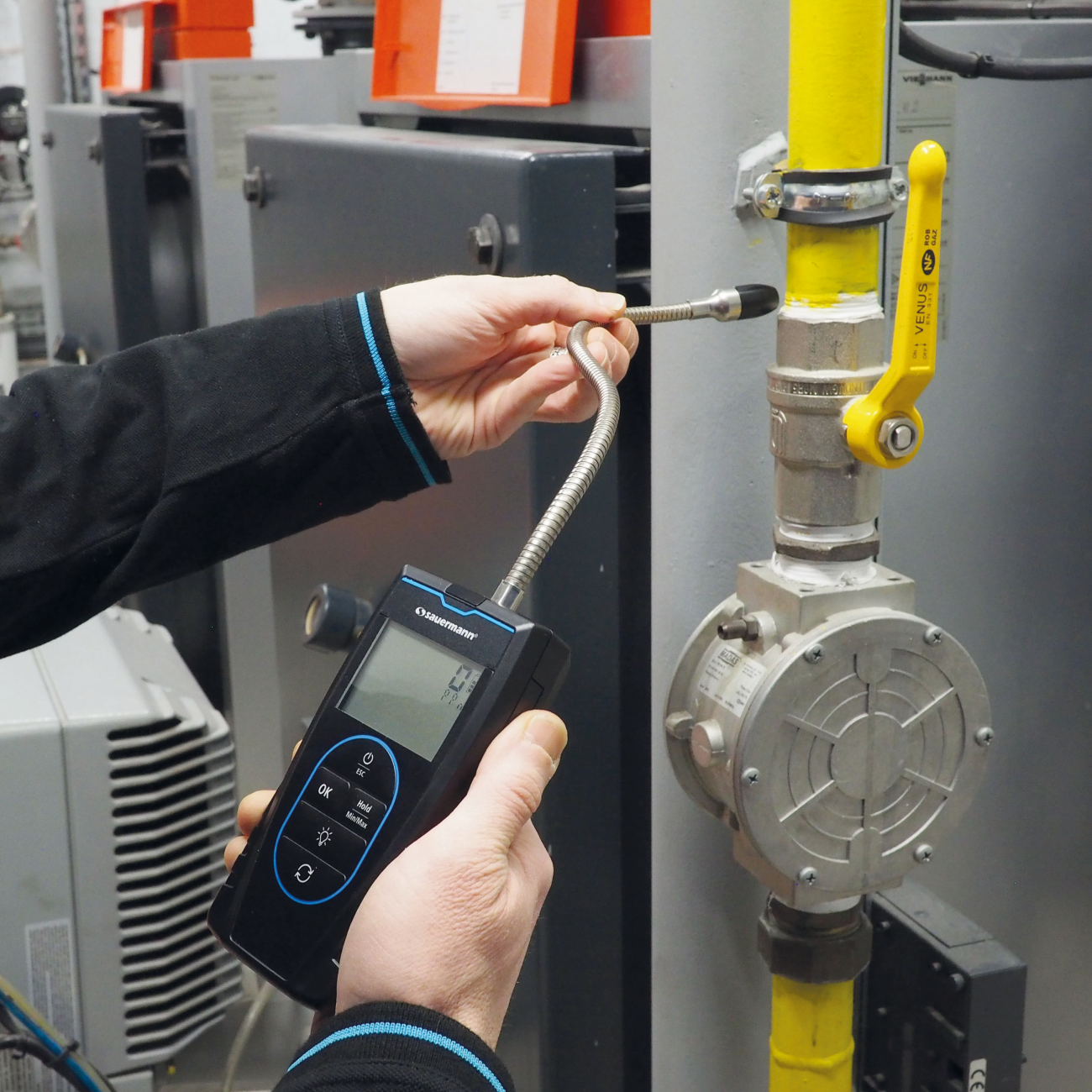

The Si-CD3 gas leak detector is perfect for quickly and easily detecting even the slightest leaks of various combustible gases (methane, propane, isobutane, LPG and other hydrocarbons). Si-CD3 Gas leak detector

Features
• Detection includes: methane (CH4), propane, isobutane and LPG
• Gas leakage indication in ppm, %vol or %LEL
• Hold-Min-Max functions
• Configurable auto power-off

Supplied With:

1 Verification certificate
1 Transport case
1 Quick Start Guide



Measure details

  • Units
    %vol, ppm, %LEL
shadow

Technical details

  • Parameters
    Gas detection
  • Displays
    4-line display
  • IP Protection
    IP 54
  • Battery life
    20 hours
  • Standards
    2015/863 EU (RoHS 3)
    UKCA
    2012/19/EU WEEE
    2014/30/EU EMC
    2014/35/EU Low Voltage
  • Power supply
    4x AAA LR03 1.5 V batteries
  • Protective cover
    No
  • Interchangeable module
    No
shadow

Instrument Dimensions

  • Length
    71.5 mm
  • Width
    34.2 mm
  • Height
    148 mm
  • Weight
    295 g
shadow



Operating temperature

  • Min
    0.00 °C
  • Max
    50.00 °C
shadow

Storage temperature

  • Min
    -20.00 °C
  • Max
    80.00 °C



Datasheet Si-CD3

User Manual Si-CD3

Quick Start Guide
