Sauermann

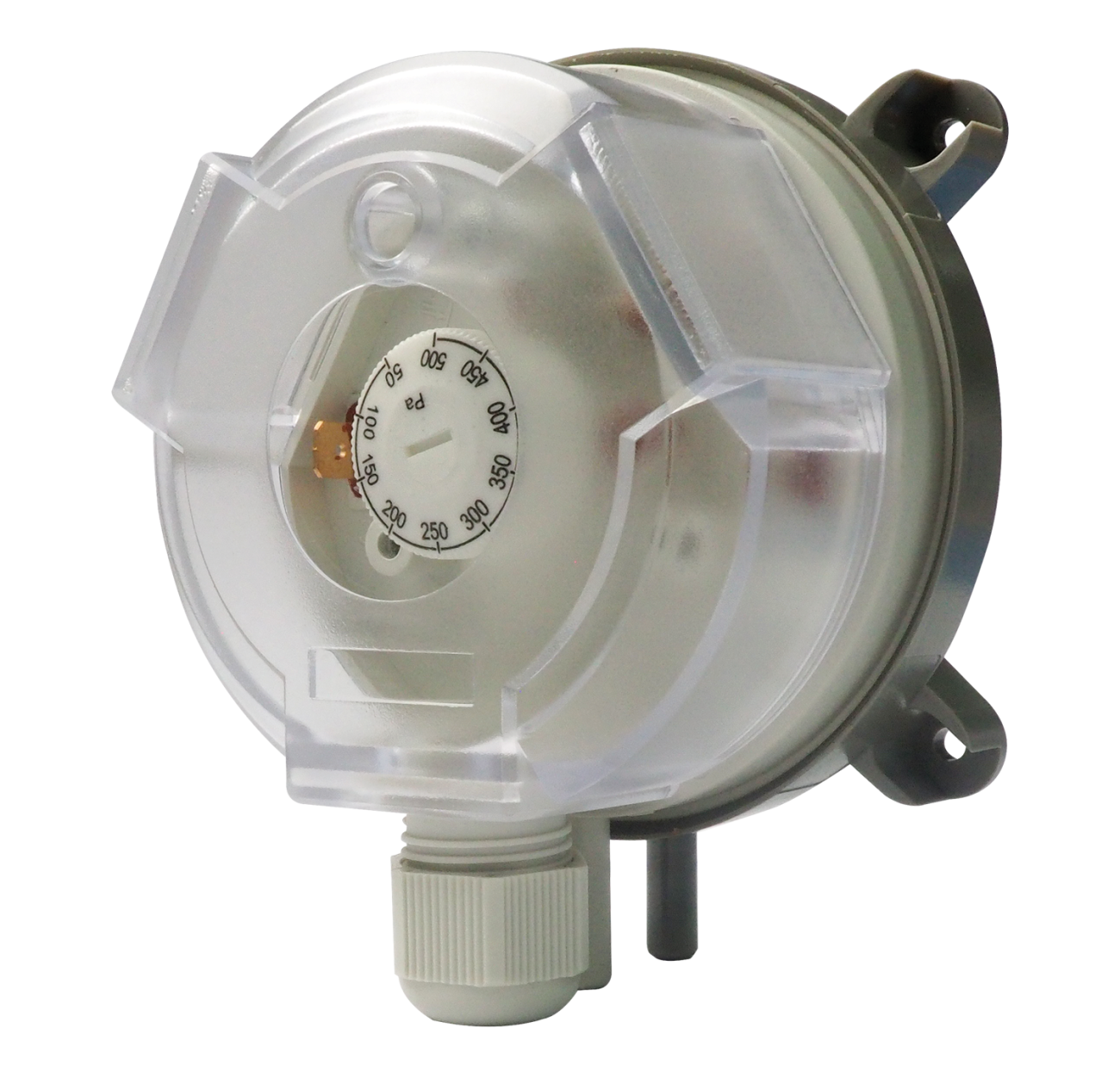

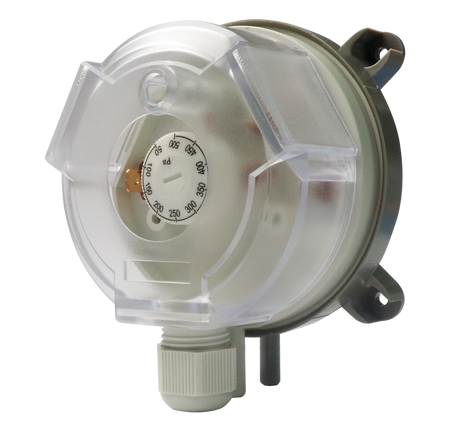

Si-DPMS Differential pressure switch

SKU: 27837
34.92 € (ex VAT)
Measuring Range

Differential pressure switch

The Si-DPMS mechanical differential pressure switches offer a reliable solution for a simple and yet effective pressure control of aeraulic elements, such as ducts, filters or fans.

It also suits for over heating protection and frost protection in industrial cooling systems.



General features


Media Air, non-combustible and non-aggressive gases
Maximum pressure 10 kPa
Mounting Vertical
Protection IP54 (with cover), IP00 (without cover)
Operating temperature -40 °C to +85 °C
Relay type SPDT
Electrical rating Resistance: initial: < 50 mΩ
Current: 1.5 A (0.4 A) / 250 V
Contact terminals 6.3 mm x 0.8 mm blade or screw terminal
Connection Ø 6.0 mm for tube connection
Certification CE



Measure details

  • Units
    Pa
shadow

Technical details

  • Parameters
    Differential pressure
  • IP Protection
    IP 54
  • Power supply
    Resistance: initial: < 50 mΩ / Current: 1.5 A (0.4 A) / 250 V
  • Relay
    SPDT
  • Ethernet communication
    No
  • ModBus network
    No
shadow

Instrument Dimensions

  • Length
    101.6 mm
  • Width
    57.4 mm
  • Height
    85.1 mm
shadow



Operating temperature
