Sauermann

Si-PM3 Digital Differential Pressure Manometer

SKU: SIPM3
193.77 € (ex VAT)

Digital Differential Pressure Manometer

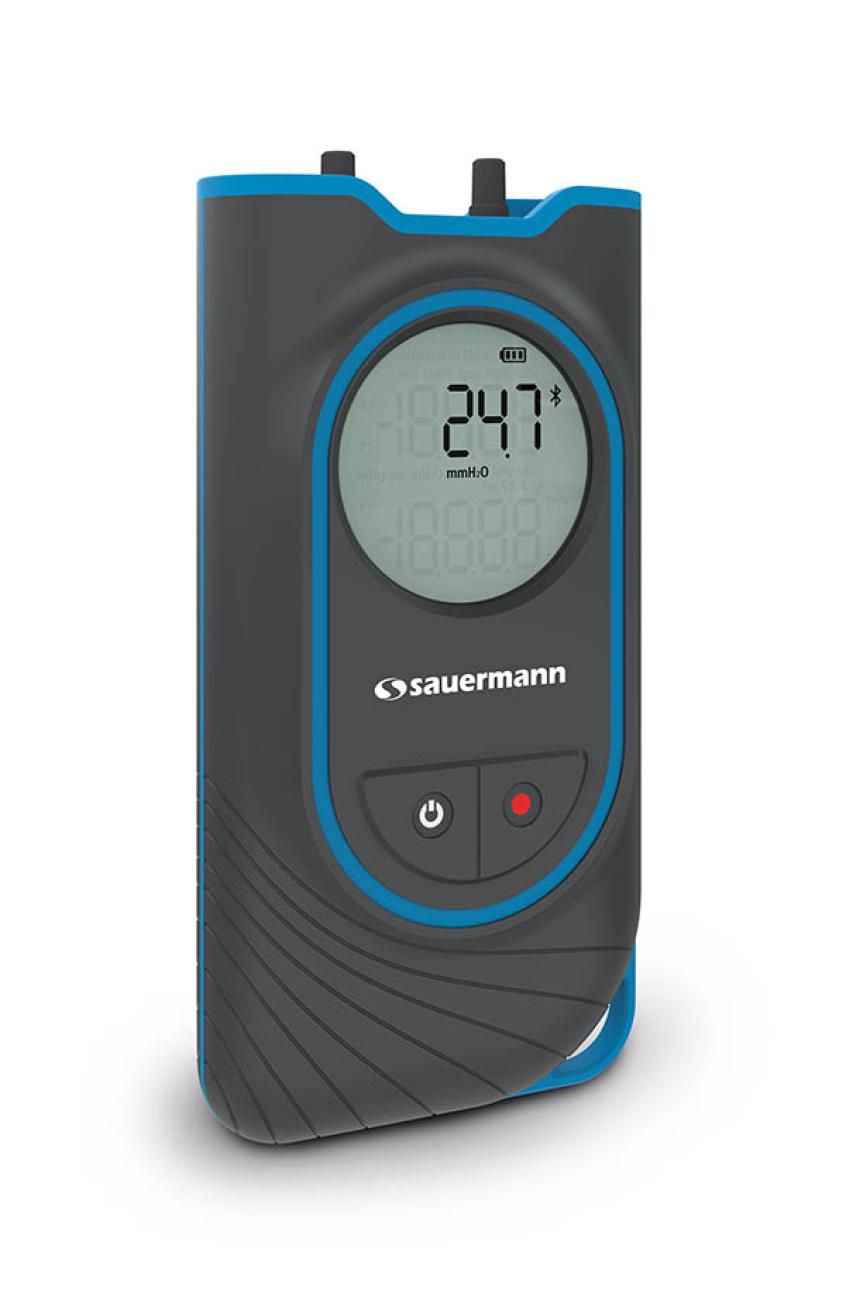

The palm-sized Sauermann Si-PM3 digital differential pressure manometer easily measures pressure.



Features

• Measuring range: -150 to +150 hPa (-60 to 60 inH2 O)
• Air velocity and airflow with Pitot tube (optional)
• Backlit LCD screen
• Magnetic backing for easy fixing + Carrying bag

Supplied with :

2 clear tubes Ø4x6 mm, 1 m (39.37’’) length
1 Certificate of conformity
1 Quick Start Guide
3 alkaline batteries LR03 AAA 1.5 V
1 Carrying bag


Measure details

  • Units
    inH₂O, Pa, mbar, hPa, mmH₂O, psi
shadow


Measuring ranges

  • Pressure
    -150.00 hPa ... 150.00 hPa
  • Airflow
    0.00 m³/h ... 9999.00 m³/h
  • Air velocity
    2.00 m/s ... 80.00 m/s
shadow



Technical details

  • Parameters
    Air velocity
    Airflow
    Differential pressure
  • Displays
    2-line display
  • IP Protection
    IP 40
  • Battery life
    170 hours
  • Standards
    RoHS II 2011/65/EU (EU)2015/863
    UKCA
    2012/19/EU WEEE
    2014/53/EU RED

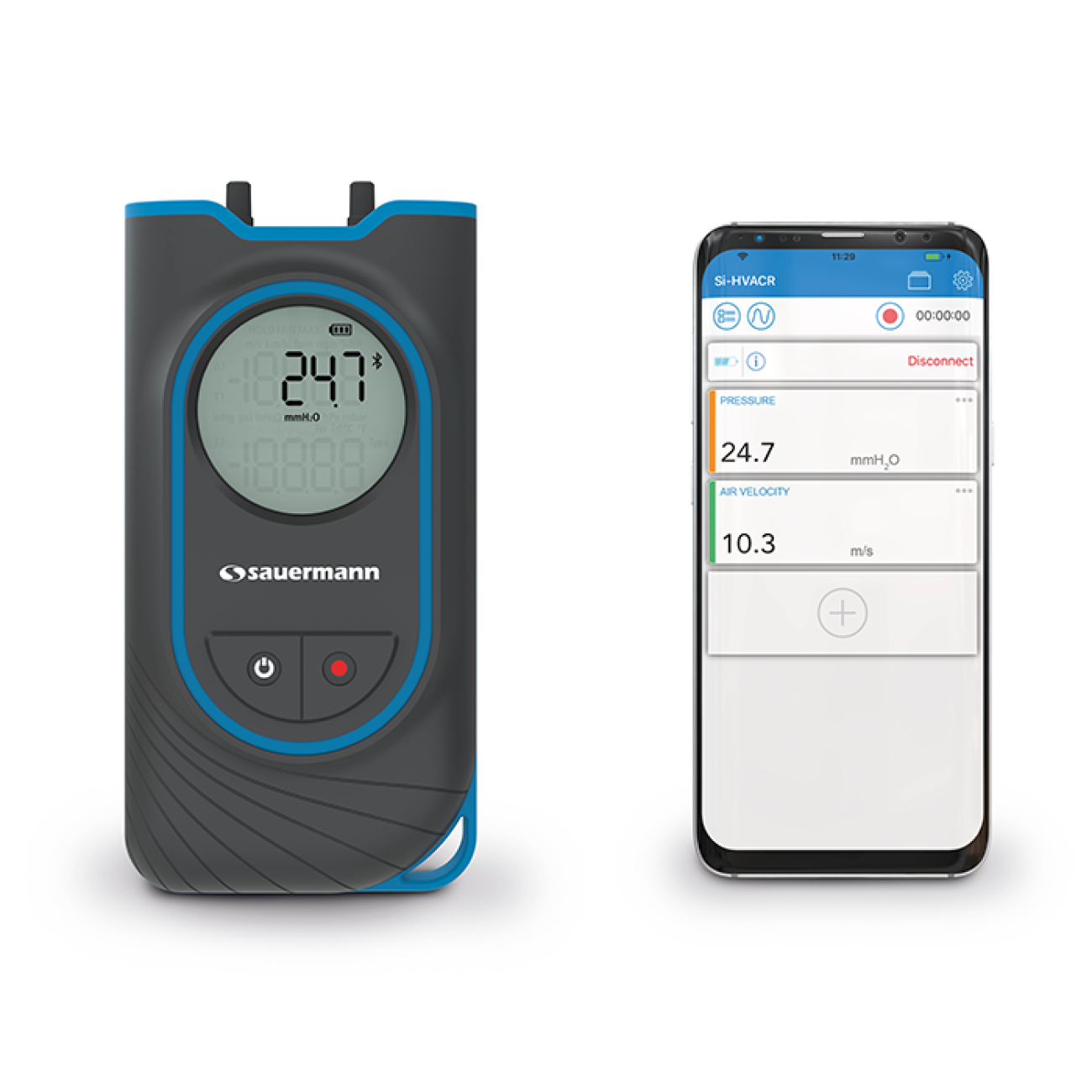

  • Wireless connection
    1
  • Power supply
    3 alkaline batteries LR03 AAA 1.5 V
  • Protective cover
    No
  • Interchangeable module
    No
shadow

Instrument Dimensions

  • Length
    2 3/4 inches
    70 mm
  • Width
    1 5/16 inches
    33 mm
  • Height
    5 9/16 inches
    141 mm
  • Weight
    7 pounds
    200 g
shadow



Operating temperature

  • Min
    0.00 °C
  • Max
    50.00 °C
shadow

Storage temperature

  • Min
    -20.00 °C
  • Max
    70.00 °C



Datasheet Si-PM3

User Manual Si-PM3

Quick Start Guide
