Wireless pressure probe

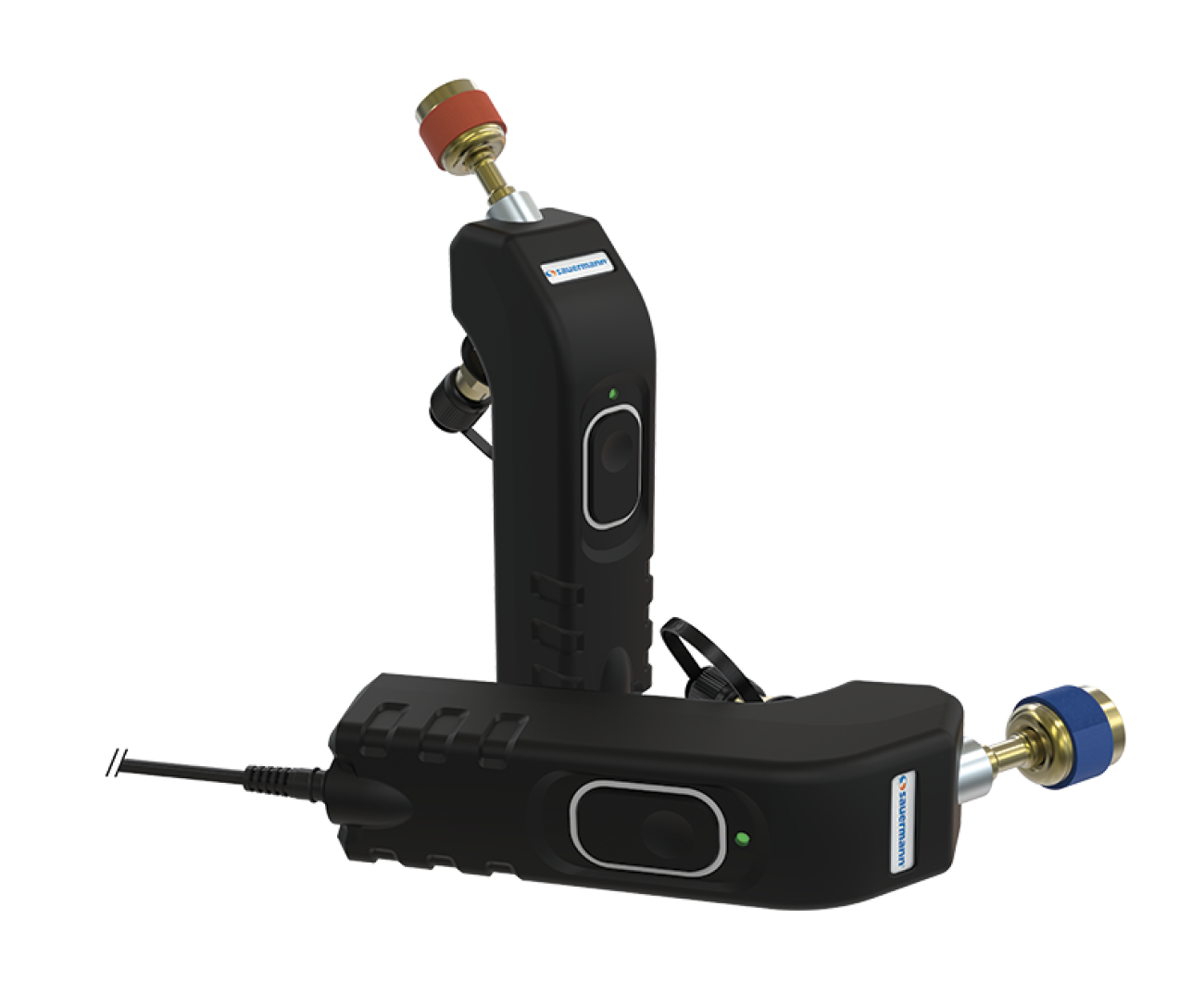

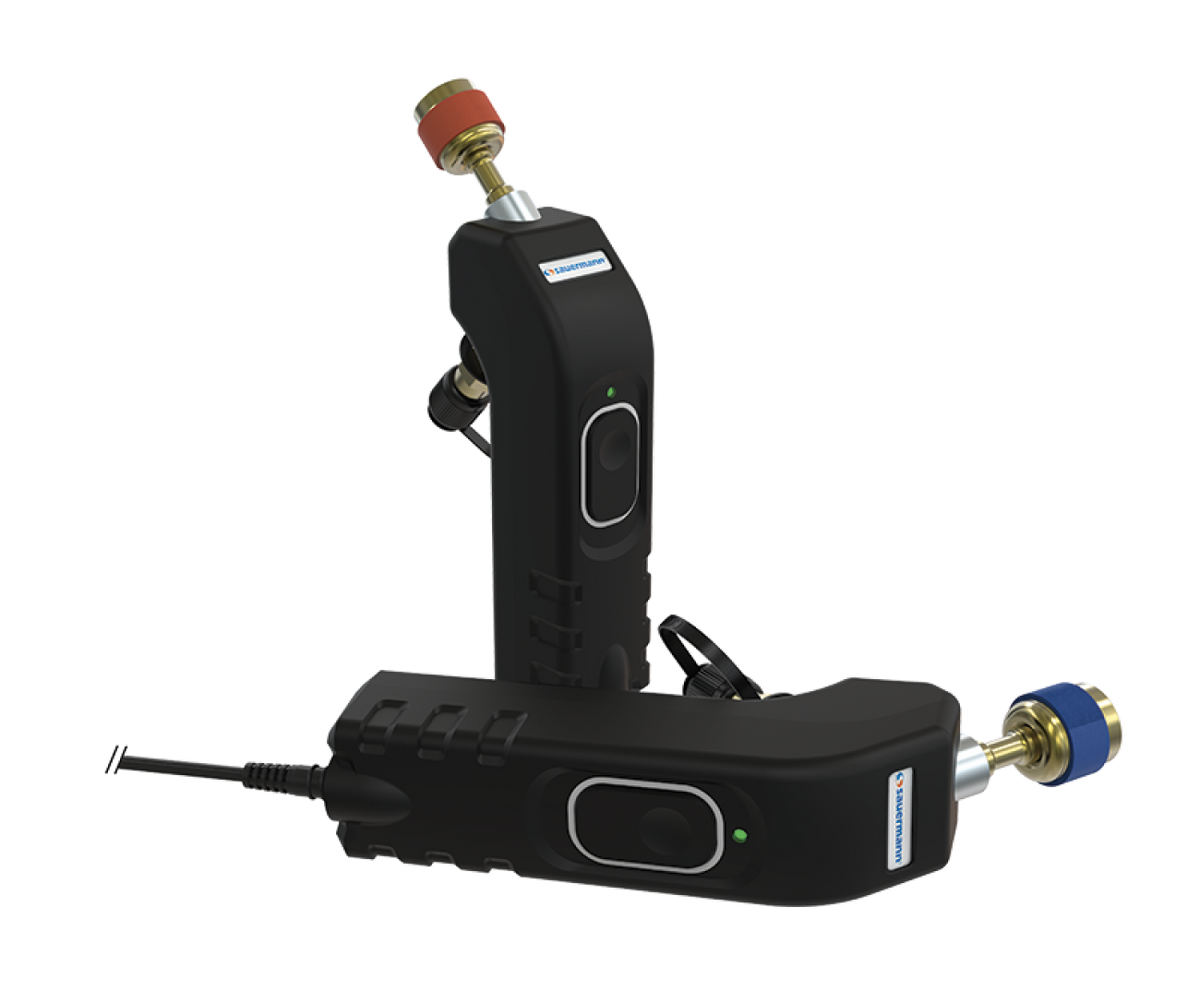

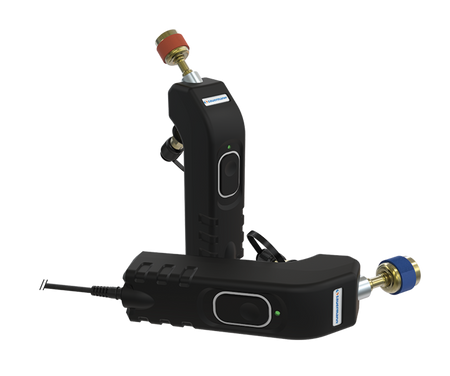

This Si-RM1 wireless pressure probe accurately measures high side and low side pressure.
It measures relative pressure range from -1 to 60 bar and -14 to 870 psi and comes with wireless connection low energy.
Measure details
-
Unitsbar, psi
Measuring ranges
-
Pressure-1.00 bar ... 60.00 bar
-
Pressure-14.00 psi ... 870.00 psi
Technical details
-
ParametersPressure
-
Battery life250 hours
-
StandardsUKCA
-
Wireless connectionYes
-
Connections

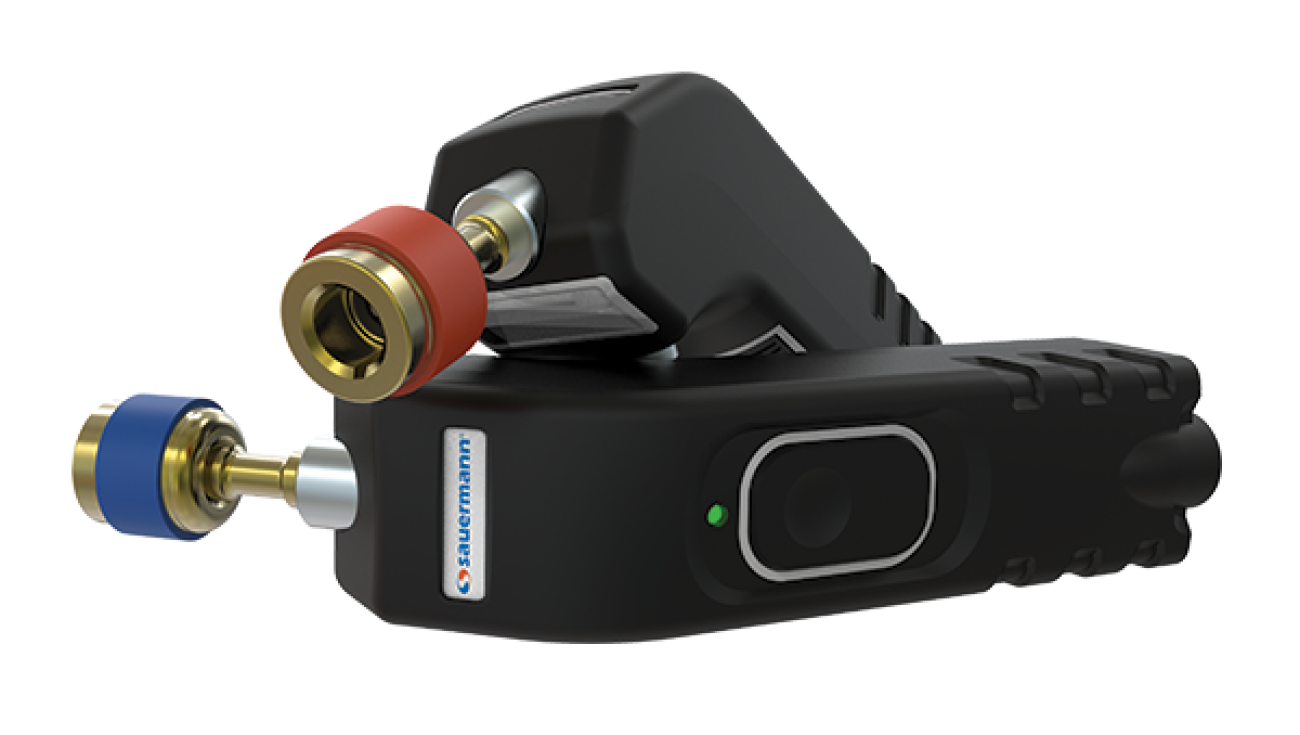

To installation: female 1⁄4’’ FFL with Schrader® depressor
To flexible: male 1⁄4’’ MFL with Schrader® valve
-
Refrigerant database126 refrigerant gases
Instrument Dimensions
-
LengthWidthHeightWeight
-
29/32 inches , 73.7 mm1 5/16 inches , 33.6 mm6 5/16 inches , 161 mm
Operating temperature
-
MinMax
-
-20.00 °C50.00 °C
-
-4.00 °F122.00 °F
Storage temperature
-
MinMax
-
-20.00 °C80.00 °C
-
-20.00 °F80.00 °F
