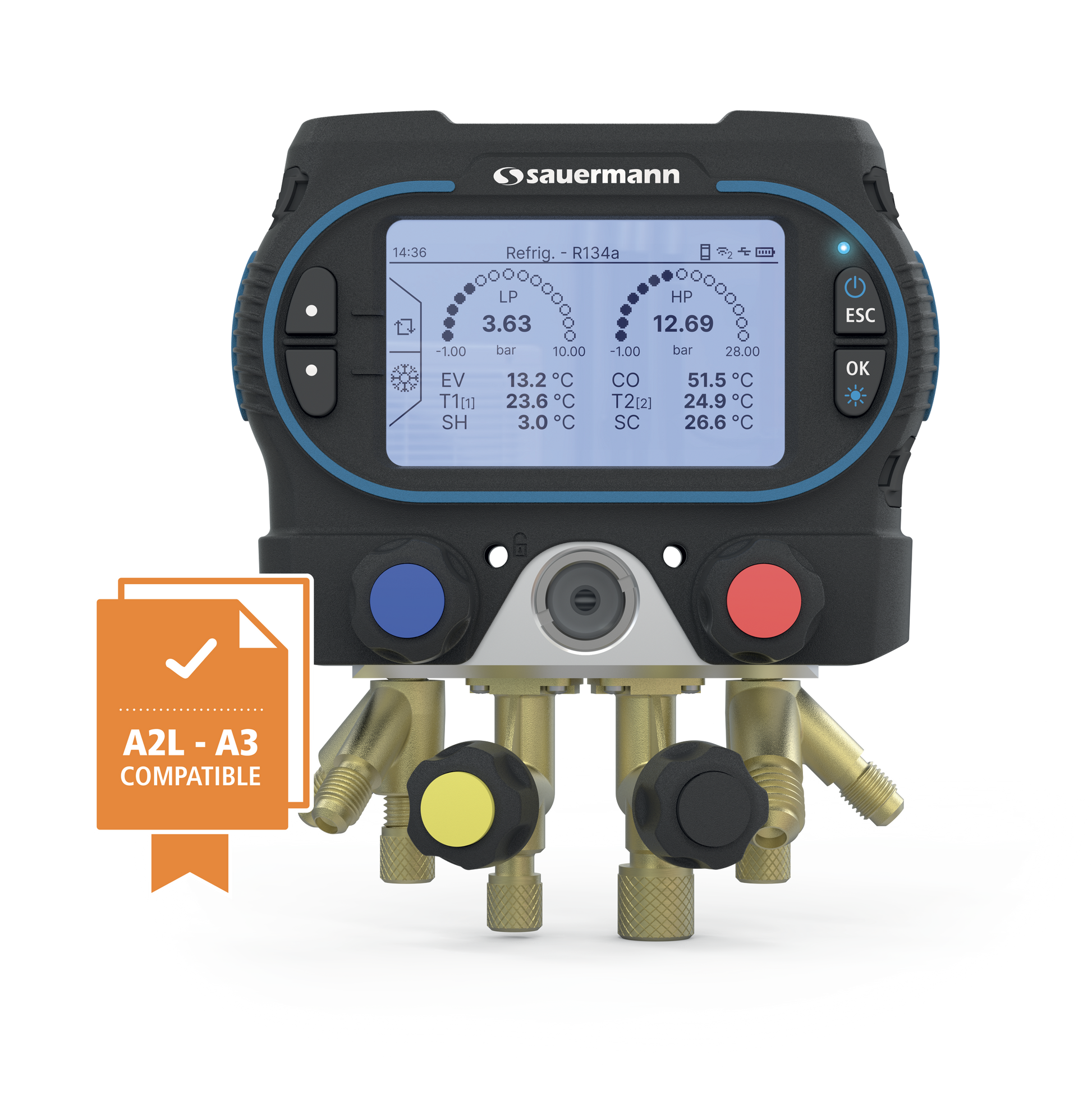

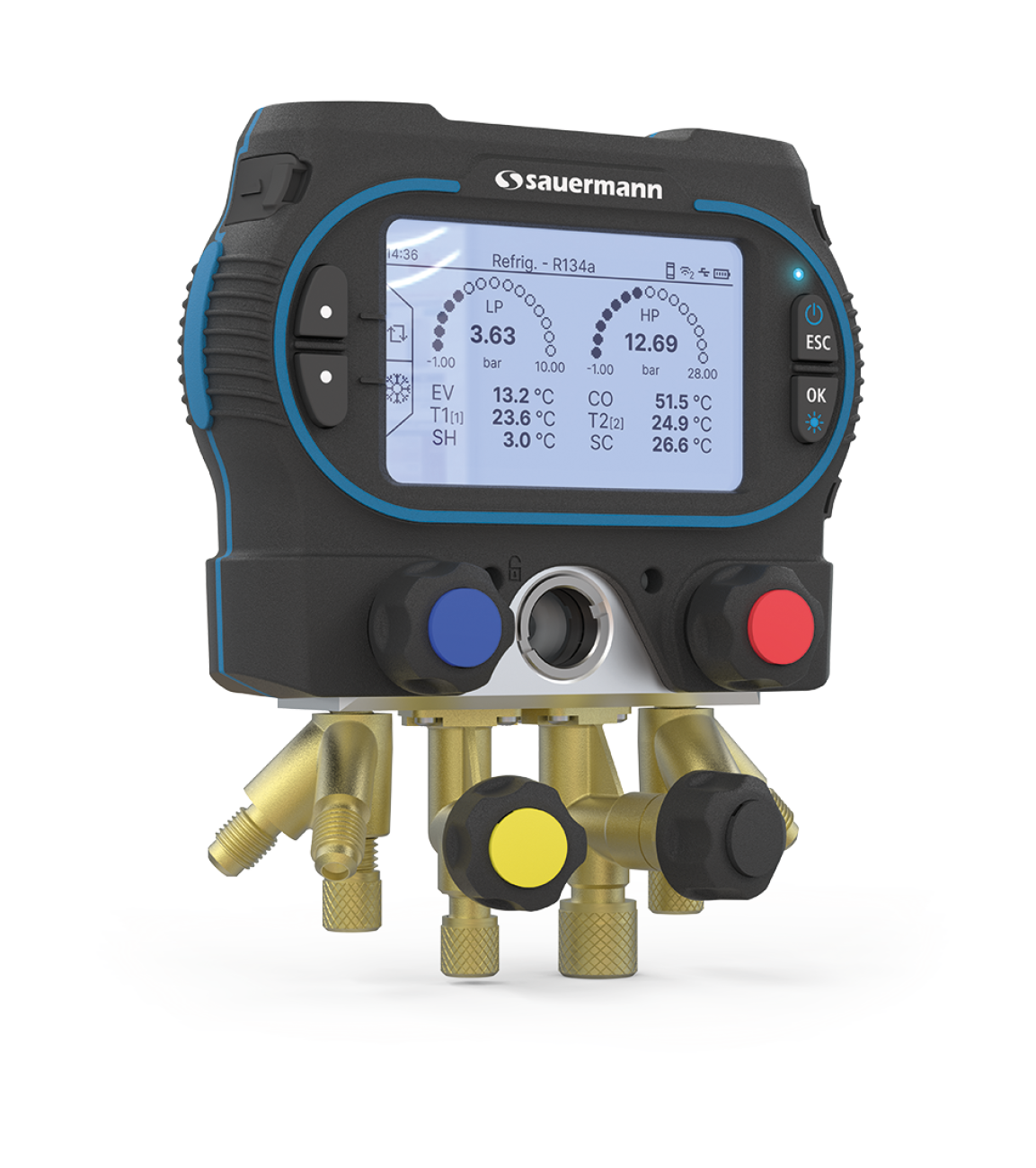

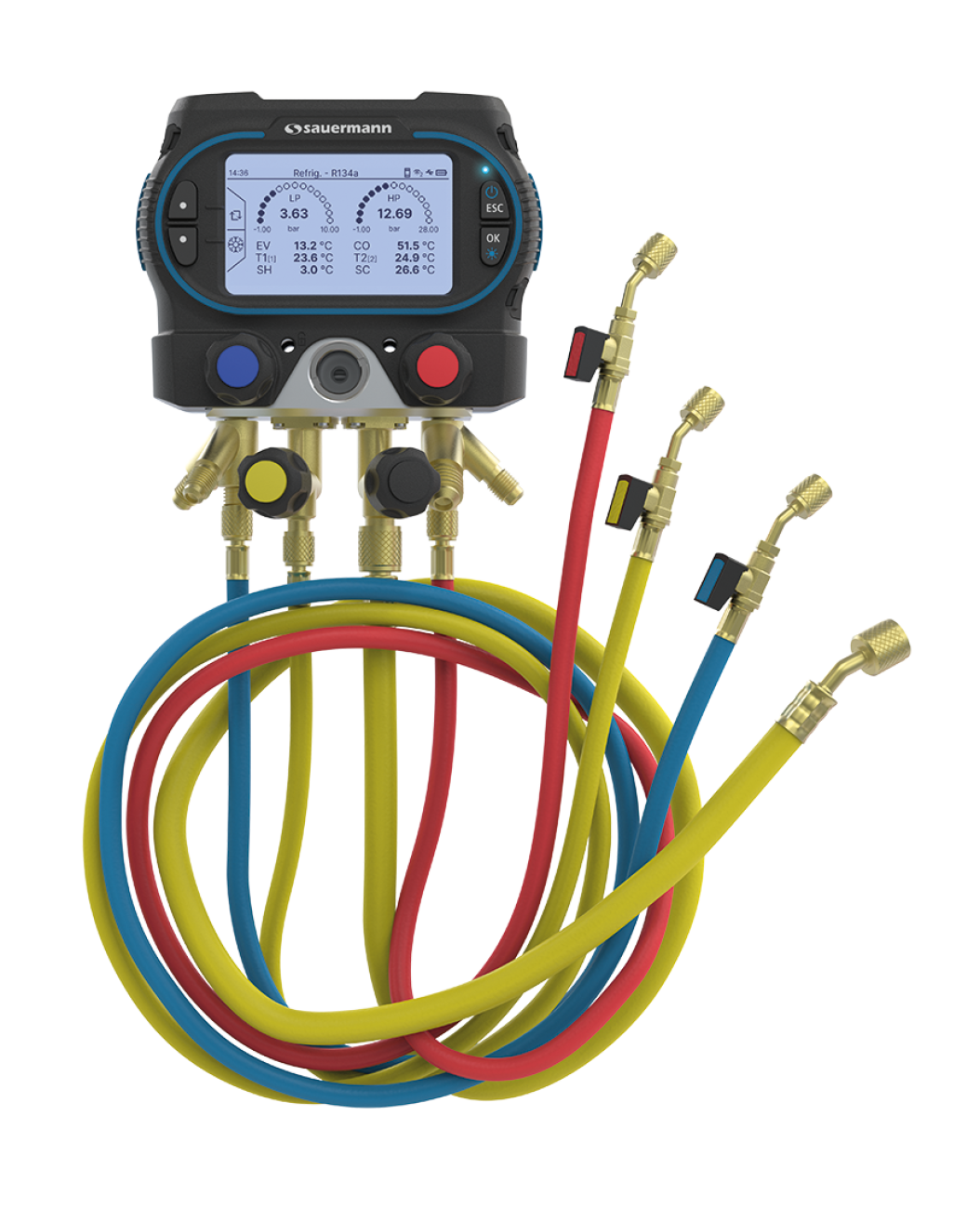

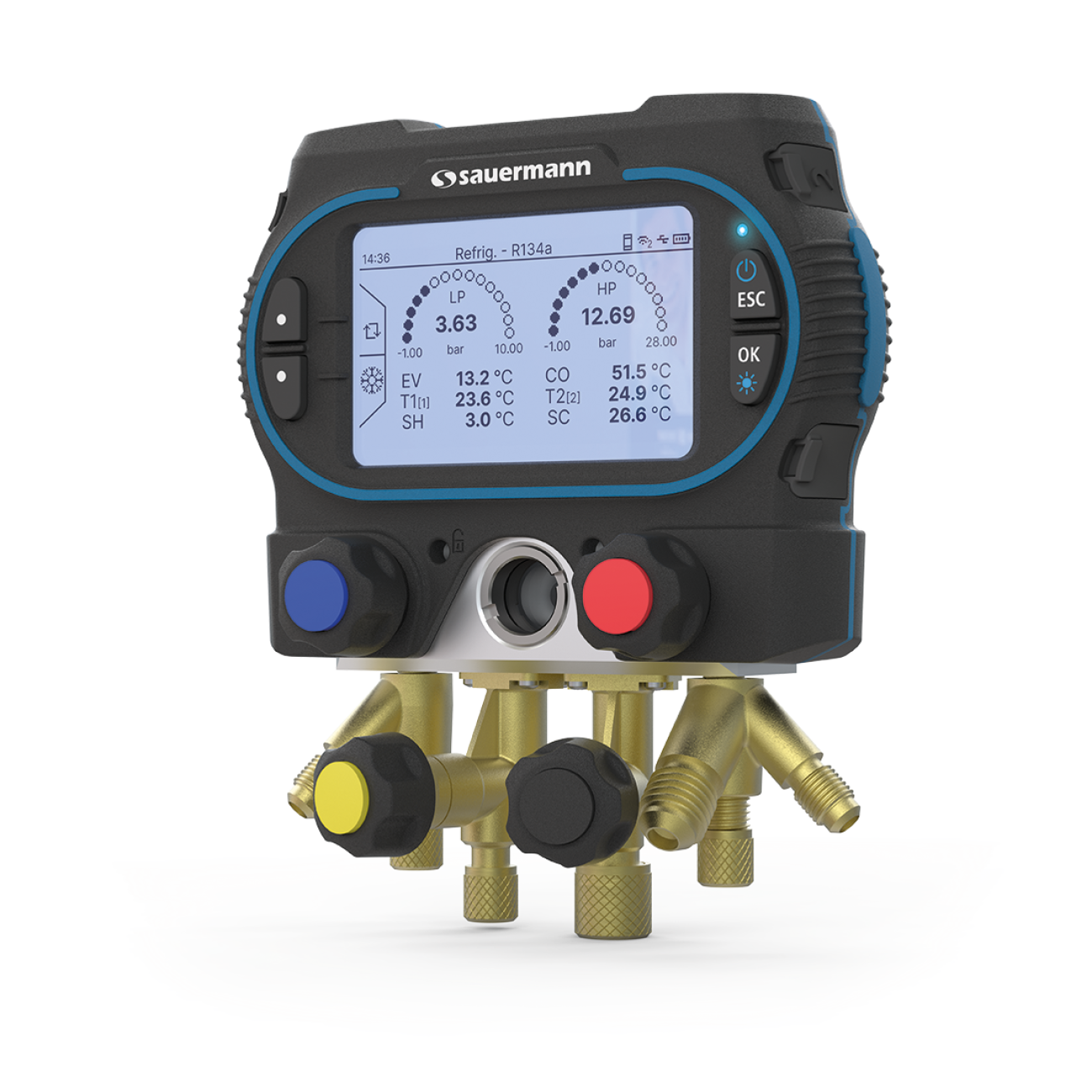

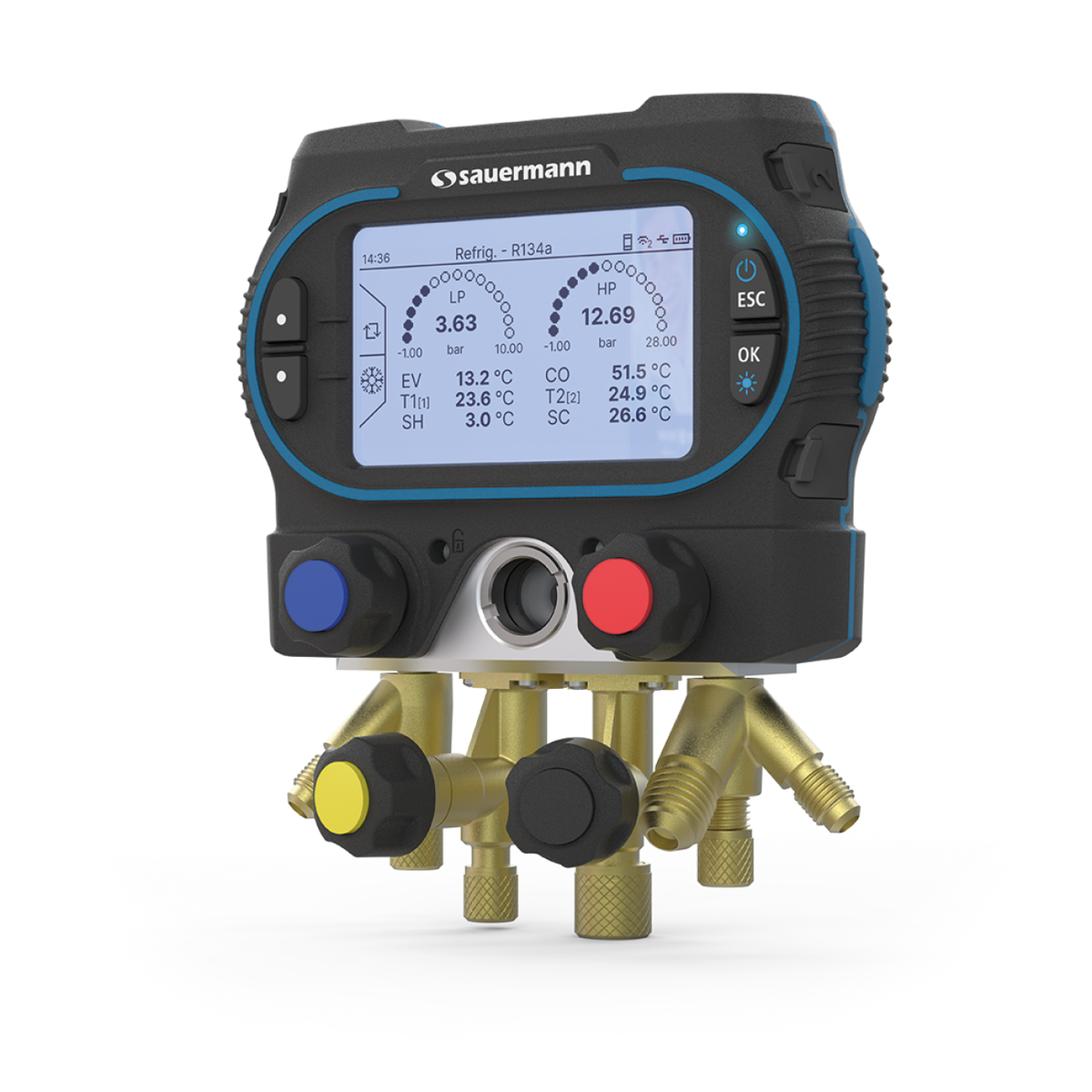

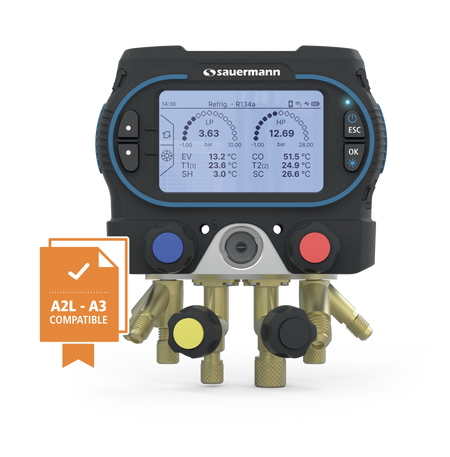

Si-RM450 4-way manifold

SKU: 28162
435.00 € (ex VAT)

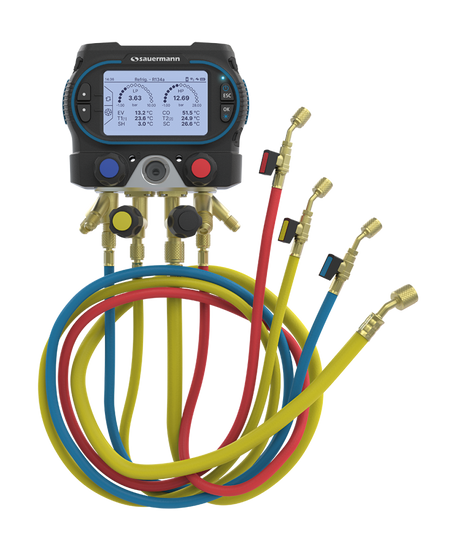

Kit Options

Refrigerant handling, maintenance and commissioning

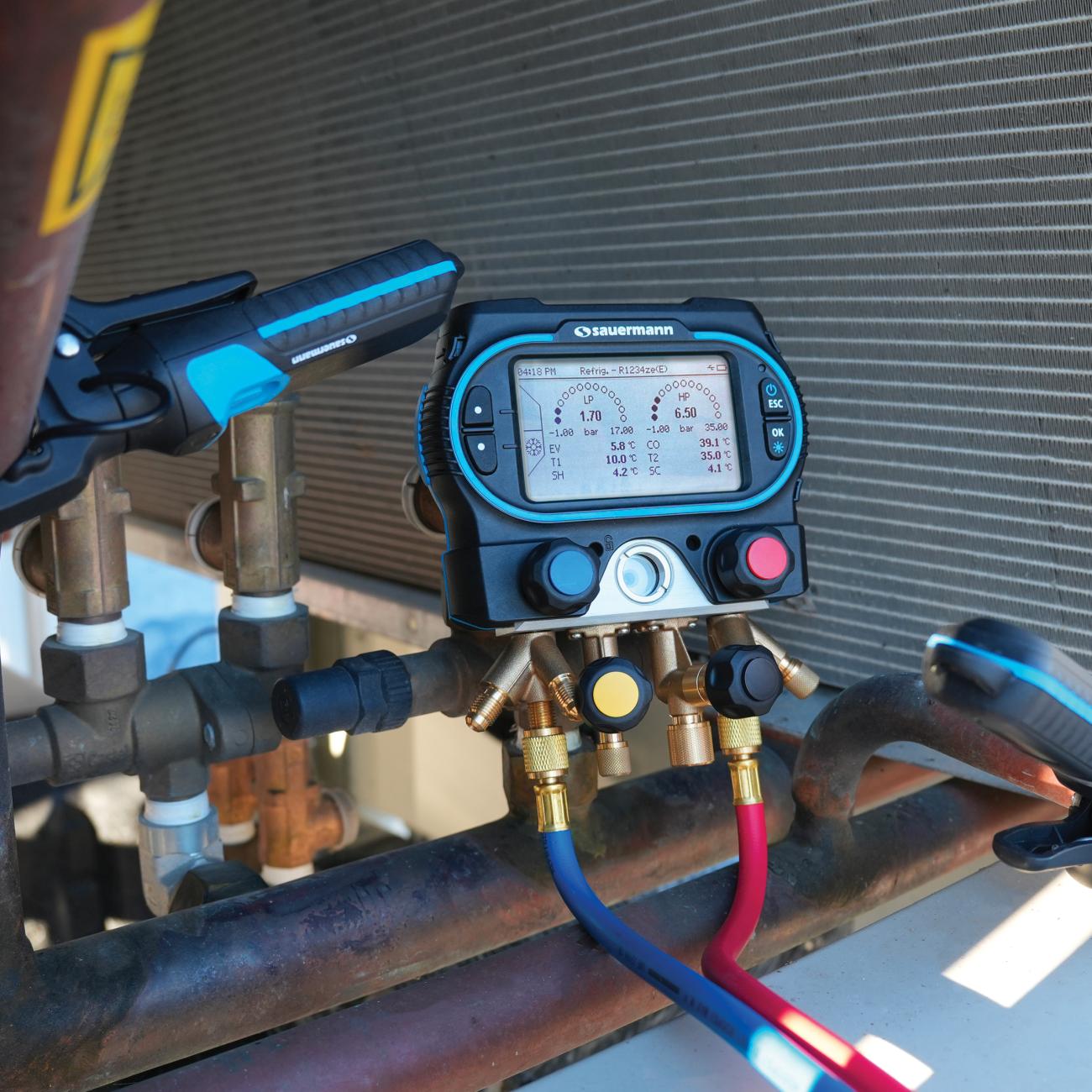

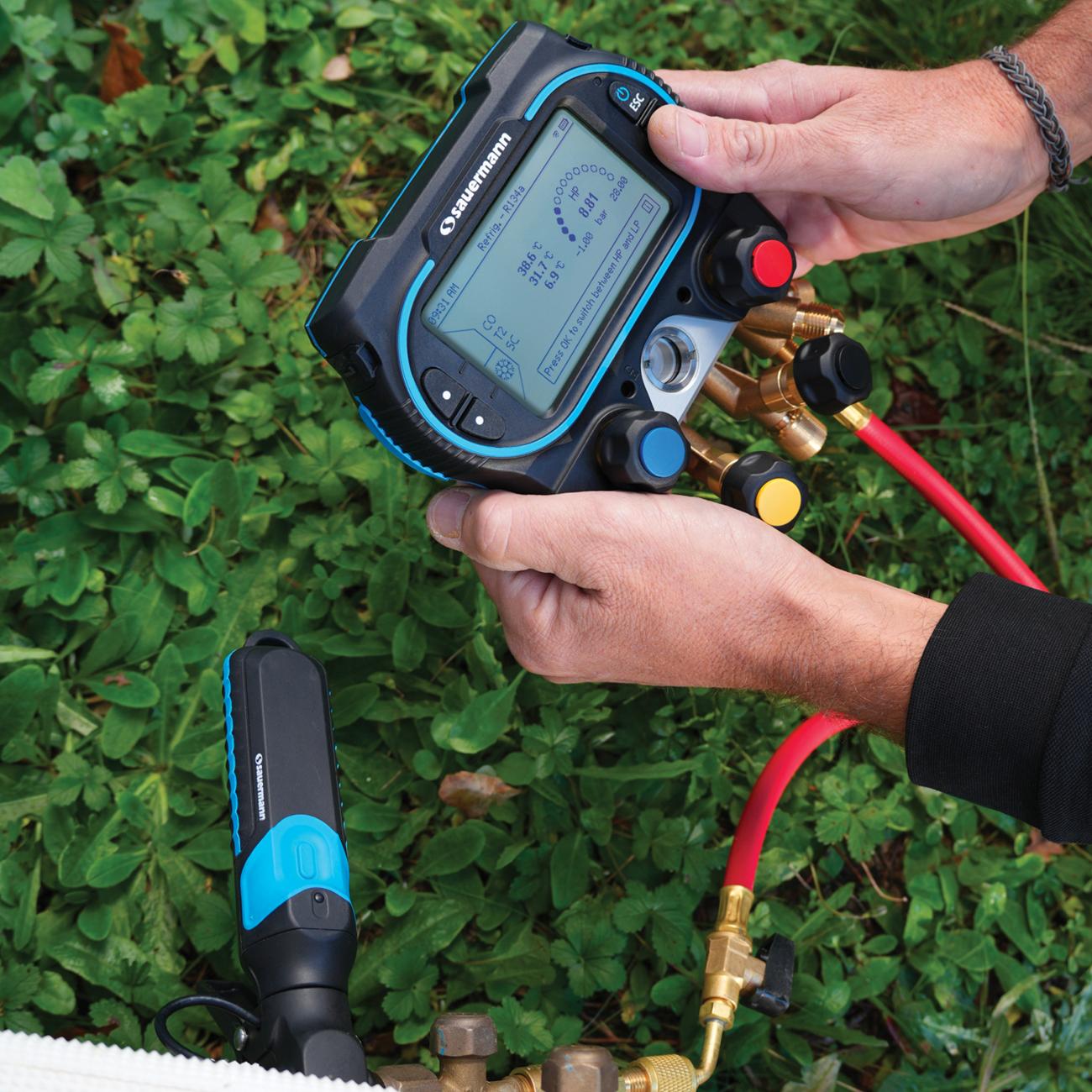

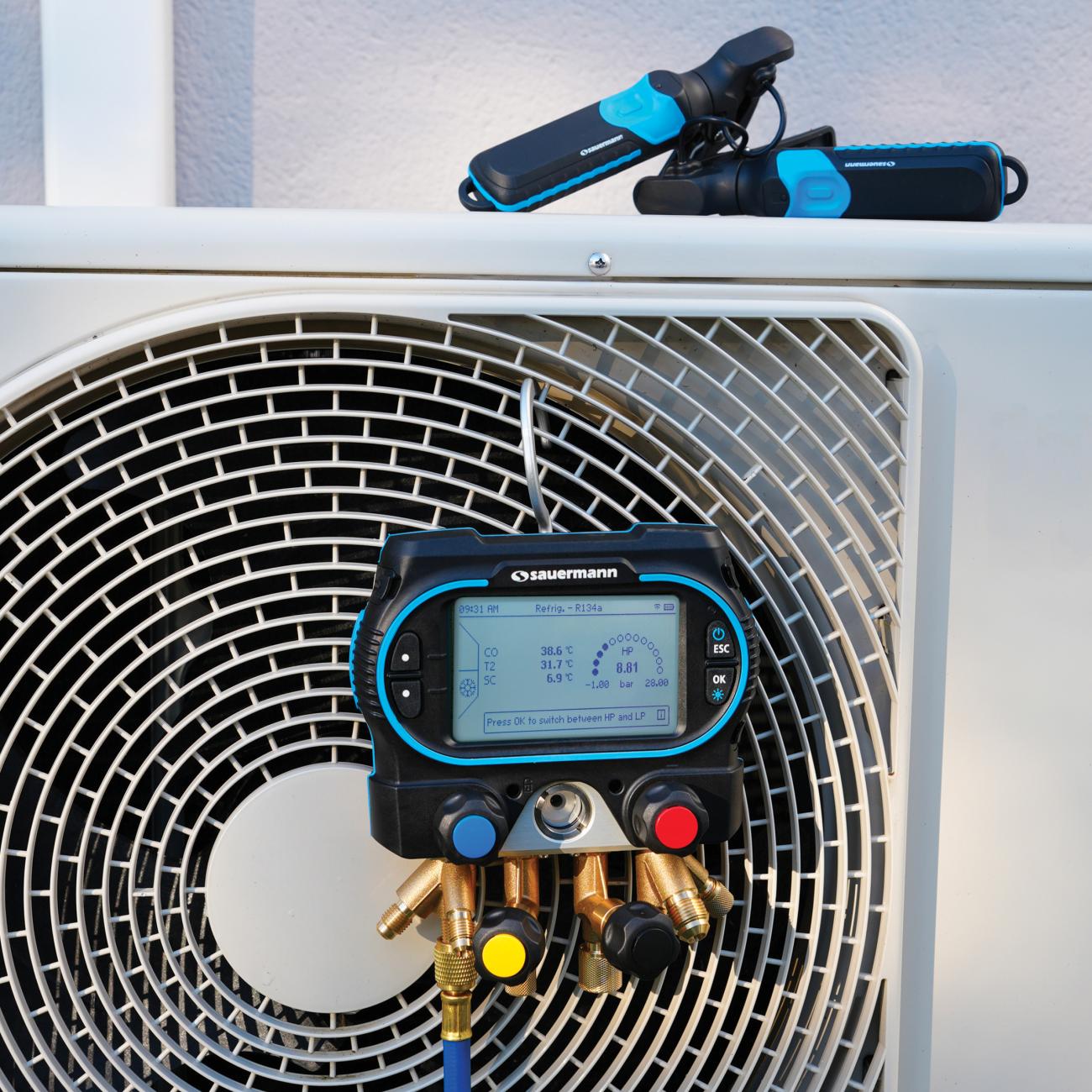

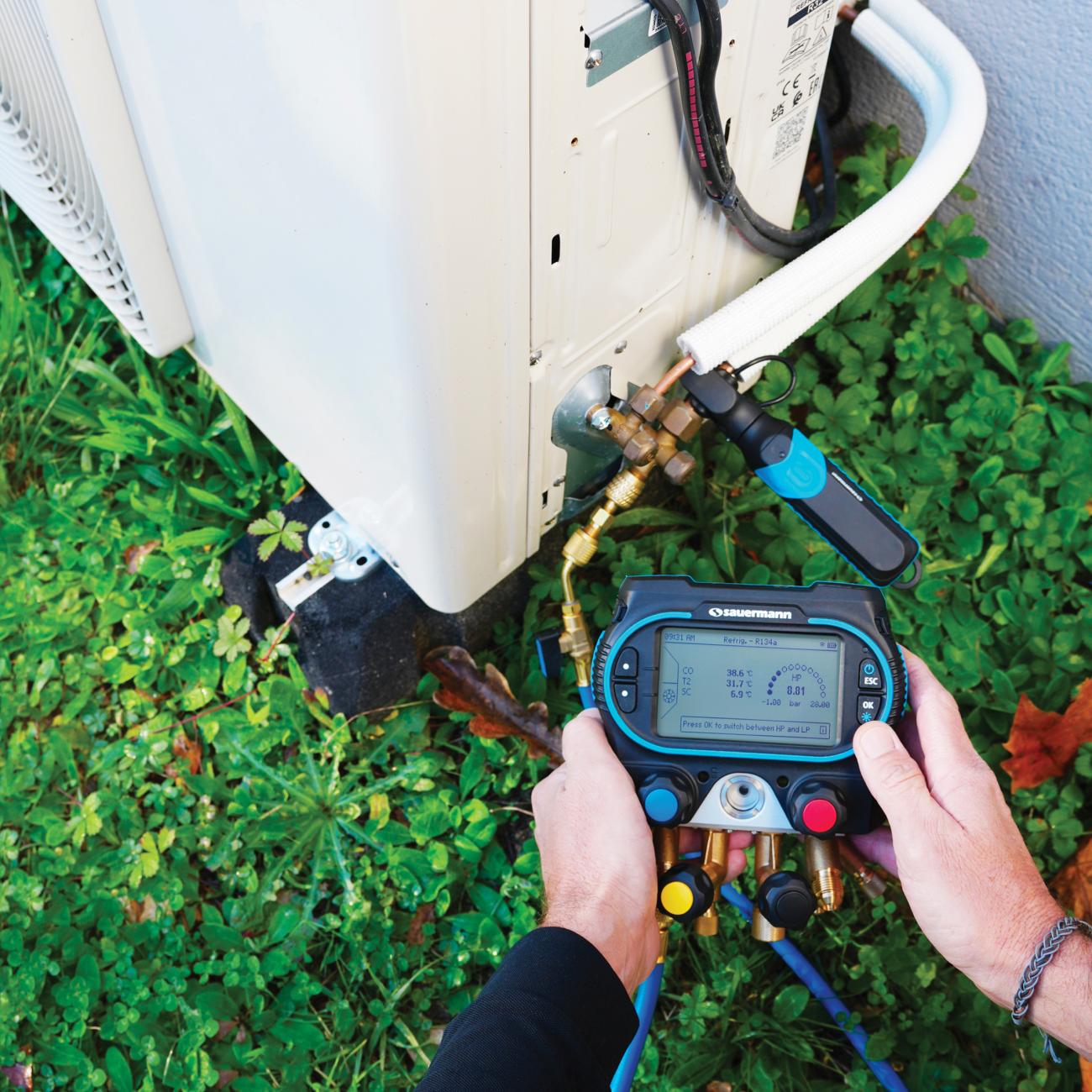

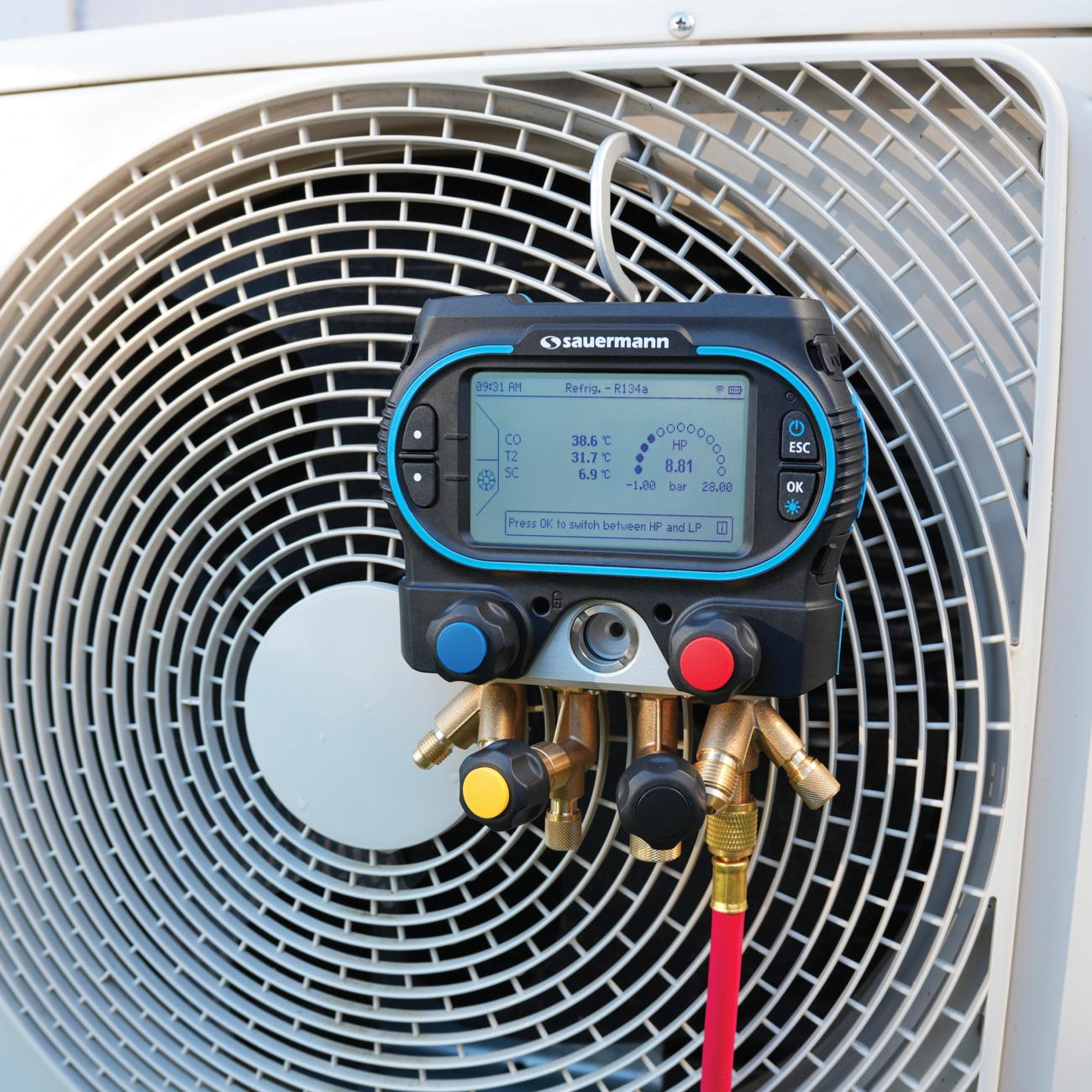

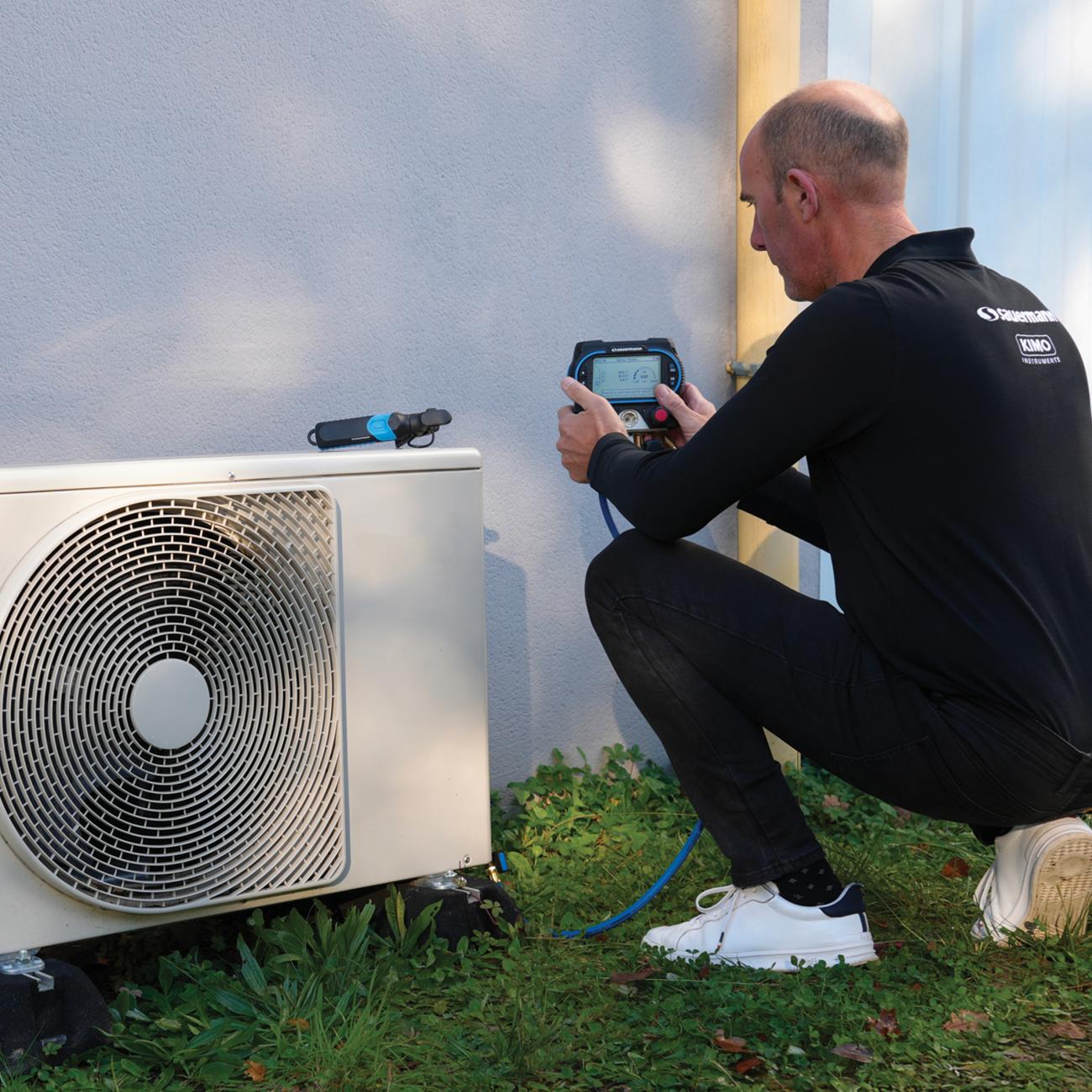

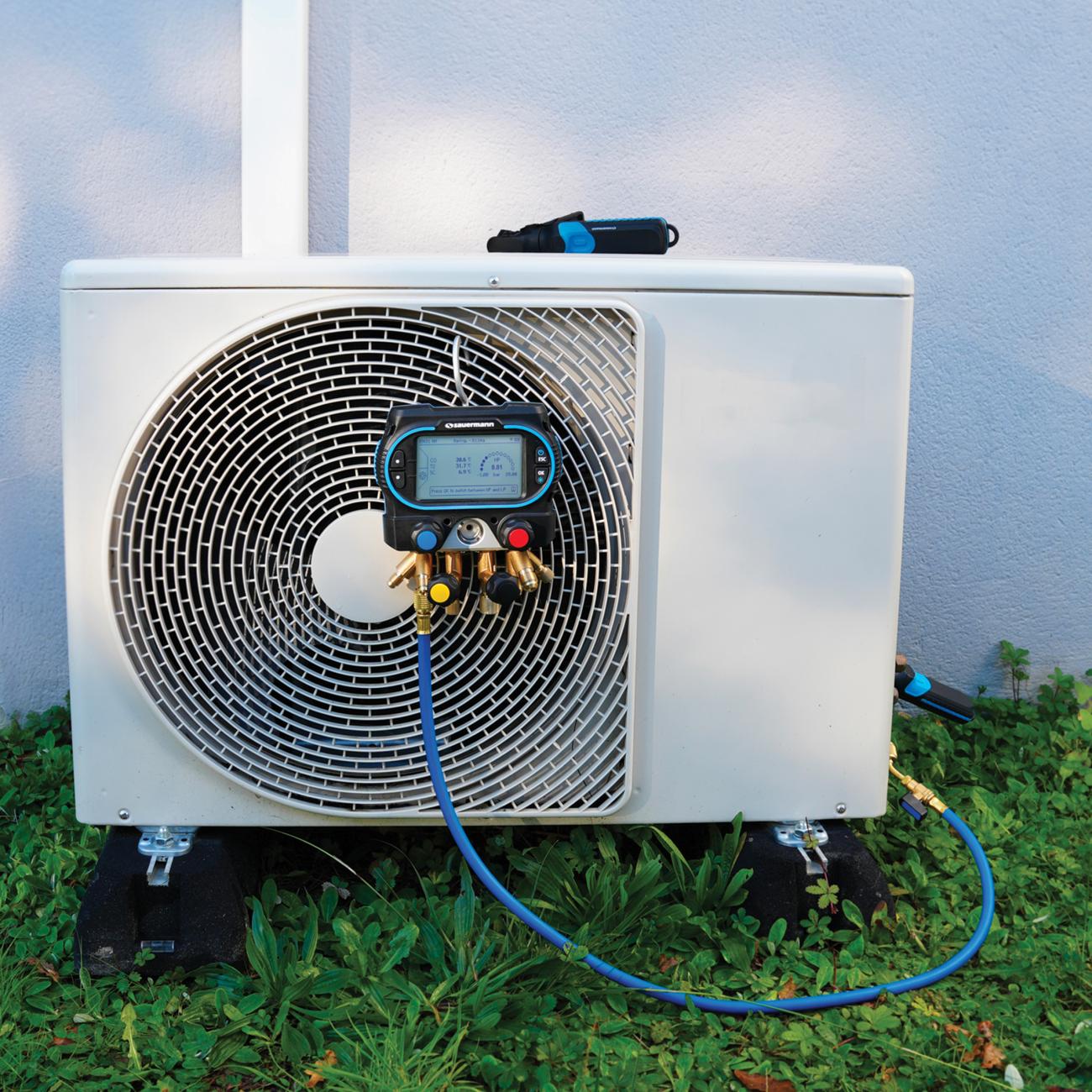

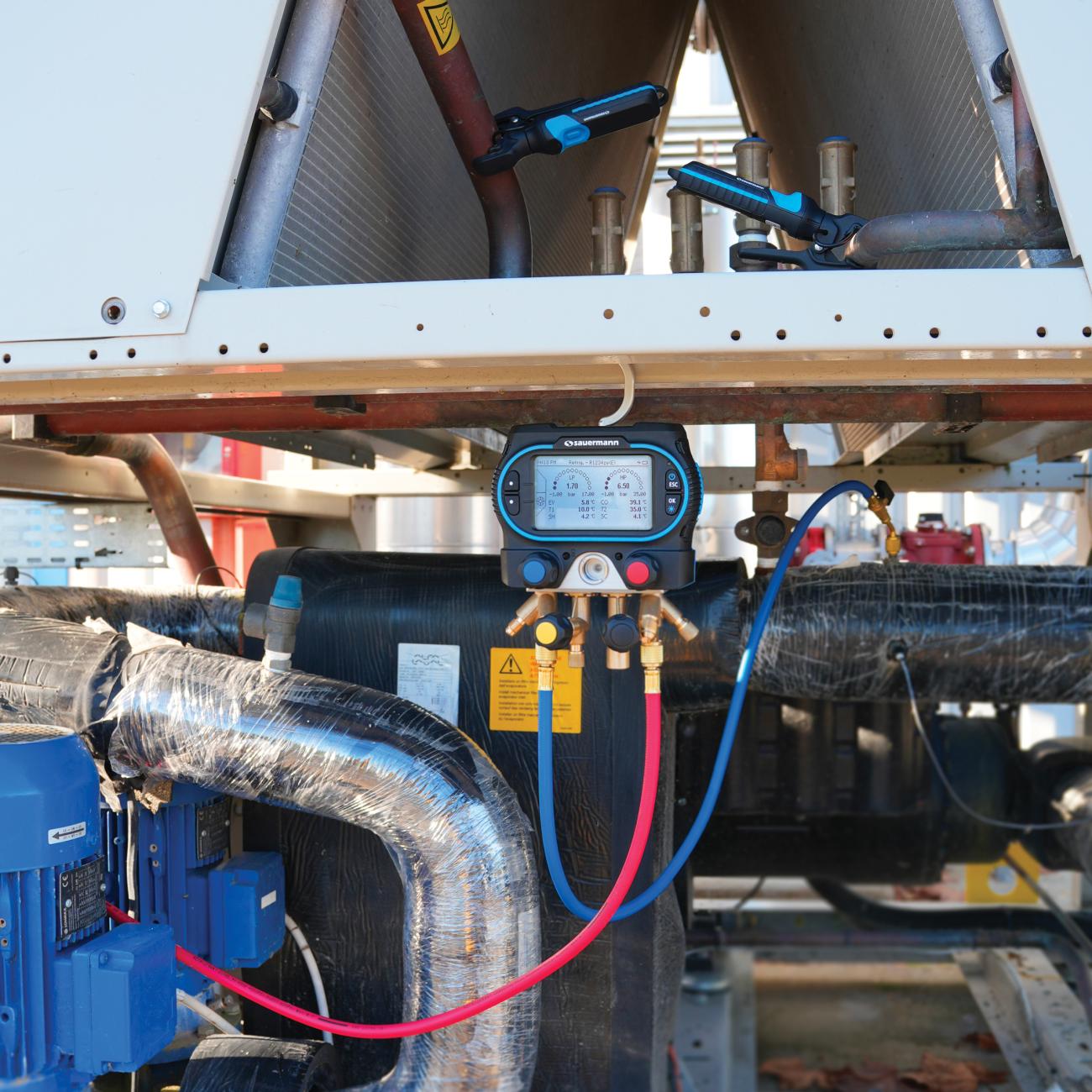

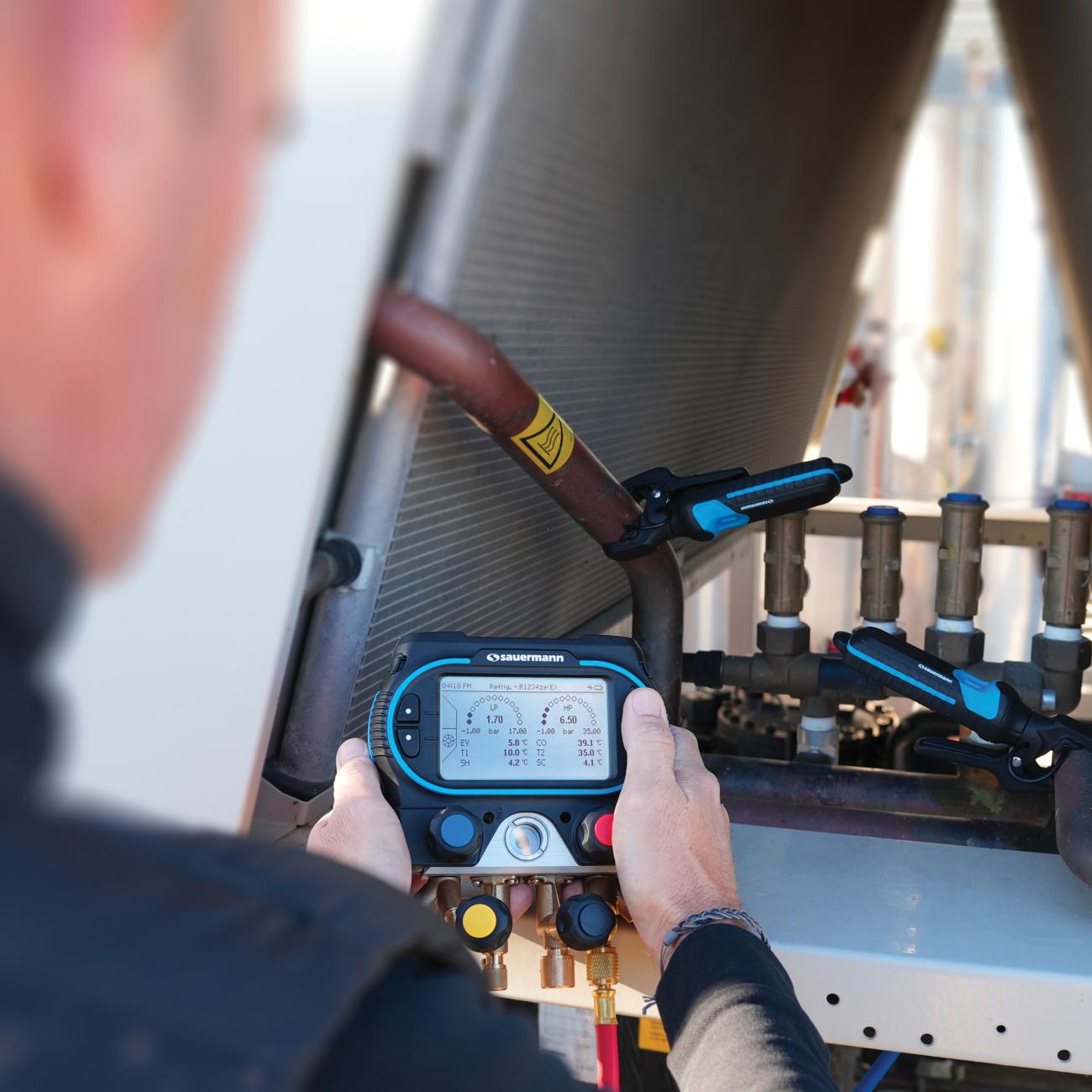

Si-RM450 manifold can be used to commission and service all types of refrigerant-based installations: heat pumps, air conditioning, refrigeration and reversible systems, from domestic systems to complex industrial machines.

Very easy to operate, this equipment features the latest technologies for fast, comprehensive system diagnostics. Its smart digital assistant guides the operator in every situation to help him achieve his objectives in the best possible way.

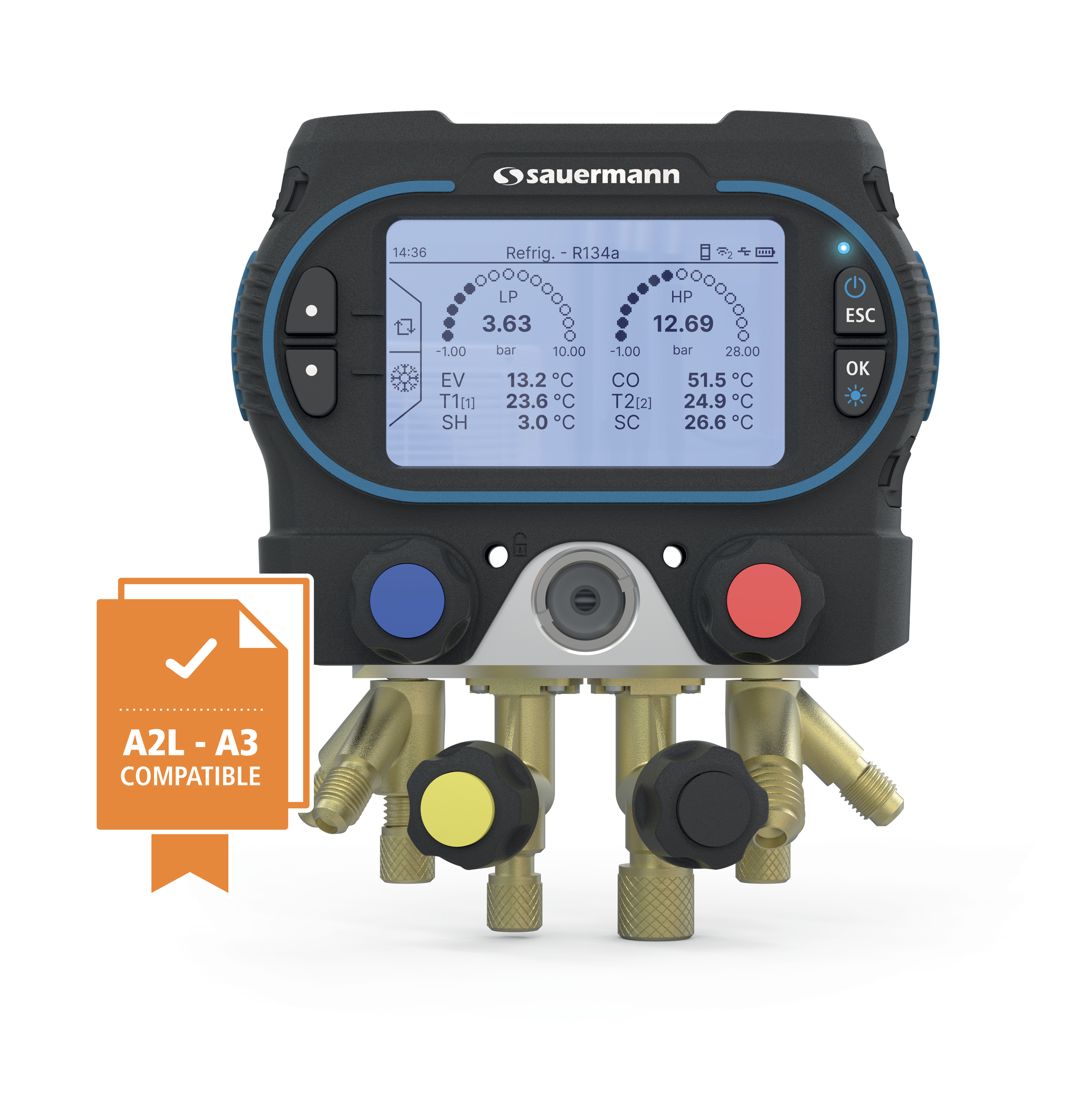

A1 / A2L / A2 / A3 refrigerants compatible
Compatible with some B1 refrigerants, see list of refrigerants for details on which refrigerants are compatible. The device must not be used with ammoniac refrigerant (NH3 / R717).



Measure details

  • Units
    PSI, kPa, bar, MPa
shadow


Measuring ranges

  • Pressure
    -1.00 bar ... 60.00 bar
  • Pressure
    -14.00 PSI ... 870.00 PSI
shadow

Technical details

  • Parameters
    Pressure
  • Displays
    Graphical display
  • IP Protection
    IP 54
  • Battery life
    300 hours
  • Standards
    2015/863 EU (RoHS 3)
    2012/19/EU WEEE
    2014/53/EU RED
  • Wireless connection
    Yes
  • Power supply
    4 × LR6 or AA 1.5 V batteries. Alternative power supply: USB-C
  • Connections

    Pressure connectors: Si-RM450: 3x 1/4 MFL male + 1x 3/8 MFL male
    Temperature connectors: 2x wired jack (NTC)
    Port: USB-C

  • Refrigerant database
    R11, R113, R114, R115, R1150, R116, R12, R123, R124, R125, R1270, R13, R134a, R13b1, R14, R141b, R142b, R143a, R152a, R161, R170, R218, R22, R227, R23, R236ea, R236fa, R245ca, R245fa, R290, R32, R600, R600a, R601, R601a, R718, R744, R744a, R50, R41, R1233zd(E), R1234yf, R1234zeE, R1234zeZ, R401A, R401B, R401C, R402A, R402B, R403A, R403B, R404A, R405A, R406A, R407A, R407B, R407C, R407D, R407E, R407F, R407H, R408A, R409A, R409B, R410A, R410B, R411A, R411B, R412A, R413A, R414A, R414B, R416A, R417A, R417B, R417C, R418A, R419A, R419B, R420A, R421A, R421B, R422A, R422B, R422C, R422D, R422E, R423A, R424A, R425A, R426A, R427A, R428A, R434A, R437A, R438A, R439A, R440A, R441A, R442A, R443A, R444A, R444B, R445A, R446A, R447A, R448A, R449A, R450A, R452A, R452B, R453A, R454A, R454B, R454C, R455A, R456A, R458A, R466A, R469A, R500, R501, R502, R503, R504, R507A, R508A, R508B, R509A, R511A, R513A
