Sauermann

Si-RT7 Wireless temperature clamp

SKU: 28142
99.00 € (ex VAT)

For Si-RM350 and Si-RM450 manifolds

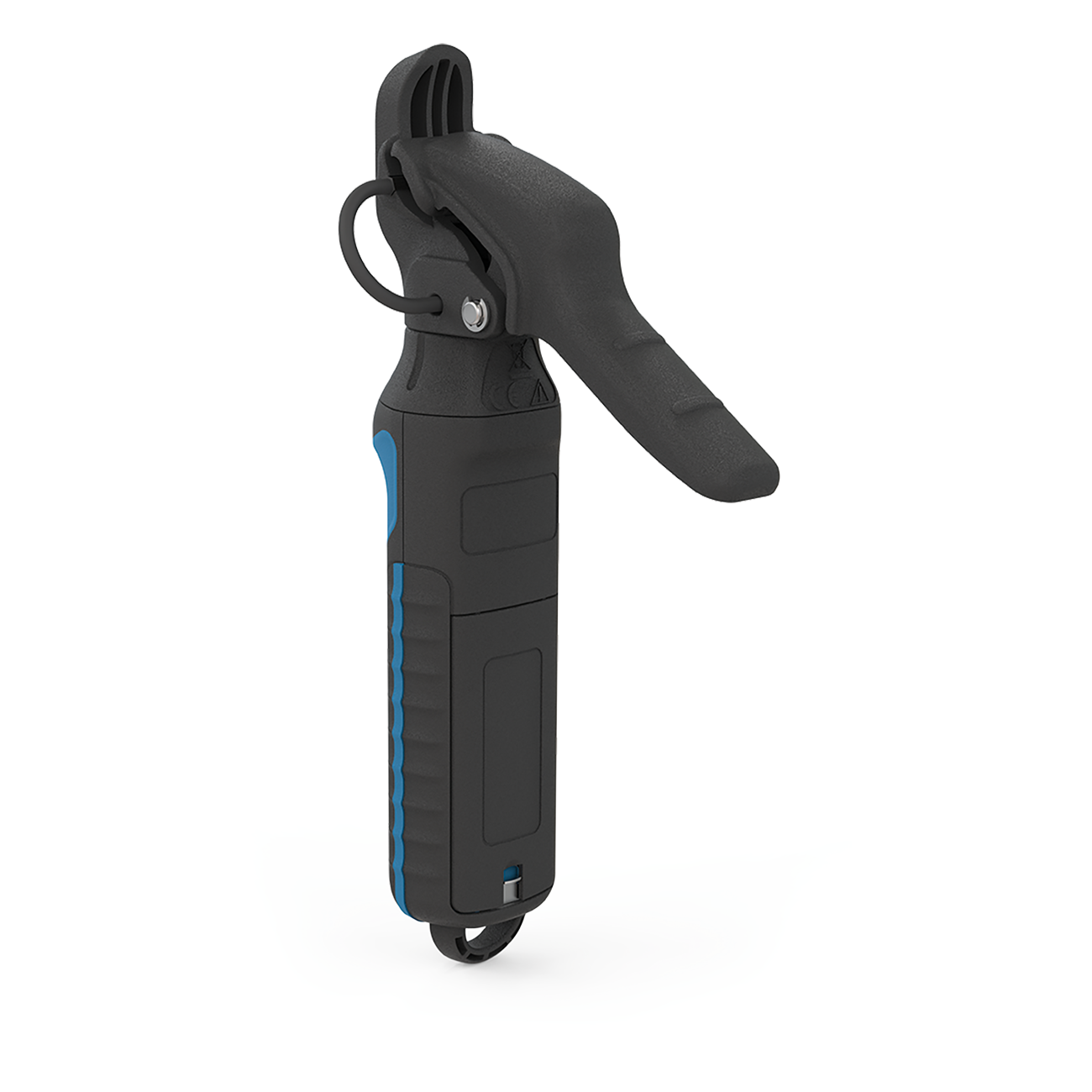

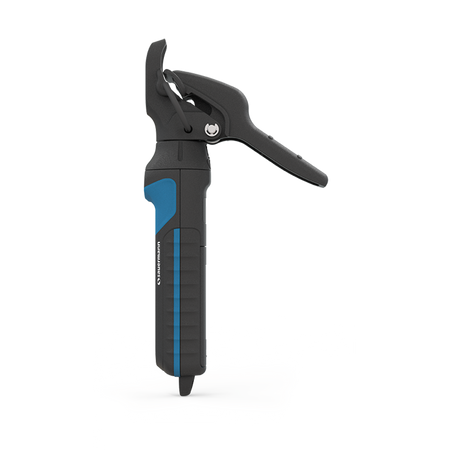

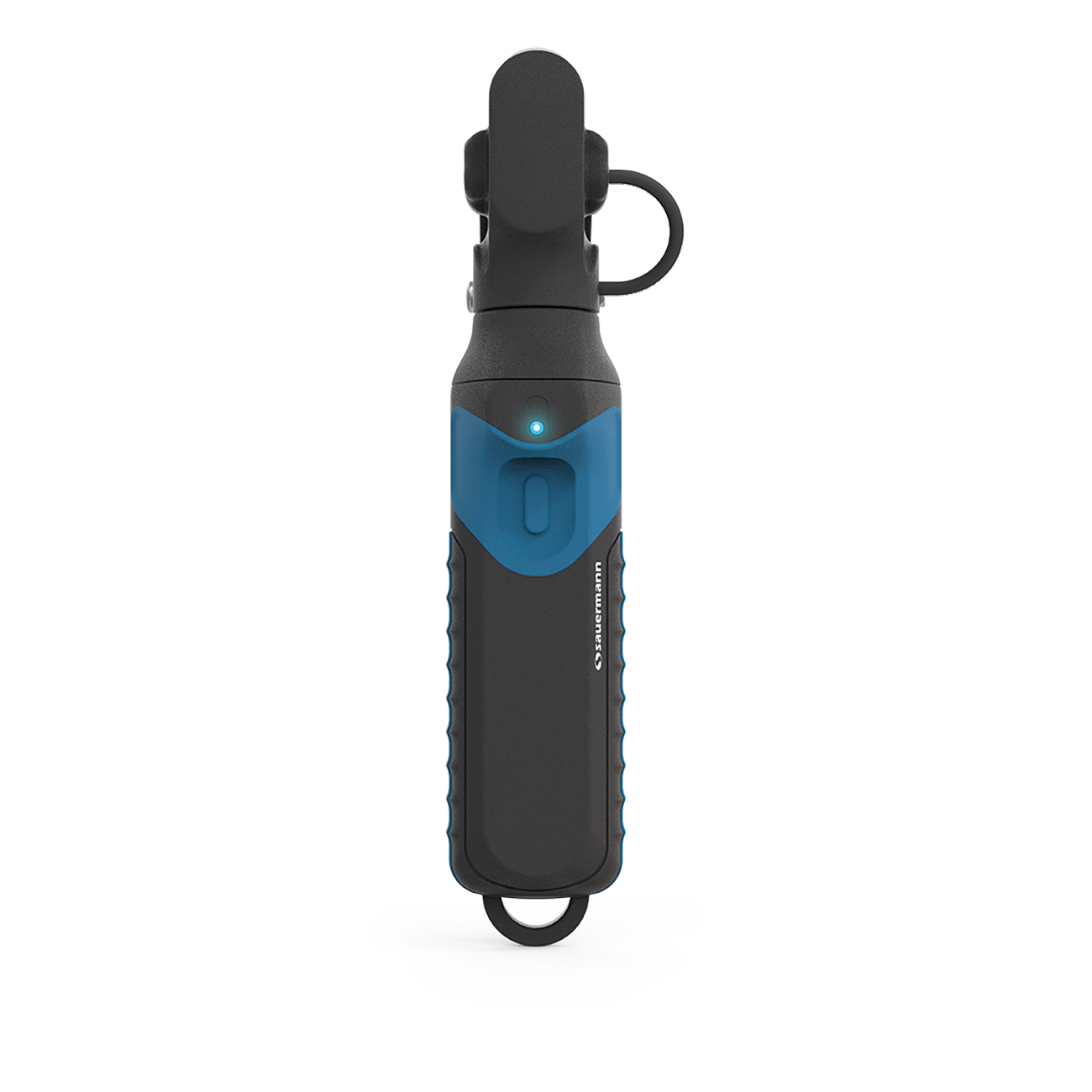

This wireless probe provides accurate temperature measurement to enable the calculation of superheat and subcooling values in air conditioning, refrigeration and heat pump installations. Its parrot-shaped clamp ensures perfect contact with pipes from 6 to 42 mm (0.2’’ to 1.7’’).

The Si-RT7 allows all types of refrigerant-based installations to be serviced quickly, thanks to the excellent responsiveness of its NTC sensor. It connects easily to the Si-RM350 and Si-RM450 manifolds, as well as to the mobile application Sauermann Pilot.



Measure details

  • Units
    °F, °C
shadow


Measuring ranges

  • Temperature
    -20.00 °C ... 85.00 °C
  • Temperature
    -4.00 °F ... 185.00 °F
shadow

Technical details

  • Parameters
    Temperature
  • Battery life
    150 hours
  • Standards
    2011/65/EU RoHS II
    2012/19/EU WEEE
    2014/30/EU EMC
    2014/53/EU RED
  • Wireless connection
    Yes
  • Power supply
    3x LR03 AAA 1.5 V alkaline batteries
shadow

Instrument Dimensions

  • Length
    Width
    Height
    Weight
  • 7 5/16 inches , 186.3 mm
    2 1/2 inches , 63 mm
    3 13/16 inches , 95.3 mm

shadow



Storage temperature

  • Min
    Max
  • -20.00 °C
    80.00 °C

Datasheet Si-RT7
