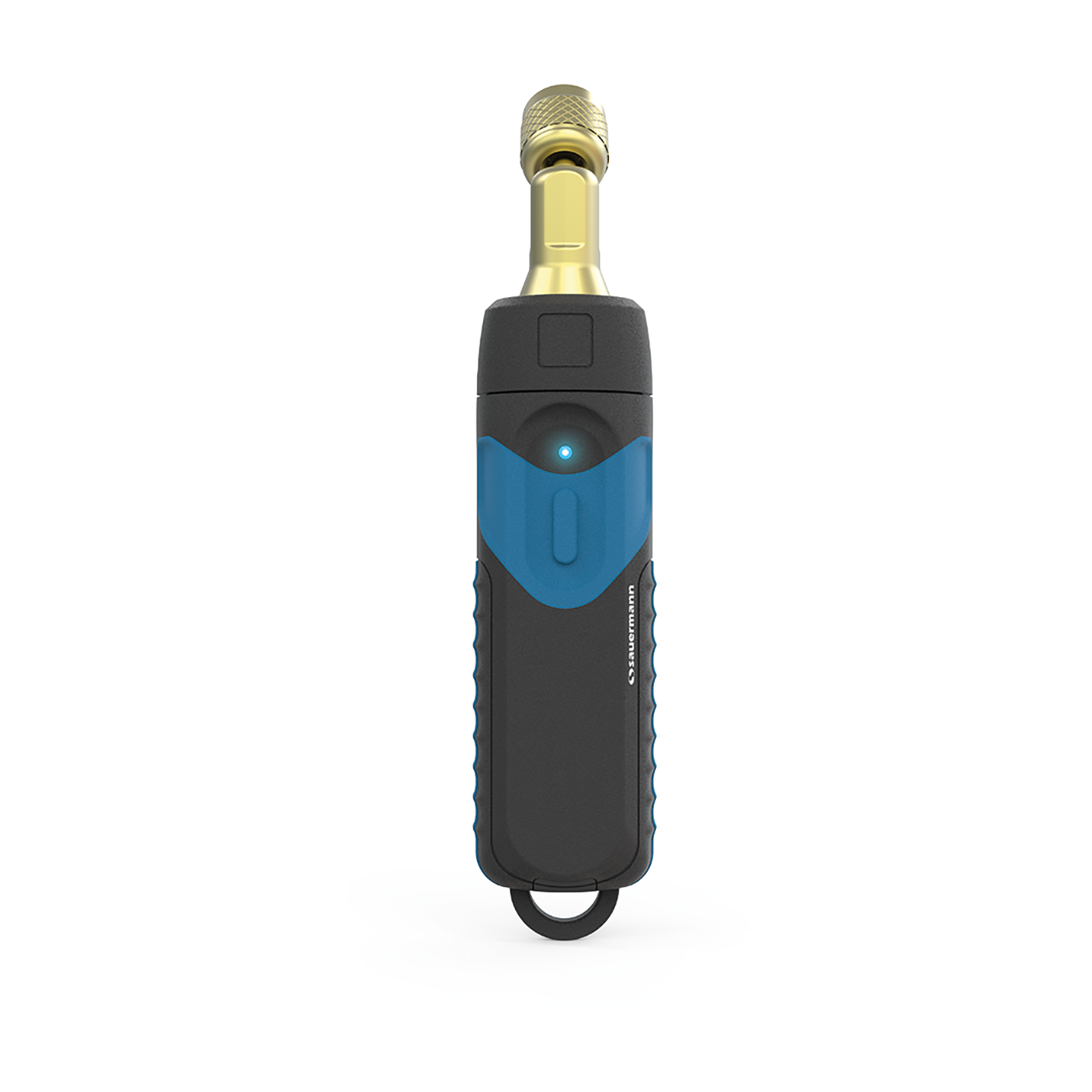

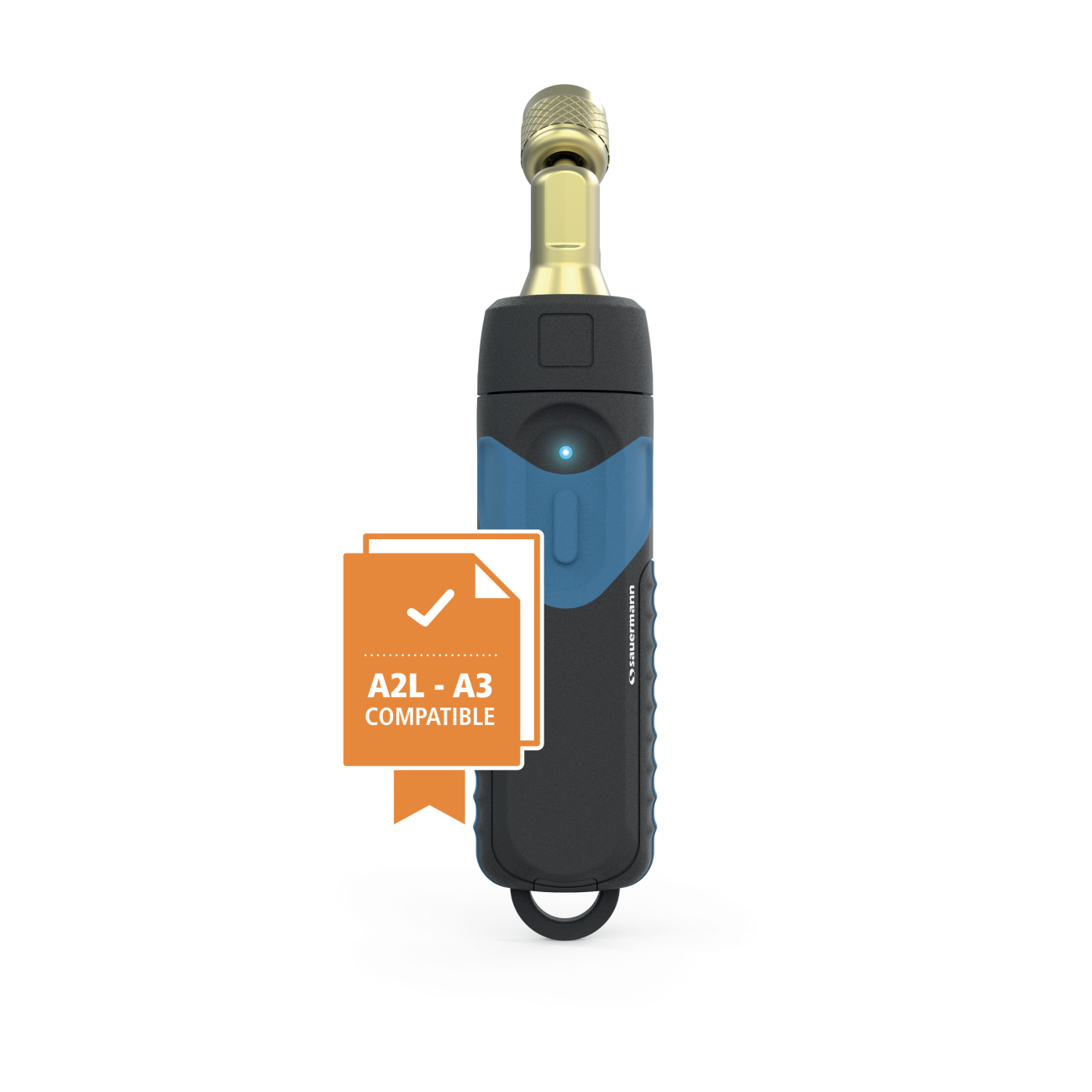

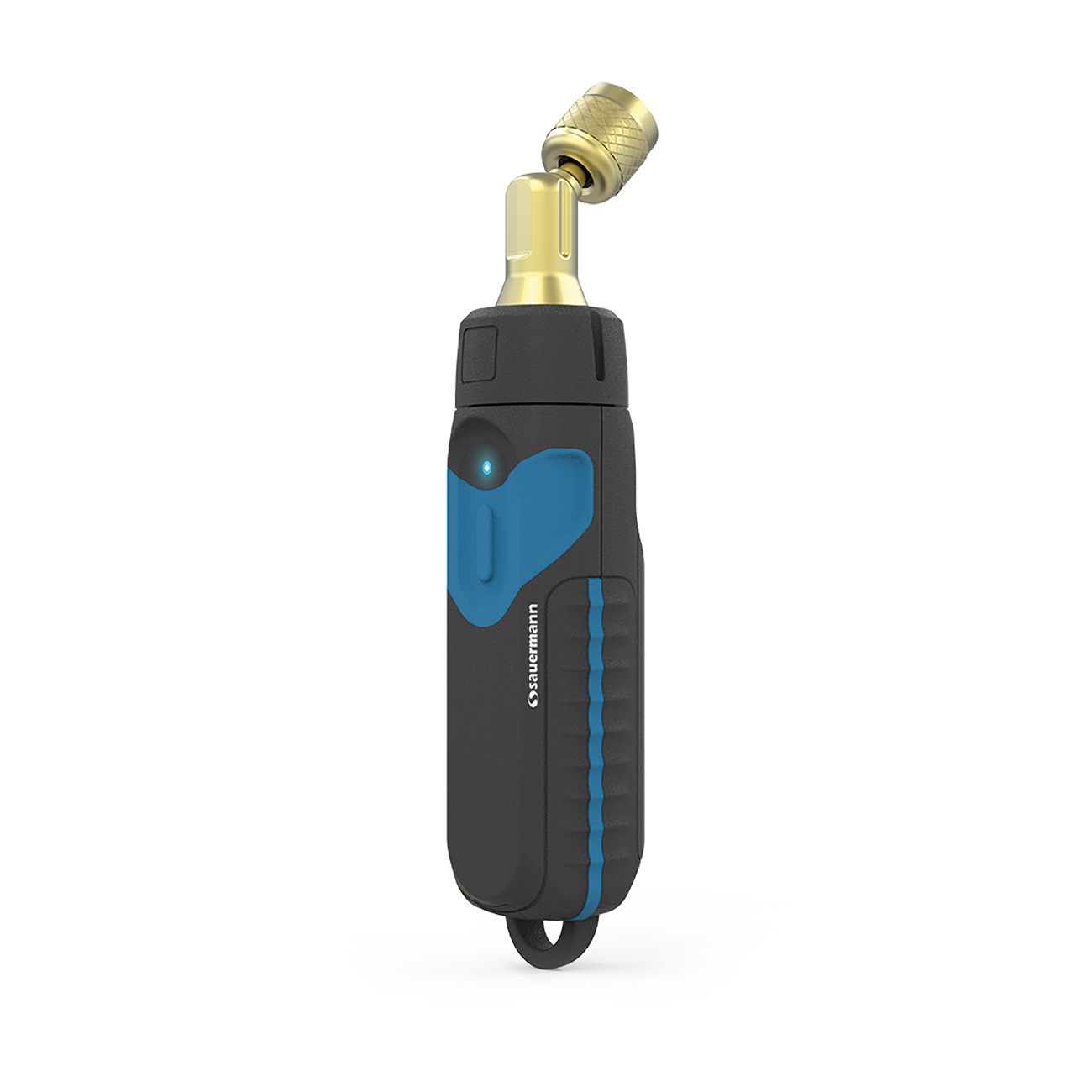

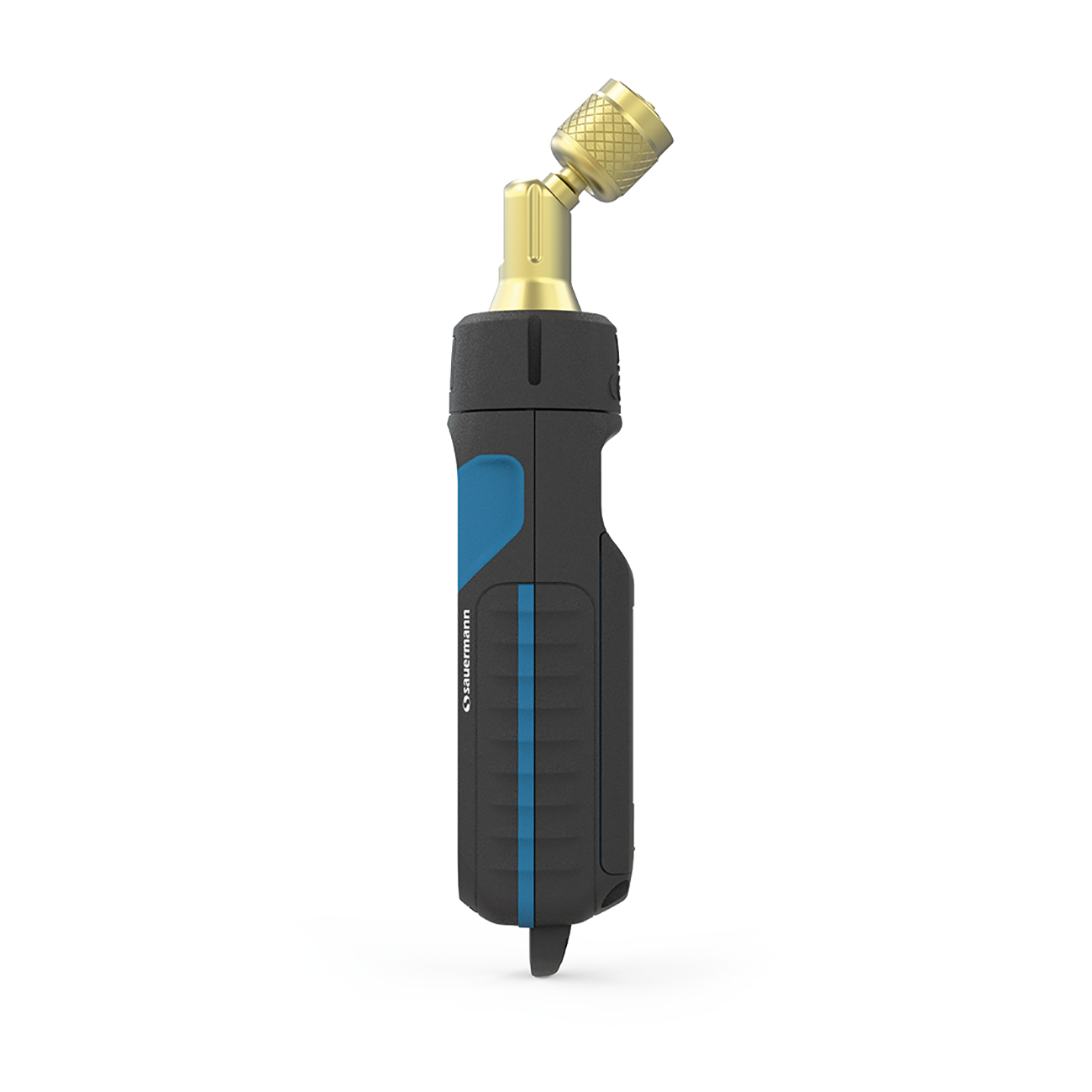

Si-RV4 Wireless vacuum probe

For Si-RM350 and Si-RM450 manifolds

This wireless vacuum probe accurately measures absolute pressure, to ensure optimal refrigerant system evacuation down to deep vacuum in air conditioning, refrigeration and heat pump installations.

The Si-RV4 allows all types of refrigerant-based installations to be serviced quickly and safely. It connects easily to the Si-RM350 and Si-RM450 manifolds and to the mobile application Sauermann Pilot.

A1 / A2L / A2 / A3 refrigerants compatible
Compatible with some B1 refrigerants, see list of refrigerants for details on which refrigerants are compatible. The device must not be used with ammoniac refrigerant (NH₃ / R717).

Measure details

• Units
  inHg, inH₂O, mTorr, Torr, Pa, micron, mbar, hPa, mmHg



Measuring ranges

• Vacuum
  50.00 micron ... 25000.00 micron

Technical details

• Parameters
  Vacuum
• IP Protection
  IP 54
• Battery life
  150 hours
• Standards
  2011/65/EU RoHS II

  2012/19/EU WEEE

  2014/53/EU RED
• Wireless connection
  Yes
• Power supply
  3x LR03 AAA 1.5 V alkaline batteries
• Connections

  1x 1/4 FFL female

• Refrigerant database
  A1, A2L, A2 and A3 refrigerants compatible

Instrument Dimensions

• Length
  Width
  Height
  Weight
• 7 inches , 178 mm
  1 1/2 inches , 37.7 mm
  1 13/16 inches , 45 mm
  7/16 pounds , 200 g

Operating temperature

• Min
  Max
• -20.00 °C
  50.00 °C
• -4.00 °F
  122.00 °F

Datasheet Si-RV4
