Description
- The KERN OZG series has been specially developed for jewellers and mineral observations in the gem industry. Precious stones and gems can be checked and handled with this stereo zoom microscope.
- As well as very good optical characteristics, these models form an ideal package with their dark field unit with object clamp which is included in the scope of delivery.
- As standard this microscope offers you continuous total magnification of 7 x-36 x

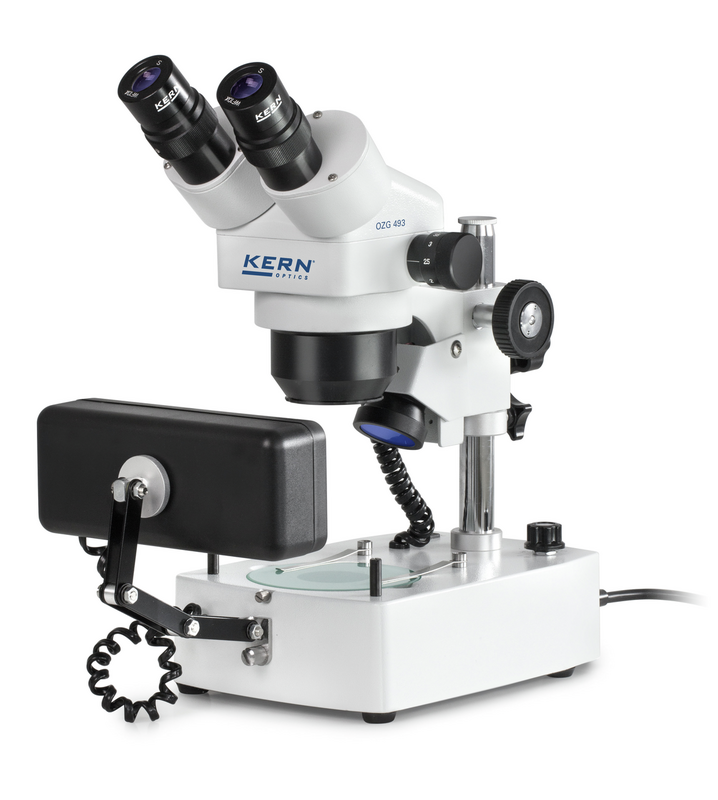

- The KERN OZG 493 is fitted with a pole stand which has both integrated bright halogen light units with incident and transmitted illumination, as well as additional front lighting
- There is a range of eyepieces available as accessory options
- A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of delivery
Technical Data
| Optical system | Greenough |
| Tube type | Binocular |
| Ocular magnifications | 10 x |
| Ocular visual field | 20 mm |
| Magnification ratio | 5,1:1 |
| Zoom [Min] | 0,7 x |
| Zoom [Max] | 3,6 x |
| Illuminance | Reflected light, Transmitted light |
| Illumination intensity transmitted light | 10 W |
| Illumination type transmitted light | Halogen |
| Illumination intensity incident light | 10 W |
| Illumination type incident light | Halogen |
| Focusing mechanism | coarse drive |
| Working distance | 86 mm |
| Stand type | pillar |
| Dimension (W×D×H) | 310×170×350 mm |
| GTIN/EAN number | 4045761170339 |
