Description

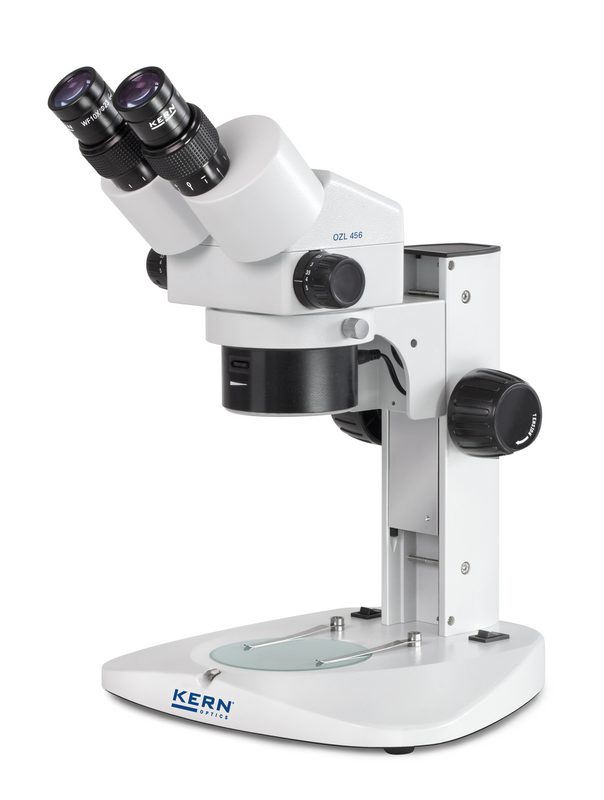

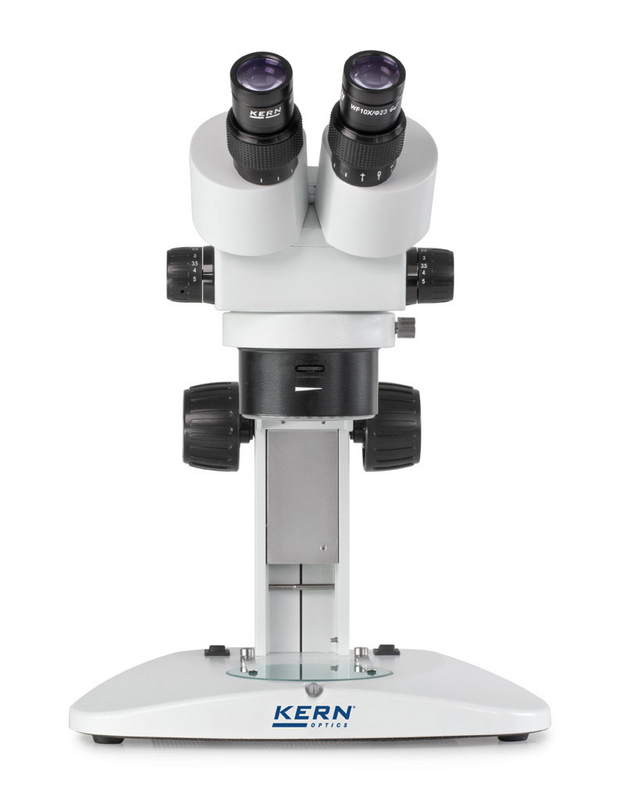

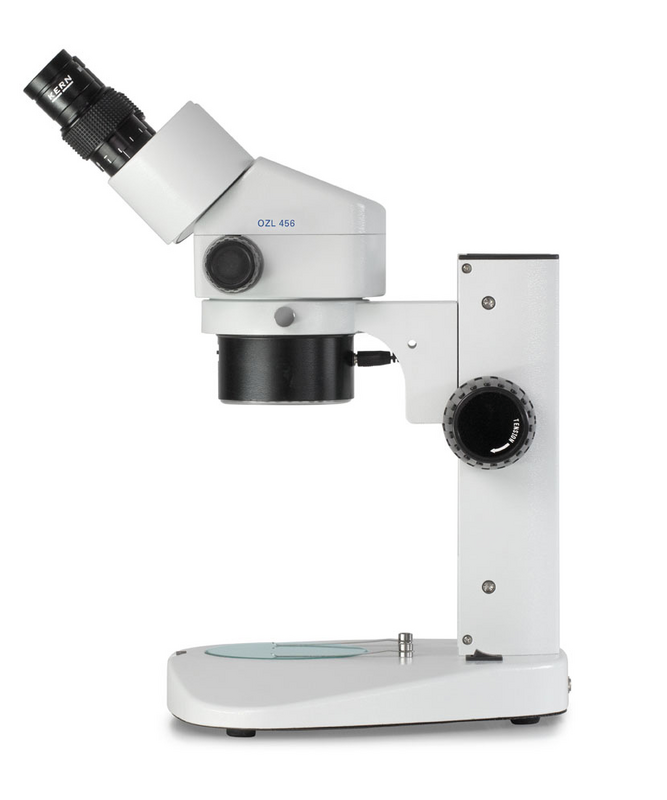

- The KERN OZL 456 stereo zoom microscope series will impress you with its excellent optical characteristics, easy operation and its integrated LED ring illumination unit

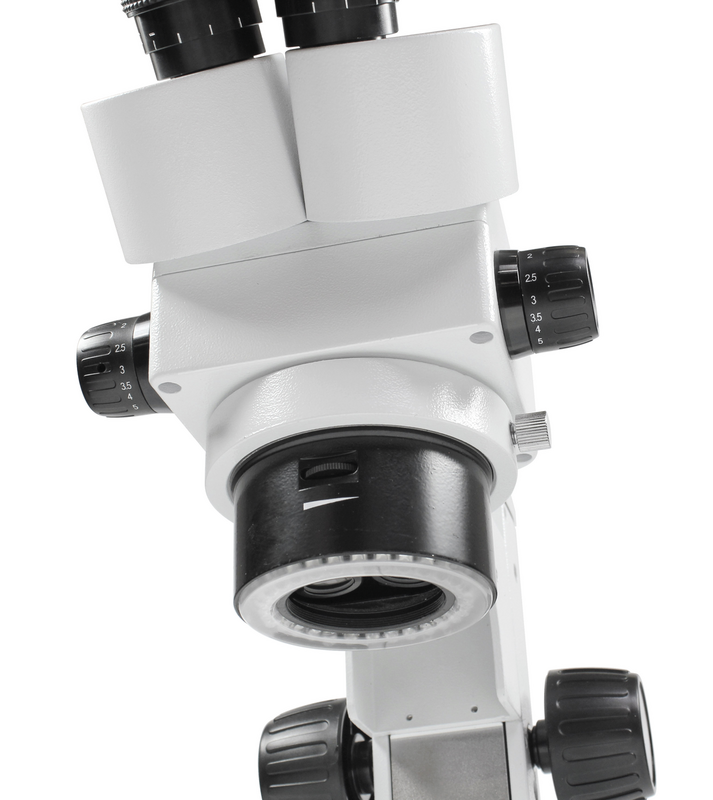

- The highlight of the KERN OZL 456 is the strong, continuoulsy dimmable, integrated LED ring illumination in the objective housing,which ensures uniform, shadow-free illumination. An LED transmitted light variant is also included
- With its built-in, top-quality optics and powerful, integrated LED illumination unit, this model is a special all-rounder for all areas of application
- As standard this microscope offers you continuous total magnification of 7,5 x–50 x
- As standard, the KERN OZL-45R series is provided as a binocular version with 10× eyepieces with a field of view with a diameter of 23 mm
- The arm curved stand gives you a large working area as well as a precise adjustment mechanism
- A large selection of eyepieces as well as auxiliary objectives are available as accessories
- A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of delivery
Technical Data
Optical system | Greenough |
Tube type | Binocular |
Ocular magnifications | 10 x |
Ocular visual field | 23 mm |
Magnification ratio | 6,7:1 |
Zoom [Min] | 0,75 x |
Zoom [Max] | 5 x |
Illuminance | Reflected light, Transmitted light |
Illumination intensity transmitted light | 0,21 W |
Illumination type transmitted light | LED |
Illumination intensity incident light | 1 W |
Illumination type incident light | LED |
Focusing mechanism | coarse drive |
Working distance | 113 mm |
Sample height [Max] | 45 mm |
Stand type | mechanical |
Dimension (W×D×H) | 320×275×420 mm |
GTIN/EAN number | 4045761170414 |
