Description

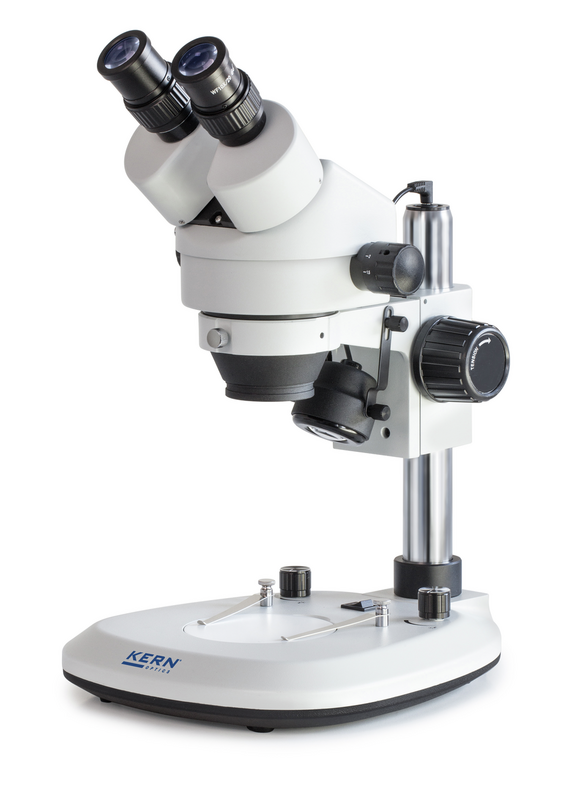

- The products in the KERN OZL-46 series are stereo zoom microscopes, which will impress you with their easy handling, flexibility as well as their stability and economical price.
- The LED incident and transmitted illumination included as standard guarantees the very best illumination of your sample
- As well as excellent optical characteristics and their large working surface, these models offer the highest level of comfort in this class – ideal for training companies, workshops as well as assembly and repair workstations, e.g. in the electronics industry.
- As standard this microscope offers you continuous total magnification of 7 x–45 x
- The pillar stand offers you the highest level of flexibility and the freedom to remove the microscope head and to integrate it into other modular systems, for example into a universal stand
- A large selection of eyepieces, external illumination units as well as auxiliary objectives are available as accessories
- A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of delivery
Technical Data
| Optical system | Greenough |
| Tube type | Binocular |
| Ocular magnifications | 10 x |
| Ocular visual field | 20 mm |
| Magnification ratio | 6,4:1 |
| Zoom [Min] | 0,7 x |
| Zoom [Max] | 4,5 x |
| Illuminance | Reflected light, Transmitted light |
| Illumination intensity transmitted light | 3 W |
| Illumination type transmitted light | LED |
| Illumination intensity incident light | 3 W |
| Illumination type incident light | LED |
| Focusing mechanism | coarse drive |
| Working distance | 105 mm |
| Sample height [Max] | 140 mm |
| Stand type | pillar |
| Dimension (W×D×H) | 300×240×420 mm |
| GTIN/EAN number | 4045761175112 |
