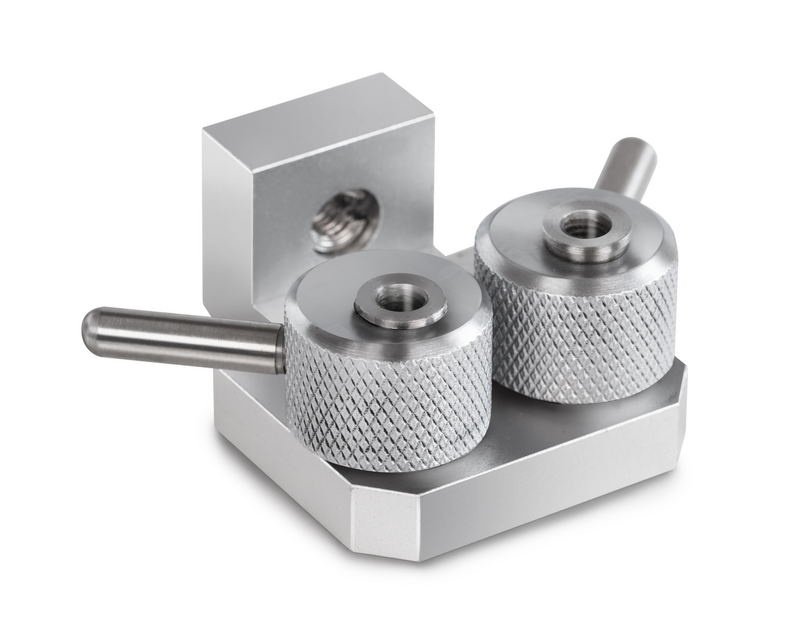

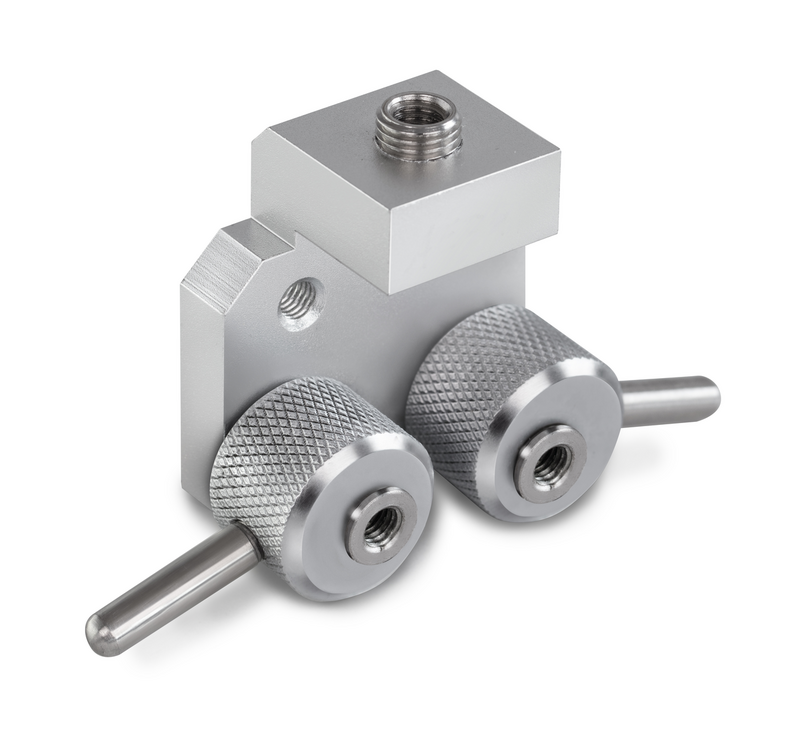

Belt tension clamp
Technical Data
| Tensile/compressive force [Max] | 500 N |
| Maximum clamp width | 15 mm |
| Clamping width | 6 mm |
| Material | aluminium |
| Net weight | 0,12 kg |
| Mounting - force dissipation | Threaded hole M6 |
| Dimensions completely mounted (W×D×H) | 50×40×24 mm |
