TH 210-R Humidity and temperature sensor

Humidity and temperature sensor

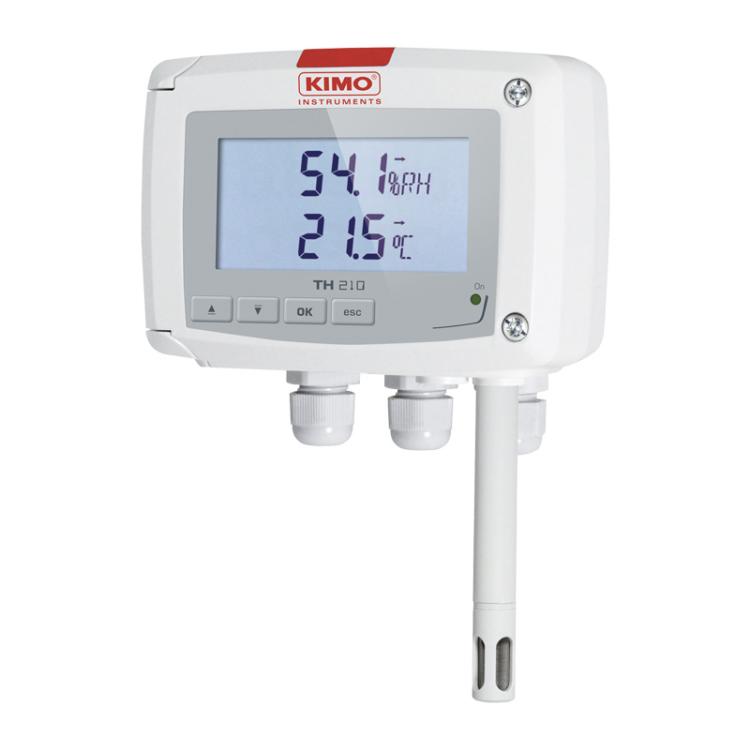

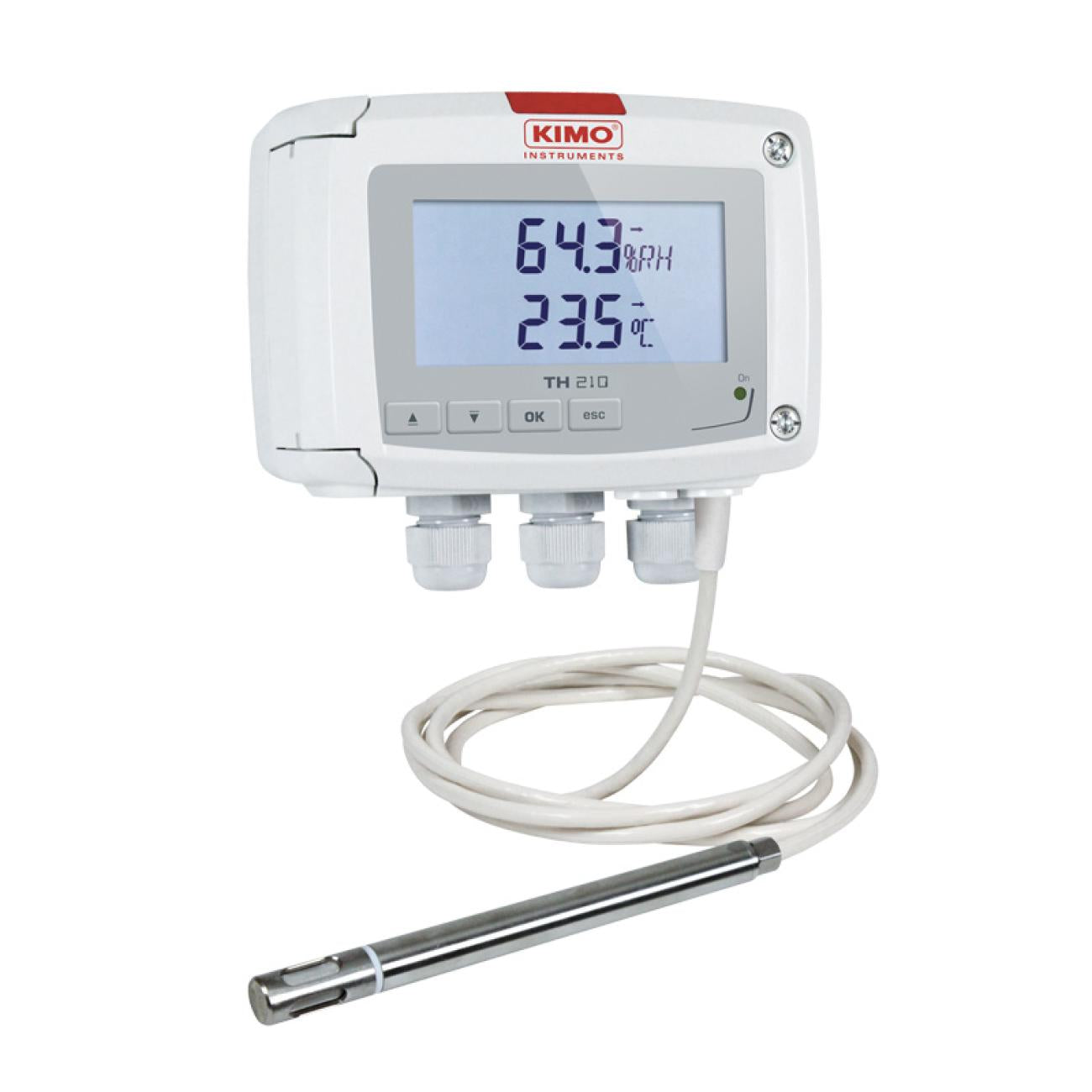

Kimo’s TH 210-R measures humidity and temperature including 0 to 100 % RH and -20 to +80°C (ambient model), -20 to +80°C (pc remote probe), and -40 to +180°C (stainless steel remote probe).

Features
• Power supply 24 Vdc/Vac or 100- 240 Vac with galvanic insulation
• “¼ turn” system mounting with wall-mount plate
• Calculated parameters absolute humidity, dew point, combination ratio, wet temperature and enthalpy
• Trend indicator

Measure details

• Units
  °F, °C, % RH, °Ctw, °Ctd, g/m³, g/kg, kj/kg

Technical details

• Parameters
  Humidity

  Temperature
• Displays
  No

  2-line display
• IP Protection
  IP 65
• Standards
  UKCA

  2011/65/EU RoHS II

  2012/19/EU WEEE

  2014/30/EU EMC

  2014/35/EU Low Voltage
• Power supply
  24 Vac/Vdc or 100-240 Vac
• Outputs
  2 x 4-20 mA or 2 x 0-20 mA or 2 x 0-5 V or 2 x 0-10 V (4 wires)
• Relay
  2 changeover relays 3 A / 230 V
• Ethernet communication
  No
• ModBus network
  No

Instrument Dimensions

• Length
  125 mm
• Width
  59.2 mm
• Height
  115 mm
• Weight
  340 g



Operating temperature

• Min
  -10.00 °C
• Max
  50.00 °C

Storage temperature

• Min
  -10.00 °C
• Max
  70.00 °C
