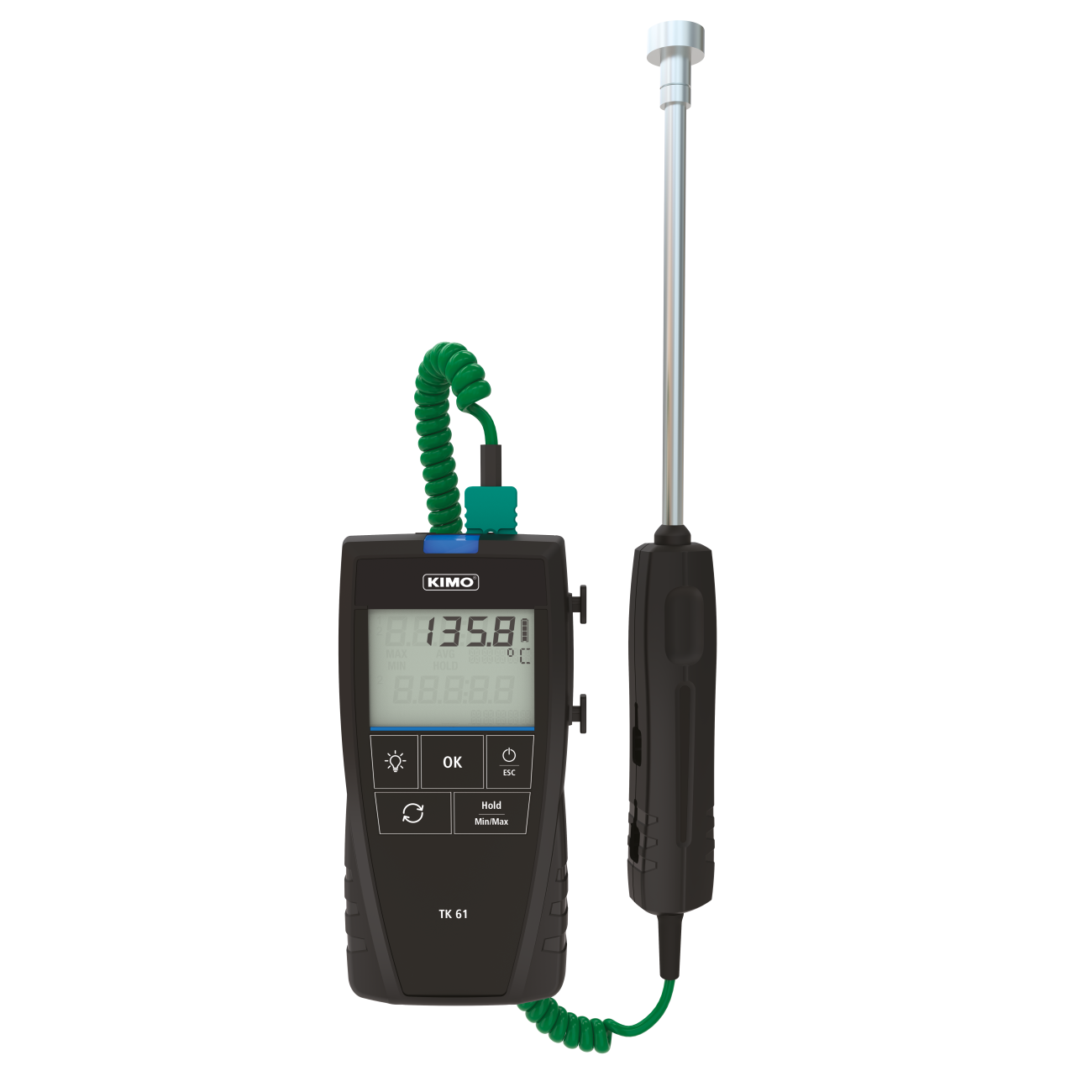

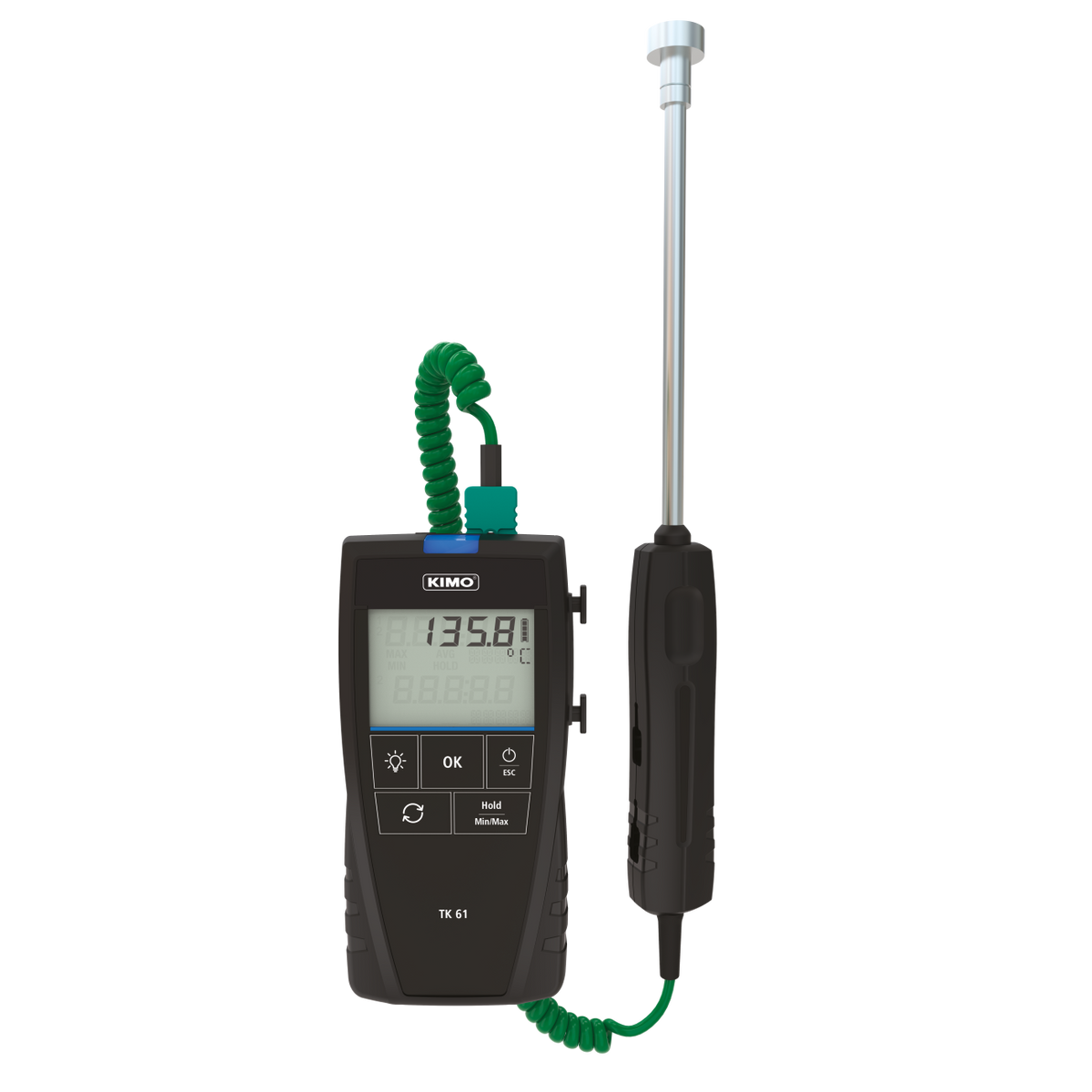

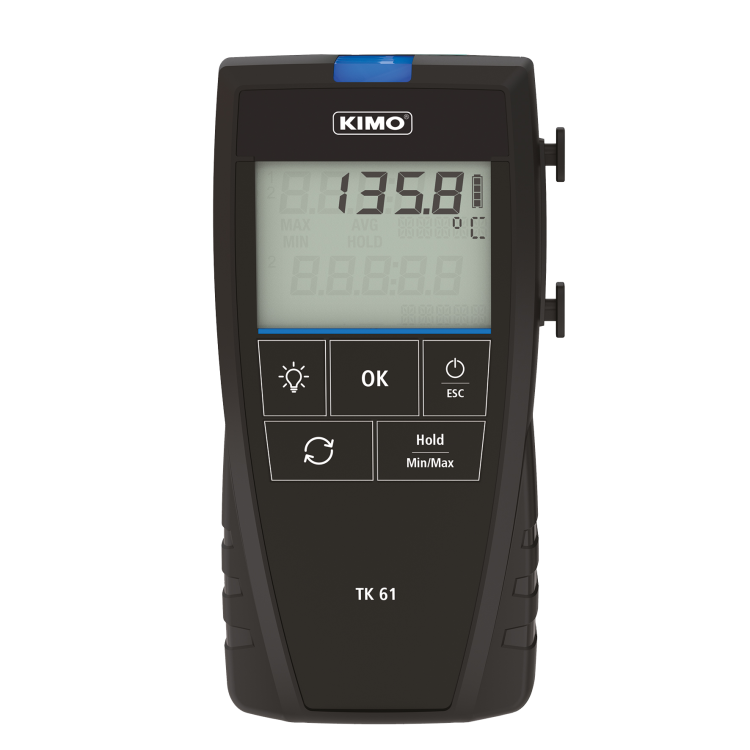

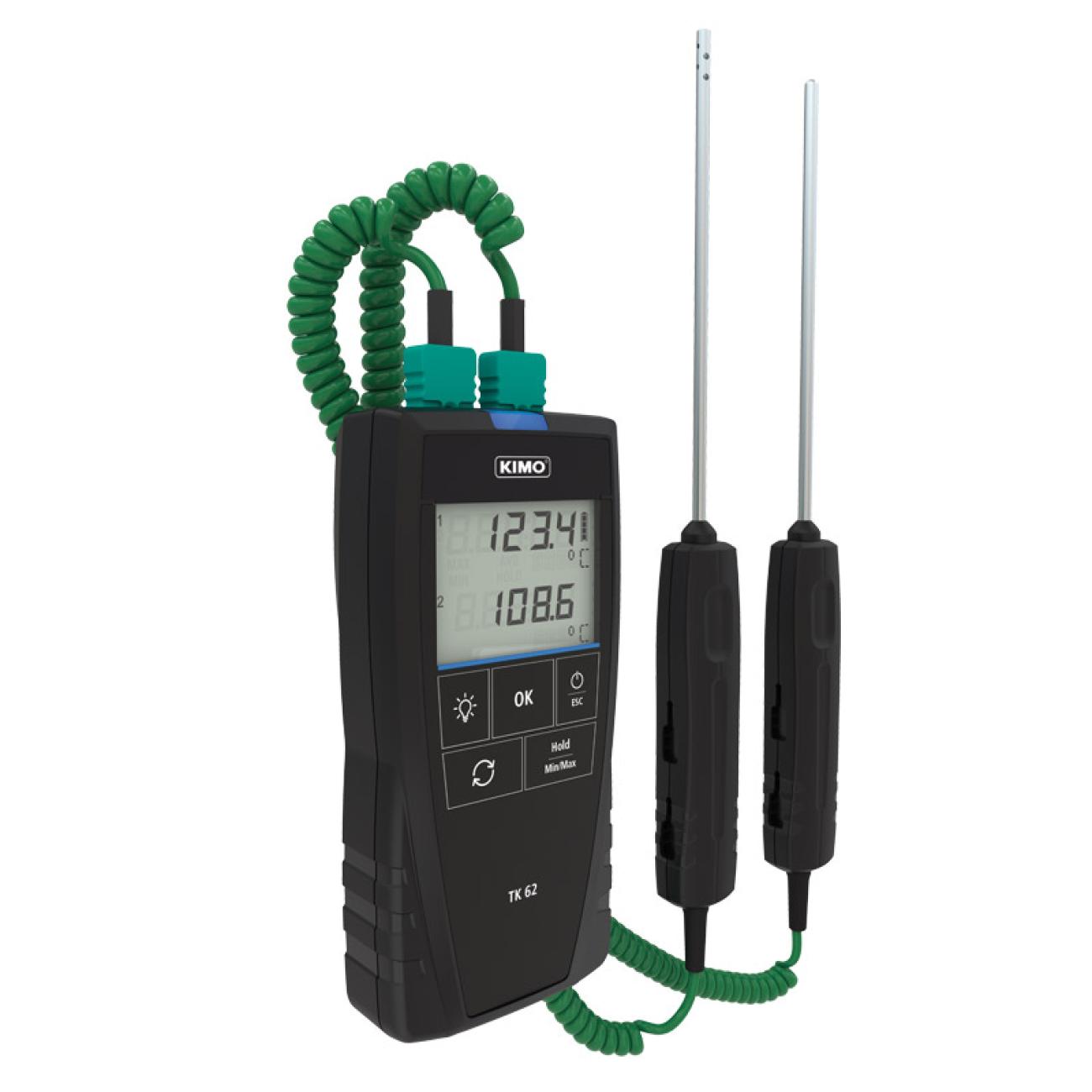

TK 61 / TK 62 Thermocouple thermometer

Thermocouple thermometer

Overview

Kimo’s TK 61/62 digital thermometers are designed to accurately measure air temperature using an assortment of thermocouples.

Probe(s) not included, sold separately.

Measure details

• Units
  °F, °C



Measuring ranges

• Thermocouple temperature
  -200.00 °C ... 1300.00 °C
• Thermocouple temperature
  -100.00 °C ... 750.00 °C
• Thermocouple temperature
  -200.00 °C ... 400.00 °C
• Thermocouple temperature
  0.00 °C ... 1760.00 °C
• Thermocouple temperature
  -328.00 °F ... 2372.00 °F
• Thermocouple temperature
  -148.00 °F ... 1382.00 °F
• Thermocouple temperature
  -328.00 °F ... 752.00 °F
• Thermocouple temperature
  32.00 °F ... 3200.00 °F

Technical details

• Parameters
  Temperature
• Displays
  4-line display
• IP Protection
  IP 54
• Battery life
  180 hours
• Standards
  FCC part 15

  UKCA

  2011/65/EU RoHS II

  2012/19/EU WEEE

  2014/30/EU EMC

  2014/35/EU Low Voltage
• Power supply
  4 batteries AAA LR03 1.5 V
• Protective cover
  No
• Interchangeable module
  No

Instrument Dimensions

• Length
  5 13/16 inches

  147.9 mm
• Width
  3 1/32 inches

  76.7 mm
• Height
  1 11/32 inches

  34.2 mm
• Weight
  15/32 pounds

  210 g



Operating temperature

• Min
  0.00 °C
• Max
  50.00 °C
