TLB PROFINET IO Digital weight transmitter (RS485 - Profinet IO)
Regular price
418.00 € (ex VAT)
GENERAL FEATURES

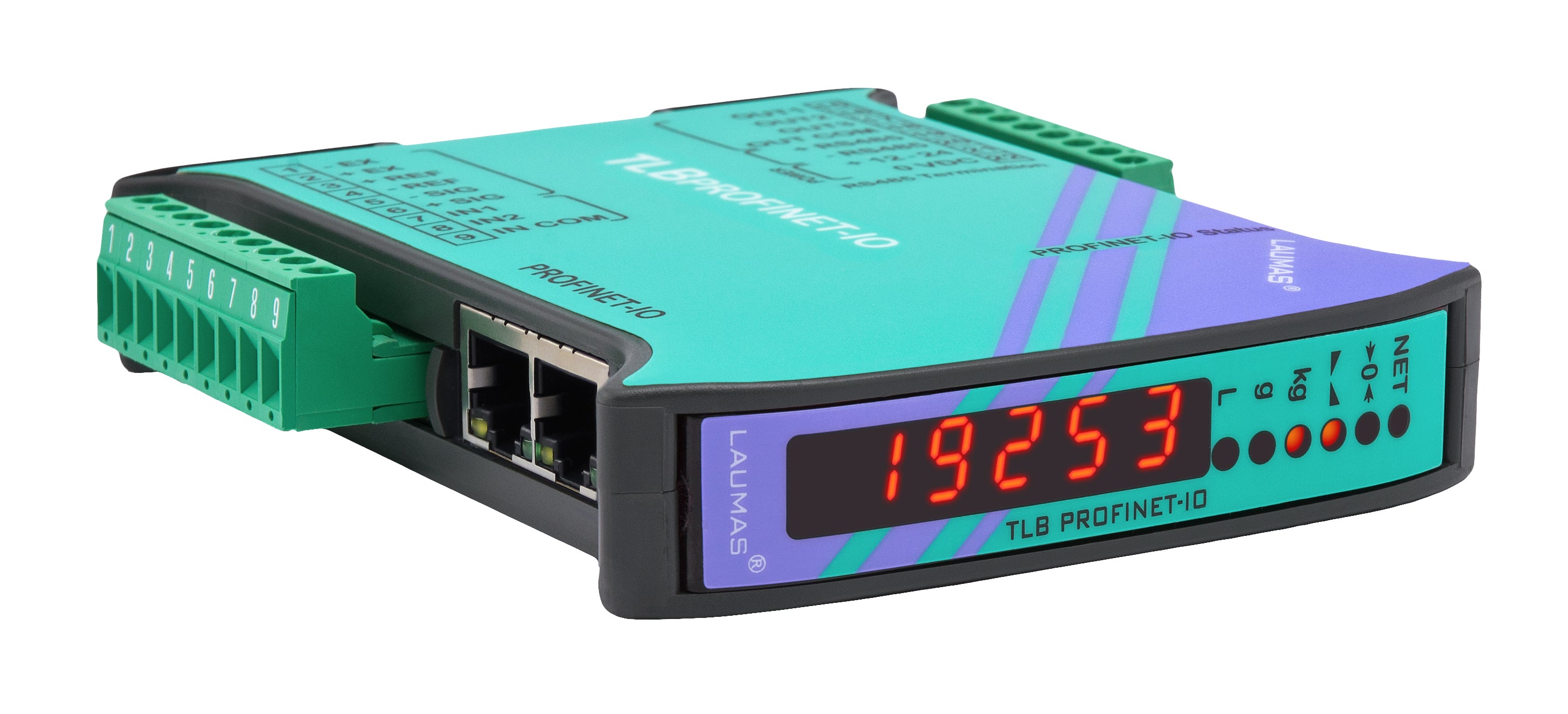

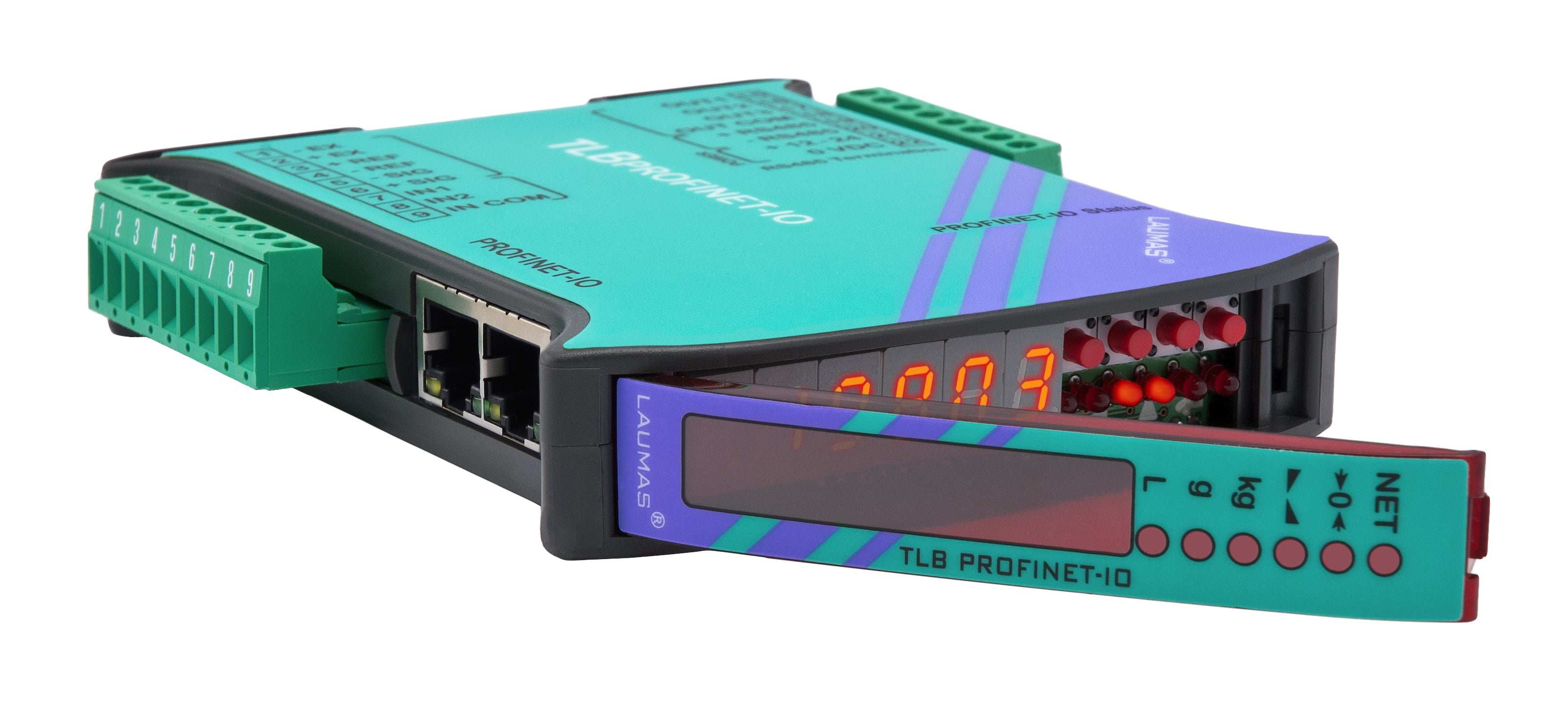

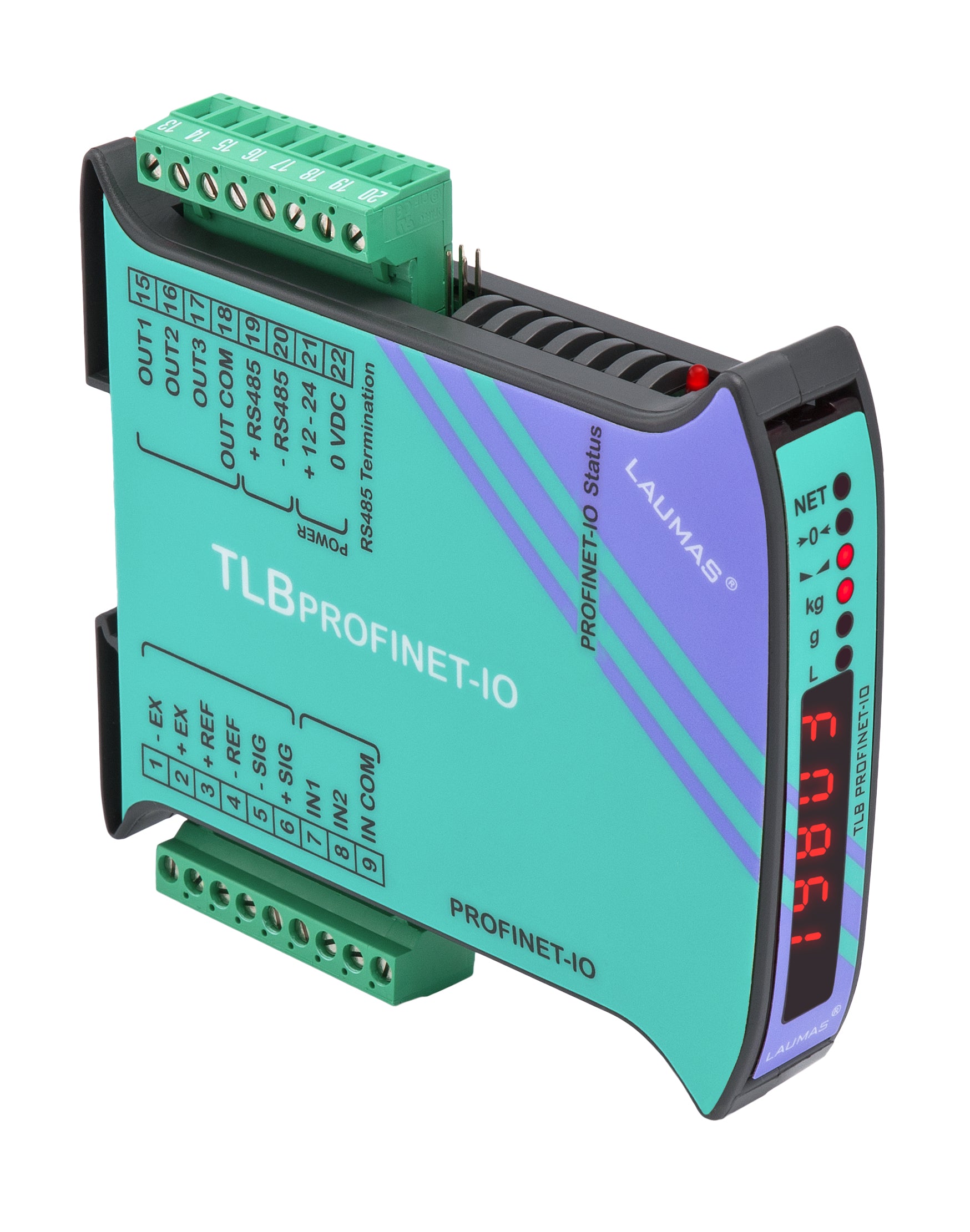

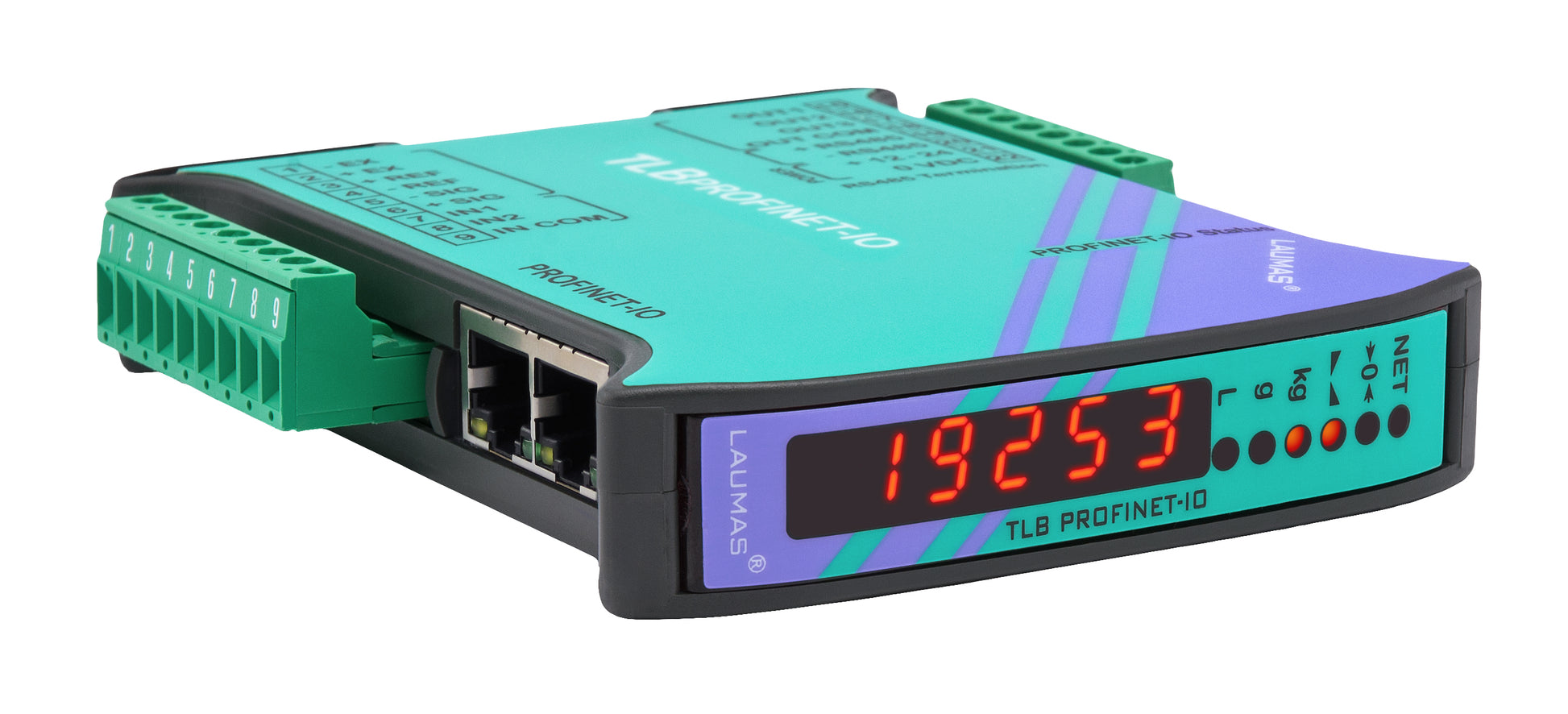

Weight transmitter/indicator with six-digit red LED display (8 mm height). Space saving compact design. Four buttons for the system calibration. Six indicator led. Dimensions: 25 x 115 x 120 mm.
- Two PROFINET IO ports
- RS485 port (Modbus RTU/Laumas ASCII protocol)
- 2 logic inputs, 3 relay outputs
- OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
- OIML R61 - WELMEC Guide 8.8:2011 (M.I.D.)
- Back panel mounting on Omega/DIN rail
- A/D converter 24bit (16000000 points) 4.8 kHz
- Display range 999999
Files
Manuals available on request
TLB PROFINET IO manual TLB PROFINET IO CE-M approved legal for trade - installer manual TLB PROFINET IO CE-M approved legal for trade - user manual TLB Protocols - manual TLB Protocols - CE-M approved - manual
