TLB4 Modbus/TCP Digital weight transmitter (RS485 - Modbus/TCP)
Regular price
429.00 € (ex VAT)
GENERAL FEATURES

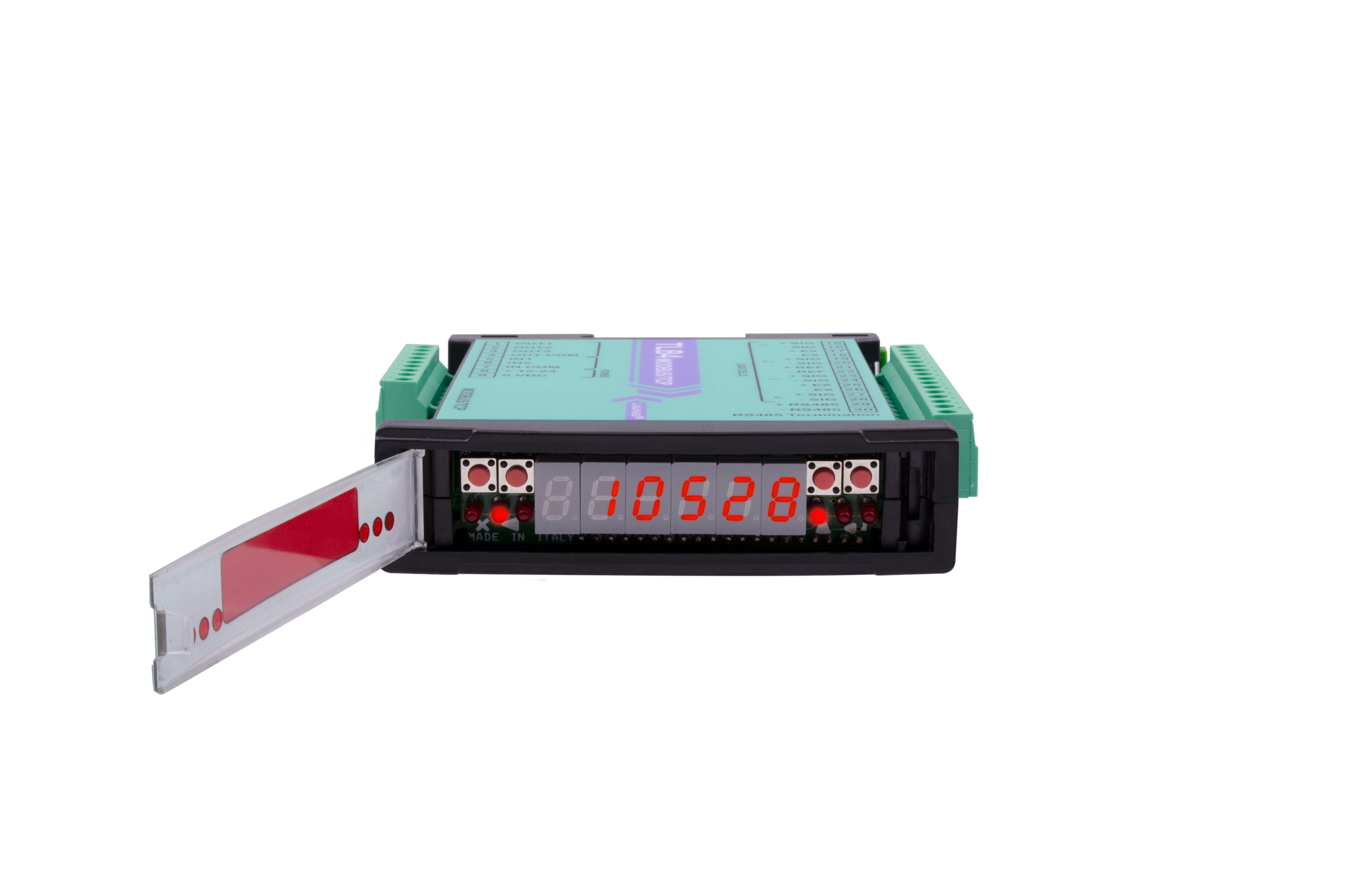

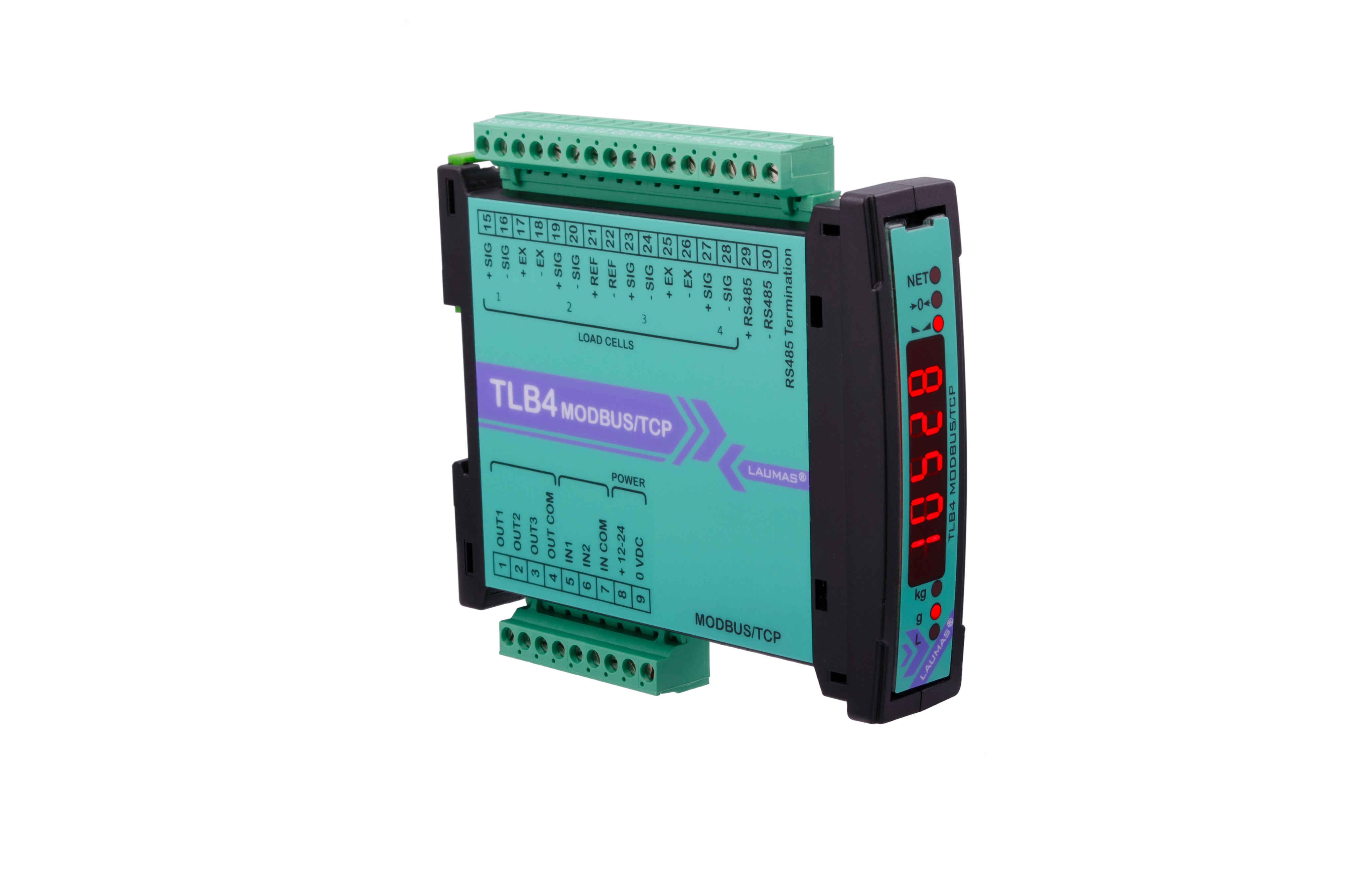

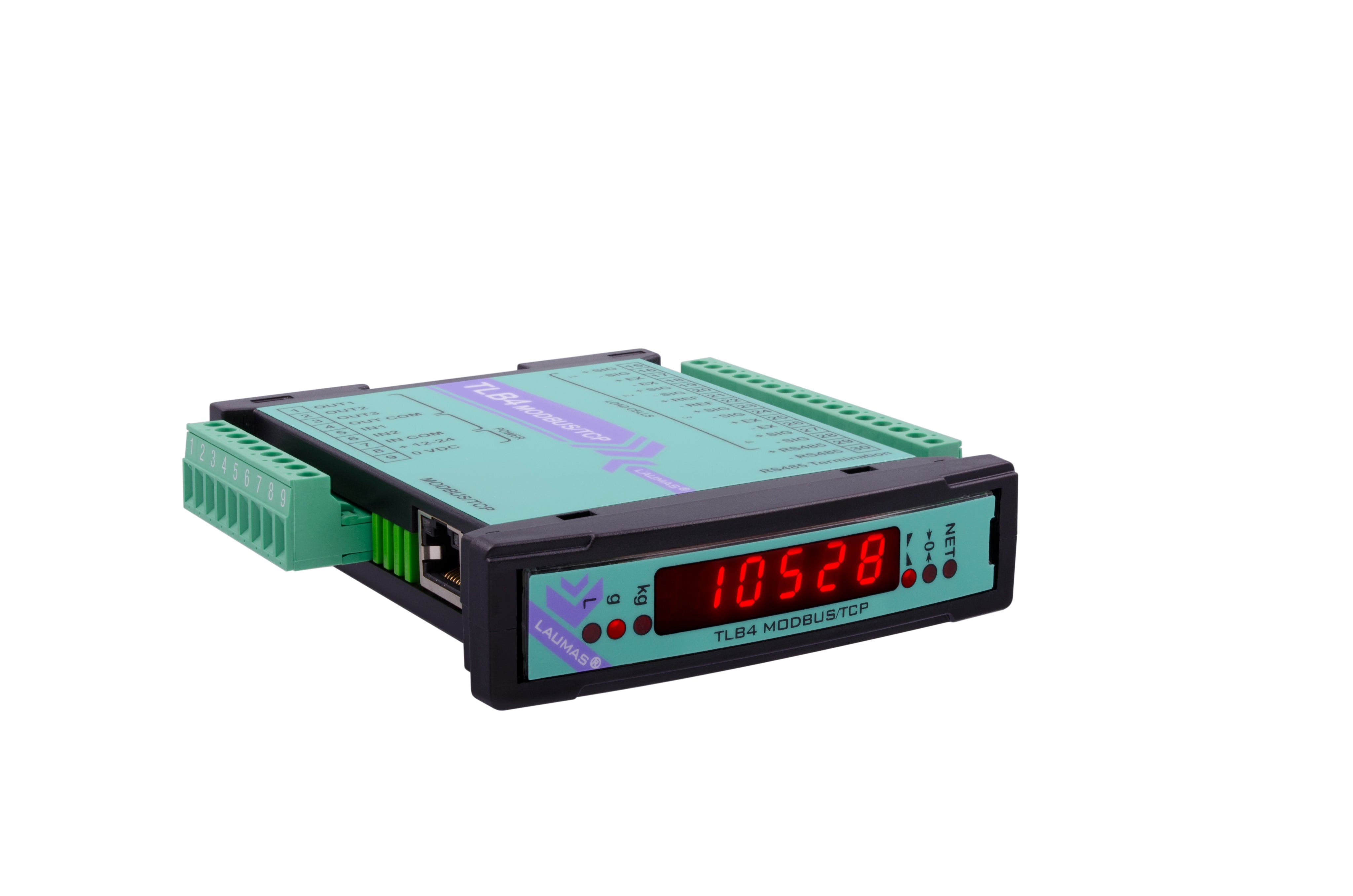

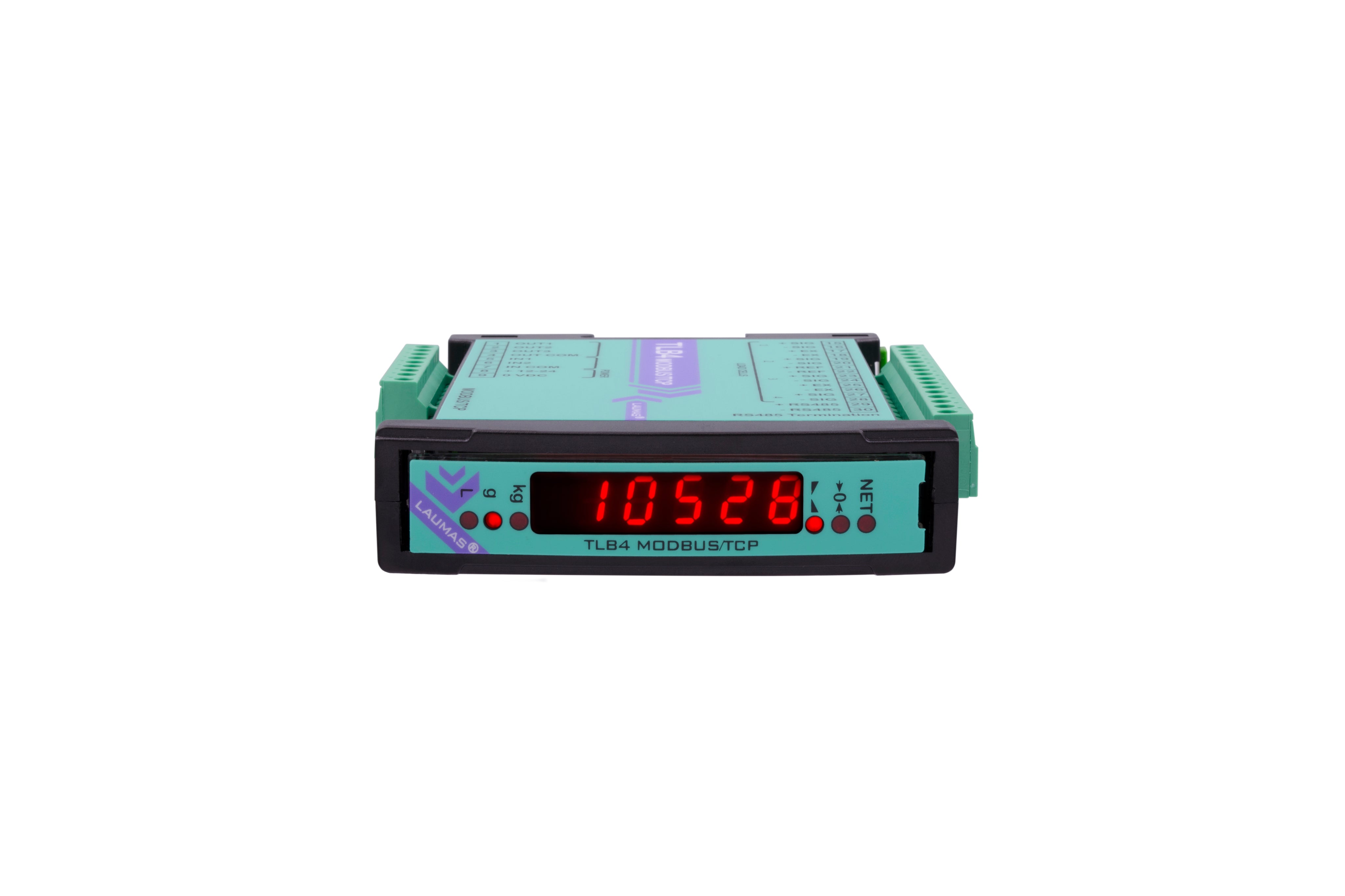

Weight transmitter/indicator with six-digit red LED display (8 mm height). Space saving compact design. Four buttons for the system calibration. Six indicator led. Dimensions: 26 x 115 x 120 mm.
4 independent reading channels for load cells (individual load cell monitoring, total weight displaying, digital equalization). - Modbus/TCP port
- RS485 port (Modbus RTU/Laumas ASCII protocol)
- 2 logic inputs, 3 relay outputs
- OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
- Back panel mounting on Omega/DIN rail
- Mounting on Omega/DIN rail for front/back panel
- 4 channels A/D converter 24bit (16000000 points) 4.8 kHz
- Display range
Files
Manuals available on request
TLB4 MODBUS/TCP manual TLB4 MODBUS/TCP CE-M approved legal for trade - installer manual TLB4 MODBUS/TCP CE-M approved legal for trade - user manual TLB4 Protocols - manual TLB4 Protocols - CE-M approved - manual
