GENERAL FEATURES

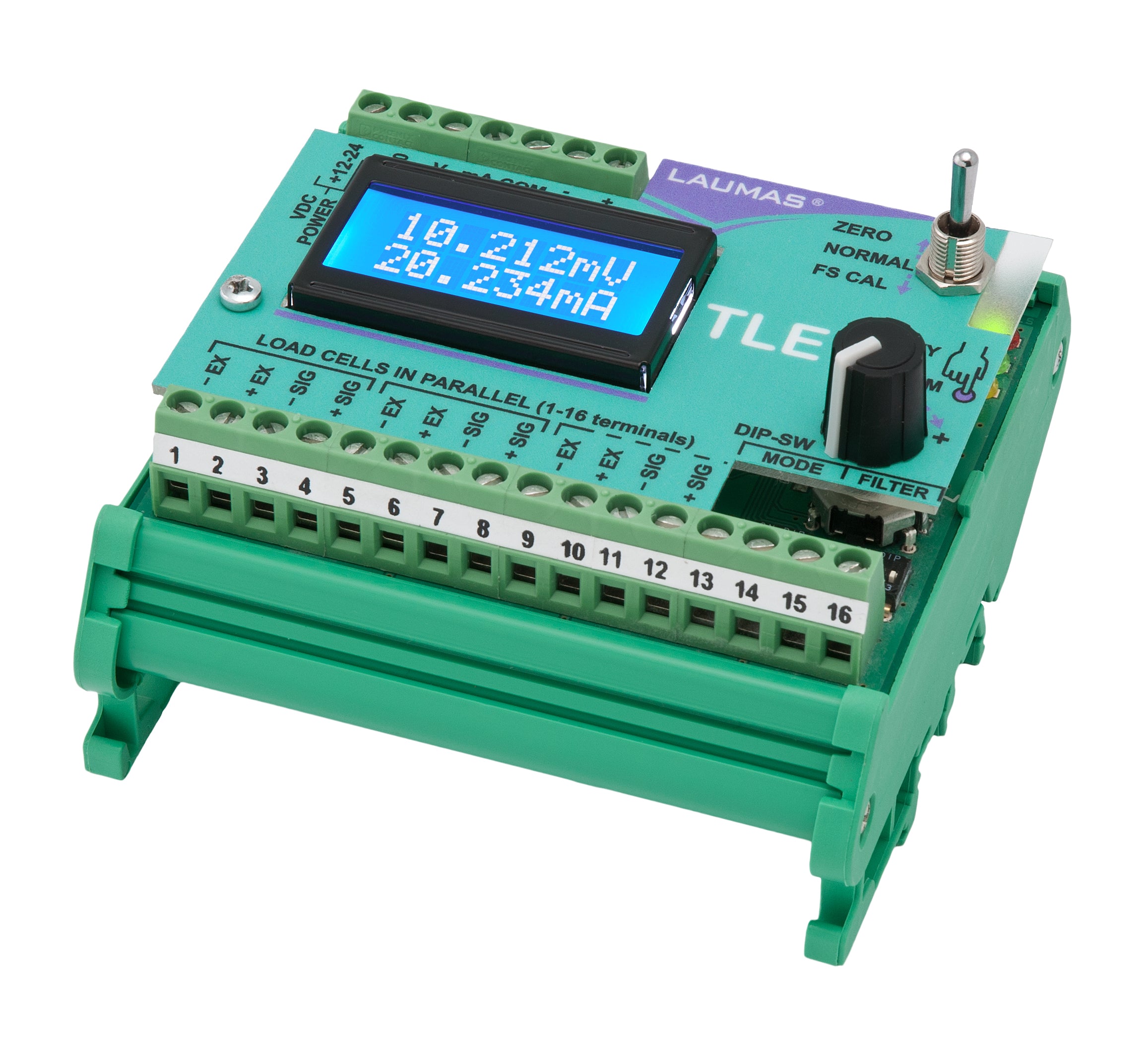

Weight transmitter with backlit LCD display, 38x16 mm, two-line by eight-digit (5 mm height). Dimensions: 90 x 95 x 60 mm.
- 16-bit Analog output: 0/4-20 mA; 0-5/10 V; ±5/10 V
- RS485 port (Modbus RTU)
- Simple zero setting and full scale through digital rotary control (Encoder)
- Mounting on Omega/DIN rail for back panel or junction box
- Box versions: IP67, IP67 ATEX II 3GD
- A/D converter 24bit (16000000 points) 4.8 kHz
- Display range 999999
Suitable for applications which need fast reply time (refresh time 0.003 – 4 sec. / 10 - 300 Hz).
Display mV displaying, load cells and analog output value (V or mA).
Possibility to perform theoretical calibration or real calibration with sample weights.
