GENERAL FEATURES

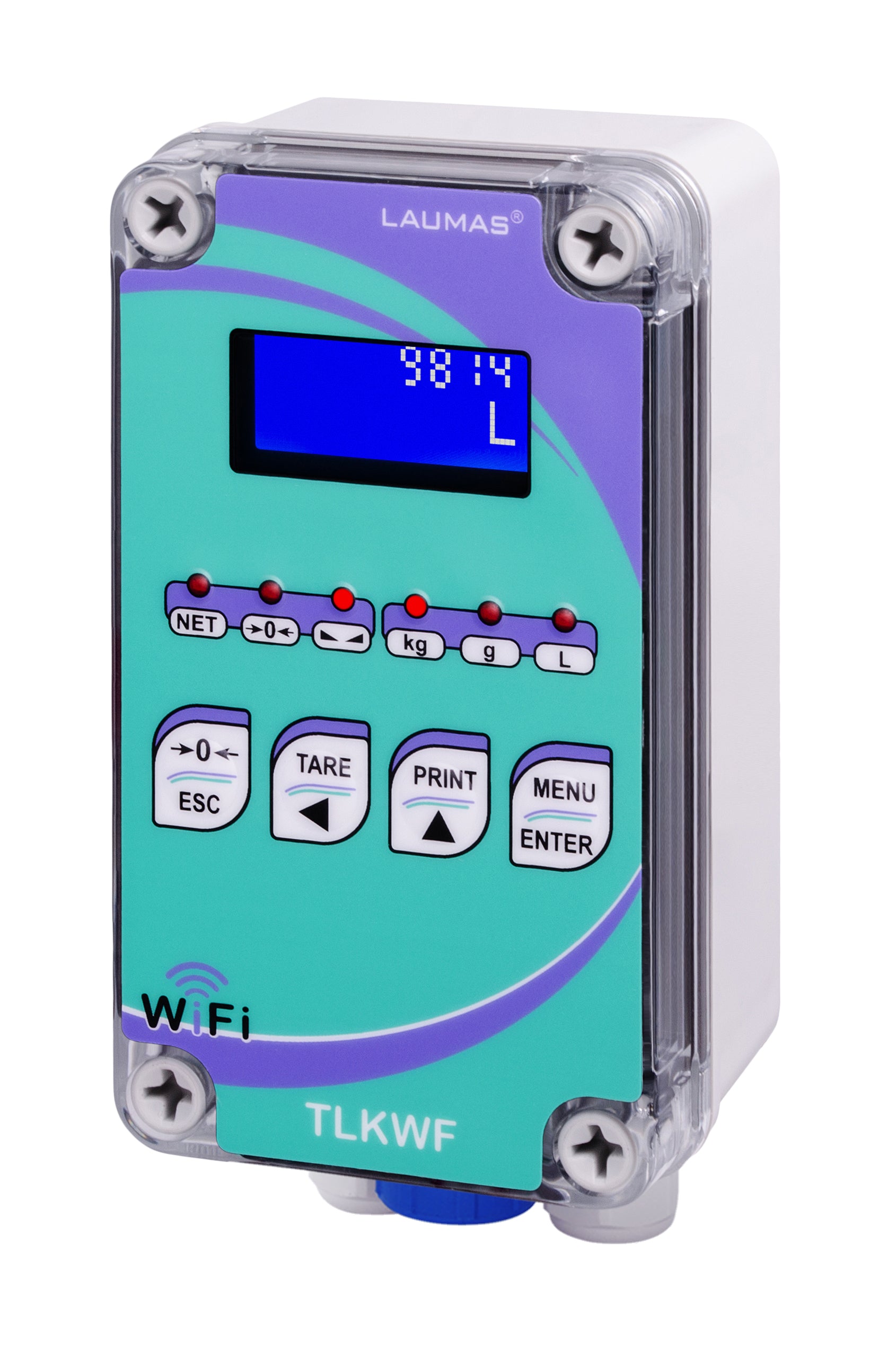

WiFi weight transmitter into IP67 case with backlit LCD display, 38x16 mm, two-line by eight digit (5 mm height). Four-key keypad for the system calibration. Six indicator LED. 2 M16x1.5 cable glands. Dimensions: 170 x 80 x 65 mm (centre distance 120x60 mm).
- Wifi module for wireless connection via integrated web server (for remote management to PC, smartphone, tablet, etc.) or via Modbus RTU/Laumas ASCII protocol.
- RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
- Connectable to others TLKWF devices and W series Laumas instruments with OPZW1RADIO optional
- 2 digital inputs, 4 relay digital outputs
- 1 load cell input
- Wall mounting
- A/D converter - 24bit (16000000 points) 4.8 kHz
- Display range 999999
Optional features:
- Rechargeable internal/external battery
Files
Manuals available on request
TLKWF manual TLKWF CE-M approved legal for trade - installer manual TLKWF CE-M approved legal for trade - user manual TLKWF Protocols - manual TLKWF Protocols - CE-M approved - manual
