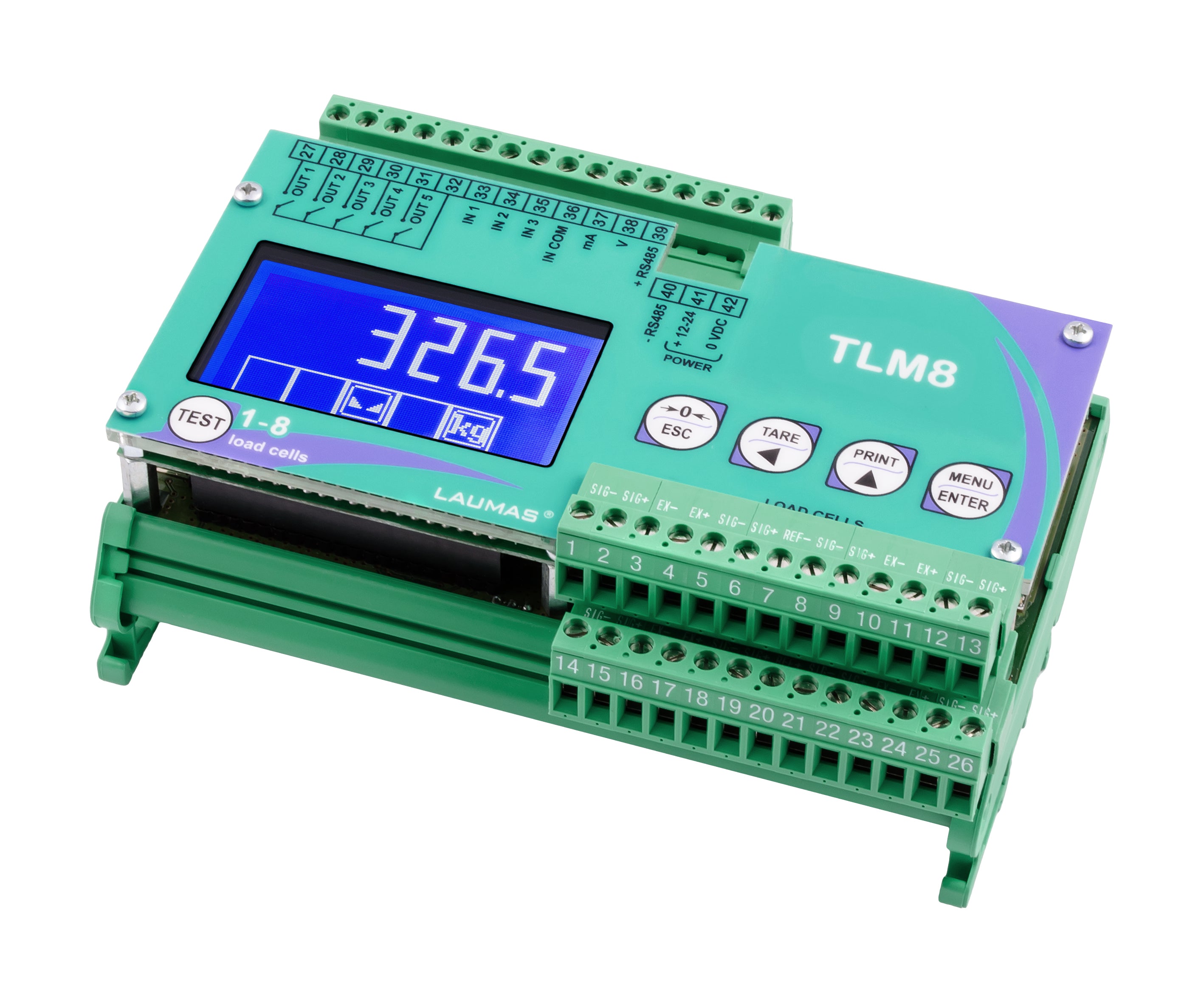

TLM8 Digital-Analogue weight transmitter (RS485) 8 Channels for load cells
Regular price
357.00 € (ex VAT)
GENERAL FEATURES
Weight transmitter with backlit graphic LCD display, 60x32 mm, 128x64 pixels. Four-key keypad for the system calibration. TEST key for direct access to the diagnostic functions. Dimensions: 148 x 92 x 60 mm.
The TLM8 offers the benefits and performance of an advanced digital weighing system even using analog load cells. 8 independent reading channels for load cells. Digital equalization. Automatic diagnostics.- 16-bit Analog output: 0/4-20 mA; 0-5/10 V
- RS485 port (Modbus RTU/Laumas ASCII protocol)
- 3 logic inputs, 5 relay outputs
- OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
- Mounting on Omega/DIN rail for back panel or junction box
- Hygienic version RPSCQC authorized by 3-A SSI
- 8 channels A/D converter - 24bit (16000000 points) 4.8 kHz
- Display range 999999
Files
Manuals available on request
TLM8 manual TLM8 CE-M approved legal for trade - installer manual TLM8 CE-M approved legal for trade - user manual TLM8 Protocols - manual TLM8 Protocols CE-M approved - manual
